GRM1555C1HR62CZ01D datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GRM1555C1HR62CZ01D

GRM1555C1HR62CZ01D: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 40.32% +Tol, 40.32% -Tol, C0G, 30ppm/Cel TC, 0.00000062uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM1555C1HR62CZ01D Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 40.32% +Tol, 40.32% -Tol, C0G, 30ppm/Cel TC, 0.00000062uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT

GRM1555C1HR62CZ01D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1837136780
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	6.2e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	40.32%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	40.32%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal shape	WRAPAROUND
width	0.5 mm

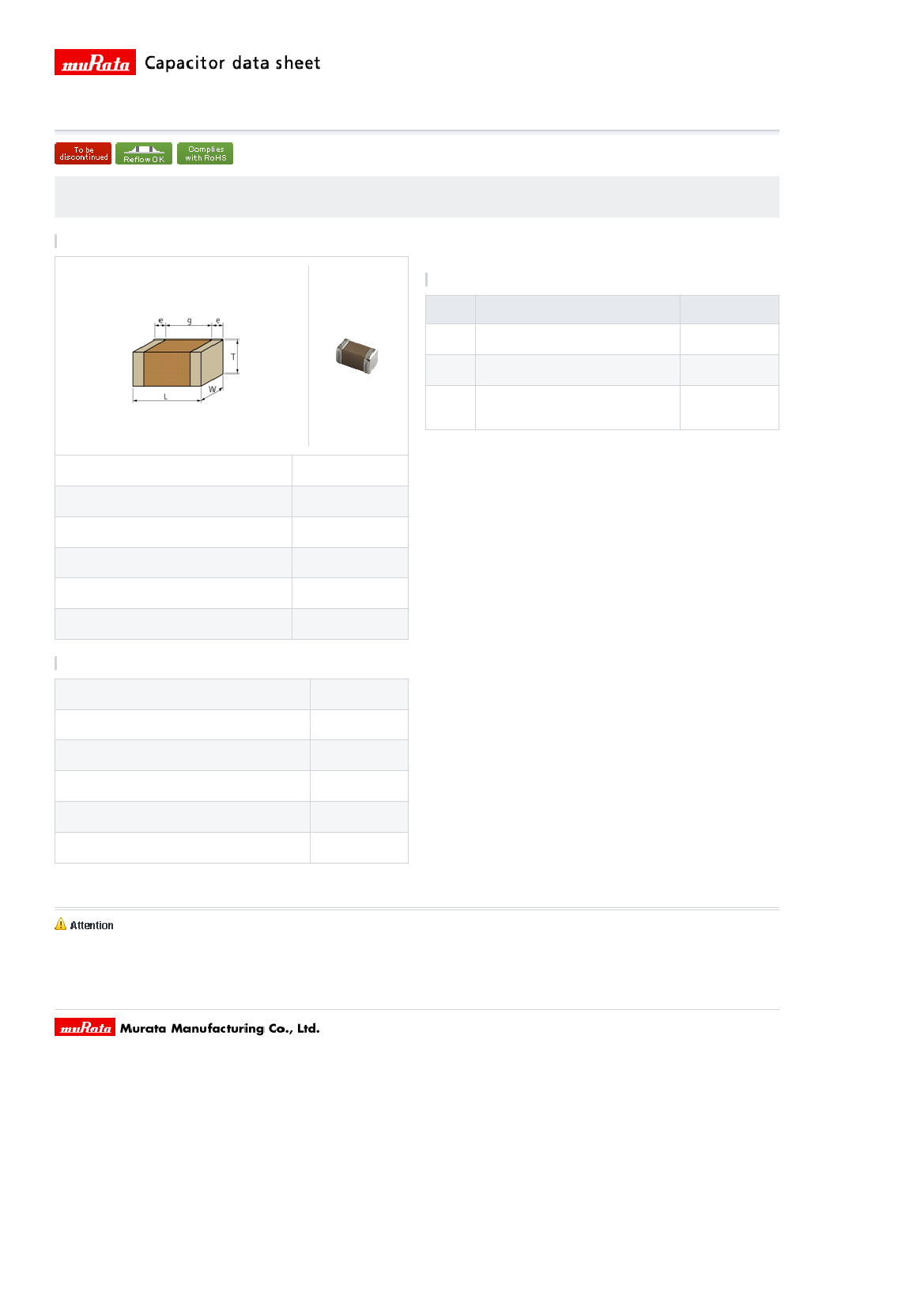

Preview

Download Datasheet

View All

GRM1555C1HR62CZ01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM1555C1HR62CZ01D , GRM1555C1HR62CZ01W , GRM1555C1HR62CZ01J

Shape

References

Packaging

Specifications

φ180mm Paper taping

φ330mm Paper taping

φ180mm Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

10000

50000

20000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

1.0 ±0.05mm

0.5 ±0.05mm

0.15 to 0.35mm

0.3mm min.

0402 (1005)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

0.62pF ±0.25pF

50Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20

GRM1555C1HR62CZ01D Related Products

	GRM1555C1HR62CZ01D	GRM1555C1HR62CZ01J	GRM1555C1HR62CZ01W
Description	Ceramic Capacitor, Multilayer, Ceramic, 50V, 40.32% +Tol, 40.32% -Tol, C0G, 30ppm/Cel TC, 0.00000062uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 40.32% +Tol, 40.32% -Tol, C0G, 30ppm/Cel TC, 0.00000062uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 40.32% +Tol, 40.32% -Tol, C0G, 30ppm/Cel TC, 0.00000062uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Objectid	1837136780	1837136781	1837136782
package instruction	, 0402	, 0402	, 0402
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
capacitance	6.2e-7 µF	6.2e-7 µF	6.2e-7 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC
high	0.5 mm	0.5 mm	0.5 mm
length	1 mm	1 mm	1 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes
negative tolerance	40.32%	40.32%	40.32%
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT
method of packing	TR, PAPER, 7 INCH	TR, PAPER, 13 INCH	TR, PAPER, 7 INCH
positive tolerance	40.32%	40.32%	40.32%
Rated (DC) voltage (URdc)	50 V	50 V	50 V
size code	0402	0402	0402
surface mount	YES	YES	YES
Temperature characteristic code	C0G	C0G	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
width	0.5 mm	0.5 mm	0.5 mm
