DTSMW-69R-Q-T/R: DescriptionKeypad Switch, SPST, Vertical, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight,; CategoryMechanical and electronic products switch; File Size2MB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

DTSMW-69R-Q-T/R Overview

Keypad Switch, SPST, Vertical, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight,

DTSMW-69R-Q-T/R Parametric

Parameter Name	Attribute value
Objectid	1506684361
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	RED
Actuator length	0.15 inch
Actuator type	PUSHBUTTON
body width	6.1976 mm
body height	2.8448 mm
Body length or diameter	6.2992 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	500000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

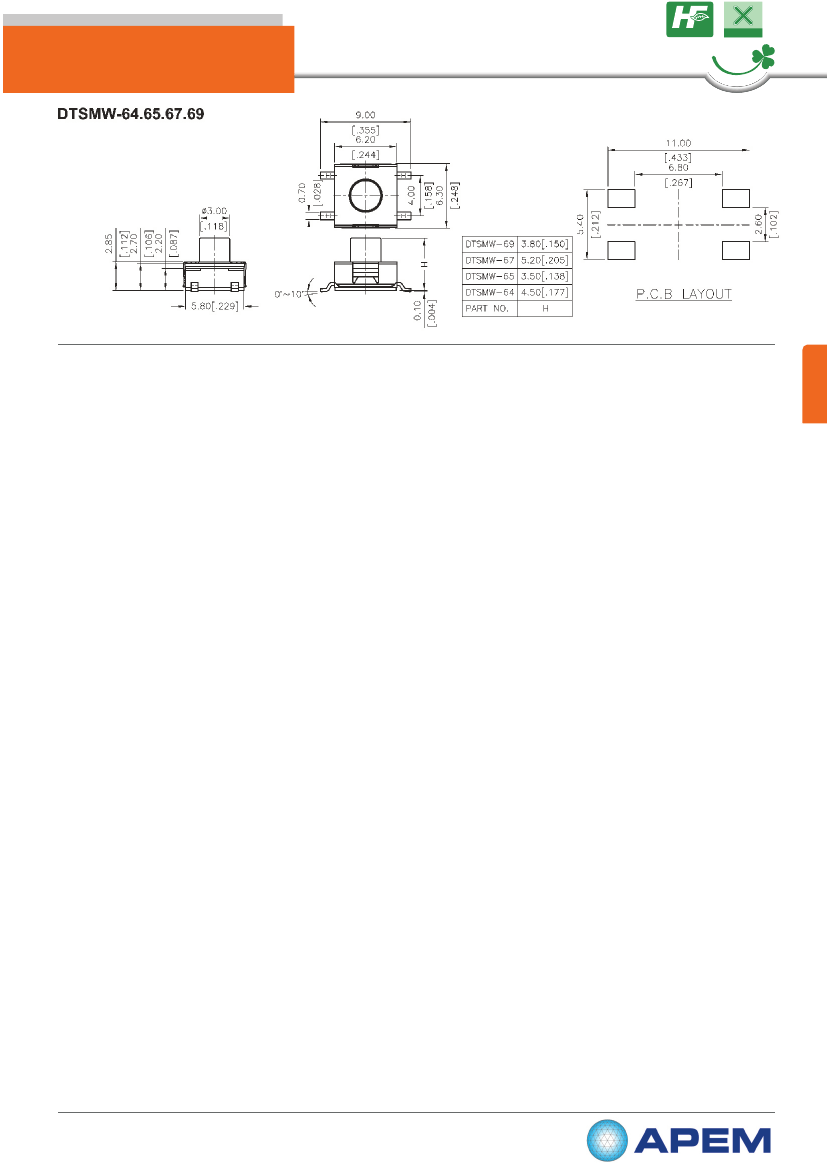

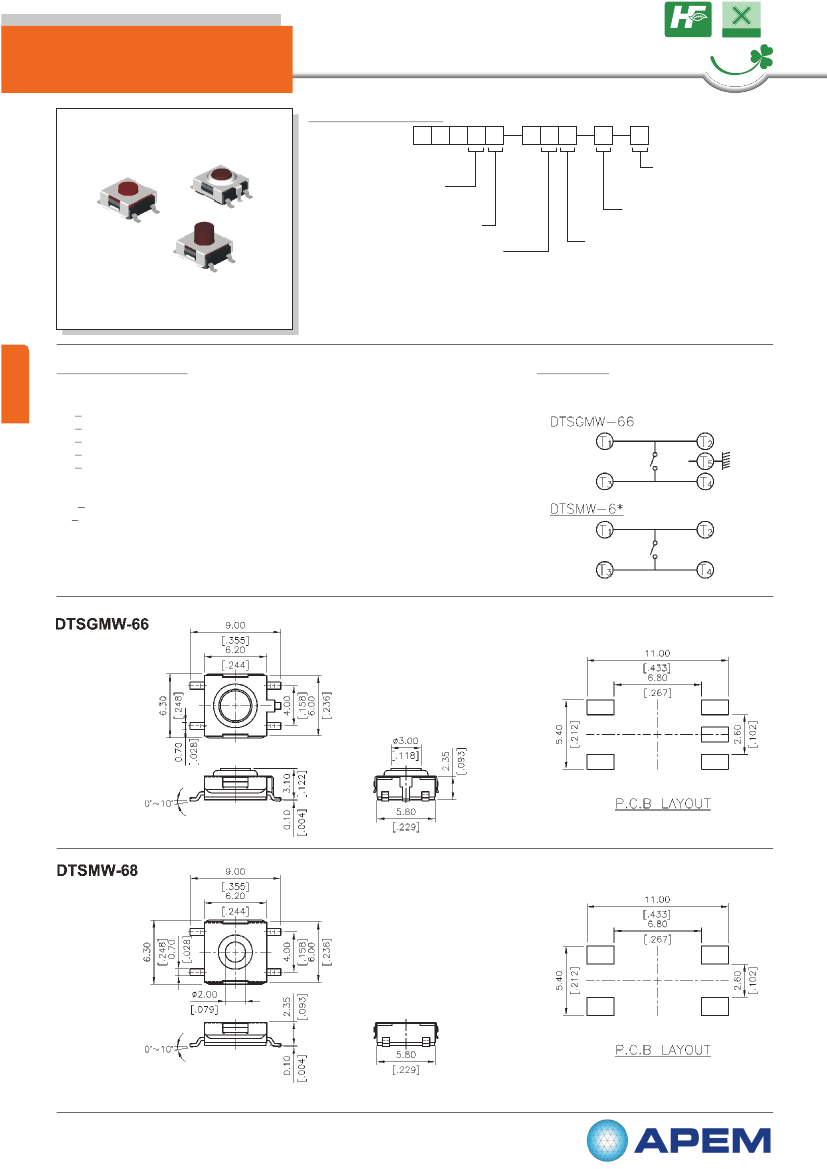

DTS(G)MW-6

SERIES

6x6 Gull-Wing SMT

Washable Type

HOW TO ORDER

D

T

S

W

6

Halogen Free

LEAD FREE

Pb

RoHS

Compliant

M=Surface Mounting Terminals

GM=S.M.T & With Ground Terminal

(66, 65 Only)

Washable

Dimension H:

4=4.5mm (N, R)

5=3.5mm (N, R, T)

6=3.1mm (N, R)

7=5.2mm (N, R, T)

77=7.7mm (N, T)

8=2.3mm (S)

9=3.8mm (N, R, T)

Package:

B=Tube

T/R=Tape & Reel

V=RoHS & Lead Free Solderable

Q=Halogen Free

Operating Force:

N=Brown, 160gf(66N)

180gf

(69N, 67N, 65N, 64N, 677N)

S=Silver, 160gf(68S)

R=Red, 260gf(69R, 67R, 66R, 65R, 64R)

T=Transparent, 360gf

(69T, 67T, 65T, 677T)

SPECIFICATION

MECHANICAL

Operation Force:

360+90gf, Transparent (T), 69, 67, 65, 677

260+70gf, Red (R), 69,67,66,65,64

180+50gf, Brown (N), 69,67,65,64, 677

160+50gf, Brown (N), 66

160+50gf, Silver (S), 68

Stroke:

0.25 +0.20 / - 0.1 mm 68S, 66N, 66R, 677

0.45+0.2mm, [69, 67 N/R], [65, 64N/R/T]

0.6+0.2mm, 69, 67T

ENVIRONMENTAL

o

Operation Temperature Range : -25C to +70C

o

Storage Temperature Range : -30C to +80C

Sealed IP57

ELECTRICAL

Electrical Life:

500,000 cycles min. for 69, 67, 65, 64, 677

100,000 cycles min. for 66,68

Rating: 50mA, 12VDC

PACKAGE

Tube: 75 pcs/tube

DTSGMW-66: 2000 pcs/reel

DTSMW-68, 66: 2000 pcs/reel

DTSMW-69, 65: 1900 pcs/reel

DTSMW-67, 64: 900 pcs/reel

DTSMW-677: 650 pcs/reel

CIRCUIT

TACT SWITCH

65
