REVISION BT
TSM-1XX-XX-XXX-SV-XX-XXX-XX
No OF POSITIONS
-02 THRU -50
OPTION #3
-P: PICK & PLACE PAD (SEE FIG. 3)
[USE PPP-07](4 POS MINIMUM
OR -02 & -03 POS WITH -TR)
(SEE NOTE 7)
-TR: TAPE & REEL (SEE NOTE 7)
(-02 THRU -22 POS)
DO NOT
SCALE FROM
THIS PRINT
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
C
(No OF POS x .100[2.54])
.000[.00]
.015[.38]
(No OF POS -1) x .100[2.54]
02
.100 2.54 REF
01
5 MAX SWAY
(TYP)
TSM-XX-SV
-T: MATT TIN CONTACT AND TAIL
-S: SELECTIVE, 30 Au / 50 Ni MIN ON
OPTION #2
CONTACT, MATTE TIN TAIL
-G: GOLD, 10 Au / 50 Ni MIN ON CONTACT,
POLARIZED POSITION: SPECIFY PIN OMITTED
3 Au / 50 Ni MIN ON TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
OPTION #1
CONTACT, MATTE TIN ON TAIL
-LC: LOCKING CLIP (SEE FIG. 1)(SEE NOTE 8)
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
[USE LC-08-TM-02](-02 THRU -36 POS: 2 PER STRIP,
CONTACT, MATTE TIN TAIL
-02 POS: 1 PER STRIP)
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON
-A: ALIGNMENT PIN (SEE FIG. 2)
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-TL: TIN / LEAD (90/10+/-5%) CONTACT AND TAIL
ROW SPECIFICATION
[LEAD STYLE -01 & -02 ONLY]
-SV: SINGLE VERTICAL (USE TSM-XX-SV-XX)
-STL: SELECTIVE, 30 Au / 50 Ni MIN ON
CONTACT, TIN/LEAD (90/10+/-5%) TAIL
[LEAD STYLE -01 & -02 ONLY]
-TM: MATTE TIN CONTACT AND TAIL
-SM: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-SS: STRIPE SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL (SEE NOTE 9)
2 MAX TOE
(TYP)
2 MAX SWAY
(EITHER DIRECTION)
T-1S6-XX-X-2
.025 0.64 SQ REF
(TYP)
C
"F"
(CONTACT AREA)
"B" .008[.20]
(SEE TABLE 1
& NOTE 5)
C
90°
- 0°
(TYP)
.050±.010 1.27±0.25
(TYP)
.006
"B"
C
+5°
IN-PROCESS
.100 2.54 REF
.099 2.51
NOTES:
1.
2.
3.
4.
C
.002[.05]
.005[.13]
.010 0.25 REF
-2) x .100[2.54]
C
LC-08-TM-02
2 MAX SWAY
(EITHER DIRECTION)
.056 1.42 REF
C
REPRESENTS A CRITICAL DIMENSION.
(No OF POS
COPLANARITY TO BE WITHIN .006[.15].
BURR ALLOWANCE: .0015[.038] MAX.
MAXIMUM CUT FLASH: .015[.38] MAXIMUM ON TOP & SIDES OF BODY
AND .030[.76] MAXIMUM ON SURFACE MOUNT SIDE OF BODY.
5. POST HEIGHT VARIATION BETWEEN ANY TWO PINS: .005[.13] MAXIMUM.
6. MAXIMUM ALLOWABLE BOW: .002[.05] INCH/INCH AFTER ASSEMBLY.
7. LEADS MAY NOT BE VISIBLE FOR CUSTOMER VISUAL INSPECTION WITH -P
OPTION ON SMALLER POSITIONS PARTS.
8. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION.
9. -01 LEAD STYLE ONLY, MATES WITH SSW, SSQ, BCS, SSM, ESW, ESQ.
10. MINIMUM PUSHOUT FORCE: 2LB. [8.90 N]
"D" MAX
(SEE TABLE 1
& NOTE 5)
"E" REF
TSM-112-02-XXX-SV-LC SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
FIG 1
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
INSULATOR:
LCP, UL 94 VO
COLOR: BLACK
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1

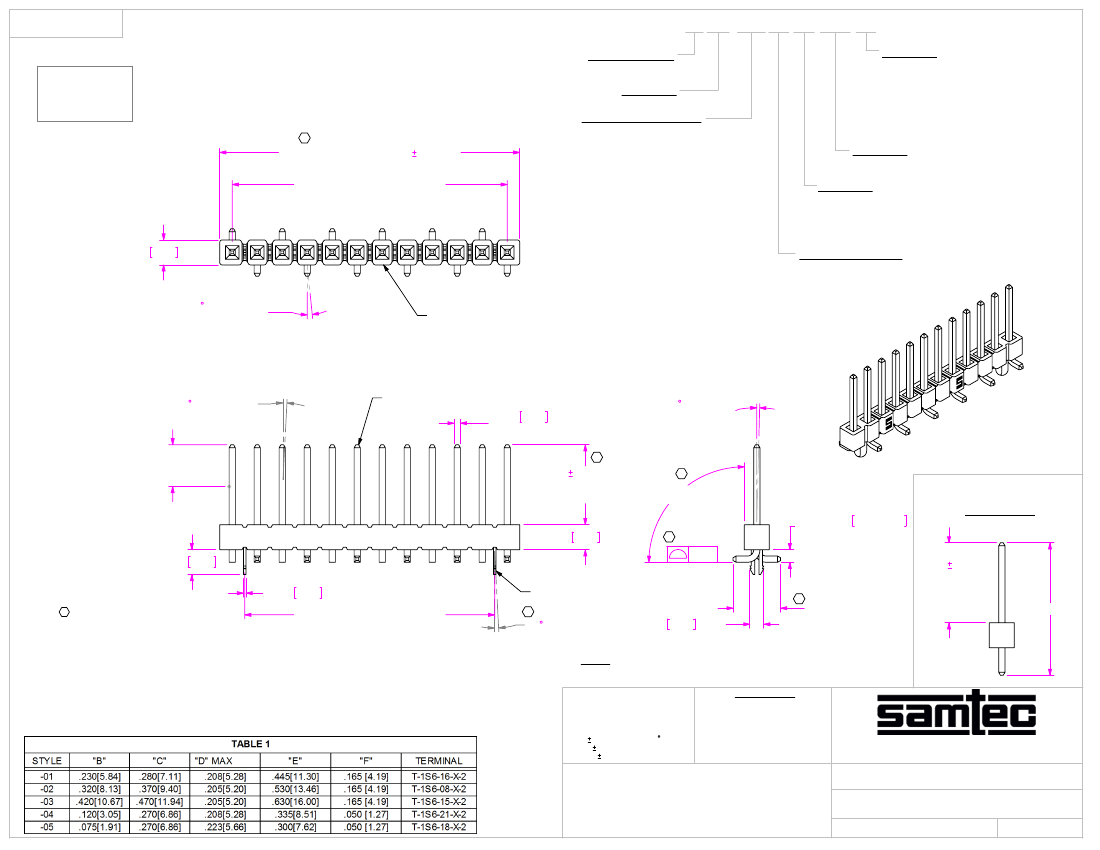

SINGLE ROW .100 SMT ASSEMBLY
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\TSM-1XX-XX-XXX-SV-XX-XXX-XX-MKT.SLDDRW
TSM-1XX-XX-XXX-SV-XX-XXX-XX
8/21/2002
SHEET
1
OF
2
BY:
DEAN P
REVISION BT
FIG 3
-P: PICK & PLACE PAD OPTION
4 POSITION MINIMUM
[PLACE PAD ON CENTERLINE AS SHOWN]
FIG 4

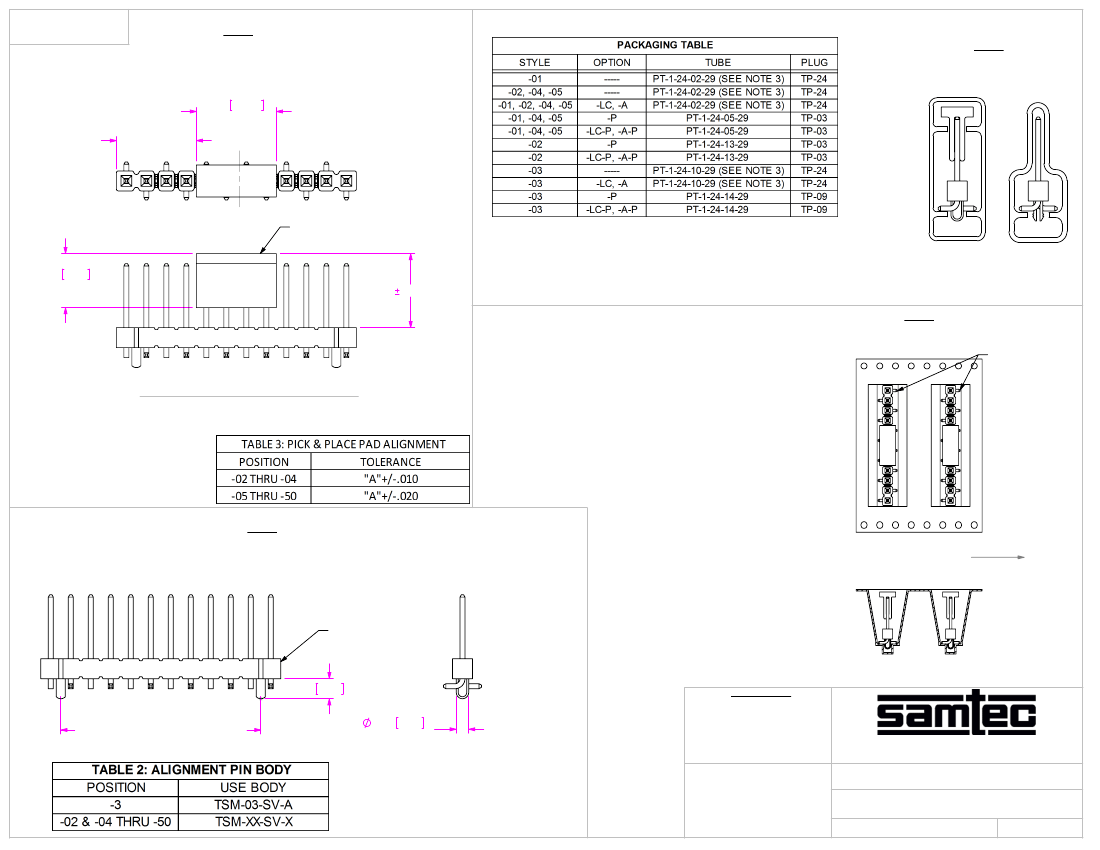

TUBE PACKAGING
.400 10.16
REF
"A"
(SEE TABLE 3)
C
L
PPP-07
.270 6.86
REF
"C" .010[.25]
NOTES:
1. LOAD PARTS POSITION 1 FIRST IN SAME DIRECTION AS ARROW.
2. NOTE DELETED
3. PACKAGE POSITIONS -04 THRU -36.
4. POLARIZED 4 POSITION PARTS WITHOUT PADS ARE TO BE LAYER PACKAGED
OR PACKAGED IN TAPE AND REEL.
FIG 5
-TR: TAPE & REEL PACKAGNG OPTION
POS 1 (TOWARD
ROUND HOLE)
"A" = (No OF POSITIONS x .100[2.54]) - .400[10.16]
2
FIG 2
-A: ALIGNMENT PIN OPTION
TSM-112-02-X-SV-A SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1]
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
SEE TABLE 2
.100 2.54 REF
.062 1.57
REF
F:\DWG\MISC\MKTG\TSM-1XX-XX-XXX-SV-XX-XXX-XX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
(No OF POS -2) x .100[2.54] REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SINGLE ROW .100 SMT ASSEMBLY
SHEET SCALE: 2:1
TSM-1XX-XX-XXX-SV-XX-XXX-XX
8/21/2002
SHEET
2
OF
2
BY:
DEAN P
