REVISION DK
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM POST HEIGHT VARIATION: .005[0.13].
3. LOAD PARTS POS 1 IN SAME DIRECTION AS ARROW.
4. TUBE POSITIONS 03 THRU 50.
5. TAPE & REEL AVAILABLE ON POSITION 02 THRU 28 ONLY.
LEADS MAY NOT BE VISIBLE FOR CUSTOMER'S VISUAL
INSPECTION ON SMALLER POSITIONED PARTS WHEN USED
WITH THE -P OR -M OPTIONS.
6. MEASURE AT BEND RADIUS.
7. MINIMUM PUSHOUT FORCE: 3 LBS.
8. FOR -TV USE T-31724-01.
9. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED,
THE -LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT.
SAMTEC RECOMMENDS MANUAL PLACEMENT FOR ALL
ASSEMBLIES WITH THE -LC OPTION.
10. ONLY AVAILABLE ON -01-DV OPTION, MATES ONLY WITH
SSM, SSW, SSQ, BCS, ESW AND ESQ.
11. MAXIMUM CUT FLASH: .005[0.13]
12. THIS DIMENSION TO BE MEASURED RELATIVE TO DATUM -Z-.
TSM-1XX-XX-XXX-XX-X-XXX-X
No OF POSITIONS
-02 THRU -50
LEAD STYLE
(SEE TABLE 1)
PLATING SPECIFICATION
-T: MATTE TIN ON ENTIRE PIN.
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-G: 10µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-TL: TIN/LEAD (90/10) ON ENTIRE PIN.
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA,
TIN/LEAD (90/10) ON TAIL.
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-H: 30µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-TM: MATTE TIN ON ENTIRE PIN.
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-SS: 30µ" STRIPE SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL. (SEE NOTE 10)
RTSM-50-DVU
*
OPTION #3
(NOT AVAILABLE WITH -TV & -TM MOUNT STYLES)
-P: PICK AND PLACE PAD
(USE PPP-06, SEE FIG 4, SHT 2)
(AVAILABLE ON POS -04 THRU -36, -50)
(AVAILABLE ON POS -02 & -03 WITH -TR
OPTION ONLY, SEE NOTE 5)
-M: METAL PICK AND PLACE PAD
(USE LMP-01, SEE FIG 5, SHT 2)
(NOT RECOMMENDED WITH -T OR -TM PLATING)
(LEAD STYLES -01 & -04 ONLY)
(AVAILABLE ON POS 04 THRU 36)
(AVAILABLE ON POS 02 AND 03 WITH -TR
OPTION ONLY, SEE NOTE 5)
-TR: TAPE AND REEL (SEE FIG 8, SHT 3)
(02 THRU 28 POS)
OPTION #2
POLARIZED POSITION
SPECIFY OMITTED PIN
OPTION #1
(AVAILABLE FOR -DV MOUNT STYLE ONLY)
-LC: LOCKING CLIP (SEE FIG 2, SHT 2)
(USE LC-05-TM)
(-03 THRU -36 POS, USE 2 PER STRIP)
(-02 POS, USE 1 PER STRIP)
(USE RTSM-XX-DVU)
(SEE NOTE 9)
-A: ALIGNMENT PIN (SEE FIG 3, SHT 2)
(FOR MOLDED TO POSITION, USE RTSM-XX-DVU-XX BODY)
(FOR STAKED, USE RTSM-50-DVU BODY, 5 POS MIN)
(LEAVE BLANK FOR NO HOLD DOWN OPTION)
USE RTSM-50-DVU SEE FIG 1, CAN BE CUT TO POSITION)
MOUNT STYLE
-DV: DOUBLE VERTICAL
* -TV: TRIPLE VERTICAL (-02 THRU -30 ONLY)
(USE HTSW-50-T-LCP, SEE NOTE 8)
-TM: TRIPLE MIXED TECHNOLOGY (-02 THRU -30 ONLY)
(USE HTSW-50-T-LCP, AVAILABLE ON -01 LEAD STYLE ONLY)
* FOR EXISTING CUSTOMERS ONLY
C
(NO OF POS x .100[2.54])
-.015[0.38]
(NO OF POS -1) x .100[2.54]
02
C
"C" MAX
(SEE TABLE 1)
01 03
C
+.000[0.00]
.200 5.08
REF
5 MAX SWAY
(EITHER DIRECTION)
.025 0.64 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
C
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
* = FOR EXISTING CUSTOMERS ONLY
"B"
(SEE TABLE 1
& NOTE 2)
3° (SEE NOTE 12)
-Z-
.050±.010 1.27±0.25 (TYP)
(SEE NOTE 6)
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
"B"
(SEE TABLE 1
& NOTE 2)
.100 2.54 REF
SEE TABLE 5

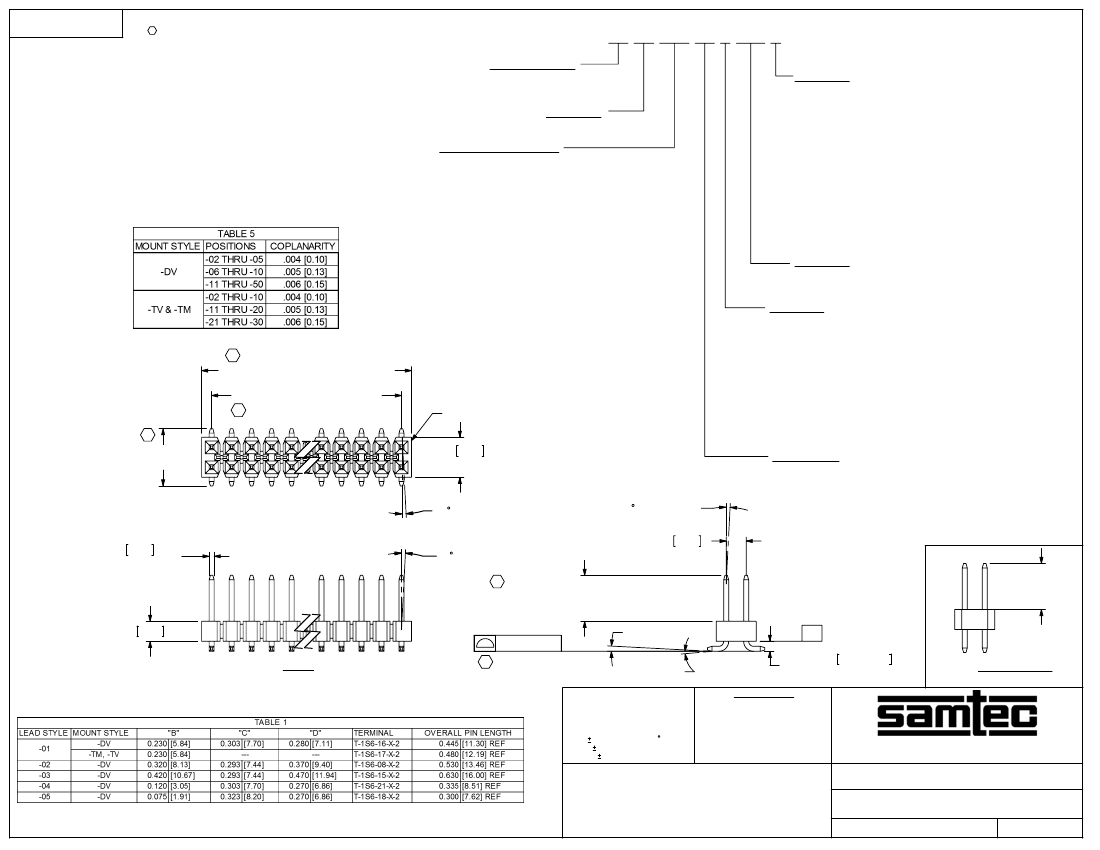

FIG 1
TSM-1XX-XX-XXX-DV SHOWN
C
5° (SEE NOTE 12)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
IN-PROCESS
-DV MOUNT STYLE
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL94VO, COLOR: BLACK
TERMINAL: PHOS BRONZE
DOUBLE ROW GULLWING ASM
TSM-1XX-XX-XXX-XX-X-XXX-X
BRYANT
04/24/1991
SHEET
1
OF
3
F:\DWG\MISC\MKTG\TSM-1XX-XX-XXX-XX-X-XXX-X-MKT.SLDDRW
BY:
REVISION DK
.045 1.14
REF
"A"
(SEE TABLE 3)
.110 2.79
LC-05-TM
2 MAX SWAY
(EITHER DIRECTION)
.063 1.60 REF
(NO OF POS -2) x .100[2.54]
(NO OF POS -2) x .100[2.54]
.048 1.21 REF
2 MAX SWAY
(EITHER DIRECTION)

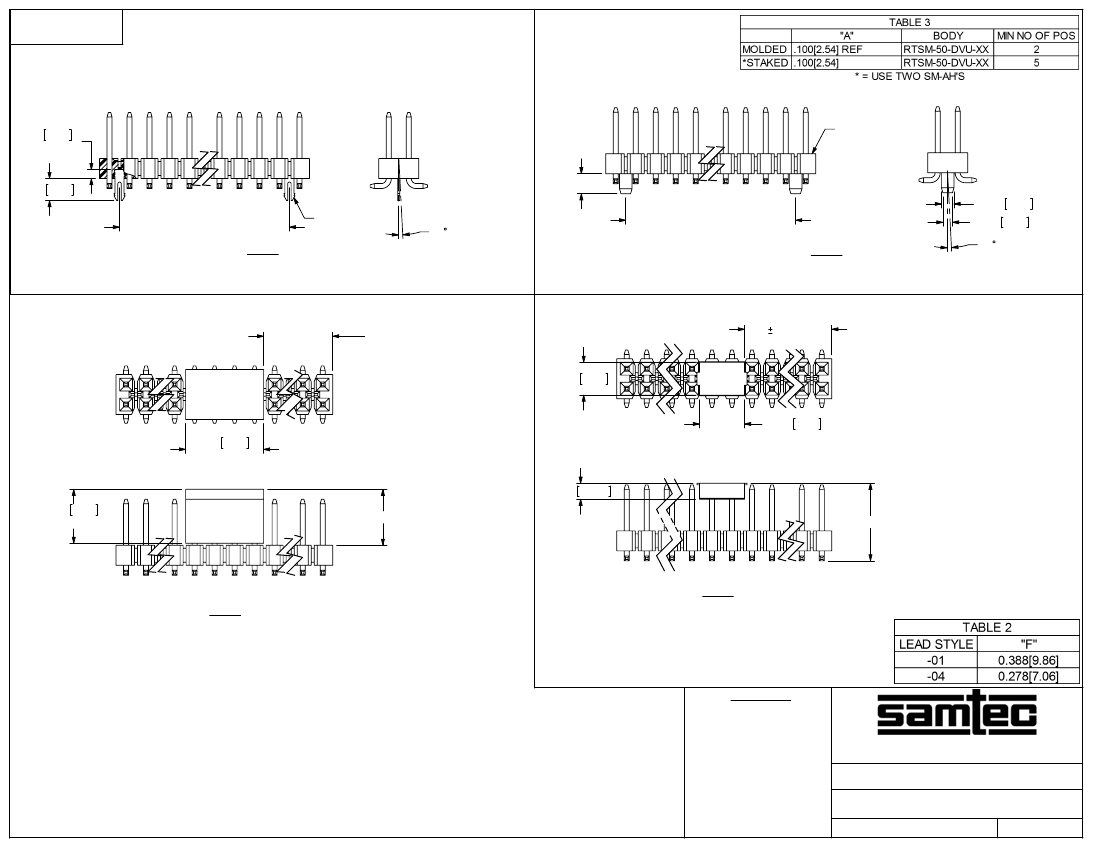

FIG 2
-LC: LOCKING CLIP
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
-A: ALIGNMENT PIN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"G"±.020[0.51]
"E" .020[0.51]
.164 4.17
.225 5.72 REF
.390 9.91
REF
.0790 2.007
.270 6.86
REF
"D"±.010[0.13]
"F"
FIG 4
-P: PICK AND PLACE PAD
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"G" = ((NO OF POS x .100[2.54]) - .390[9.91])/2
FIG 5
-M: METAL PICK AND PLACE PAD
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"E"=((NO OF POS x .100[2.54]) - .225[5.72]) / 2
NOTE:
HAND FILL USE LMP-01
MACHINE FILL USE LMP-01
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
DOUBLE ROW GULLWING ASM
SHEET SCALE: 2:1
TSM-1XX-XX-XXX-XX-X-XXX-X
BRYANT
04/24/1991
SHEET
2
OF
3
F:\DWG\MISC\MKTG\TSM-1XX-XX-XXX-XX-X-XXX-X-MKT.SLDDRW
BY:
REVISION DK
HTSW-50-T-LCP
.100 2.54
C .230 5.84
(SEE TABLE 2)
(SEE NOTE 2)
3° (SEE NOTE 12)
C
3°
(SEE NOTE 12)
(SEE TABLE 5, SHT 1)
.230
- .005
5.84
- 0.13
+.000
0.00
.100 2.54 REF
.150±.010 3.81±0.25
.050±.010 1.27±0.25 (TYP)
(SEE NOTE 6)
.450±.015 11.43±0.38
T-1S6-17-XXX-2
.150 3.81
REF

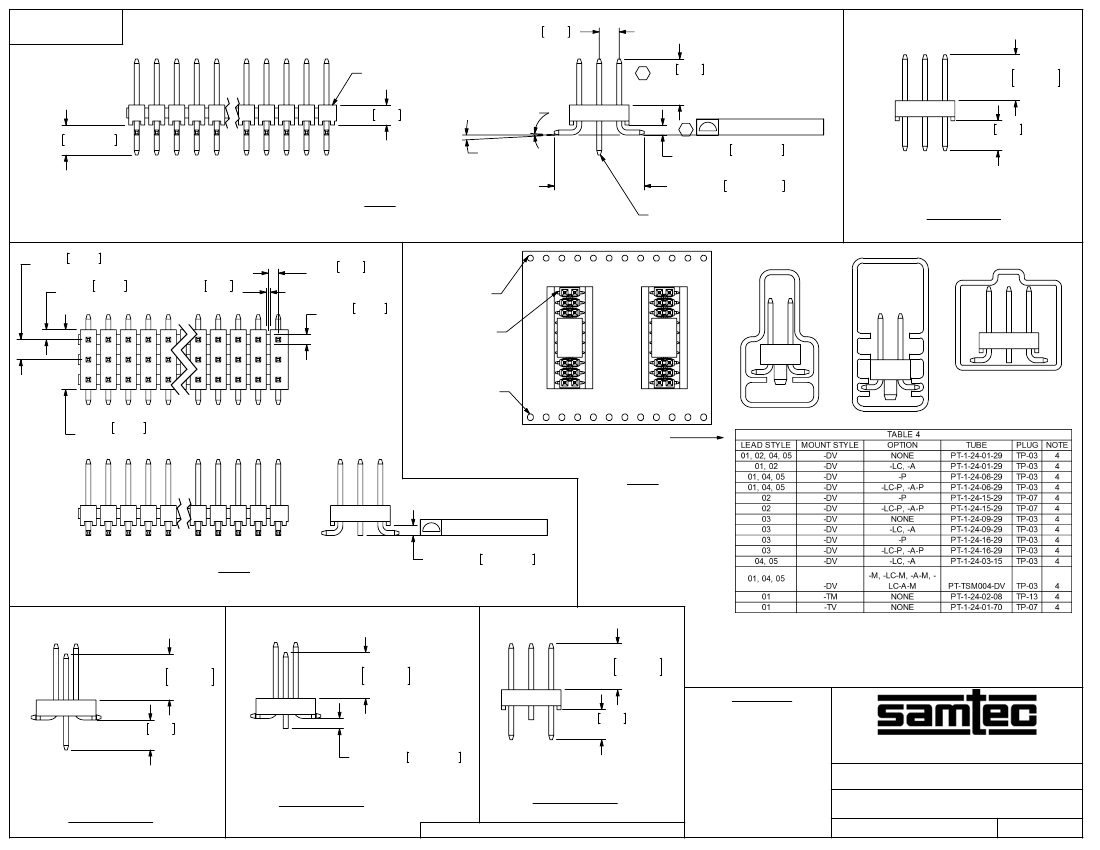

FIG 6
-TM: TRIPLE MIXED TECHNOLOGY
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
.1000 2.540
REF (TYP)
.0490 1.245
REF (TYP)
03
.020 0.51
REF (TYP)
IN-PROCESS
-TM MOUNT STYLE
.050 1.27
REF (TYP)
ROUND HOLES
.0500 1.270
REF (TYP)
PIN 1
01
.2980 7.569
REF (TYP)
OBLONG HOLES
USER DIRECTION OF UNREELING
POCKET NOT DETAILED
FIG 8
PACKAGING VIEWS
(SEE TABLE 5, SHT 1)
.050±.010 1.27±0.25
FIG 7
-TV: TRIPLE VERTICAL
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 6)
FOR EXISTING CUSTOMERS ONLY
+.000
.230
- .005
0.00
5.84
- 0.13
+.000
.230
- .005
0.00
5.84
- 0.13
.230
- .005
5.84
- 0.13
*
PROPRIETARY NOTE
*
+.000
0.00
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
.150 3.81
REF
.050±.010 1.27±0.25
.150 3.81
REF
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
DOUBLE ROW GULLWING ASM
IN-PROCESS 1
-TV MOUNT STYLE
IN-PROCESS 2
-TV MOUNT STYLE
IN-PROCESS 3
-TV MOUNT STYLE
F:\DWG\MISC\MKTG\TSM-1XX-XX-XXX-XX-X-XXX-X-MKT.SLDDRW
SHEET SCALE: 2:1
TSM-1XX-XX-XXX-XX-X-XXX-X
BRYANT
04/24/1991
SHEET
3
OF
3
BY:
