YTS-111-01-F-Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> YTS-111-01-F-Q

YTS-111-01-F-Q: DescriptionBoard Connector, 44 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size217KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

YTS-111-01-F-Q Overview

Board Connector, 44 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

YTS-111-01-F-Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1621082192
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	FLEXYZ
body width	0.316 inch
subject depth	0.25 inch
body length	0.881 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	44
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

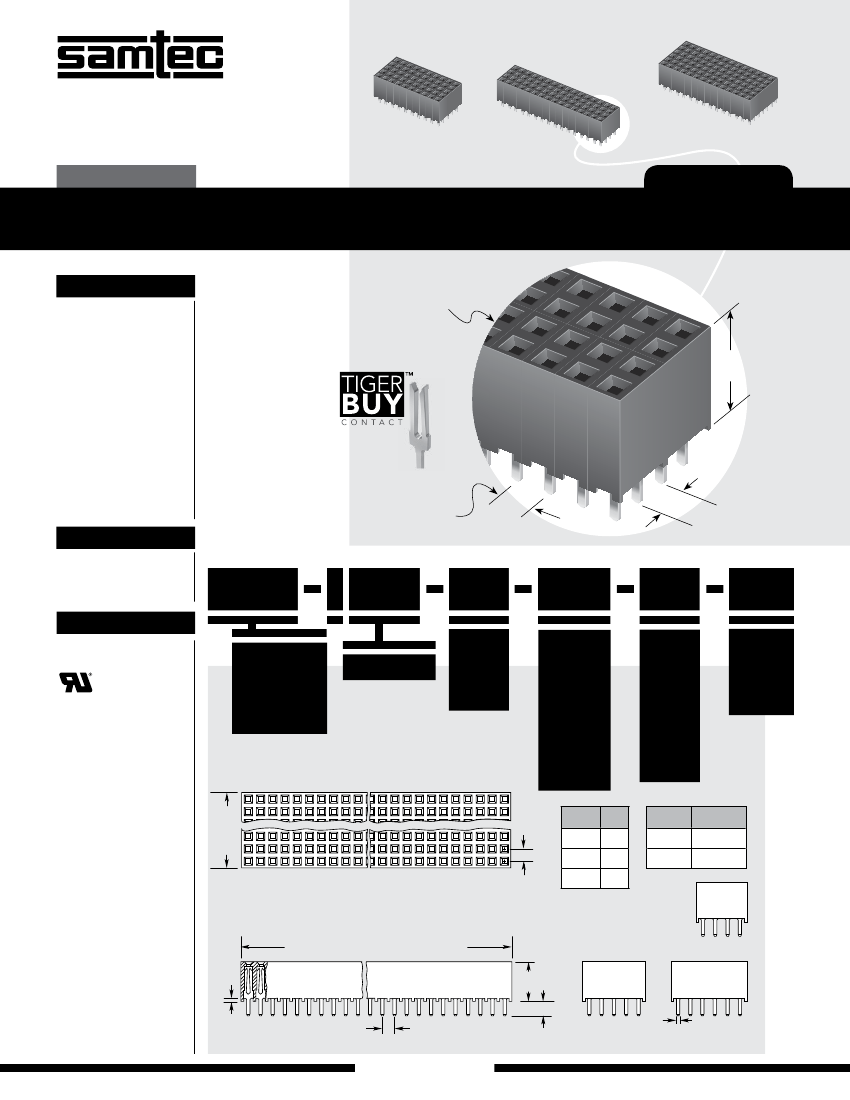

F-217 SUPPLEMENT

YTQ–116–01–F–Q

YTQ–110–01–L–5

YTS–114–01–F–6

(2.00 mm) .0787"

YTS, YTQ SERIES

HIGH-DENSITY SOCKET STRIP

SPECIFICATIONS

For complete specifications

see www.samtec.com?YTS

or www.samtec.com?YTQ

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Operating Temp Range:

-55 °C to +125 °C

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Contact Resistance:

10 mW

Insertion Depth:

(2.62 mm) .103" to

(5.03 mm) .198"

Max Cycles:

100 with 10 µ" (0.25 µm) Au

RoHS Compliant:

Yes

Mates with:

YTT, YTW, YTE, TMMS

Choice of four,

four,

five or six row

(6.35 mm)

.250"

(2.00 mm)

.0787" TYP

PROCESSING

YTS Lead–Free Solderable:

Wave Only

YTQ Lead–Free Solderable:

Wave or reflow with

Matte Sn plating

(2.00 mm)

.0787" pitch

TYPE

SOCKET

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

= Flat Tail

(Style –01 only)

YTS

02 thru 50

= Square Tail

YTQ

=10 µ"

(0.25 µm)

Gold contact,

Matte Tin

on tail

–L

= Four

Row

–Q

–5

–6

–“XXX”

=Polarized

Position

(Indicate

position

number)

300

=Gold flash

on contact,

Matte Tin

on tail

LEAD

STYLE

–F

= Five

Row

= Six

Row

No. of

rows

(2.00)

.0787

295

(2.29)

.090

(15.24)

.600

(5.28)

.208

TYPE

SOCKET

(0.25) (0.51)

.010 x .020

(0.51)

.020 SQ

– 01

– 02

YTS

YTQ

(2.00)

.0787

TYP

– 03

No. of rows x (2.00) .0787 + (0.30) .012

(6.35)

.250

(0.38)

.015

(2.00) .0787

TYP

–5

–Q

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

–6

WWW.SAMTEC.COM

Due to technical progress, all designs, specifications and components are subject to change without notice.
