VJ5601M915MXBSR
www.vishay.com
Vishay Vitramon
Surface Mount Ceramic Chip Antennas for 915 MHz

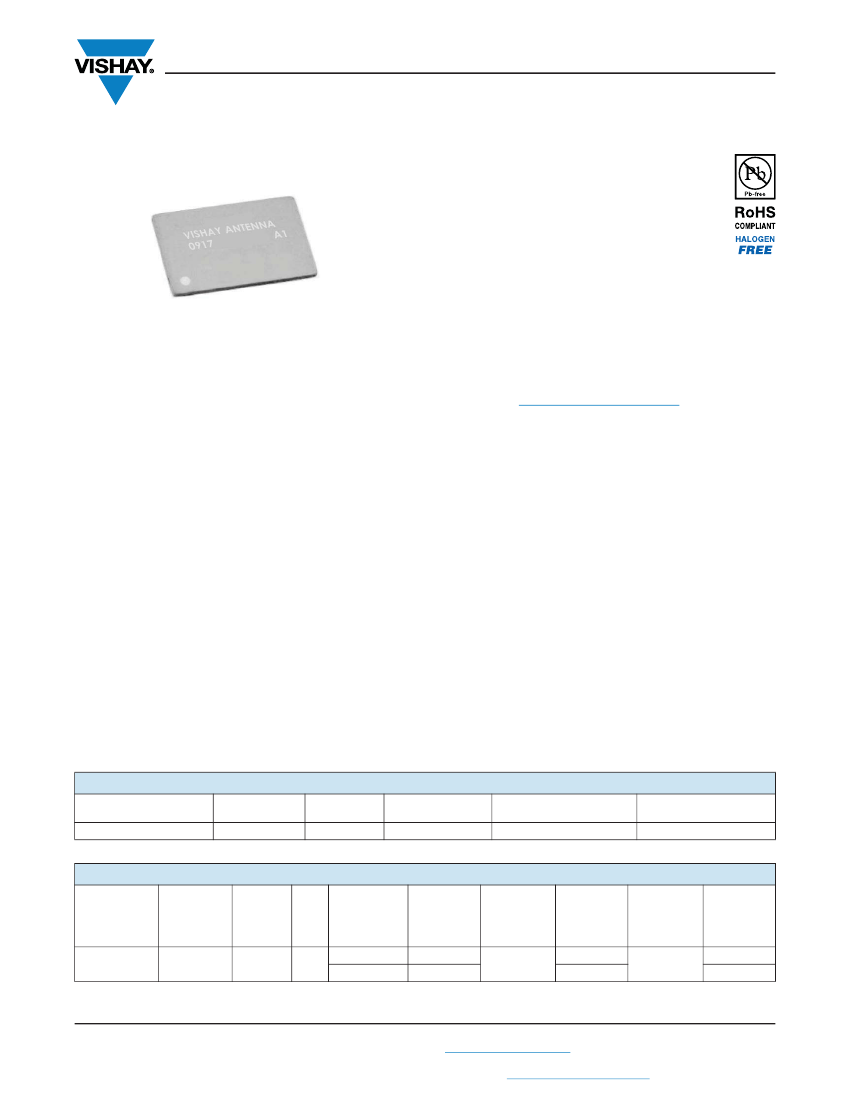

FEATURES
• Small outline (15.5 mm x 10.5 mm x 1.2 mm)
• 50 unbalanced tuning interface
(max. 1.73 dBi gain
(1)
)
• Assembled onto a PCB in the standard reflow
process
• 160 MHz half-power tuned bandwidth (835 to 995 MHz)
• High-reliability ceramic-oxide body construction
• Low-RF loss, high-Q ceramic
VJ5601M915MXBSR chip antenna product
• Lead (Pb)-free / wet build process
• Reliable Noble Metal Electrode (NME) system
• Wide operating temperature range (-40 °C to +85 °C)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
(1)
See figures 1 through 6 for more details on the radiation pattern
(antenna gain) at 915 MHz; the PCB board ground is shorted to
earth ground for tuning.
Vishay VJ5601M915MXBSR chip antennas are covered by
one or more of the following patents:
WO2008250262 (A1), US2008303720 (A1), US2008305750
(A1), WO2008154173 (A1)
Other patents are pending.
DESCRIPTION
The VJ5601M915MXBSR ceramic chip antenna is a small
form-factor, high-performance, chip-antenna designed for
operation at 915 MHz. It allows manufacturers to design
high quality products that do not bear the penalty of a large
external antenna, and is designed to be assembled onto a
PC board using a standard reflow process.
The VJ5601M915 is the latest in a family of products
developed by Vishay, a world leader in manufacturing of
discrete and passive components.
The VJ5601M915 series are small form-factor,
high-performance chip-antennas optimized for medical,
remote sensing, industrial, security, and RFID applications.
Utilizing unique Vishay materials and manufacturing
technologies, these products when properly tuned also
comply with the MBRAI standard for portable
communication.
APPLICATIONS
• Medical telemetry (internal/external)
• Remote sensing and control
• Industrial automation and telemetry
• Security systems, home automation
• Long range RFID
ELECTRICAL SPECIFICATIONS
Operating temperature: -40 °C to +85 °C
Frequency range (transmission/reception): 835 MHz to 995
MHz
Note
• Electrical characteristics at +25 °C unless otherwise specified.
Antenna performance is measured at 915 MHz and 50
impedance unless otherwise specified. The best results are
obtained by mounting the chip following the layout guidelines
application note for the evaluation kit.
QUICK REFERENCE DATA
SERIES
VJ5601M915MXBSR
FREQUENCY
(MHz)
915
MAX. GAIN
(dBi)
1.73
AVERAGE GAIN
(dBi)
-2.73
BANDWIDTH (-10 dB)
(MHz)
41
BANDWIDTH (-3 dB)
(MHz)
160
CHIP ANTENNA PERFORMANCE
-10 dB
-3 dB
915
915 MHz
REFLECTED
915 MHz
-3 dB
-10 dB
BANDWIDTH
BANDWIDTH
NOMINAL
NOMINAL
MHz
POWER
AVERAGE PEAK
REFLECTED 835 MHz to REFLECTED 894 MHz to REFLECTED
FREQUENCY IMPEDANCE
COEFFICIENT
POWER
POWER
GAIN
POWER
937 MHz
995 MHz
GAIN
(MHz)
( )
S11
LOSS
LOSS
(dBi)
LOSS
(dBi)
(MHz)
(MHz)
915
50
-2.73
1.73
< -32 dB
0.6 %
0.6 %
< 0.003 dB
160
50 %
3 dB
41
10 %
0.46 dB
Revision: 07-Mar-17
Document Number: 45208
1
For technical questions, contact:
chipantenna@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life – Last Available Purchase Date: 20-Aug-2017
VJ5601M915MXBSR
www.vishay.com

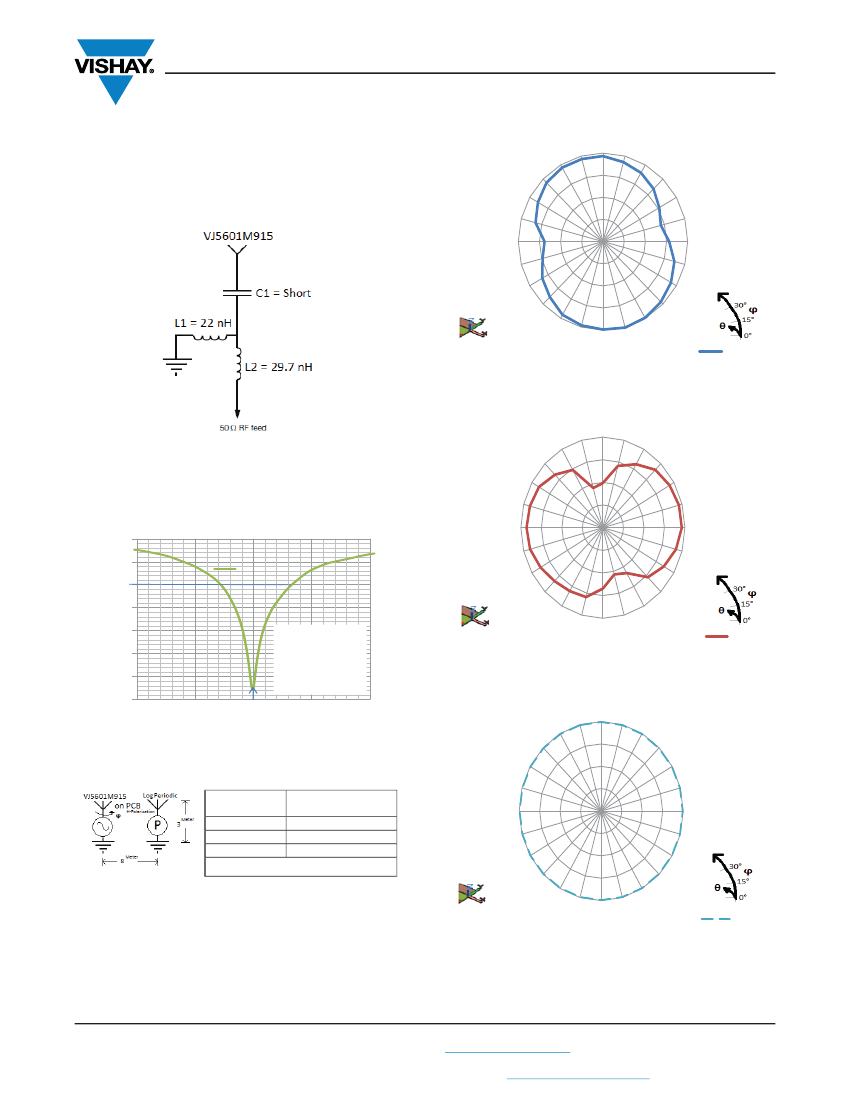

VJ5601M915MXBSR TUNING
Final tuning configuration and component values for L1, L2,
and C1 depend on customer PCB layout. Optimal tuning is
possible with just a few standard components. The nominal
values shown are for a tuned VJ5601M915MXBEK kit.
90°
105°
2
120°
-8
135°
150°
165°
180°
-165°
-150°
-135°
-120°
-105°
-18
-28
-38
dBi
Vishay Vitramon
75°
60°
45°
30°
15°
0°
-15°
-30°
-45°
-60°
XY / ϕ
Pole rota on ϕ°
-75°
-90°
Rota on plane / Horizontal E-field polariza on
Fig. 4 - VJ5601M915MXBSR XY Radiation Pattern
90°
Fig. 1 - Tuning Example with Inductors L1, L2 and Capacitor C1
105°
-1
120°
-11
135°
150°
-21
-31
-41 dBi
165°
75°
60°
45°
30°
15°
0°
-15°
-30°
-45°
-60°
YZ / ϕ
Power Reflection S11 (dB) Versus Frequency (MHz)
835
875
915
955
995
MHz
180°
-165°
0
Power Reflection S11 dB (50 Ω)
Pole rota on ϕ°
-5
-10
VJ5601M915
-150°
-135°
-120°
-105°
-15
-20
-25
-30
-35
dB
Frequency (MHz)
> 99.9 % Power
Coupling at
915 MHz for
VJ5601M915
-75°
-90°
Rota on plane / Horizontal E-field polariza on
Fig. 5 - VJ5601M4915MXBSR YZ Radiation Pattern
90°
105°
2
120°
-8
135°
150°
-18
-28
-38 dBi
Pole rota on ϕ°
165°
180°
-165°
-150°
-135°
-120°
-105°
75°
60°
45°
30°
15°
0°
-15°
-30°
-45°
-60°
XZ / θ
Fig. 2 - VJ5601M915 Tuned to 915 MHz with
> 99.9 % Power Coupled
Rotation
Plane
XY
YZ
XZ
φ
= 0° Receiver
Direction
Y-axis
Z-axis
Z-axis
The radia on pa erns reference the eleva on θ that is
perpendicular to the azimuth pole rota on in ϕ.
Fig. 3 - VJ5601M915 PCB Mounting and Coordinate Directions
-75°
-90°
Rota on plane / Ver cal E-field polariza on
Fig. 6 - VJ5601M915MXBSR XZ Radiation Pattern
Revision: 07-Mar-17
Document Number: 45208
2
For technical questions, contact:
chipantenna@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life – Last Available Purchase Date: 20-Aug-2017
VJ5601M915MXBSR
www.vishay.com

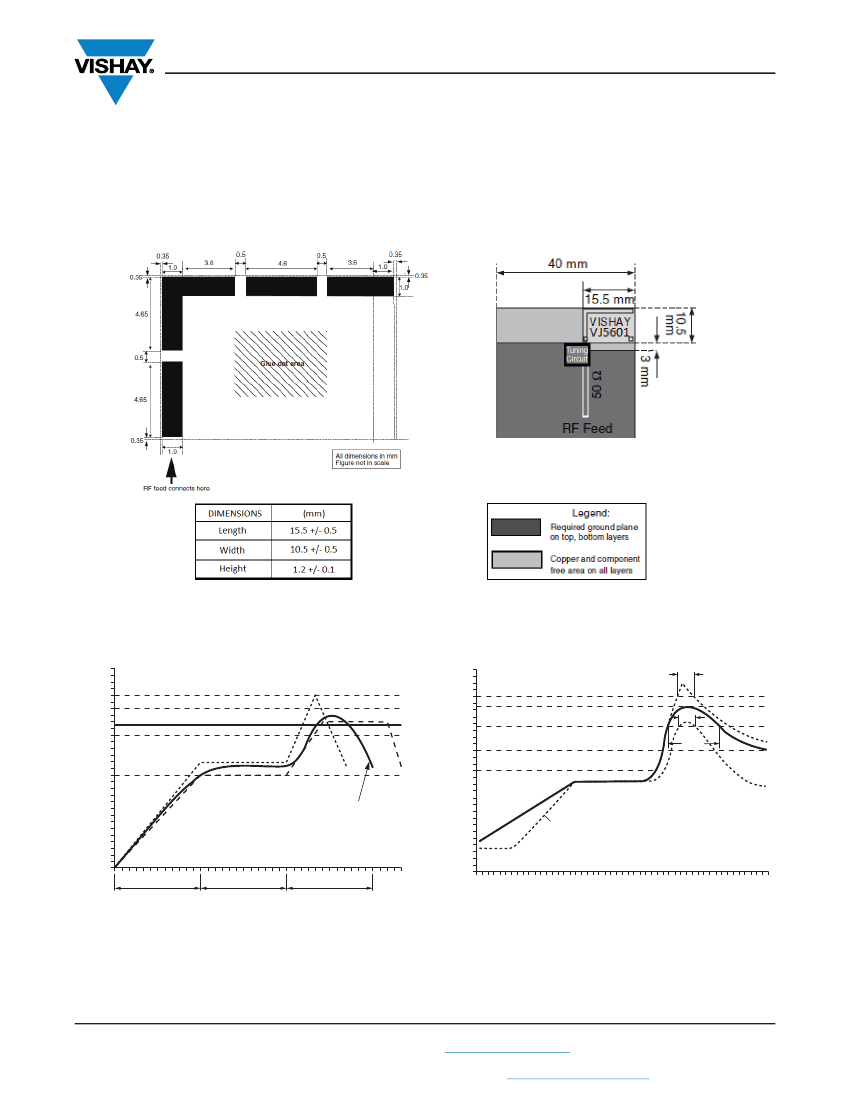

FOOTPRINT, MECHANICAL AND PCB DIMENSIONS
The antenna footprint and mechanical dimensions are
presented in Figure 7. Optimal tuning is adjusted according
to PCB layout.
For additional mechanical support, it is recommended to
add one drop of heat curing epoxy glue.
• The glue dot should not overlap with any of the soldering
pads
• Apply the glue dot at the center of the antenna.
• The glue dot area secures the chip firmly to the PCB
Vishay Vitramon
Fig. 7 - Footprint, Chip Antenna Mechanical Dimensions, and PCB Layout Dimensions of VJ5601M915
300
T
(°C)
250
> 215 °C: 20 s to 40 s
200
Max. temperature
300
T
(°C)
250
260 °C
˜ 245 °C
215 °C
200
180 °C
10 s
10 s
40 s
150
Min. temperature
100
Sn-Pb eutectic solder paste
150
130 °C
100
2 K/s
50
50
0
30 s to 60 s
30 s to 60 s
30 s to 60 s
Time
0
50
100
150
200
t (s)
250
Fig. 8 - Soldering IR Reflow with SnPb Solder
Fig. 9 - Soldering Reflow with Sn Solder
Revision: 07-Mar-17
Document Number: 45208
3
For technical questions, contact:
chipantenna@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
End of Life – Last Available Purchase Date: 20-Aug-2017
VJ5601M915MXBSR
www.vishay.com
VJ5601M915 ASSEMBLY GUIDELINES
1. Mounting of antennas on a printed circuit board should
be done by reflow soldering using the profiles shown
(Figures 8, 9, and 10)
2. In order to provide the adequate strength between the
antenna and the PCB apply of a dot of heat cured epoxy
glue in the center of the footprint of the antenna prior to
soldering the antenna to the board. An example for such
glue is Heraeus PD 860002 SA. The weight of the dot
should be 5 mg to 10 mg.
Vishay Vitramon
300
T
(°C)
250
Max. temperature
200
Sn-Ag-Cu solder paste
150
Min. temperature
100
50
0
30 s to 60 s
60 s to 120 s
60 s to 120 s
60 s to 120 s
Time
Fig. 10 - Soldering IR Reflow with SnAgCu Solder
ORDERING INFORMATION
VJ5601M915 Chip Antenna
VJ5601M915 Evaluation Kit
(1)
(1)
VISHAY MATERIAL
VJ5601M915MXBSR
VJ5601M915MXBEK
PACKAGING QUANTITY
1000 pieces
1 kit
Note
The VJ5601M915 kit is available for evaluation. For samples, please contact
mlcc-samples@vishay.com.
Revision: 07-Mar-17
Document Number: 45208
4
For technical questions, contact:
chipantenna@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
