VKC7936X: DescriptionC-Band Klystrons; File Size640KB，2 Pages; ManufacturerCPI; Websitehttp://www.cpii.com/

Download Datasheet View All

VKC7936X Overview

C-Band Klystrons

Preview

Download Datasheet

View All

C-Band Klystrons

VA936/VKC7936 Series

The VA936/VKC7936 Series of klystron is designed for use in ground

based earth-to-satellite communication amplifiers. The

VA936/VKC7936 Series is available in various configurations and

frequency ranges to suit customer's exact requirements. This family

of klystrons has output power specifications ranging from 1500 to

3350 watts over 40 or 45 MHz of instantaneous bandwidth. These

klystrons can be configured to provide users with 6,12, or 24 channel

configurations thus allowing operators to select preset center

frequencies within seconds. As an option, Digital Fast Tuner System

(DFTS) channel changers are available for sub-second selection

of up to 50 channels.

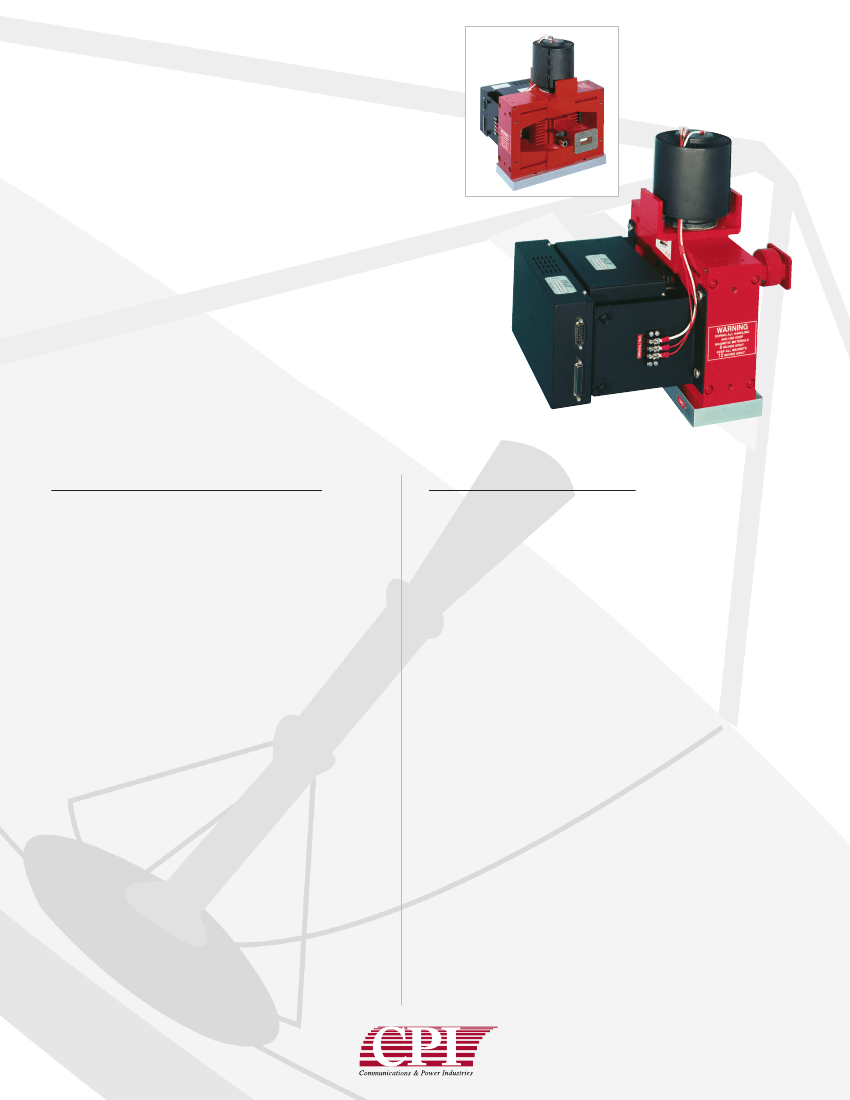

(DFTS Model Shown)

RF and Electrical Specifications

Frequency Range (Channel Centers)

Physical Characteristics

Dimensions

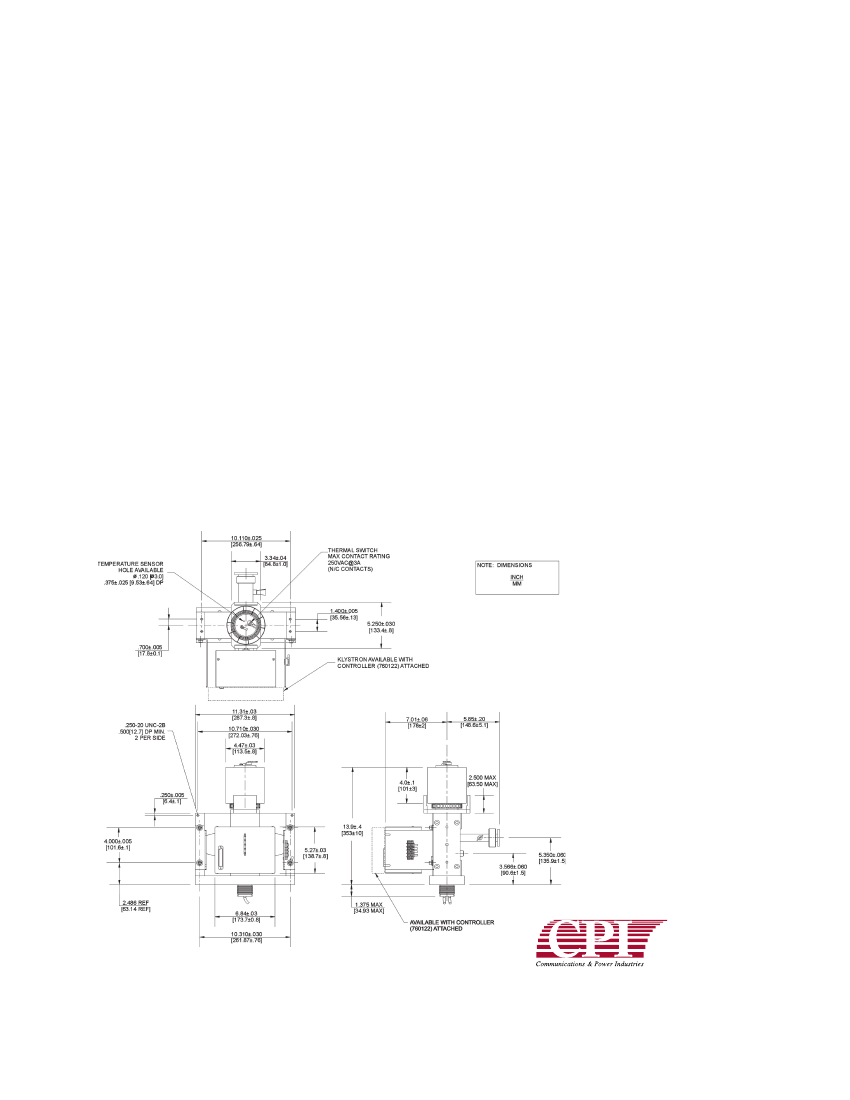

See outline drawings.

70 lb (32 kg)

Collector up

VA936/VKC7936G, and L

VA936/VKC7936J

VA936/VKC7936R, and T

VKC 7936W

VKC 7936X

VKC 7936Y

Output Power

VA936/VKC936J and T

VA936/VKC7936G

other models

5.925 to 6.425 GHz

5.850 to 6.425 GHz

5.945 to 6.455 GHz

5.945 to 6.435 GHz

5.850 to 6.480 GHz

1500W

3000W

3350W

Weight - approximate

Operating Orientation

Cooling

Forced Air

collector flow - minimum

VA936/VKC7936J and T 375 lb/hr (170 kg/hr)

other models

1000 lb/hr (450 kg/hr)

body flow - minimum

90 lb/hr (41 kg/hr)

RF Connectors

output

input

Focusing

Mates with CPR-137F flange

Mates with type “N” plug, UG-21D/U

Integral permanent magnet

Instantaneous Bandwidth-minimum at –1 dB points

VA936/VKC936J and T

40 MHz

other models

45 MHz

Gain - minimum (at rated power)

VA936/VKC936J and T

37 dB

other models

40 dB

Beam Voltage - maximum

VA936/VKC936J and T

VA936/VKC7936G

Other Models

Beam Current - maximum

VA936/VKC936J and T

other models

Heater Voltage - nominal

Heater Current - typical

6.8 kV

8.15 kV

8.3 kV

0.825 A

1.15 A

6.0 V

6.0 A
