850102-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 850102-1

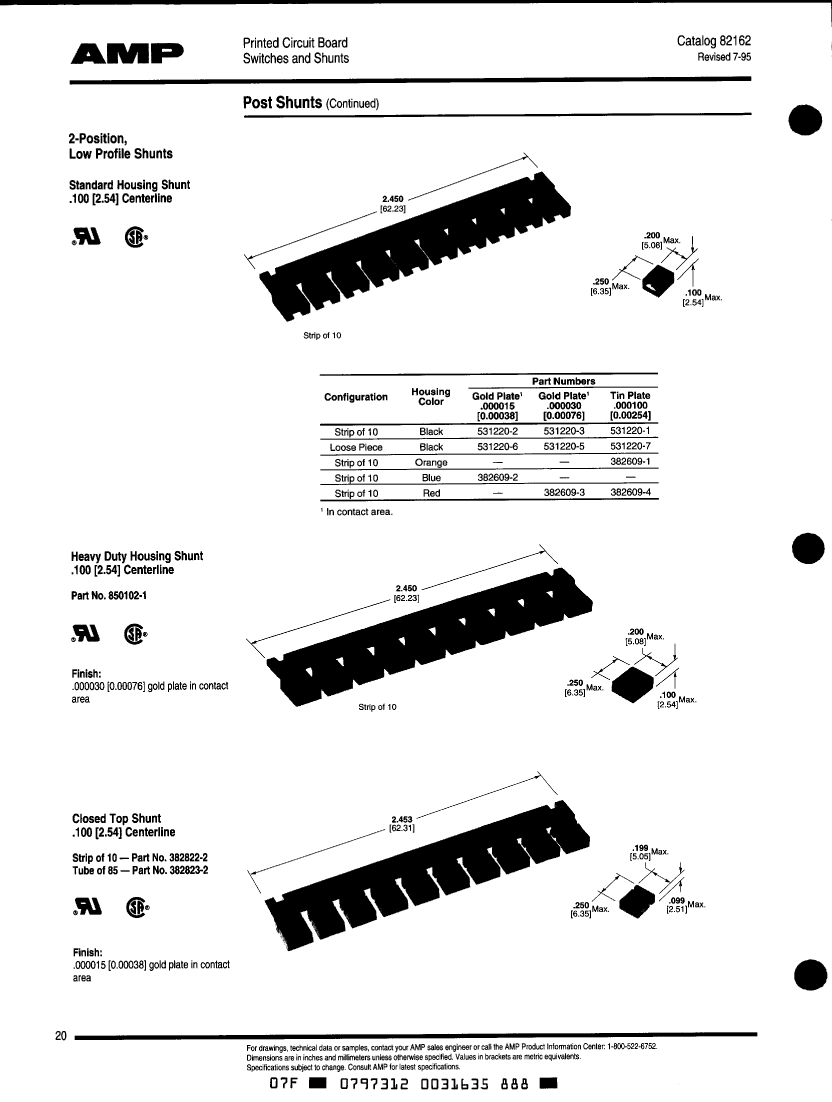

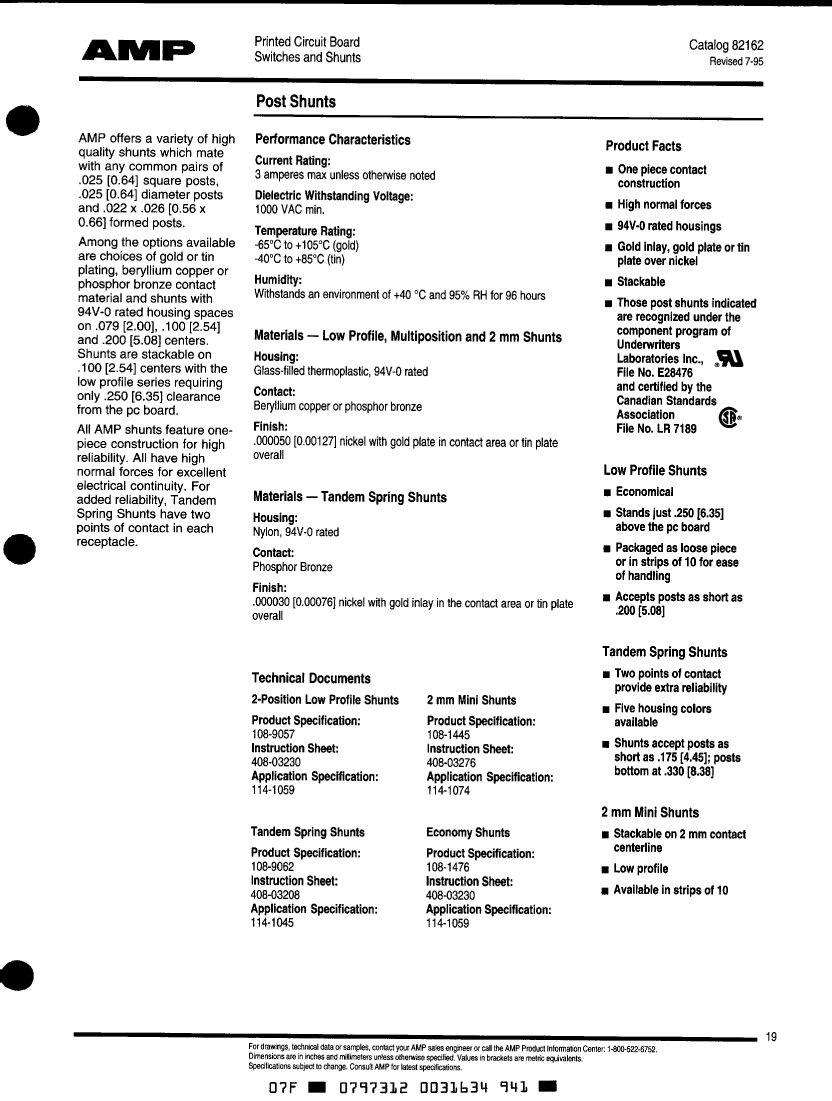

Preview

850102-1: DescriptionINTERCONNECTION DEVICE; CategoryThe connector The connector; File Size153KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

850102-1 Overview

INTERCONNECTION DEVICE

850102-1 Parametric

Parameter Name	Attribute value
Objectid	1274880504
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	10-UNIT STRIP
body width	0.1 inch
subject depth	0.25 inch
body length	0.2 inch
Body/casing type	PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
contact mode	RECTANGULAR
Dielectric withstand voltage	1000VAC V
insulator material	GLASS FILLED THERMOPLASTIC
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	2

Preview

Download Datasheet

View All

850102-1 Related Products

	850102-1	531220-1	531220-2	531220-3	531220-5	531220-6
Description	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
Objectid	1274880504	1281489164	1274880500	1274880501	1274880502	1274880503
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	10-UNIT STRIP	10-UNIT STRIP	10-UNIT STRIP	10-UNIT STRIP	LOOSE	LOOSE
body width	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
subject depth	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch
body length	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
Contact to complete cooperation	AU ON NI	SN	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	85 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	30u inch	100u inch	15u inch	30u inch	30u inch	15u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	2	2	2	2	2	2
Insulator color	-	BLACK	BLACK	BLACK	BLACK	BLACK
