CPI
|
VKS-8262 KlyStron
4CW50,000J
VKS-8262 Klystron
CPI Microwave Power Products (MPP) offers the
VKS-8262 series of klystrons for use in particle
accelerators for scientific, medical, and industrial
applications. These klystrons provide up to 7.5
MW peak at 2.856 or 2.9985 GHz at various rf pulse
lengths and duty. Versions are available with up to
36 kW of average output power at 2.856 GHz and 72
kW at 2.9985 GHz.
FeATures
• Diode Electron Gun
• Water Cooled
• Electromagnet Focusing
• WR-284 Waveguide Output
• Thousands in Service
• Long Life
• Proven Reliability
VKS-8262 KlyStronS At 2.856 GH
z
Product type
Peak
output
Power
(MW)
5.5
4.5
3
5
5
Peak
Drive
Power
200
200
80
200
200
Bandwidth
(-3 dB)
(MHz)
5
5
5
4
4
Peak
Beam
Voltage*
(kV)
127
125
110
125
125
Peak
Beam
Current*
(A)
92
92
72
91
92
rF Pulse
length
(µsec)
5.8
10
10
16.3
16.3
Duty
VKS-8262S
VKS-8262J
VKS-8262M
VKS-8262F
VKS-8262P1
0.00104
0.00314
0.004
0.0072
0.009
VKS-8262 KlyStronS At 2.9985 GH
z
Peak
Product type
output
Power
(MW)
7.5
6
5.5
3
5
5
Peak
Drive
Power
120
200
200
80
200
200
Bandwidth
(-3 dB)
(MHz)
5
5
5
5
4
4
Peak
Beam
Voltage*
(kV)
160
135
130
110
125
125
Peak
Beam
Current*
(A)
110
109
105
72
91
92
rF Pulse
length
(µsec)
4.5
5.0
5.8
10
16.3
16.3
Duty
VKS-8262G
VKS-8262E
VKS-8262D
VKS-8262HS
VKS-8262K
VKS-8262n
0.001
0.001
0.001
0.004
0.0072
0.0144
* These are the maximum allowable operating values according to the Product Specification.
Actual operating values are typically lower.
The values listed above represent specified limits for the product and are subject to change. The data should be used for basic
information only. Formal, controlled specifications may be obtained from CPI for use in equipment zdesign.
For information
on this and other CPI products, visit our website at:
www.cpii.com,
or contact: CPI MPP Division, 607 Hansen Way, Palo Alto, CA 94303
telephone
:
1(800) 414-8823.
fax
:
(650) 856-0705 |
email
:
marketing@cpii.com
CPI
|
VKS-8262 KlyStron
4CW50,000J
VKS-8262 Klystron

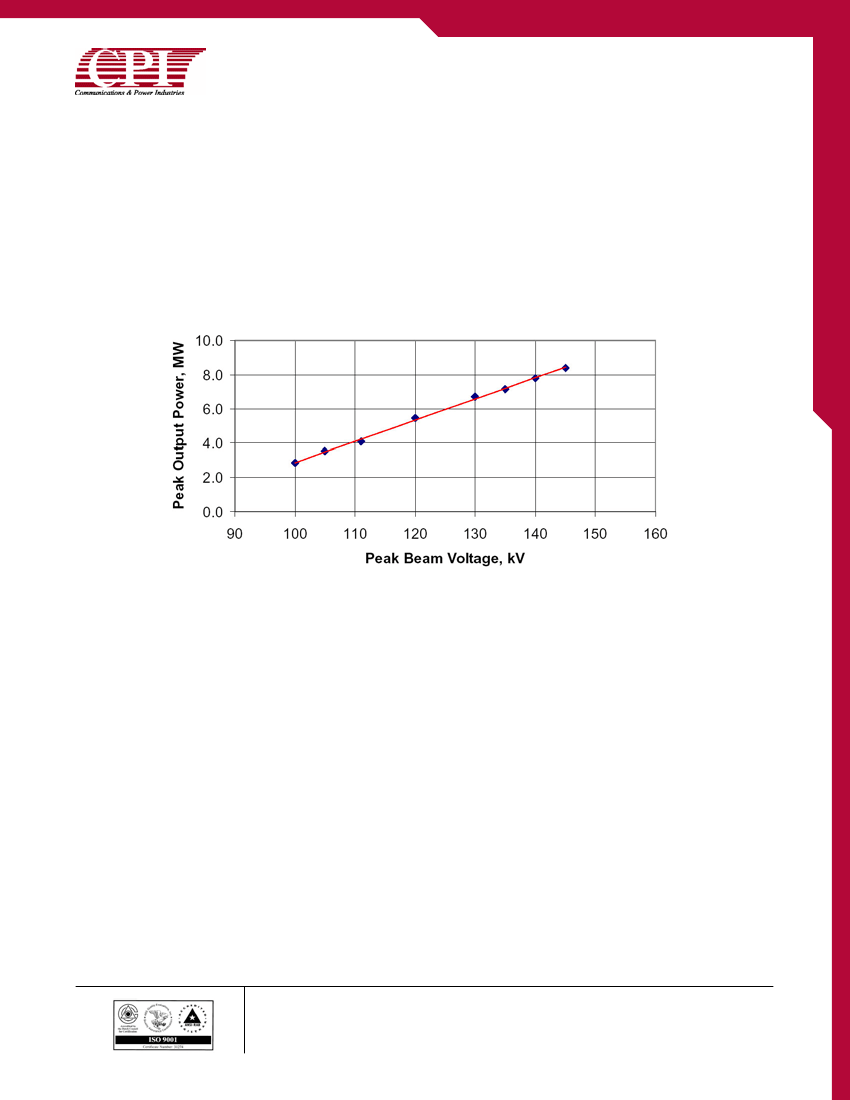

tyPICAl PEAK outPut PoWEr VErSuS BEAM VoltAGE
The values listed above represent specified limits for the product and are subject to change. The data should be used for basic
information only. Formal, controlled specifications may be obtained from CPI for use in equipment design.
For information
on this and other CPI products, visit our website at:
www.cpii.com,
or contact: CPI MPP Division, 607 Hansen Way, Palo Alto, CA 94303
telephone
:
1(800) 414-8823.
fax
:
(650) 856-0705 |
email
:
marketing@cpii.com
