VLMTG31..
Vishay Semiconductors
Standard SMD LED PLCC-2
FEATURES
• SMD LED with exceptional brightness
• Luminous intensity categorized
• Compatible with automatic placement
e3
equipment
• EIA and ICE standard package
• Compatible with IR Reflow, vapor phase and wave
solder processes according to CECC 00802 and
J-STD-020C
• Available in 8 mm tape
• Low profile package
• Non-diffused lens: excellent for coupling to light
pipes and backlighting
• Low power consumption
• Luminous intensity ratio in one packaging unit
I
Vmax
/I
Vmin
≤
1.6
• Lead (Pb)-free device-RoHS compliant
• Preconditioning: acc. to JEDEC level 2a
• ESD-withstand voltage up to 1 kV according to
JESD22-A114-B
19225
DESCRIPTION
This device has been designed to meet the increasing
demand for InGaN technology.
The package of the VLMTG31.. is the PLCC-2.
It consists of a lead frame which is embedded in a
white thermoplast. The reflector inside this package is
filled up with clear epoxy.
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: SMD PLCC-2
• Product series: standard
• Angle of half intensity: ± 60°
PARTS TABLE
PART
VLMTG31N2S1-GS08
VLMTG31N2S1-GS18
VLMTG31Q1R2-GS08
VLMTG31Q1R2-GS018
APPLICATIONS
• Automotive: backlighting in dashboards and
switches
• Telecommunication: indicator and backlighting in
telephone and fax
• Indicator and backlight for audio and video
equipment
• Indicator and backlight in office equipment
• Flat backlight for LCDs, switches and symbols
• General use
COLOR, LUMINOUS INTENSITY
True green, I
V
= (35.5 to 224) mcd
True green, I
V
= (35.5 to 224) mcd
True green, I
V
= (71 to 180) mcd
True green, I
V
= (71 to 180) mcd
TECHNOLOGY
InGaN on SiC
InGaN on SiC
InGaN on SiC
InGaN on SiC
Document Number 81289
Rev. 1.2, 15-May-08
For technical support, please contact: LED@vishay.com
www.vishay.com
1
VLMTG31..
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
1)
VLMTG31..
PARAMETER
Reverse voltage
2)
DC Forward current
Surge forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Thermal resistance junction/ambient
mounted on PC board (pad size > 16 mm
2
)
Note:
1)
T
amb
= 25 °C unless otherwise specified
2)
Driving LED in reverse direction is suitable for short term application
T
amb
≤
80 °C
t
p
≤
10 µs
TEST CONDITION
SYMBOL
V
R
I
F
I
FSM
P
V
T
j
T
amb
T
stg
R
thJA
VALUE
5
20
0.2
84
110
- 40 to + 100
- 40 to + 100
350
UNIT
V
mA
A
mW
°C
°C
°C
K/W
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
VLMTG31.., TRUE GREEN
PARAMETER
Luminous intensity
2)
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Temperature coefficient of
V
F
Temperature coefficient of I
V
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10 µA
I
F
= 10 mA
I
F
= 10 mA
PART
VLMTG31N2S1
VLMTG31Q1R2
SYMBOL
I
V
I
V
λ
d
λ
p
ϕ
V
F
V
R
TC
V
TC
I
5
- 3.5
- 0.3
MIN.
35.5
71
515
522
± 60
3.2
4.2
TYP
MAX.
224
180
541
UNIT
mcd
mcd
nm
nm
deg
V
V
mV/K
%/K
Note:
1)
T
amb
= 25 °C unless otherwise specified
2)
In one packing unit I
Vmax
/I
Vmin
≤
1.6
LUMINOUS INTENSITY CLASSIFICATION
GROUP
STANDARD
N
P
Q
R
S
1
2
1
2
1
2
1
2
1
2
LIGHT INTENSITY (mcd)
OPTIONAL
MIN.
-
35.5
45
56
71
90
112
140
180
-
MAX.
-
45
56
71
90
112
140
180
224
-
COLOR CLASSIFICATION
TRUE GREEN
GROUP
3
4
5
6
DOM. WAVELENGTH (nm)
MIN.
MAX.
515
523
521
529
527
535
533
541
CROSSING TABLE
VISHAY
VLMTG31N2S1
VLMTG31Q1R2
OSRAM
LTT673-N2S1
LTT673-Q1R2
Note:
Luminous intensity is tested at a current pulse duration of 25 ms and
an accuracy of ± 11 %.
The above type numbers represent the order groups which include
only a few brightness groups. Only one group will be shipped on
each reel (there will be no mixing of two groups on each reel).
In order to ensure availability, single brightness groups will not be
orderable.
In a similar manner for colors where wavelength groups are
measured and binned, single wavelength groups will be shipped on
any one reel.
In order to ensure availability, single wavelength groups will not be
orderable.
www.vishay.com
2
For technical support, please contact: LED@vishay.com
Document Number 81289
Rev. 1.2, 15-May-08
VLMTG31..
Vishay Semiconductors

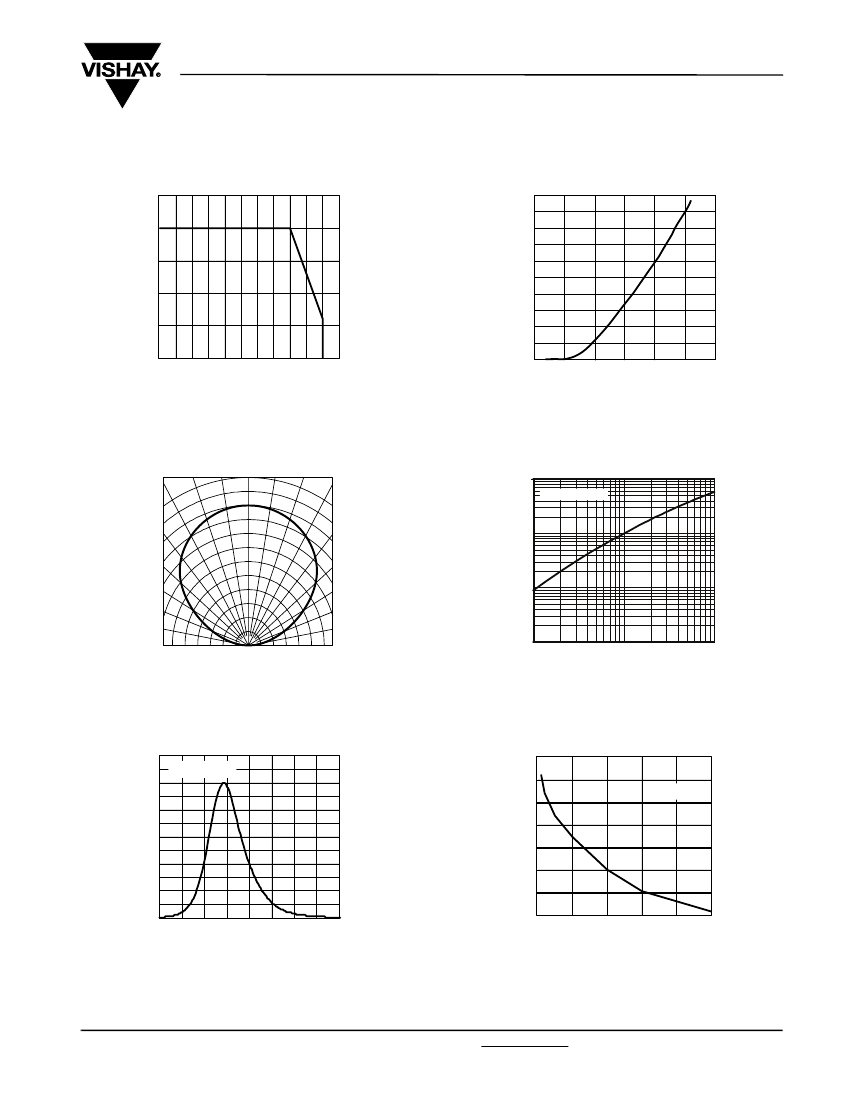

TYPICAL CHARACTERISTICS
T
amb
= 25 °C, unless otherwise specified
25
20
15
10
5
0
0
16806
100
90
80
70
60
50
40
30
20
10
0
2.0
20039
I
F
- Forward Current (mA)
I
F
- Forward Current (mA)
10 20 30 40 50 60 70
80
90 100 110
T
amb
- Ambient Temperature (°C)
2.5
3.0
3.5
4.0
4.5
V
F
- Forward
Voltage
(V)
5.0
Figure 1. Max. Permissible Forward Current vs.
Ambient Temperature
Figure 4. Forward Current vs. Forward Voltage
0°
10°
20°
30°
I
V
rel
- Relative Luminous Intensity
10
I
Vrel
- Relative Luminous Intensity
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
ϕ
- Angular Displacement
true green
1
0.1
95 10319
0.01
1
20163
10
I
F
- Forward Current (mA)
100
Figure 2. Relative Luminous Intensity vs. Angular Displacement
Figure 5. Specific Luminous Intensity vs. Forward Current
1.2
1.1
true green
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
460 480 500 520 540 560 580 600 620
λ
-
Wavelength
(nm)
538
Dominant
Wavelength
ı
λ
(nm)
536
true green
534
532
530
528
526
524
0
16812
I
rel
- Relative Luminous Intensity
10
20
30
40
50
16068
I
F
- Forward Current (mA)
Figure 3. Relative Intensity vs. Wavelength
Figure 6. Dominant Wavelength vs. Forward Current
Document Number 81289
Rev. 1.2, 15-May-08
For technical support, please contact: LED@vishay.com
www.vishay.com
3
VLMTG31..
Vishay Semiconductors

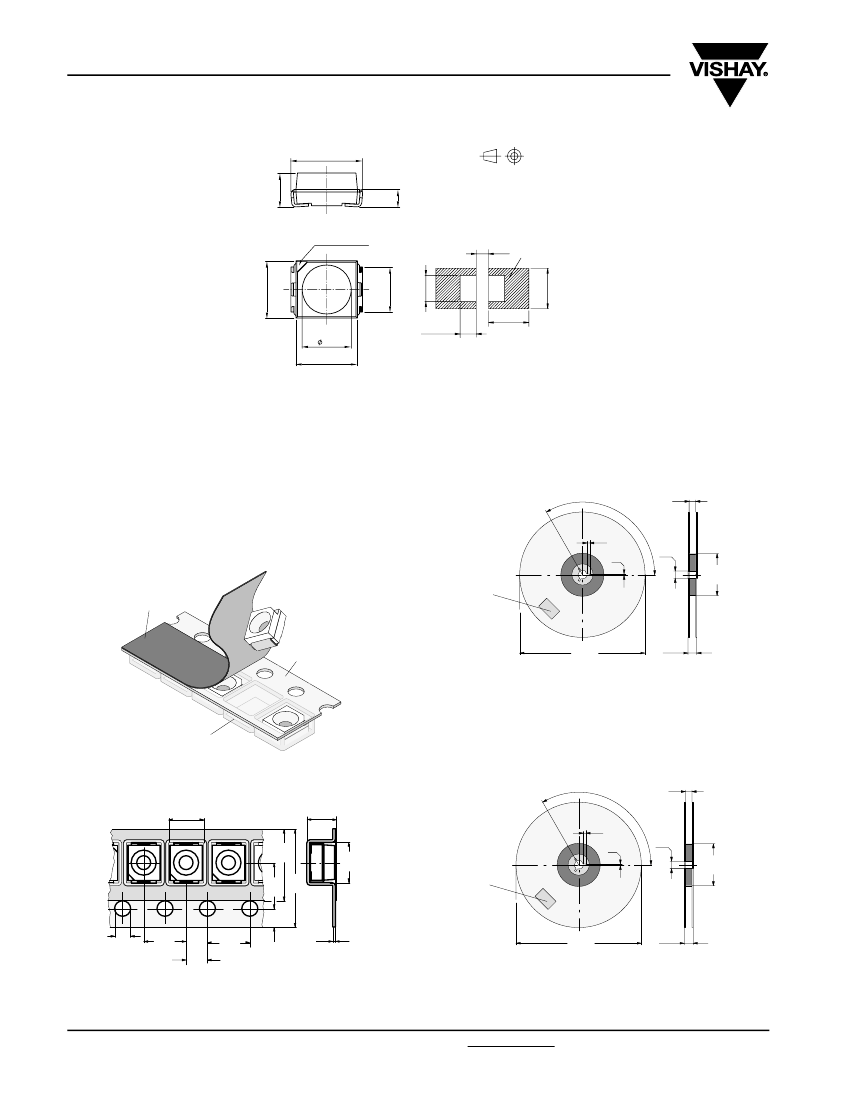

PACKAGE DIMENSIONS IN MILLIMETERS
3.5 ± 0.2
1.75 ± 0.10
technical drawings
according to DIN
specifications
0.9
Mounting Pad Layout
Pin identification
1.2
area covered
with
solder resist
2.6 (2.8)
+ 0.15
2.2
C
A
2.8
4
1.6 (1.9)
2.4
3
+ 0.15
Drawing-No.: 6.541-5025.01-4
Issue:
8;
22.11.05
95 11314-1
METHOD OF TAPING/POLARITY AND TAPE
AND REEL
SMD LED (VLM3-SERIES)
Vishay’s LEDs in SMD packages are available in an
antistatic 8 mm blister tape (in accordance with
DIN IEC 40 (CO) 564) for automatic component
insertion. The blister tape is a plastic strip with
impressed component cavities, covered by a top tape.
REEL PACKAGE DIMENSION IN MM FOR
SMD LEDS, TAPE OPTION GS08
(= 1500 PCS.)
120°
10.0
9.0
4
4.5
3.5
2.5
1.5
13.00
12.75
63.5
60.5
Identification
Adhesive tape
Blister tape
Label:
Vishay
Type
Group
Tape Code
Production
Code
Quantity
180
178
14.4 max.
94
8665
Figure 8. Reel Dimensions - GS08
Component cavity
94
8670
REEL PACKAGE DIMENSION IN MM FOR
SMD LEDS, TAPE OPTION GS18
(= 8000 PCS.) PREFERRED
120°
10.4
8.4
TAPING OF VLM.3..
3.5
3.1
2.2
2.0
4.5
3.5
2.5
1.5
4.0
3.6
8.3
7.7
Identification
Label:
Vishay
Type
Group
Tape Code
Production
Code
Quantity
13.00
12.75
62.5
60.0
5.75
5.25
3.6
3.4
1.85
1.65
1.6
1.4
4.1
3.9
2.05
1.95
4.1
3.9
0.25
321
329
14.4 max.
18857
94
8668
Figure 7. Tape Dimensions in mm for PLCC-2
Figure 9. Reel Dimensions - GS18
www.vishay.com
4
For technical support, please contact: LED@vishay.com
Document Number 81289
Rev. 1.2, 15-May-08
VLMTG31..
Vishay Semiconductors

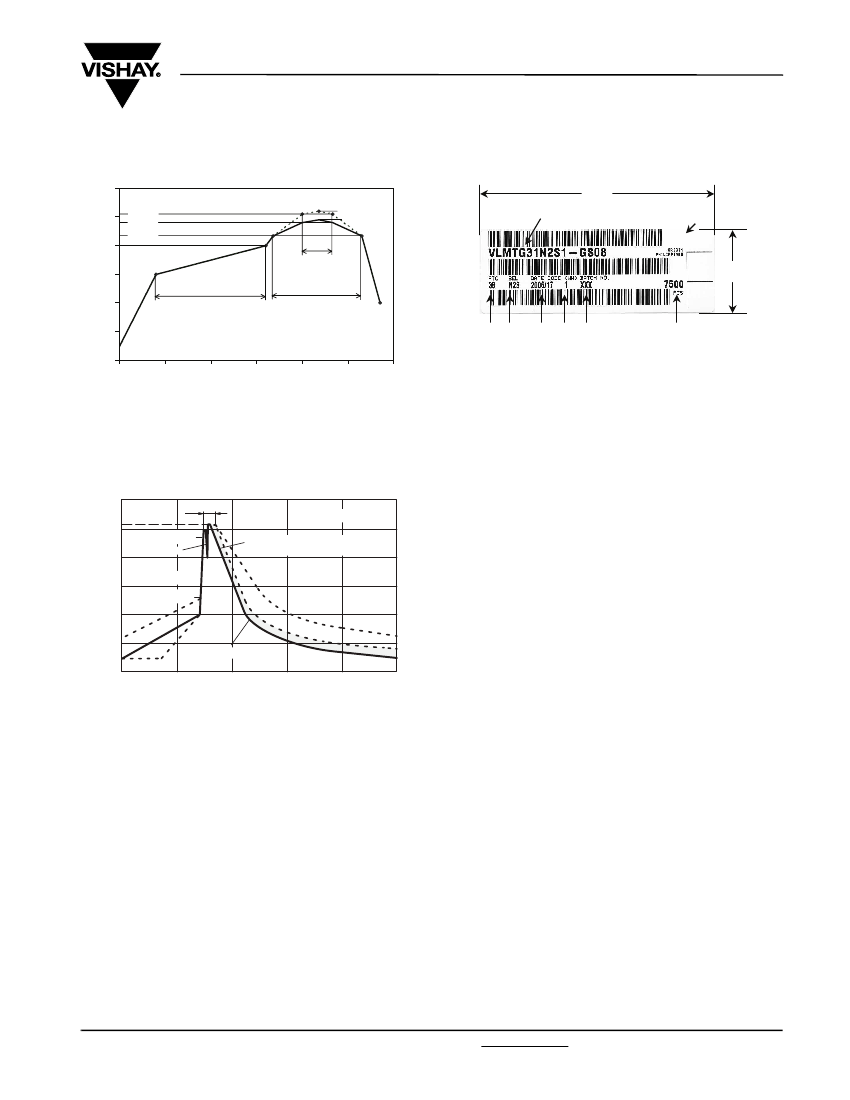

SOLDERING PROFILE
