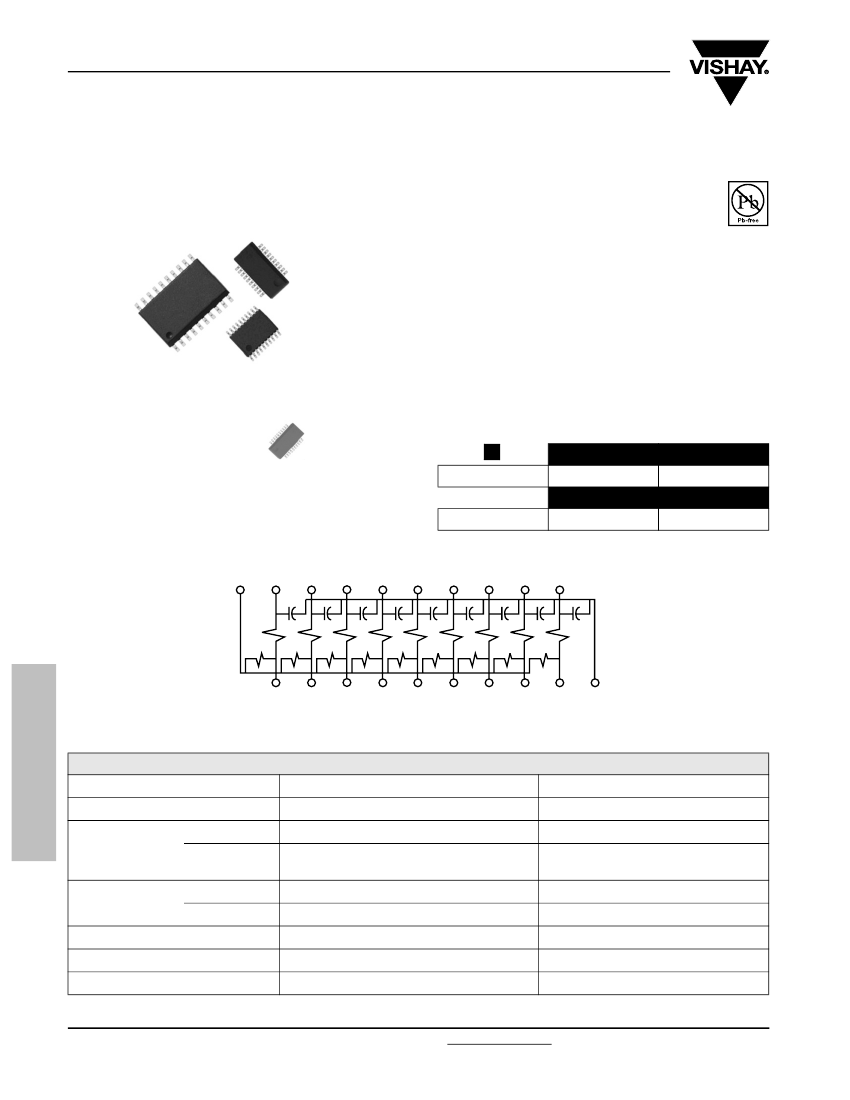

VSSRC1284
Vishay Thin Film
25 Mil Pitch Resistor/Capacitor Networks
FEATURES
•
Lead (Pb)-free standard
•
Rugged, molded case construction
JEDEC mo-137AD
•
Reduces total assembly costs
•
Saves board space
•
Compatible with automatic surface mounting equipment
•
Uniform performance characteristics
•
Resistors and capacitors on a single chip
•
UL 94V-0 flame resistant
RoHS
COMPLIANT
TYPICAL PERFORMANCE
Actual Size
RESISTOR
IEEE 1284 Parallel Port Termination Network
TCC
CAPACITOR
200
TOLERANCE
20 %
TCR
200
TOLERANCE
10 %
SCHEMATIC
20
19
18
17
16
15
14
13
12
11
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
1
2
3
4
5
6
7
8
9
10
RC NETWORKS
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Resistance Range
Absolute
Tolerance:
Absolute
Per Resistor
Power Rating:
Package
Capacitance Range
Breakdown Voltage
ESD Protection
1W
27 pF to 220 pF
25 V
> 2 kV
MIL-STD-883, Method 3015
Based on number of resistors
± 20 % (C)
100 mW
SPECIFICATIONS
10
Ω
to 10 kΩ
± 10 % (R
1
or R
2
)
at 1 MHz and V
RMS
over + 10 °C to + 70 °C
CONDITIONS
www.vishay.com
118
For technical questions, contact: thin-film@vishay.com
Document Number: 60077
Revision: 01-Jul-08
VSSRC1284
25 Mil Pitch Resistor/Capacitor Networks
Vishay Thin Film
DIMENSIONS AND IMPRINTING
in inches and millimeters
MODEL VSSRC1284
DIMENSION
Part
Number
Date
Code
B
C
E
A
B (Ref.)
VSSRC
1284
INCHES
0.344 Max.
0.025
0.010
0.006
0.025
0.154 ± 0.003
0.015 × 45°
0.236 ± 0.008
0.010
0.064 ± 0.005
MILLIMETERS
8.74 Max.
0.64
0.25
0.15
0.64
3.85 ± 0.08
0.38 × 45°
5.9 ± 0.20
0.25
1.64 ± 0.13
C (Ref.)
D
F
Pin #1
A
J
W
D
G
H
E (Typ.)
F
G
H
J (Ref.)
W
Note:
Mold flash not included in body dimensions
IMPRINTING
VSSRC1284-X
Date code
-X = Molded version number from table below
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Plating
Lead Coplanarity
Marking Resistance to
Solvents
Tantalum Nitride
Silicon
Molded Epoxy
Copper Alloy
100 % Sn Matte
0.0005 Inches
Permanency testing per
MIL-STD-202, Method 215
DERATING CURVE
Percent of Rated Po
w
er
100
80
60
40
RC NETWORKS
20
0
- 50
0
25
70
125
150
Ambient Temperature
°C
MODEL
VSSRC1284-1
VSSRC1284-2
VSSRC1284-3
VSSRC1284-4
VSSRC1284-5
VSSRC1284-6
VSSRC1284-7
R
1
± 10 %
2.2 kΩ
4.7 kΩ
1 kΩ
4.7 kΩ
4.7 kΩ
4.7 kΩ
10 kΩ
R
2
± 10 %
33
Ω
33
Ω
33
Ω
10
Ω
27
Ω
270
Ω
10
Ω
C ± 20 %
220 pF
180 pF
180 pF
180 pF
33 pF
33 pF
27 pF
Document Number: 60077
Revision: 01-Jul-08
For technical questions, contact: thin-film@vishay.com
www.vishay.com
119
VSSRC1284
Vishay Thin Film
25 Mil Pitch Resistor/Capacitor Networks
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: VSSRC1284-1TF (preferred part number format)
V
S
S
R
C
1
2
8
4
-
1
T
F
GLOBAL MODEL
VSSRC1284
(Lead (Pb)-free)
(e3)
VALUE
-1
-2
-3
-4
-5
-6
-7
PACKAGING
UF
= TUBED
TAPE AND REEL
TF
= Full Reels
Historical Part Number example: VSSRC1284-1T/R (will continue to be accepted)
VSSRC1284
MODEL
-1
VALUE
T/R
PACKAGING
RC NETWORKS
www.vishay.com
120
For technical questions, contact: thin-film@vishay.com
Document Number: 60077
Revision: 01-Jul-08
