O-50.000000M-AQO2520-50-3.3-A-T/TR: DescriptionHCMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size303KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric View All

O-50.000000M-AQO2520-50-3.3-A-T/TR Overview

HCMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

O-50.000000M-AQO2520-50-3.3-A-T/TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1280937457
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	AQO2520
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 1.0mm
longest rise time	8 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

Oscillator SMD, clock-type

AQO 2520

Features:

- Small size 2.5x2.0 mm

- Low cost to performance

- Pick and place assembly

- Low supply voltage version available

Specifications

Frequency range

Frequency stability *

Operating temperature

Storage temperature

Input

Voltage

Current

Output symmetry

Output

Rise and fall time

Logic "0" level

Logic "1" level

Output load

AQO 2520

4.0MHz ~ 50MHz

±20ppm ~ ±50ppm

-40°C ~ +85°C

-55°C ~ +125°C

2.5V ±5%, 2.8V ±5%, 3.3V±10%

10mA

40% ~ 60%

8 ns

CMOS / HCMOS

(10%VDD)

(90%VDD)

15pF

Remarks

Please specify

Others are offered

Please specify

Max

Please specify

Max

Min

* Inclusive of ini tial frequency tolerance at 25°C, operating temperature range, supply voltage change, load variation and 1st year aging.

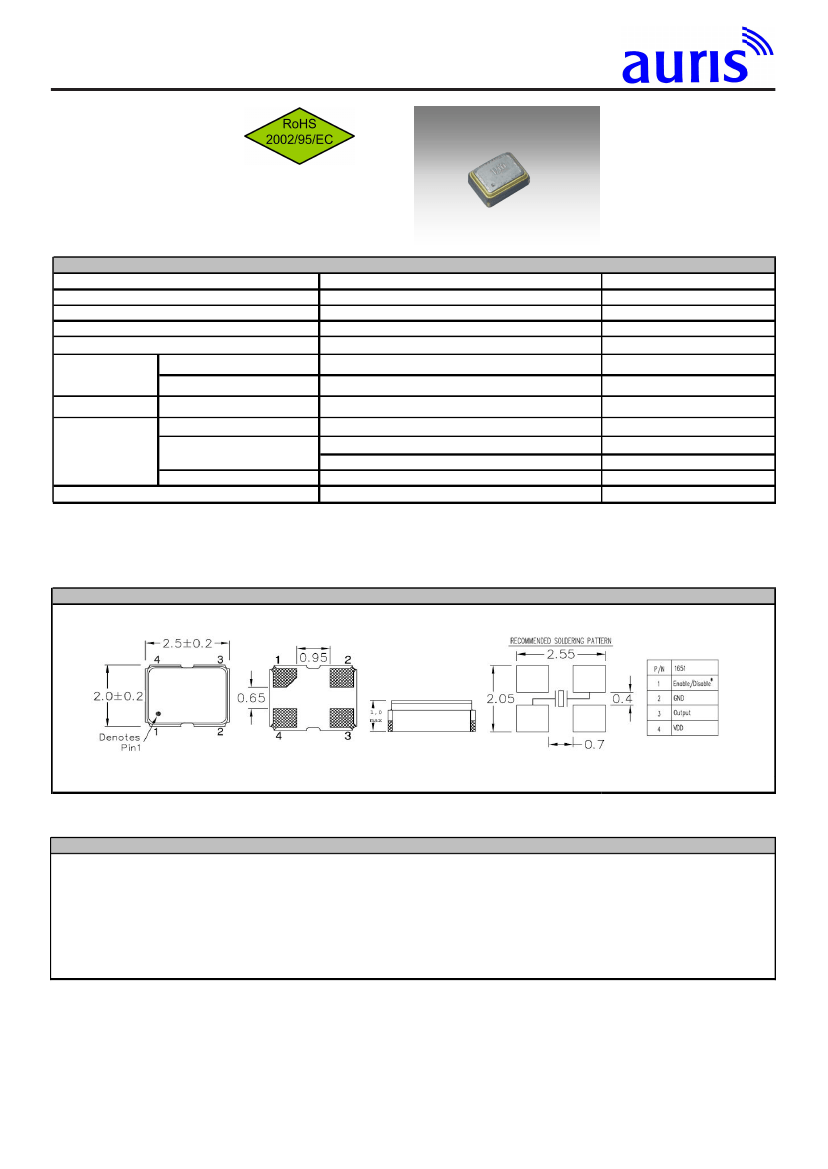

Drawing

AQO 2520

Dimensions in mm

Order key

O

Part

O=Oscillator

- 10.000000M - AQO 2520

Frequency

M=MHz

Type

AQO=Quartz oscillator

AQO 2520=SMD 2.5x3.2

-

50

Tolerance

±ppm

-

3.3

Voltage

3.3=3.3Volt

2.8=2.8Volt

2.5=2.5Volt

-

A

Temperature

A= 0°C ~ +70°C

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

E= -40°C ~ +85°C

-

Load

blank = 15pF

/

Option

T

T=Tristate

P=Power down

/

TR

Packaging

TR = tape + reeled

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.
