Standard Thick Film Chip Resistors
FEATURES
• Stability at different environmental conditions
R/R
1 % (1000 h rated power at 70 °C)
• 2 mm pitch packaging option for 0603 size
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
LINKS TO ADDITIONAL RESOURCES
• Automotive
• Industrial
• Telecommunication
D
D
3
3
3D Models
D/CRCW e3 standard thick film chip resistors are the perfect
choice for most fields of modern electronics where high
reliability and stability are of major concern. Typical
applications include automotive, telecommunications, and
industrial.
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance
range
Resistance
tolerance
Temperature
coefficient
Rated
dissipation,
P
70 (1)
Operating
voltage,
U
max.
AC
RMS
/DC
Permissible film
temperature,
D10/CRCW0402 D11/CRCW0603 D12/CRCW0805 D25/CRCW1206 CRCW1210 CRCW1218 CRCW2010 CRCW2512
e3
e3
e3
e3
e3
e3
e3
e3
0402
0603
0805
1206
1210
1218
2010
2512
RR1005M
RR1608M
RR2012M
RR3216M
RR3225M RR3246M RR5025M RR6332M
1
to
2.2 M;
1
to 10 M;
1
to 10 M; jumper (0
)
jumper
jumper (0
)
(0
)
± 5 %; ± 1 %
± 200 ppm/K; ± 100 ppm/K
0.063 W
50 V
0.10 W
75 V
0.125 W
150 V
0.25 W
200 V
0.5 W
200 V
1.0 W
200 V
0.75 W
400 V
1.0 W
500 V
F max. (1)
155 °C
Operating
temperature
range
Max. resistance
change at
P
70
for
resistance range,
|R/R|, after
(2)
:
1000 h
8000 h
Permissible
voltage
against ambient
(insulation):
1 min,
U
ins
Failure rate:
FIT
observed
-55 °C to +155 °C
1%
2%
75 V
100 V
200 V
300 V
0.1 x 10
-9
/h
300 V
300 V
300 V
300 V
Notes
(1)
Please refer to “Application Information” below
(2)
Apply to components with stability class 1
Revision: 23-Apr-2021
Document Number: 20035
1
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
D/CRCW e3
www.vishay.com
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Vishay
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
TCR
± 200 ppm/K
D10/CRCW0402 e3
± 100 ppm/K
Jumper,
I
max.
= 1.5 A
± 200 ppm/K
D11/CRCW0603 e3
± 100 ppm/K
Jumper,
I
max.
= 2.0 A
± 200 ppm/K
D12/CRCW0805 e3
± 100 ppm/K
Jumper,
I
max.
= 2.5 A
± 200 ppm/K
D25/CRCW1206 e3
± 100 ppm/K
Jumper,
I
max.
= 3.5 A
± 200 ppm/K
CRCW1210 e3
± 100 ppm/K
Jumper,
I
max.
= 5.0 A
± 200 ppm/K
CRCW1218 e3
± 100 ppm/K
Jumper,
I
max.
= 7.0 A
± 200 ppm/K
CRCW2010 e3
± 100 ppm/K
Jumper,
I
max.
= 6.0 A
± 200 ppm/K
CRCW2512 e3
± 100 ppm/K
Jumper,
I
max.
= 7.0 A
TOLERANCE
±5%
±1%
20 m
±5%
±1%
20 m
±5%
±1%
20 m
±5%
±1%
20 m
±5%
±1%
20 m
±5%
±1%
20 m
±5%
±1%
20 m
±5%
±1%
20 m
RESISTANCE
1
to 10 M
1
to 10 M
0
1
to 10 M
1
to 10 M
0
1
to 10 M
1
to 10 M
0
1
to 10 M
1
to 10 M
0
1
to 10 M
1
to 10 M
0
1
to 2.2 M
1
to 2.2 M
0
1
to 10 M
1
to 10 M
0
1
to 10 M
1
to 10 M
0
E-SERIES
E24
E24; E96
-
E24
E24; E96
-
E24
E24; E96
-
E24
E24; E96
-
E24
E24; E96
-
E24
E24; E96
-
E24
E24; E96
-
E24
E24; E96
-
Note
• The temperature coefficient of resistance (TCR) is not specified for 0
jumpers
Revision: 23-Apr-2021
Document Number: 20035
2
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
D/CRCW e3
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive set
of instructions established for reproducibility. A cermet film
layer and a glass-over are deposited on a high grade (Al
2
O
3
)
ceramic substrate with its prepared inner contacts. A
special laser is used to achieve the target value by smoothly
fine trimming the resistive layer without damaging the
ceramics. The resistor elements are covered by a protective
coating designed for electrical, mechanical and climatic
protection. The terminations receive a final pure tin on nickel
plating.
The result of the determined production is verified by an
extensive testing procedure on 100 % of the individual chip
resistors. Only accepted products are laid directly into
the tape in accordance with
IEC 60286-3 Type 1a and
Type 2a
(1)
.
Vishay
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
The products do not contain any of the banned
substances as per IEC 62474, GADSL, or the SVHC list,
see
www.vishay.com/how/leadfree.
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic
soldering using wave, reflow or vapor phase as shown in
IEC 61760-1
(1)
. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are RoHS-compliant, the pure tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. Solderability is
specified for 2 years after production or requalification. The
permitted storage time is 20 years. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
APPROVALS
The resistors are qualified according to AEC-Q200.
Where applicable, the resistors are tested in accordance
with
EN 140401-802
which refers to
EN 60115-1,
EN 60115-8
and the variety of environmental test
procedures of the
IEC 60068
(1)
series.
RELATED PRODUCTS
For more information about products with better TCR and
tighter tolerance please refer to the “Lead (Pb)-Free Thick
Film, Rectangular, Semi-Precision Chip Resistors”
datasheet (www.vishay.com/doc?20036).
The D/CRCW with SnPb termination plating is designed for
applications where lead bearing terminations are
mandatory. For ordering D/CRCW with SnPb terminations
please refer to latest edition of datasheet D/CRCW
(www.vishay.com/doc?20008).
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table
Revision: 23-Apr-2021
Document Number: 20035
4
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
D/CRCW e3
www.vishay.com

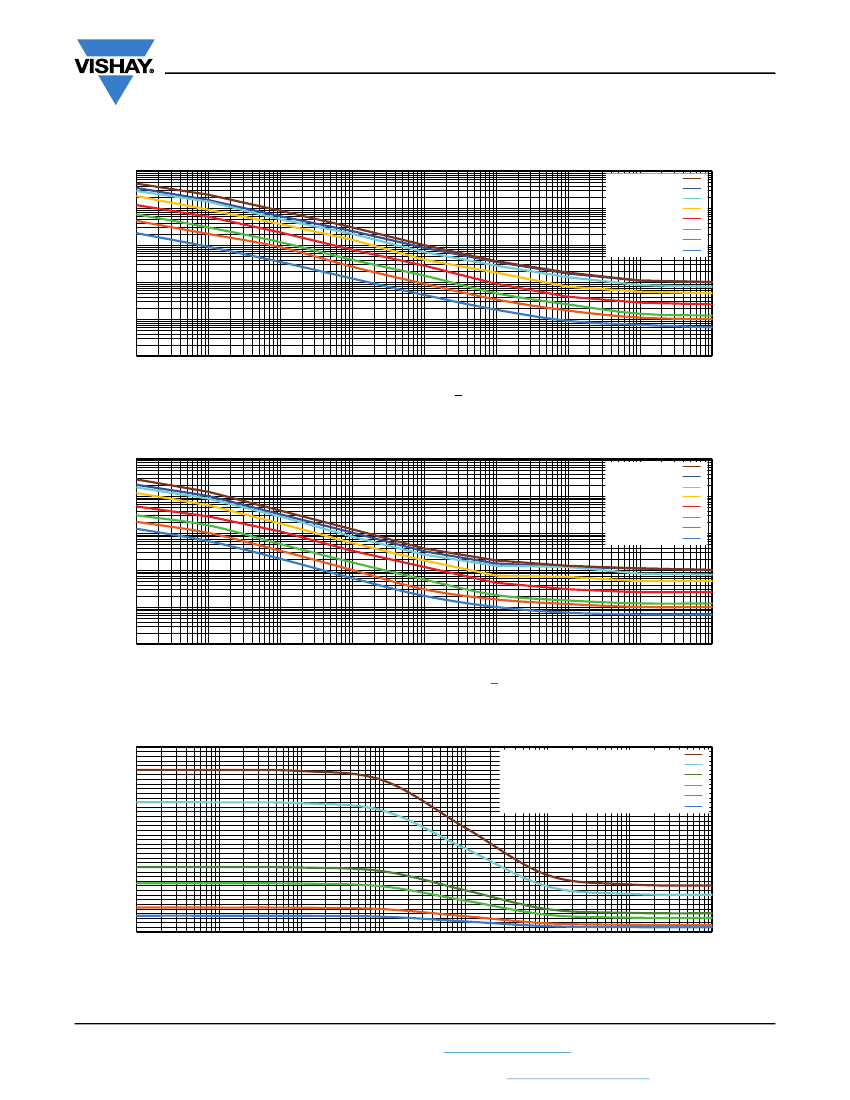

FUNCTIONAL PERFORMANCE
Single Pulse
Axis Title
1000
CRCW2512
CRCW1218
CRCW2010
CRCW1210
D25/CRCW1206
D12/CRCW0805
D11/CRCW0603
D10/CRCW0402
Vishay
10000
100
2nd line
^
P
max.
- Pulse Load (W)
1000
1st line
2nd line
100
10
100
10000
1000
1st line
2nd line
100
10
100
10000
1000
1st line
2nd line
100
10
10
10
1
0.1
0.01
0.000001
0.00001
0.0001
0.001
0.01
t
i
- Pulse Duration (s)
0.1
1
10
ˆ
ˆ
Maximum pulse load, single pulse; applicable if
P
0 and n < 1000 and
U
=
U
max.
;
for permissible resistance change equivalent to 8000 h operation
Continuous Pulse
Axis Title
1000
2nd line
^
P
max.
- Continuous Pulse Load (W)
CRCW2512
CRCW1218
CRCW2010
CRCW1210
D25/CRCW1206
D12/CRCW0805
D11/CRCW0603
D10/CRCW0402
100
10
1
0.1
0.01
0.000001
0.00001
0.0001
0.001
0.01
t
i
- Pulse Duration (s)
0.1
1
10
ˆ
ˆ
Maximum pulse load, continuous pulses; applicable if
P
P
(
amb
) and
U
=
U
max.
;
for permissible resistance change equivalent to 8000 h operation
Pulse Voltage
Axis Title
2000
1800
1600
2nd line
^
U
max.
- Pulse Voltage (V)
1400
1200
1000
800
600
400
200
0
0.000001
0.00001
0.0001
0.001
0.01
0.1
1
CRCW2512
CRCW2010
D25/CRCW1206, CRCW1210, CRCW1218
D12/CRCW0805
D11/CRCW0603
D10/CRCW0402
t
i
- Pulse Duration (s)
ˆ
ˆ
Maximum pulse voltage, single and continuous pulses; applicable if
P
=
P
max.
;
for permissible resistance change equivalent to 8000 h operation
Revision: 23-Apr-2021
Document Number: 20035
5
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
