VTB2-XXX Miniature TCXOs

Featuring

+3.0 or 5.0 Vdc Option

Low Cost

Voltage Tune Option

Low Profile Surface

Mount

Reflowable

Frequency Range

Stability Options

9.6 to 25 MHz

= ±1.0 PPM 0°C to +50°C

= ±2.5 PPM -30°C to +70°C

= ±3.5 PPM -30°C to +70°C

= ±5.0 PPM -40°C to +85°C

<±0.3 PPM vs B+ ±5%

<1.0 PPM/year at +40°C dynamic

= +5.0 Vdc ±5% <2 mA

= +3.0 Vdc ±5% <1.5 mA

Clipped Sinewave

1.0 VP-P minimum with 5.0 Vdc

input

0.7 VP-P minimum with 3.0 Vdc

input

10 K // 10 pf

±3.0 PPM Minimum

= Mechanical Trim

= ±5.0 PPM minimum Voltage

Control & Mechanical Trimmer

<1000 pcs boxed

>1000 pcs Tape and Reel

VTB2-2B0 12.8 MHz

= ±2.5 PPM

= +3.0 Vdc

= Mechanical trim adjust

Stability vs Supply

Aging (Typical)

Input Voltage & Current

Output

Load

Mechanical Trim

Trim Options

Standard Packaging

Typical P/N

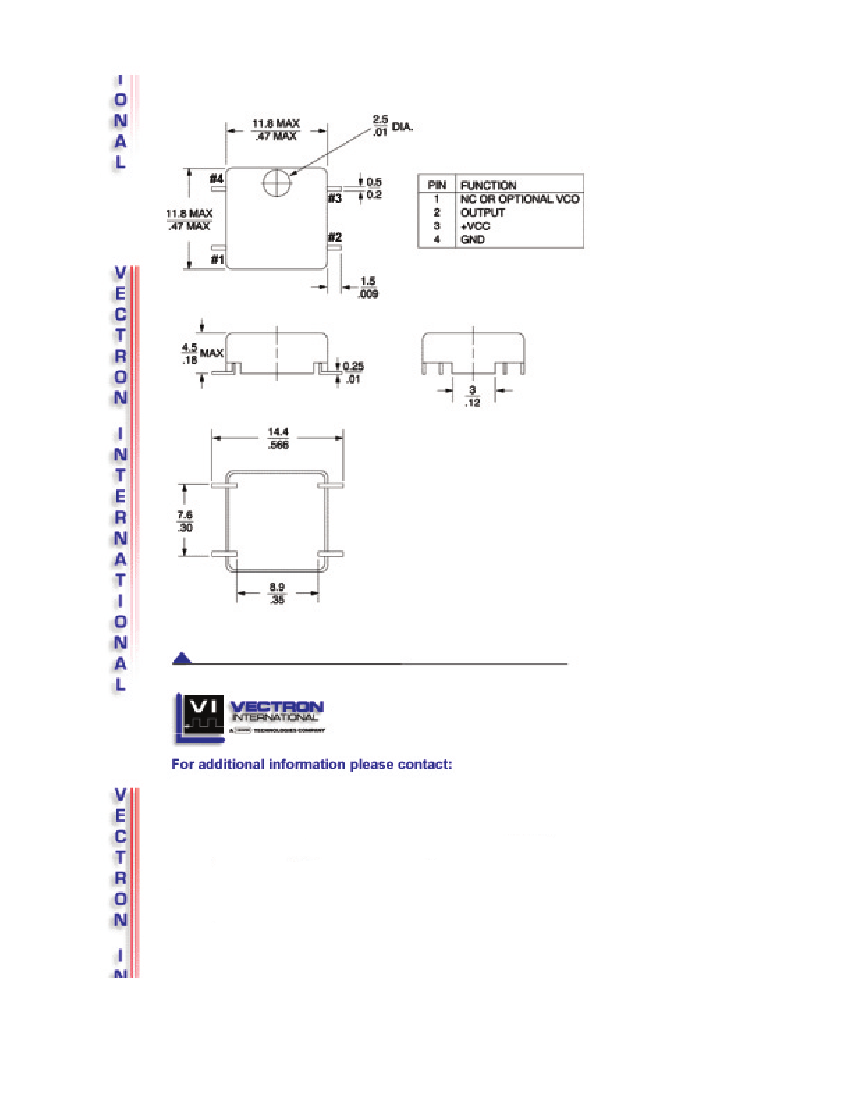

We welcome your custom requests and will issue a custom part

number for items that are not listed.
