WD304 Overview

DC/DC Converters

DC/DC Converters
XPiQ inc.
Intelligent
Design
Quality
Product
10/15 Watts
WD Series
2:1 Input Range
Isolated Outputs
Efficiency to 82%
200 kHz Switching Frequency
Input
π
Filter
Fully Regulated Outputs
Six-sided Shield
Specification
Input
Input Voltage Range
Input Filter
See Table
π
Network
General
Switching
Frequency
Efficiency
Isolation
(Input-Output)
200 kHz
See Table
500 VDC
(1000 Mohm/80pF)
Output
Voltage Accuracy
Line Regulation
(Full Input Range)
Load Regulation
(1/4 Full Load)
Ripple & Noise
(DC-20MHz)
Temperature
Coefficient
Short Circuit
Protection
±1% max
±0.5% max
±1% max
100mV p-p max
±0.05%/°C max
Indefinite
Environmental
Operating
Temperature
Storage
Temperature
-25°C to +71°C
-40°C to 100°C
Safety
Safety Approvals
UL1950 for LU versions only

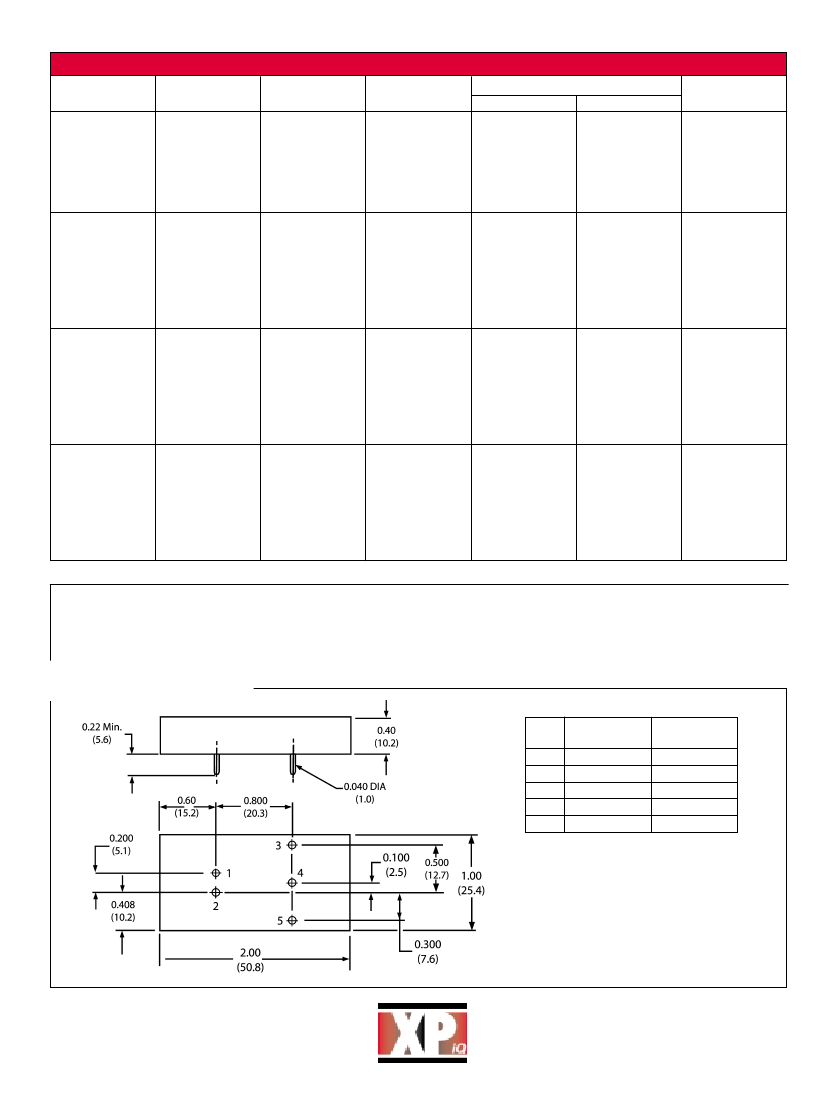

21
www.XP-iQ.com
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xp-iq.com
Holliston, MA 01746 USA
