WMF1P68K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> WMF1P68K-F

WMF1P68K-F: DescriptionCAPACITOR, FILM/FOIL, POLYESTER, 50 V, 0.1 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size135KB，3 Pages; ManufacturerETC2

Download Datasheet Parametric View All

WMF1P68K-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WMF1P68K-F	-	-	View	Buy Now

WMF1P68K-F Overview

CAPACITOR, FILM/FOIL, POLYESTER, 50 V, 0.1 uF, THROUGH HOLE MOUNT

WMF1P68K-F Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	50 V
Processing package description	AXIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	TIN
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	WMF
capacitance	0.1000 uF
packaging shape	TUBULAR PACKAGE
Capacitor type	FILM/FOIL
Terminal shape	WIRE
dielectric materials	POLYESTER

Preview

Download Datasheet

View All

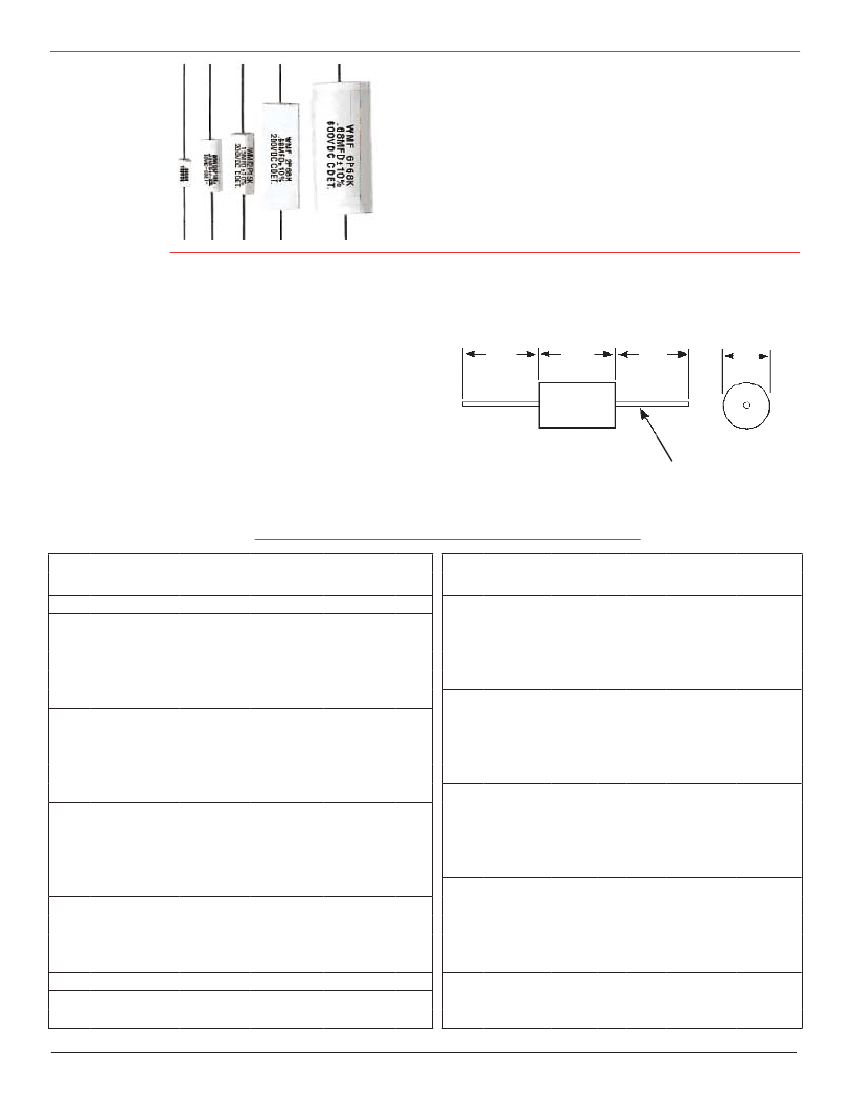

Type WMF

Polyester Film Capacitors

Film/Foil

Axial Leads

Commercial, Industrial Applications

Type WMF

axial-leaded, polyester ﬁlm/foil capacitors,

available in a wide range of capacitance and voltage

ratings, offer excellent moisture resistance capability with

extended foil, non-inductive wound sections, epoxy sealed

ends and a sealed outer wrapper. Like the Type DMT, Type

WMF is an ideal choice for most applications, especially

those with high peak currents.

Speciﬁcations

Voltage Range:

50—630 Vdc (35-250 Vac, 60 Hz)

Capacitance Range:

.001—5 µF

Capacitance Tolerance:

±10% (K) standard

*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C

±5% (J) optional

Operating Temperature Range:

–55 °C to 125 °C*

1.50”

(38.1mm)

L MAX.

1.50”

(38.1mm)

MAX.

Dielectric Strength:

250% (1 minute)

Dissipation Factor:

.75% Max. (25 °C, 1 kHz)

Insulation Resistance:

30,000 M

Ω

x µF

100,000 M

Ω

Min.

Life Test:

500 Hours at 85 °C at 125% Rated

Voltage

d TINNED COPPER-CLAD STEEL LEADS

NOTE: Other capacitance values, sizes and performance speciﬁcations are

available. Contact us.

Ratings and Dimensions

Cap.

(µF)

0.0820

0.1000

0.1500

0.2200

0.2700

0.3300

0.3900

0.4700

0.5000

0.5600

0.6800

0.8200

1.0000

1.2500

1.5000

2.0000

3.0000

4.0000

5.0000

0.0010

0.0015

Catalog

Part Number

dV/dt

V/μs

1500

920

660

310

6300

Cap.

Catalog

(inches)

0.188

0.200

0.245

0.236

0.235

0.256

0.240

0.255

0.260

0.265

0.295

0.275

0.335

0.340

0.374

(inches) (mm) (inches) (mm) (inches) (mm)

50 Vdc (35 Vac)

WMF05S82K-F

0.280 (7.1) 0.812 (20.6) 0.020 (0.5)

WMF05P1K-F

0.280 (7.1) 0.812 (20.6) 0.020 (0.5)

WMF05P15K-F

0.315 (8.0) 0.812 (20.6) 0.024 (0.6)

WMF05P22K-F

0.360 (9.1) 0.812 (20.6) 0.024 (0.6)

WMF05P27K-F

0.422 (10.7) 0.812 (20.6) 0.024 (0.6)

WMF05P33K-F

0.430 (10.9) 0.812 (20.6) 0.024 (0.6)

WMF05P39K-F

0.405 (10.3) 1.062 (27.0) 0.024 (0.6)

WMF05P47K-F

0.407 (10.3) 1.062 (27.0) 0.024 (0.6)

WMF05P5K-F

0.427 (10.8) 1.062 (27.0) 0.024 (0.6)

WMF05P56K-F

0.482 (12.2) 1.062 (27.0) 0.024 (0.6)

WMF05P68K-F

0.522 (13.3) 1.062 (27.0) 0.024 (0.6)

WMF05P82K-F

0.567 (14.4) 1.062 (27.0) 0.024 (0.6)

WMF05W1K-F

0.562 (14.3) 1.375 (34.9) 0.024 (0.6)

WMF05W1P25K-F 0.575 (14.6) 1.375 (34.9) 0.032 (0.8)

WMF05W1P5K-F 0.645 (16.4) 1.375 (34.9) 0.032 (0.8)

WMF05W2K-F

0.662 (16.8) 1.625 (41.3) 0.032 (0.8)

WMF05W3K-F

0.792 (20.1) 1.625 (41.3) 0.040 (1.0)

WMF05W4K-F

0.822 (20.9) 1.825 (46.3) 0.040 (1.0)

WMF05W5K-F

0.912 (23.2) 1.825 (46.3) 0.040 (1.0)

100 Vdc (65 Vac)

WMF1D1K-F

0.188 (4.8) 0.562 (14.3) 0.020 (0.5)

WMF1D15K-F

0.188 (4.8) 0.562 (14.3) 0.020 (0.5)

(µF) Part Number

0.0022 WMF1D22K-F

0.0027 WMF1D27K-F

0.0033 WMF1D33K-F

0.0039 WMF1D39K-F

0.0047 WMF1D47K-F

0.0050 WMF1D5K-F

0.0056 WMF1D56K-F

0.0068 WMF1D68K-F

0.0082 WMF1D82K-F

0.0100. WMF1S1K-F

0.0150 WMF1S15K-F

0.0220 WMF1S22K-F

0.0270 WMF1S27K-F

0.0330 WMF1S33K-F

0.0390 WMF1S39K-F

0.0470 WMF1S47K-F

0.0500 WMF1S5K-F

0.0560 WMF1S56K-F

0.0680 WMF1S68K-F

0.0820 WMF1S82K-F

0.1000 WMF1P1K-F

0.1500 WMF1P15K-F

0.2200 WMF1P22K-F

RoHS Compliant

dV/dt

V/μs

6300

3200

2100

1600

(mm) (inches) (mm) (inches) (mm)

(4.8) 0.562 (14.3) 0.020 (0.5)

(5.0) 0.562 (14.3) 0.020 (0.5)

(4.8) 0.562 (14.3) 0.020 (0.5)

(5.1) 0.562 (14.3) 0.020 (0.5)

(6.2) 0.562 (14.3) 0.020 (0.5)

(6.0) 0.687 (17.4) 0.024 (0.6)

(6.5) 0.687 (17.4) 0.024 (0.6)

(6.1) 0.812 (20.6) 0.024 (0.6)

(6.5) 0.812 (20.6) 0.024 (0.6)

(6.6) 0.812 (20.6) 0.024 (0.6)

(6.7) 0.812 (20.6) 0.024 (0.6)

(7.5) 0.812 (20.6) 0.024 (0.6)

(7.0) 0.937 (23.8) 0.024 (0.6)

(8.5) 0.937 (23.8) 0.024 (0.6)

(8.6) 0.937 (23.8) 0.024 (0.6)

(9.5) 1.062 (27.0) 0.024 (0.6)

CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02740•Phone: (508)996-8561•Fax: (508)996-3830 www.cde.com
