VTF211

Description
Array/Network Resistor, Divider, Thin Film, 5000ohm, 100V, 0.1% +/-Tol, -10,10ppm/Cel, 3210,
CategoryPassive components    The resistor
File Size729KB，9 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

VTF211 Overview

Array/Network Resistor, Divider, Thin Film, 5000ohm, 100V, 0.1% +/-Tol, -10,10ppm/Cel, 3210,

VTF211 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid986961989
Reach Compliance Codecompliant
ECCN codeEAR99
structureEpoxy Coated
Lead length3.17 mm
lead spacing2.54 mm
Network TypeDivider
Number of terminals3
Maximum operating temperature70 °C
Minimum operating temperature
Package height7.11 mm
Package length8.13 mm
Package formSIP
Package width2.54 mm
method of packingBox
resistance5000 Ω
Resistor typeARRAY/NETWORK RESISTOR
seriesVTF (STANDARD)
size code3210
technologyTHIN FILM
Temperature Coefficient-10,10 ppm/°C
Tolerance0.1%
Operating Voltage100 V

VTF211 Preview

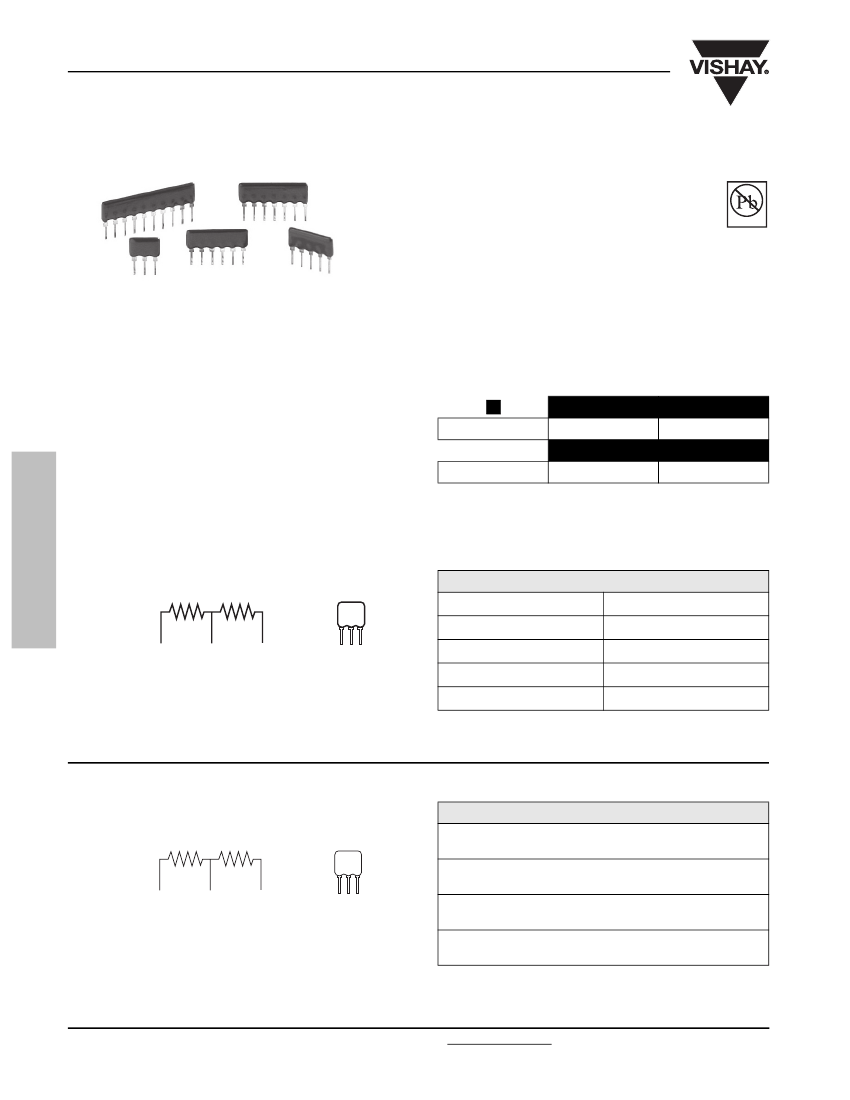

VTF (Standard)
Vishay Thin Film
Conformal, Single In-Line Resistor Networks (Standard)
FEATURES
Actual Size
•
Lead (Pb)-free available
Pb-free
•
Off-the-shelf delivery
•
Wide variety of standards
Available
RoHS*
COMPLIANT
THROUGH HOLE
NETWORKS
VISHAY Thin Film resistor networks are designed to be
used in analog circuits in conjunction with operational
amplifiers. Engineers can use these circuits to achieve an
infinite number of very low noise and high stability circuits
for industrial, medical and scientific instrumentation.
This family of standard resistor networks will continually be
expanded with new and innovative designs, and VISHAY
Thin Film stocks most designs in house for off-the-shelf
convenience. However, if you can not find the standard
network you need, call Applications Engineering at (716)
283-4025, as we may be able to meet your requirements with
a semicustom “match” for a quick delivery.
For standard networks with tighter specifications, or for
custom networks, contact Applications Engineering at the
above number. For a quick review of typical applications,
request VISHAY’s Guide to Understanding and Using Thin
Film Precision Networks.
•
Small size (SIP)
•
Standard designs - no NRE
•
Low capacitance < 0.1 pF/PIN
•
Flame resistant (UL94V-0 rating)
TYPICAL PERFORMANCE
ABS
TCR
10
ABS
TOL
0.1
TRACKING
2
RATIO
0.02
Complete Electrical Specifications at the end of schematics.
SCHEMATIC
R1 = R2
R1
R2
TWO EQUAL RESISTORS
ORDERING INFORMATION
R1 =
1K:
2K:
VTF209BX
VTF210BX
VTF211BX
VTF212BX
VTF213BX
50K:
100K:
200K:
500K:
1M:
VTF214BX
VTF215BX
VTF216BX
VTF217BX
VTF218BX
1
2
3
Actual Size
5K:
10K:
L = Total Length = 0.320" (8.13 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Except PN 218
where
Seated Height = 0.342" (8.69 mm) Max.
20K:
Lead (Pb)-free option add “S” after part number, e.g: VTF209SBX
R1 + R2 = 10K, 100K, 1M
R1 + R2
———— = 10
R2
R1
R2
RATIO DIVIDER 10:1
ORDERING INFORMATION
R1 + R2 =
9K + 1K = 10K:
VTF280BX
VTF193BX
VTF281BX
1
2
3
Actual Size
90K + 10K = 100K:
900K + 100K = 1M:
L = Total Length = 0.320" (8.13 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Except PN 281
where
Seated Height = 0.362" (9.19 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF280SBX
* Pb containing terminations are not RoHS compliant, exemptions may apply
www.vishay.com
74
For technical questions, contact: thin-film@vishay.com
Document Number: 60038
Revision: 05-Mar-08
VTF (Standard)
Conformal, Single In-Line Resistor Networks (Standard)
Vishay Thin Film
DIVIDER NETWORK 10:1
R1
= 100K, 1M
R1
———
= 10
R2
R1
ORDERING INFORMATION
R2
R1 = 100K:
VTF282BX
Actual Size
1
2
3
L = Total Length = 0.320" (8.13 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Except PN 283
where
Seated Height = 0.362" (9.19 mm) Max.
R1 =1M:
VTF283BX
TWO EQUAL RESISTORS - ISOLATED
R1 = R2
R1
R2
ORDERING INFORMATION
R1 =
1K:
2K:
5K:
10K:
20K:
25K:
VTF365BX
VTF997BX
VTF998BX
VTF363BX
VTF1104BX
VTF999BX
50K:
100K:
200K:
500K:
1M:
VTF1000BX
VTF348BX
VTF1105BX
VTF1106BX
VTF1103BX
1
2
3
4
Actual Size
L = Total Length = 0.420" (10.67 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF365SBX
THROUGH HOLE
NETWORKS
RATIO DIVIDER 10:1 AND 100:1
R1 + R2 + R3 = 100K
R1
R1 + R2 + R3
R3
= 100
R2
9K
2
3
R3
1K
4
Actual Size
ORDERING INFORMATION
90K
1
R1 + R2 + R3
= 10
R2 + R3
R1 + R2 + R3 = 100K: VTF330BX
L = Total Length = 0.420" (10.67 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF330SBX
R1 = R2 = R3 = R4 = 10K, 100K
R1
1
2
3
R2
4
R3
5
R4
Actual Size
FOUR EQUAL RESISTORS ONE COMMON
ORDERING INFORMATION
R1 = 10K:
VTF366BX
VTF367BX
100K:
L = Total Length = 0.520" (13.21 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF366SBX
DIVIDER NETWORK 2:1
R1 = 10K
R2
R1
=1
R1
R2
R3
ORDERING INFORMATION
10K
R1 x R2
R3 =
R1 + R2
1
2
10K
3
4
5K
5
Actual Size
VTF1087BX
L = 0.520 (13.21 mm), H = 0.280 (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF1087SBX
Document Number: 60038
Revision: 05-Mar-08
For technical questions, contact: thin-film@vishay.com
www.vishay.com
75
VTF (Standard)
Vishay Thin Film
R1 = 10K
R2
——
= 2
R1
Conformal, Single In-Line Resistor Networks (Standard)
R1
10K
R2
20K
R3
6.667K
DIVIDER NETWORK 2:1
ORDERING INFORMATION
1
R1 x R2
R3 =
——————
R1 + R2
2
3
4
5
Actual Size
VTF1088BX
L = 0.520" (13.21 mm), H = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF1088SBX
R1 = 10K
R2
——
= 5
R1
R1 x R2
1
R3 =
———————
R1 + R2
R1
10K
R2
50K
R3
8.333K
DIVIDER NETWORK 5:1
ORDERING INFORMATION
2
3
4
5
Actual Size
VTF1089BX
L = 0.520" (13.21 mm), H = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF1089SBX
THROUGH HOLE
NETWORKS
R1 = 10K
R2
——
= 10
R1
R1
10K
R2
100K
R3
9.09K
DIVIDER NETWORK 10:1
ORDERING INFORMATION
2
3
R1 x R2
1
R3 =
——————
R1 + R2
NOTE:
R2 TC Tracking 3 ppm/°C
4
5
Actual Size
VTF1090BX
L = 0.520" (13.21 mm), H = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF1090SBX
R1 = 5K, 10K, 100K, 1M
R1 = R2
R1
R2
DIVIDER NETWORK 1:1
R2
R1
ORDERING INFORMATION
R1 = 5K:
VTF225BX
VTF286BX
VTF219BX
VTF287BX
10K:
100K:
1M:
1
2
3
4
5
6
Actual Size
L = Total Length = 0.620" (15.75 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Except PN 287 Seated Height = 0.362" (9.19 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF225SBX
R1 = 10K, 100K
R1
——
= 2
R2
DIVIDER NETWORK 2:1
R2
R2
R1
R1
ORDERING INFORMATION
R1 = 10K:
VTF1009BX
VTF1010BX
1
2
3
4
5
6
Actual Size
100K:
L = Total Length = 0.620" (15.75 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF1009SBX
www.vishay.com
76
For technical questions, contact: thin-film@vishay.com
Document Number: 60038
Revision: 05-Mar-08
VTF (Standard)
Conformal, Single In-Line Resistor Networks (Standard)
Vishay Thin Film
R1 = 10K, 100K
R1
——
= 5
R2
DIVIDER NETWORK 5:1
R2
R2
R1
R1
ORDERING INFORMATION
R1 = 10K:
VTF1007BX
1
2
3
4
5
6
100K:
VTF1008BX
Actual Size
L = Total Length = 0.620" (15.75 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF1007SBX
R1 = 10K
R2
——
= 10
R1
1
R1
R2
R1
R2
DIVIDER NETWORK 10:1
ORDERING INFORMATION
2
3
4
5
6
Actual Size
R1 = 10K:
VTF220BX
L = Total Length = 0.620" (15.75 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF220SBX
THROUGH HOLE
NETWORKS
R1 = 10K, 100K, 1M
R1
——
= 10
R2
DIVIDER NETWORK 10:1
R2
R2
R1
R1
ORDERING INFORMATION
R1 = 10K:
VTF328BX
VTF284BX
VTF285BX
1
2
3
4
5
6
Actual Size
100K:
L = Total Length = 0.620" (15.75 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Except PN 285 Seated Height = 0.320" (8.13 mm) Max.
1M:
Lead (Pb)-free option add “S” after part number, e.g: VTF328SBX
DIVIDER NETWORK 20:1
R1 = 10K, 50K, 200K, 1M
R1
——
= 20
R2
R1
R2
R2
R1
ORDERING INFORMATION
R1 = 10K:
50K:
VTF1073BX
VTF1074BX
VTF1107BX
VTF1108BX
1
2
3
4
5
6
Actual Size
200K:
1M:
L = Total Length = 0.620" (15.75 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
Lead (Pb)-free option add “S” after part number, e.g: VTF1073SBX
R1 = 1M
R1
——
= 100
R2
1
R1
R2
R2
R1
DIVIDER NETWORK 100:1
ORDERING INFORMATION
2
3
4
5
6
Actual Size
R1 = 1M:
VTF1109BX
Lead (Pb)-free option add “S” after part number, e.g: VTF1109SBX
Document Number: 60038
Revision: 05-Mar-08
For technical questions, contact: thin-film@vishay.com
www.vishay.com
77
VTF (Standard)
Vishay Thin Film
Common Mode
Division Ratio 250, 100, 50
R1 = R3 = 1M
R2 = 4K, 10K, 20K
R4 = 3.984K, 9.901K, 19.608K
R5 = 900K, 950K, 975K
R6 = 100K, 50K, 25K
Conformal, Single In-Line Resistor Networks (Standard)
SIX RESISTOR NETWORK
(Designed for Unity Gain/High Common Mode Voltage
Rejection Differential Amplifier)
ORDERING INFORMATION
R5
R6
R1
1M
1
2
3
4
5
6
R2
R4
R3
1M
7
Actual Size
R1
R2
= Division Ratio = 250: VTF442BX
100:
50:
VTF443BX
VTF444BX
L = Total Length = 0.720" (18.29 mm) Max.
H = Seated Height = 0.360" (9.14 mm) Max.
Maximum
voltage
to pins #3 and #7 is 300
V
Lead (Pb)-free option add “S” after part number, e.g: VTF442SBX
FOUR EQUAL RESISTORS ISOLATED
THROUGH HOLE
NETWORKS
R1 = 1K, 10K, 25K, 50K, 100K
R1
R1
R1
R1
ORDERING INFORMATION
R1 = 1K:
2K:
VTF329BX
VTF1001BX
VTF1002BX
VTF158BX
VTF1003BX
VTF1004BX
VTF288BX
1
2
3
4
5
6
7
8
Actual Size
5K:
10K:
L = Total Length = 0.820" (20.83 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
25K:
50K:
100K:
Lead (Pb)-free option add “S” after part number, e.g: VTF329SBX
R1 = 1K, 10K, 100K
R1
R1
R1
R1
FOUR EQUAL RESISTORS ISOLATED
ORDERING INFORMATION
R1 = 1K:
VTF1005BX
1
2
3
4
5
6
7
8
Actual Size
10K:
VTF1006BX
100K:
Absolute Tolerance = 0.1 %
Ratio Tolerance = 0.1 %
L = Total Length = 0.820" (20.83 mm) Max.
H = Seated Height = 0.280" (7.11 mm) Max.
VTF1137BX
Lead (Pb)-free option add “S” after part number, e.g: VTF1005SBX
www.vishay.com
78
For technical questions, contact: thin-film@vishay.com
Document Number: 60038
Revision: 05-Mar-08
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

VTF211 Related Products

VTF211 VTF214S VTF211S
Description Array/Network Resistor, Divider, Thin Film, 5000ohm, 100V, 0.1% +/-Tol, -10,10ppm/Cel, 3210, Array/Network Resistor, Divider, Thin Film, 50000ohm, 100V, 0.1% +/-Tol, -10,10ppm/Cel, 3210, RES NET,THIN FILM,5K OHMS,100WV,.1% +/-TOL,-10,10PPM TC,3210 CASE
Is it Rohs certified? incompatible conform to conform to
Reach Compliance Code compliant compliant unknown
structure Epoxy Coated Epoxy Coated Epoxy Coated
Lead length 3.17 mm 3.17 mm 3.17 mm
lead spacing 2.54 mm 2.54 mm 2.54 mm
Network Type Divider Divider Divider
Number of terminals 3 3 3
Maximum operating temperature 70 °C 70 °C 70 °C
Package height 7.11 mm 7.11 mm 7.11 mm
Package length 8.13 mm 8.13 mm 8.13 mm
Package form SIP SIP SIP
Package width 2.54 mm 2.54 mm 2.54 mm
method of packing Box Box Box
resistance 5000 Ω 50000 Ω 5000 Ω
Resistor type ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR
size code 3210 3210 3210
Temperature Coefficient -10,10 ppm/°C -10,10 ppm/°C -10,10 ppm/°C
Tolerance 0.1% 0.1% 0.1%
Operating Voltage 100 V 100 V 100 V
Objectid 986961989 - 1171327499
ECCN code EAR99 - EAR99
series VTF (STANDARD) VTF (STANDARD) -
technology THIN FILM THIN FILM -

Recommended Resources

Double button light switch circuit (9)

Novel and efficient emergency light circuit diagram

Circuit to extend signal light battery life

Resistance error measuring instrument circuit using integrated circuit

IGBT switch equivalent circuit and turn-on waveform

Four-channel wireless remote control toy car composed of TX-2/RX-2

Multi-level low frequency
Does anyone know about the basic principle analysis of multi-stage low-frequency resistor-capacitor coupled amplifier?...
一个电子小白 Analogue and Mixed Signal
Celebrate the birthday of Infineon Tmall flagship store｜【Browse and get gifts】【Order 100% gifts】
Event details: Celebrate the birthday of Infineon Tmall flagship store | [Browse and get gifts] [Order 100% gifts]Event time: From now until May 31, 2020Light up the cake and win a birthday gift Step1...
EEWORLD社区 Discrete Device
Micropython updated ST's HAL, and F7's I2C is normal
[font=Tahoma, Helvetica, SimSun, sans-serif]This weekend, MicroPython quietly updated ST's HAL library and switched to I2C IRQ on F7 and F4. I think the I2C that has been unable to work properly on ST...
dcexpert MicroPython Open Source section
Since Avatar is so popular, let's take a look at its 3D display (Part 2)
The 3D image simulation of Pandora's tree in the human headquarters in "Avatar" is a high-tech application of the true display of objects. With the rise of the 3D display industry, this will not be to...
clark MCU
Unable to capture, the print task file name is in Chinese?
RT, cannot capture, the print task file name is in Chinese. I got the print job file name in the PrintDocumentOnPrintProcessor event in the print processor. The code is as follows: In the last line, g...
lijian5113110 Embedded System
A must-read for beginners: 22 common concepts about ARM
[align=left]1. Explanation of some common English abbreviations in ARMMSB: Most significant bit; LSB: Least significant bit; AHB: Advanced high-performance bus; VPB: VLSI peripheral bus that connects ...
jingcheng Linux and Android
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. RH10523R0FS03
  2. EMRA32L2H-75000M-TR
  3. LJTP00RP-25-2PC(011LC)
  4. 7107J50ZGI1
  5. MD29M59R6JTX
  6. RSB6SP22150314
  7. 4118T-2-1200BAD
  8. OP32B272M251LT
  9. 1N5263B-35B
  10. BZX84C39_R1_00001
  11. 1N5939BD1
  12. A2502WVT-6P

Popular Articles

  1. Working principle of explosion-proof motor_Basic explosion-proof type of explosion-proof motor
  2. S3C2440 Boot Loader Boot Code Function Brief Description
  3. STM8L firmware burning encryption process
  4. MediaTek launches Xunkun™ 900T for the high-end market, firmly securing the No. 1 position in Android tablets
  5. Intel and Submer jointly promote the development of data center cooling technology
  6. OPPO K9x released with Dimensity 810 chip
  7. How to use the buck-boost chip CS5517 to achieve a stable output voltage of 3.3V/3.6V for lithium batteries?
  8. Design of Indoor Environmental Parameters Automatic Control System Based on Single Chip Microcomputer
  9. 04-S3C2440u-boot learning u-boot analysis (3) source code stage 1 and 2

Technical ResourceMore

  1. S7-200 Application Quick Start Collection
  2. Digital tube display 0-9999Hz frequency meter
  3. Ferrite core high frequency transformer design II
  4. FP-SNS-ALLMEMS1
  5. steval-mksbox1v1
  6. New energy vehicle electric drive system - vehicle controller
  7. 3D Probes for Magnetic Imaging and Nondestructive Testing
  8. 5G physical layer Chinese information
  9. MATLAB Case 4 Neural Network Genetic Algorithm Function Extreme Value Optimization-Nonlinear Function Extreme Value.rar
  10. HSE_RDY is abnormally set when there is no external crystal oscillator

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1315  365  1448  2299  498  27  8  30  47  11
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
