LFXTAL060176BULK datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL060176BULK

LFXTAL060176BULK: DescriptionQUARTZ CRYSTAL RESONATOR; CategoryPassive components Crystal/resonator; File Size285KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL060176BULK Overview

QUARTZ CRYSTAL RESONATOR

LFXTAL060176BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8177538224
package instruction	ROHS AND REACH COMPLIANT, HERMETIC SEALED, RESIN SEALED, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.8XB5.5XH2.1 (mm)/L0.465XB0.217XH0.083 (inch)
Series resistance	30 Ω
surface mount	YES
Terminal surface	NOT SPECIFIED

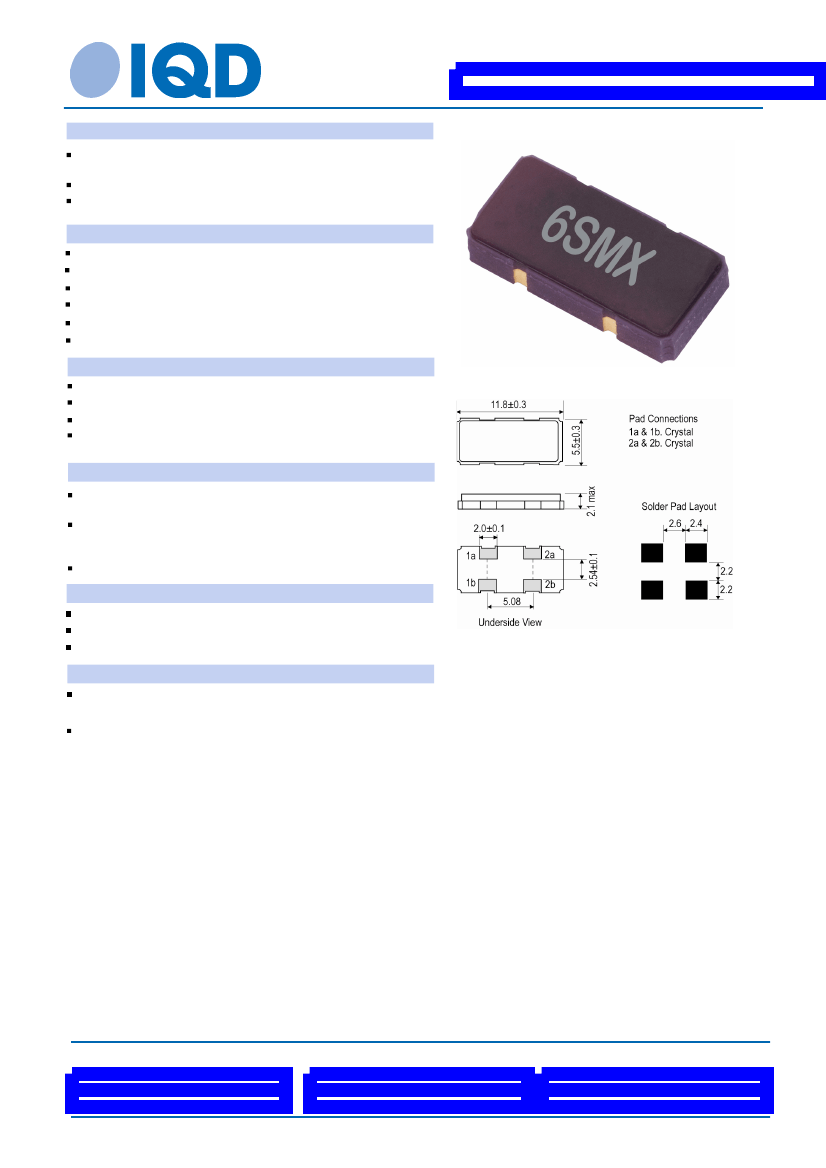

Preview

Download Datasheet

View All

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL060176Bulk

Description

Ceramic package with a resin sealed ceramic lid, hermetically

sealed

Model

6SMX

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

25.0MHz

±30.00ppm

±50.00ppm

-10.00 to 60.00°C

Fundamental

±5ppm max per year at 25°C

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

18.00pF

7pF max

100µW max

30.00Ω max

Outline (mm)

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Storage Temperature Range: -55°C to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1
