LFXTAL060176REEL

Description
QUARTZ CRYSTAL RESONATOR
CategoryPassive components    Crystal/resonator
File Size285KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL060176REEL Overview

QUARTZ CRYSTAL RESONATOR

LFXTAL060176REEL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8177538225
package instructionROHS AND REACH COMPLIANT, HERMETIC SEALED, RESIN SEALED, CERAMIC PACKAGE-4
Reach Compliance Codecompliant
Other featuresTR
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.005%
frequency tolerance30 ppm
load capacitance18 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency25 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL11.8XB5.5XH2.1 (mm)/L0.465XB0.217XH0.083 (inch)
Series resistance30 Ω
surface mountYES
Terminal surfaceNOT SPECIFIED

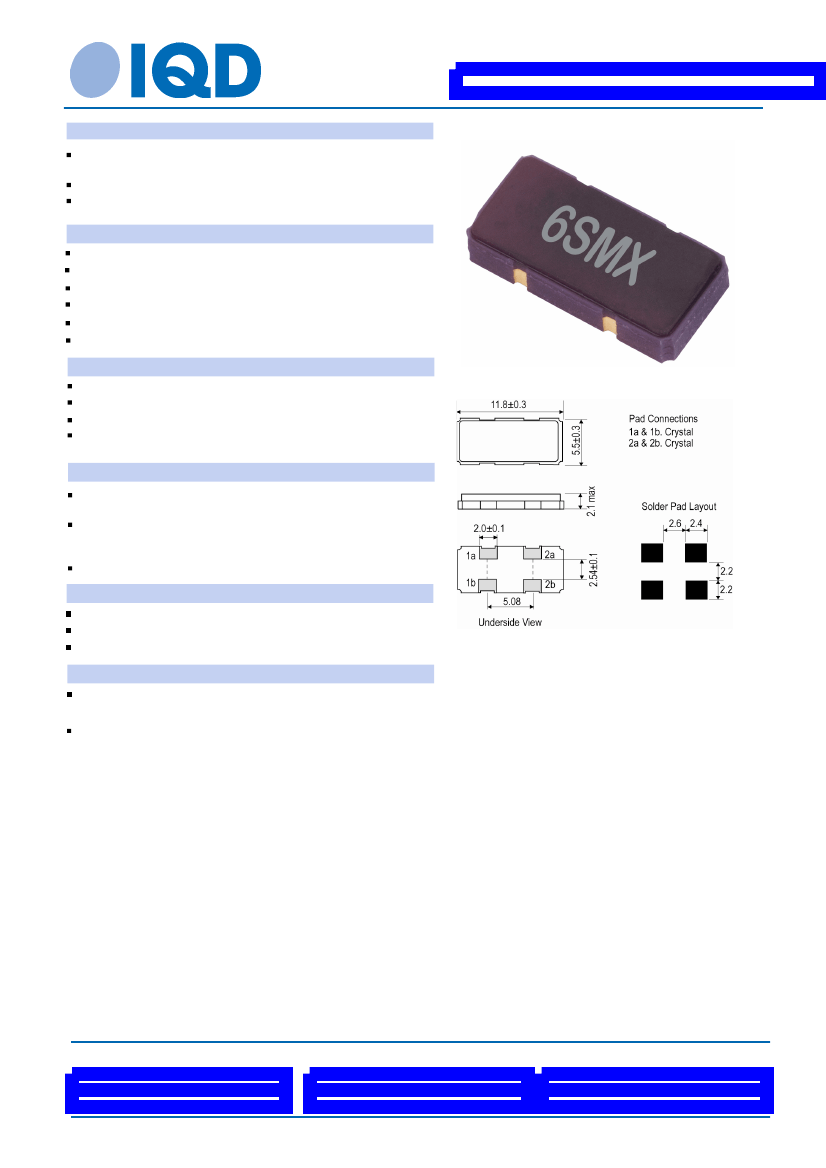

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL060176Reel
Description
Ceramic package with a resin sealed ceramic lid, hermetically
sealed
Model
6SMX
Model Issue number
9
Frequency Parameters
Frequency
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
25.0MHz
±30.00ppm
±50.00ppm
-10.00 to 60.00°C
Fundamental
±5ppm max per year at 25°C
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
18.00pF
7pF max
100µW max
30.00Ω max
Outline (mm)
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
wave
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Storage Temperature Range: -55°C to 125°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
