Z8470-PS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8470-PS

Preview

Z8470-PS: DescriptionSerial I/O Controller, MOS, PDIP40,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，12 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z8470-PS Overview

Serial I/O Controller, MOS, PDIP40,

Z8470-PS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	113908513
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T40
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

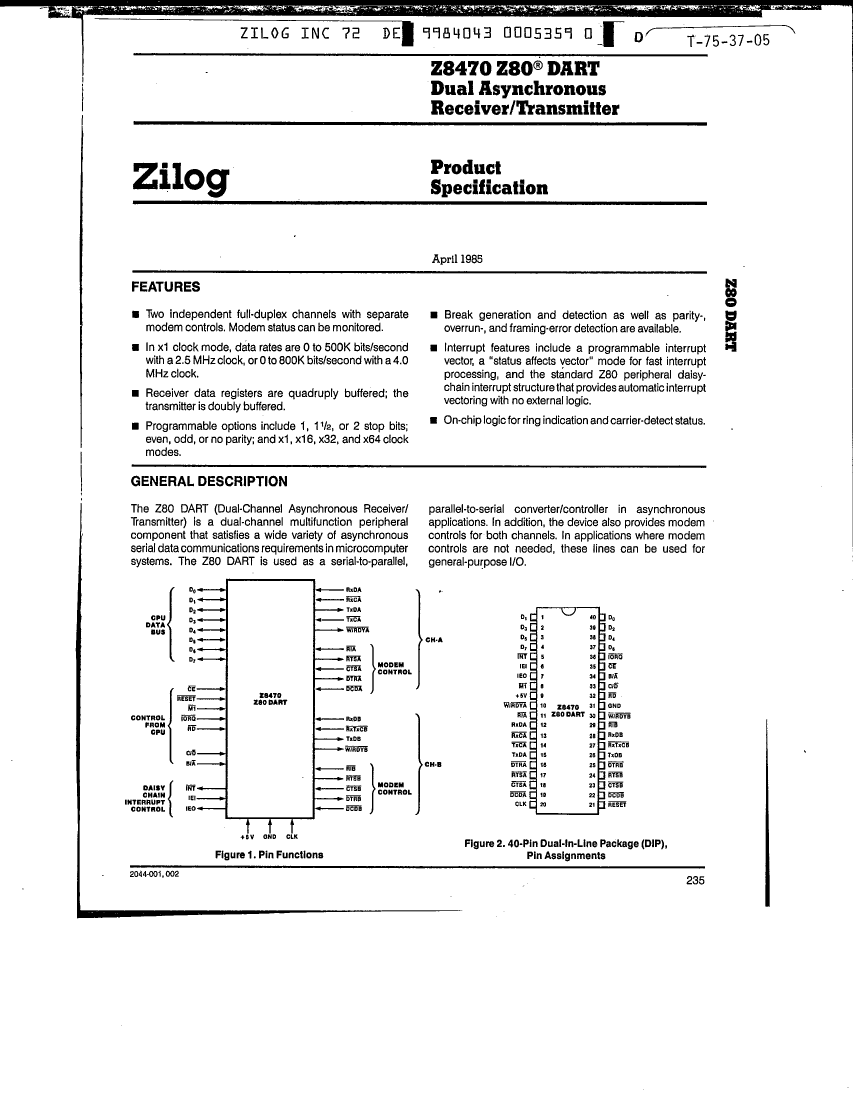

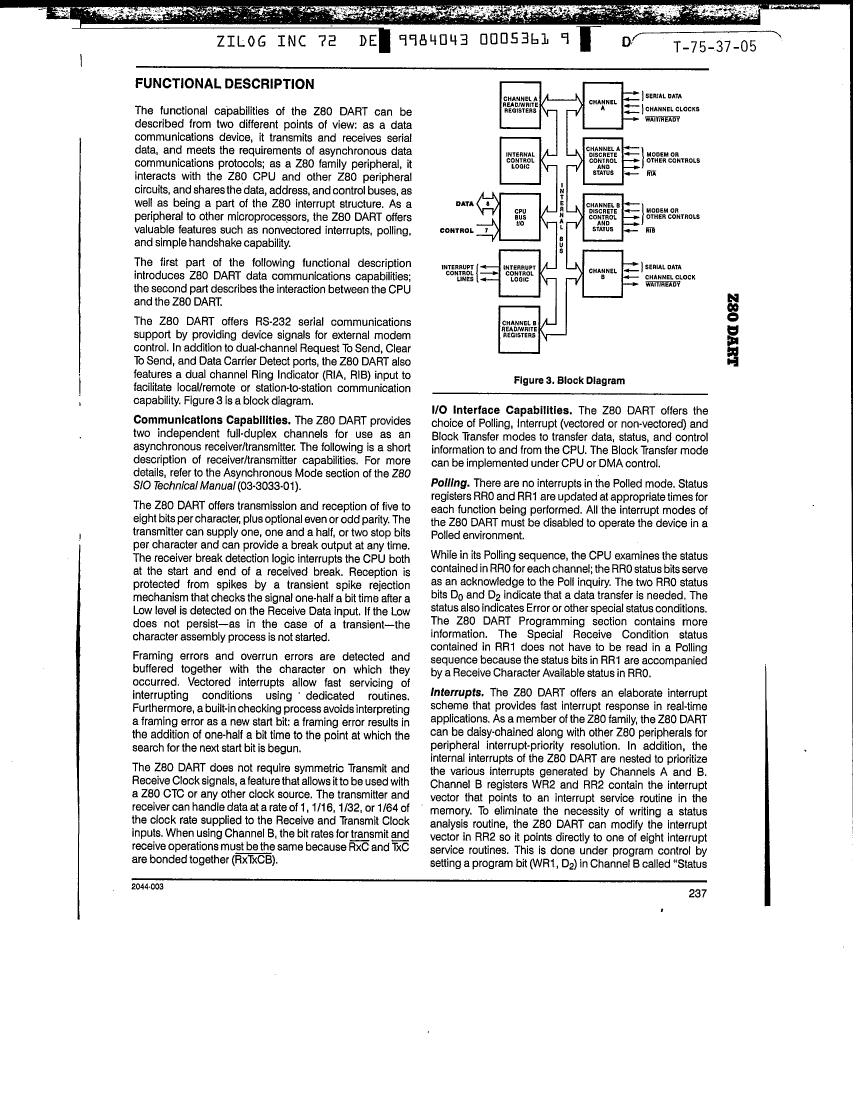

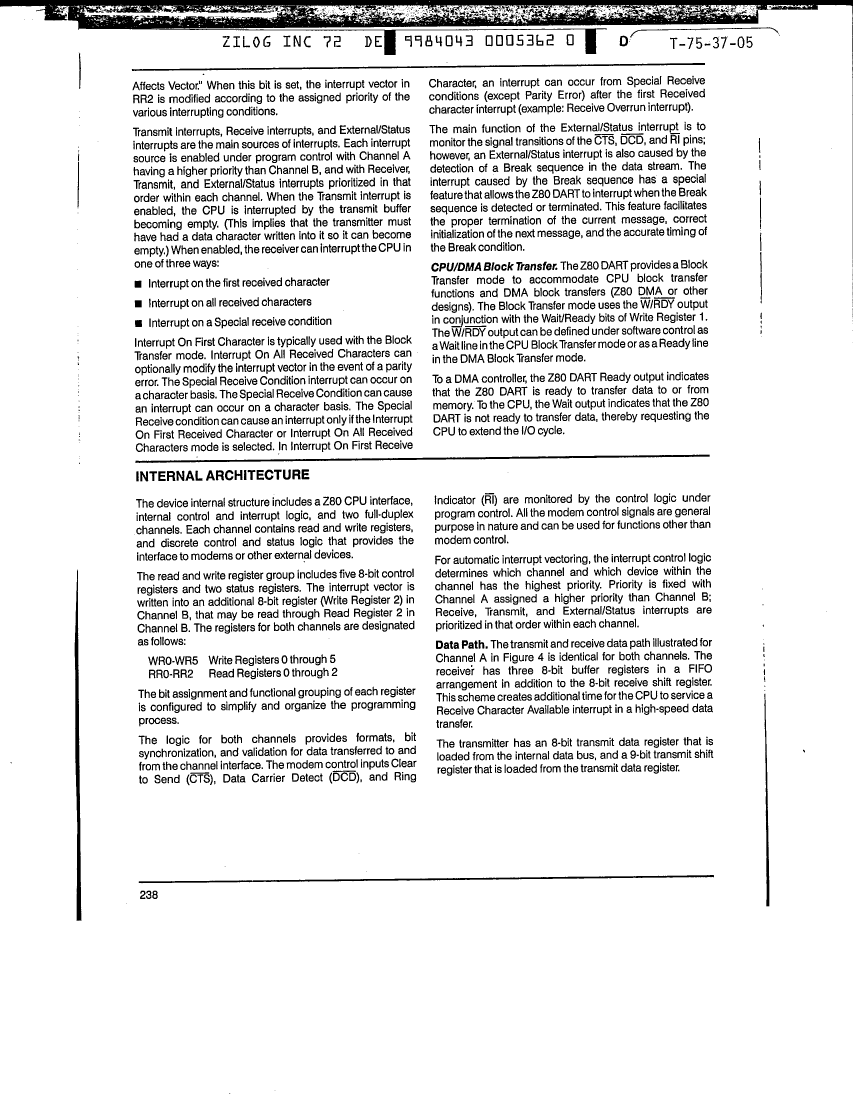

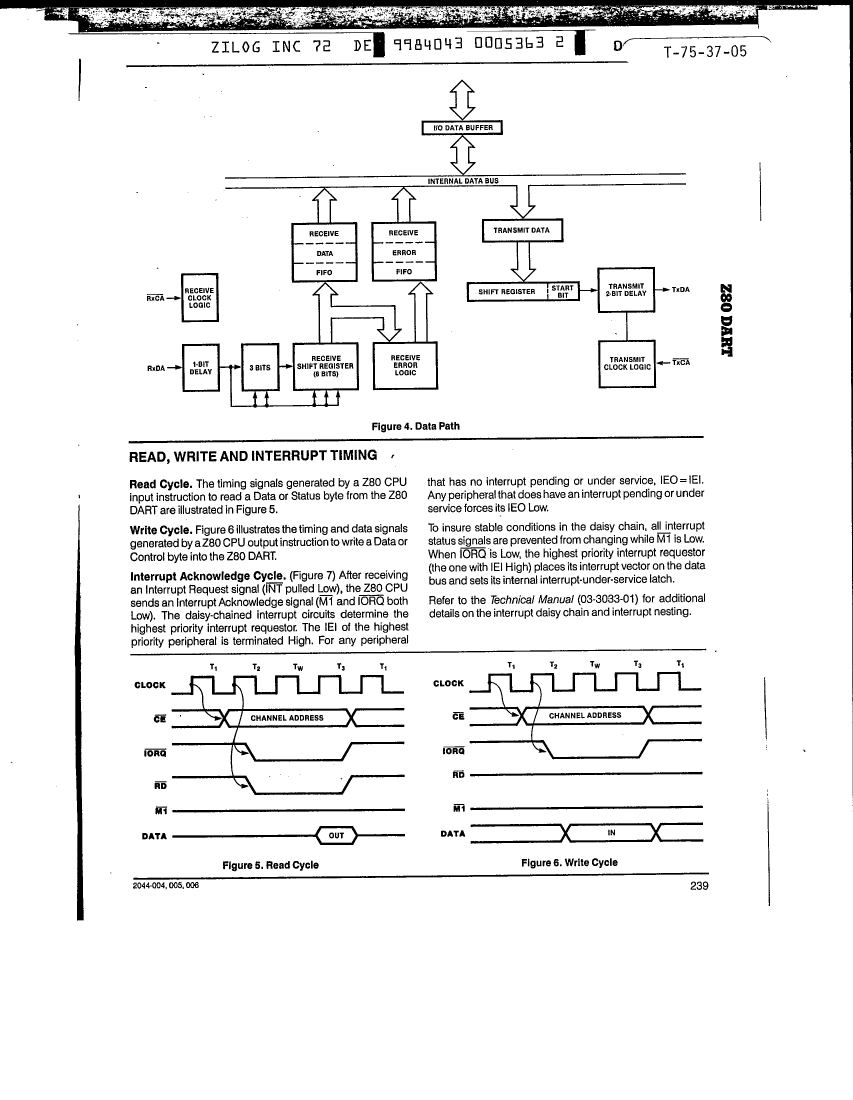

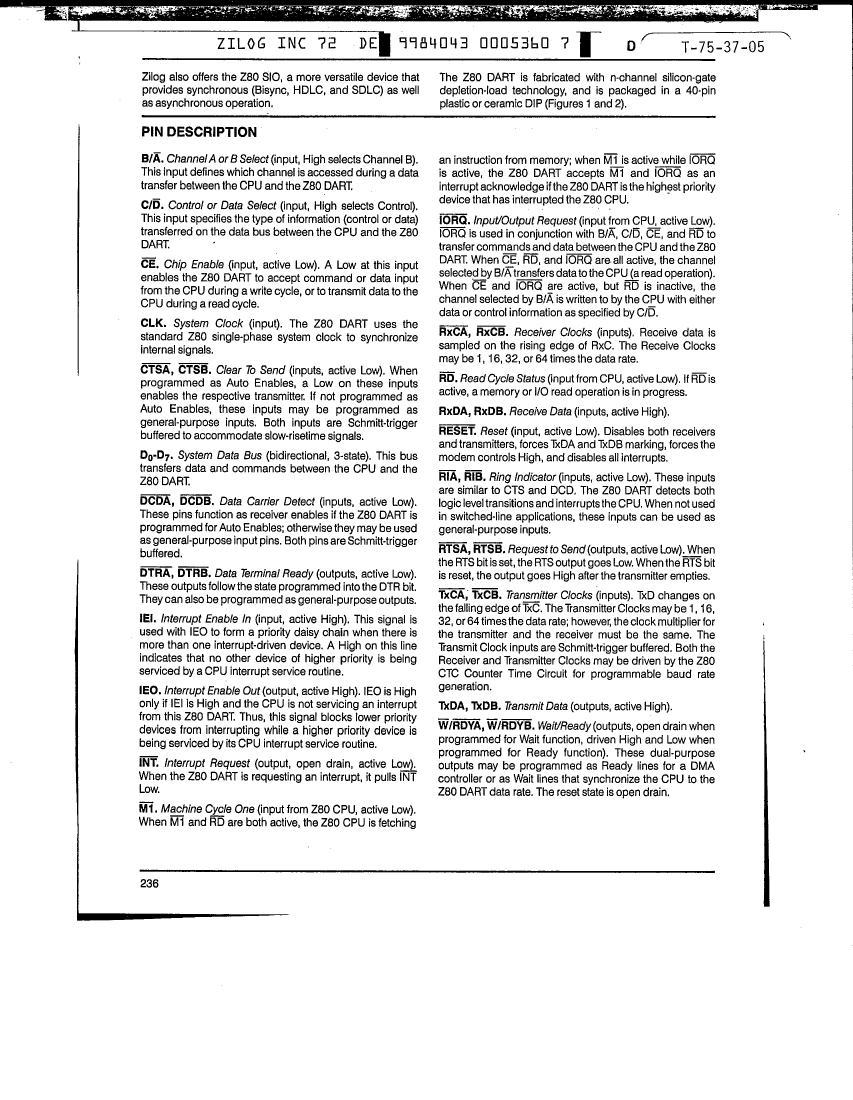

Z8470-PS Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
