Z8470B-DM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8470B-DM

Z8470B-DM: DescriptionSerial I/O Controller, MOS, CDIP40,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size732KB，11 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z8470B-DM Overview

Serial I/O Controller, MOS, CDIP40,

Z8470B-DM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	113908510
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T40
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

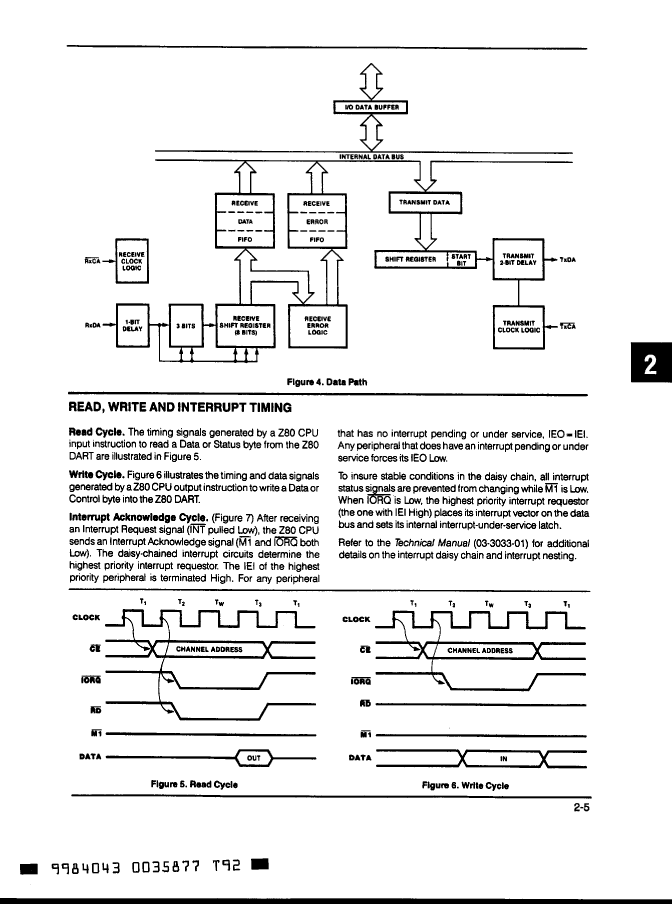

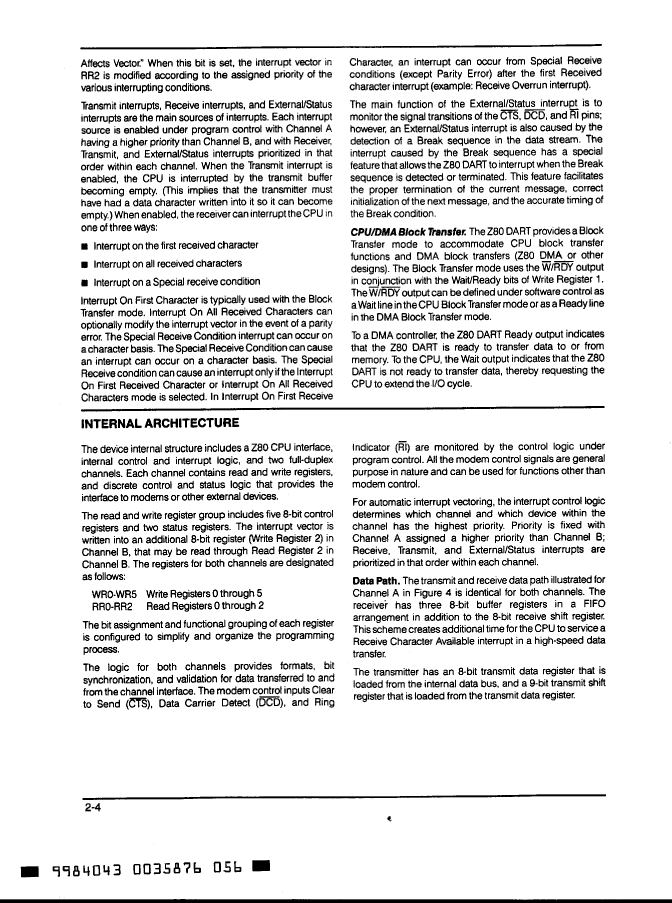

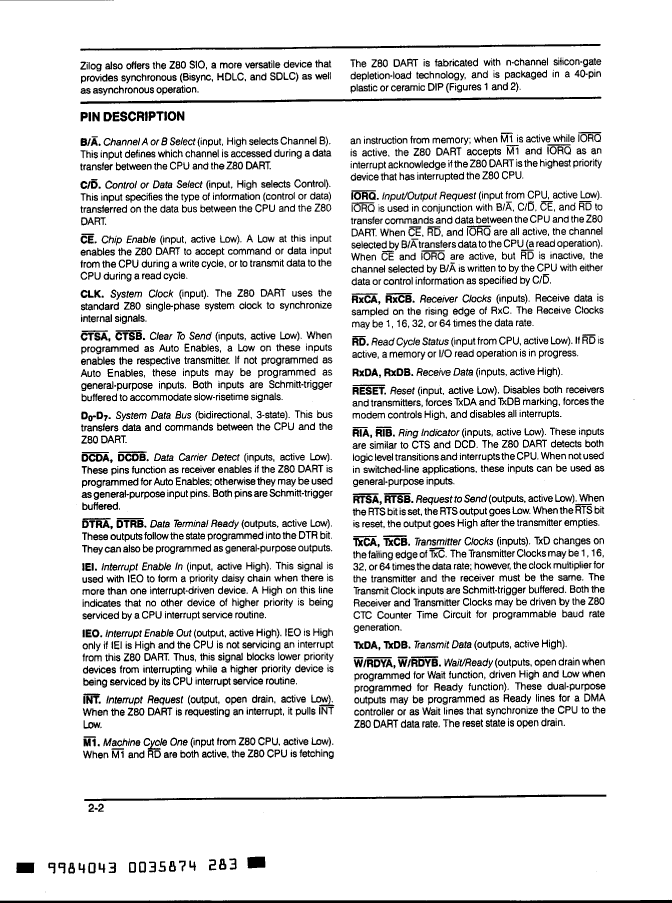

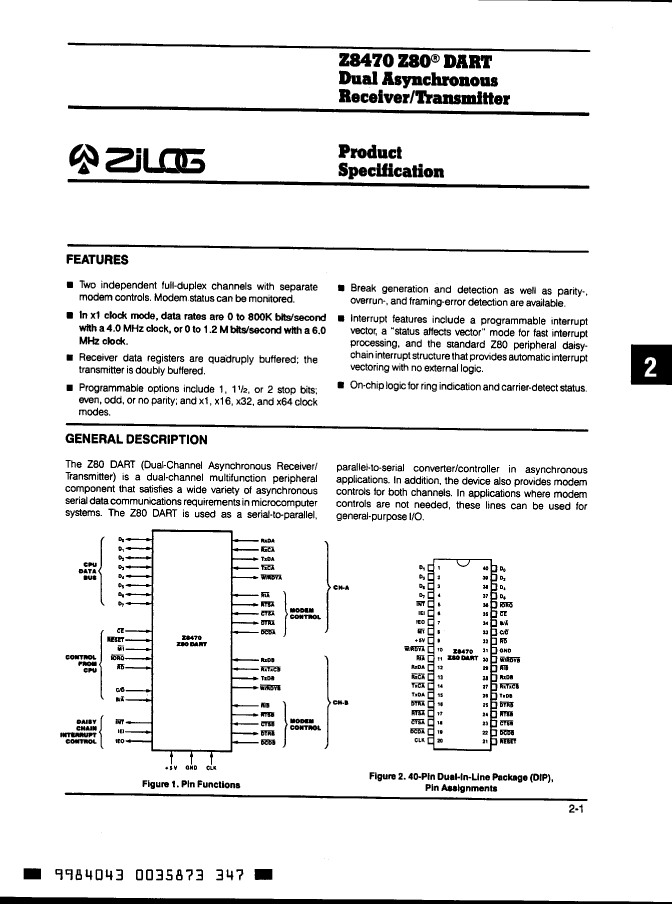

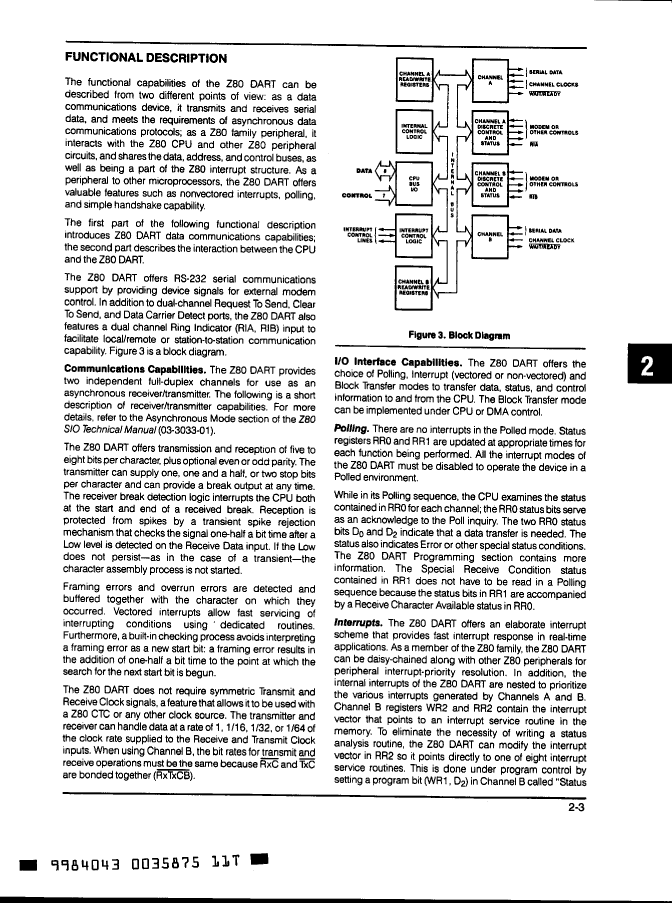

Z8470B-DM Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z8470B-DM Related Products

	Z8470B-DM	Z8470B-PE	Z8470-CM	Z8470B-CMB	Z8470B-DE
Description	Serial I/O Controller, MOS, CDIP40,	Serial I/O Controller, MOS, PDIP40,	Serial I/O Controller, MOS, CDIP40,	Serial I/O Controller, MOS, CDIP40,	Serial I/O Controller, MOS, CDIP40,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T40	R-PDIP-T40	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40
Number of terminals	40	40	40	40	40
Maximum operating temperature	125 °C	85 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-55 °C	-55 °C	-40 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS
Temperature level	MILITARY	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Objectid	113908510	-	113908505	113908504	113908501
