U0603C1R2CNT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> U0603C1R2CNT

U0603C1R2CNT: DescriptionCeramic Capacitor, Ceramic, 50V, 20.8333% +Tol, 20.8333% -Tol, NP0, -/+30ppm/Cel TC, 0.0000012uF, 0603,; CategoryPassive components capacitor; File Size178KB，3 Pages; ManufacturerWalsin Technology Corporation

Download Datasheet Parametric View All

U0603C1R2CNT Overview

Ceramic Capacitor, Ceramic, 50V, 20.8333% +Tol, 20.8333% -Tol, NP0, -/+30ppm/Cel TC, 0.0000012uF, 0603,

U0603C1R2CNT Parametric

Parameter Name	Attribute value
Objectid	817602203
package instruction	, 0603
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
length	1.6 mm
negative tolerance	20.8333%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR
positive tolerance	20.8333%
Rated (DC) voltage (URdc)	50 V
series	N/B/T/U0603C
size code	0603
Temperature characteristic code	NP0
Temperature Coefficient	-/+30ppm/Cel ppm/°C
width	0.8 mm

U0603C1R2CNT Preview

MLC

▪

CHIP

▪

RADIAL

▪

AXIAL

▪

CAPACITOR

Pan Overseas

HOW TO ORDER

–

PART NUMBER EXPLANATION

To Order, please specify Pan Overseas Part No. as the following example：

❶

0805

❷

❸

102

❹

❺

❻

❼

❶

Rated Voltage：

Code

Voltage

(VDC)

6.3

100

200

250

500

630

1000

2000

3000

❷

Part Dimension：

Part Dimension (mm)

Code

0402

0603

0805

1206

1210

1808

1812

2220

2225

Length

(L)

1.0±0.05

1.6±0.1

2.0±0.2

3.2±0.2

3.2±0.30

4.5±0.35

5.7±0.40

Width

(W)

0.5±0.05

0.8±0.1

1.25±0.1

1.6±0.2

2.5±0.30

2.0±0.30

3.2±0.30

5.0±0.40

6.3±0.40

Thickness

(T)

0.5±0.05

0.8±0.1

1.4max.

1.52max.

1.80max.

2.00max.

1.80max.

Code

Length (L)

RD20

RD21

AD10

See Page 10, 11 and 12 for Detail Dimensions

Width (W)

Thickness (T)

Part Dimension(mm)

❸

Temperature Characteristic Code：

Temperature

Coefficient

Operating

Temperature

C (NPO)

0±30

PPM /°C

-55°C~+125°C

R (X7R)

±15%

-55°C~+125°C

F (Y5V)

+22% - 82%

-30°C~+85°C

X (X5R)

±15%

-55°C~+85°C

❹

Capacitance Code：

Code

010

1R5

100

101

Capacitance (pF)

1.5

100

Code

102

222

472

103

Capacitance (pF)

1000

2200

4700

10000

❺

Tolerance Code：

Code

Tolerance

±0.25pF

±0.50pF

±1%

±2%

Code

Tolerance

±5%

±10%

±20%

+80 – 20%

❻

Termination Code：

Code

Termination Types

Nickel Barrier

Leaded Parts

❼

Packaging Code：

Code

Packaging

Bulk

Tape & Reel

MLC

▪

CHIP

▪

CAPACITOR

Pan Overseas

NPO DIELECTRIC

–

GENERAL SPECIFICATION

INTRODUCTION：

The NPO (COG) is a high Q, low K temperature compensating type of dielectric with stable electrical properties

under varying voltage, temperature, frequency and time. It’s suitable for circuits that require low lost, as well as

timing and tuning applications.

FEATURES：

■

Very low temperature coefficient

■

Stable electrical characteristics

■

Small size with high capacitance values

■

Consistent dimension and finish surface

■

Engineered for automatic handling and insertion

GENERAL SPECIFICATIONS：

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Coefficient (△C Max.)

Temperature – Voltage Coefficient (△C Max. @WVDC)

Rated Voltage (VDC)

Dissipation Factor (tan

δ)

Insulation Resistance (IR), @25℃

Aging Rate

Dielectric Strength

Testing Parameters

0.5pF to 100000pF

±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10%

-55℃ ~ 125℃

30 PPM /℃

16, 25, 50, 100, 200/250,500,630,1KV, 2KV, 3KV, 4KV, 5KV

0.1% Max, 0.04% typical

Lesser of 100GΩ or 1000MΩµF

0% per Decade hour

≦200V-2.5Ra;

250V-2.0Ra; 500V/630V-1.5Ra;

≧1KV-1.5Ra

(Ra: Rated Voltage; VDC)

For Values

≤

1000pF：1MHz @ 1.0±0.2Vrms

For Values > 1000pF：1KHz @ 1.0±0.2Vrms

MLC

▪

CHIP

▪

CAPACITOR

Pan Overseas

NPO DIELECTRIC

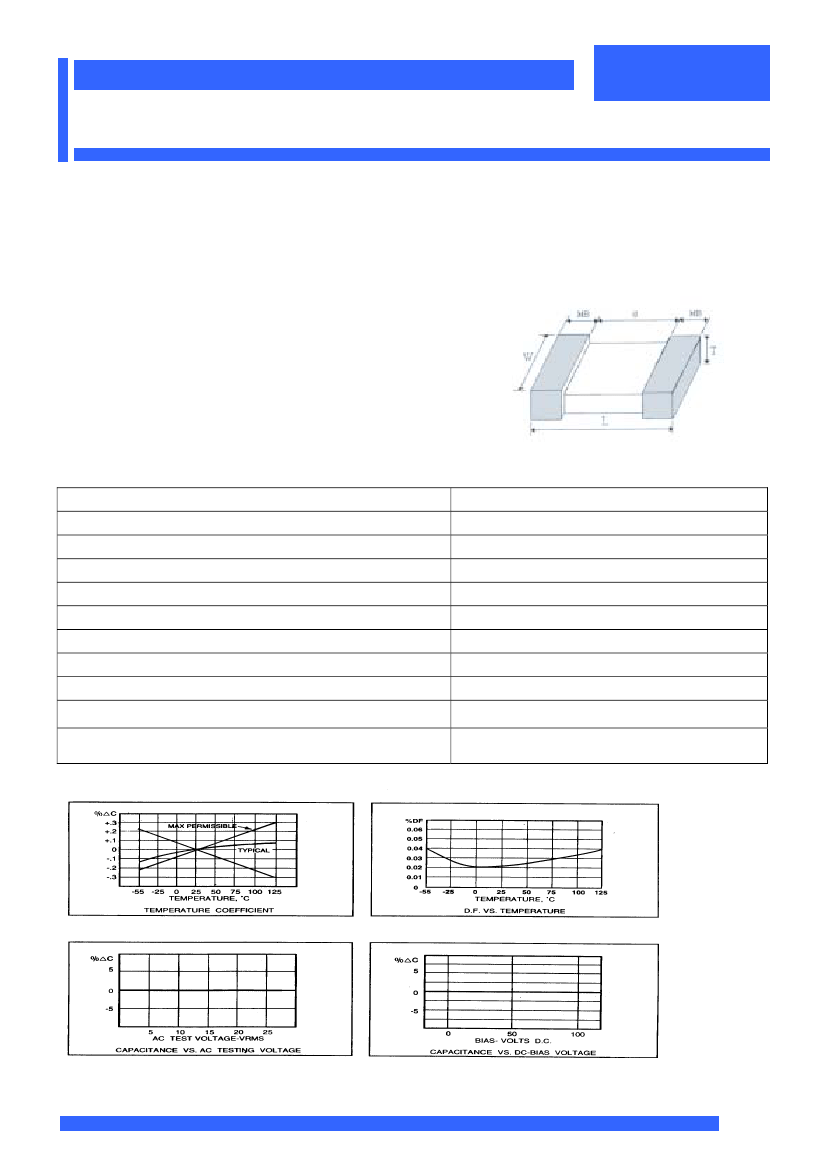

Typical Characteristic Curves and Capacitance Chart

Typical Characteristic Curves：

Capacitance Chart (NPO)：

Case

Size

0402

0603

Rated

Voltage

N/B=10/16V

N/B/T=10/16/25V

U = 50V

A=100V

G/H=200/250V

U=50V

A=100V

G/H=200/250V

C=500V

A=100V

G/H=200/250V

C=500V

D=630V

M=1000V

M2=2000V

M3=3000V

A=100V

G/H=200/250V

C=500V

D=630V

M=1000V

D=630V

M=1000V

M2=2000V

M3=3000V

A=100V

G/H=200/250V

C=500V

D=630V

M=1000V

M2=2000V

M3=3000V

A=100V

G/H=200/250V

C=500V

D=630V

M=1000V

M2=2000V

M3=3000V

A=100V

G/H=200/250V

C=500V

D=630V

M=1000V

M2=2000V

M3=3000V

Temp.

Chart.

Capacitance

Range (pF)

Tolerance

0.5 ~ 120

0.5 ~ 1000

1.0 ~ 330

1.0 ~ 100

0.5 ~ 2400

1.0 ~ 1500

1.0 ~ 560

1.0 ~ 220

1.0 ~ 4700

1.0 ~ 1800

1.0 ~ 1200

1.0 ~ 1000

1.0 ~ 120

10 ~ 8200

10 ~ 3300

1.0 ~ 2700

10 ~ 1800

C, D

10 ~ 220

(<10pF)

100 ~ 2200

22 ~ 1000

J, K

22 ~ 220

(≥ 10pF)

10 ~ 82

220 ~ 18000

F, G

220 ~ 6800

180 ~ 6800

180 ~ 5600

39 ~ 2700

39 ~ 820

10 ~ 180

470 ~ 39000

470 ~ 15000

390 ~ 15000

390 ~ 10000

39 ~ 6800

39 ~ 1800

10 ~ 390

560 ~ 56000

560 ~ 22000

4300 ~ 18000

4300 ~ 15000

39 ~ 8200

39 ~ 2200

10 ~ 470

1.0±0.05

1.6±0.10

Dimension (mm)

T (max)

0.5±0.05

0.8±0.10

MB (min)

0.10

0.20

G (min)

0.30

0.40

0805

2.0±0.20

1.25±0.1

1.40

0.25

0.70

1206

3.2±0.20

1.6±0.20

1.52

0.25

1.40

1210

3.2±0.30

2.5±0.30

1.80

0.25

1.40

1808

0±30

PPM/℃

4.5±0.35

2.0±0.30

2.00

0.25

2.15

1812

4.5±0.35

3.2±0.30

1.80

0.25

2.15

2220

5.7±0.40

5.0±0.40

1.80

0.25

3.30

2225

5.7±0.40

6.3±0.40

1.80

0.25

3.30

●

When Ordering, please use the Pan Overseas

Part number as indicated on page no. 1.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
