XBP1001
Low Capacitance TVS Diode Array
ETR29005-001
■FEATURES
Terminal Capacitance
ESD Protection
Environmentally Friendly
: 1.2pF (Line-to-GND)
: 8kV Contact (IEC61000-4-2)
: EU RoHS Compliant, Pb Free
■APPLICATIONS
●USB2.0,
Firewire
●HDMI
Ver.1.3
●DVI
■PIN
CONFIGURATION
■

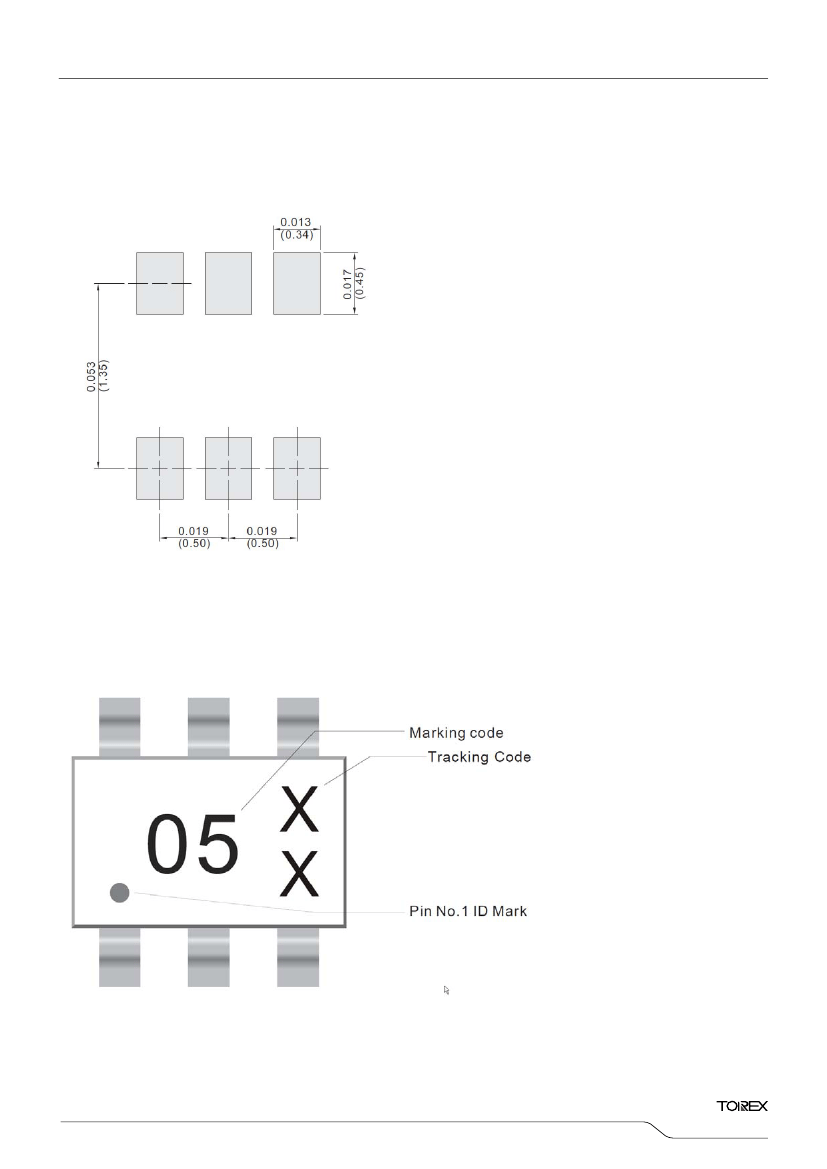

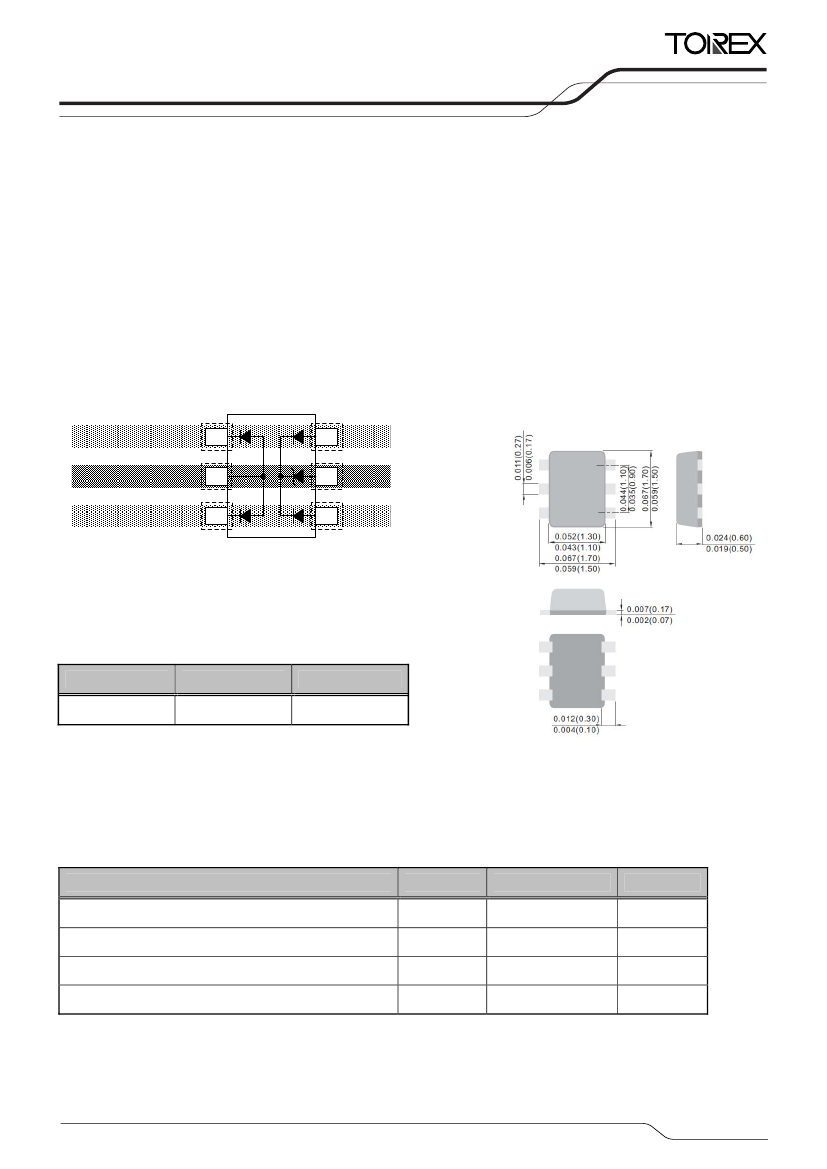

PACKAGING INFORMATION
●SOT-563
Unit : inch (mm)
I/O Data line +
Ground
I/O Data line +
1
2
3
6
5
4
■PRODUCT
NAME
PRODUCT NAME
XBP1001-G *
PACKAGE
SOT-563
ORDER UNIT
4,000/Reel
* The “-G” suffix denotes Halogen and Antimony free as well as being fully RoHS compliant.
■ABSOLUTE
MAXIMUM RATINGS
Ta=25℃
PARAMETER
Peak Pulse Power (8/20μs Waveform)
Peak Pulse Current (8/20μs Waveform)
Junction Temperature
Storage Temperature
SYMBOL
Ppk
Ipp
Tj
Tstg
RATINGS
75
5
-55 to 125
-55 to 150
UNITS
W
A
℃
℃
1/5
XBP1001
■ELECTRICAL
CHARACTERISTICS
Ta=25℃
PARAMETER
Stand-Off Voltage
Breakdown Voltage
Leakage Current
Clamping Voltage (8/20μs)
Clamping Voltage (8/20μs)
Clamping Voltage (8/20μs)
SYMBOL
V
RWM
V
BR
I
R
V
C
V
C
V
C
I
R
=1mA
V
R
=5V
I
PP
=1A
I
PP
=2A
I
PP
=5A
V
R
=0V, f=1MHz
Between I/O pins and GND pin
Terminal Capacitance
C
t
V
R
=0V, f=1MHz
Between I/O pins
-
-
0.6
pF
TEST CONDITIONS
MIN.
-
6.2
-
-
-
-
-
LIMITS
TYP.
-
-
-
-
-
-
-
MAX.
5
-
1.0
10
12
15
1.2
V
V
μA
V
V
V
pF
UNITS
■NOTES
ON USE
1. Please use this IC within the absolute maximum ratings.
Even within the ratings, in case of high load use continuously such as high temperature, high voltage, high current and thermal stress may
cause reliability degradation of the IC.
2. Torex places an importance on improving our products and their reliability.
We request that users incorporate fail-safe designs and post-aging protection treatment when using Torex products in their systems.
2/5

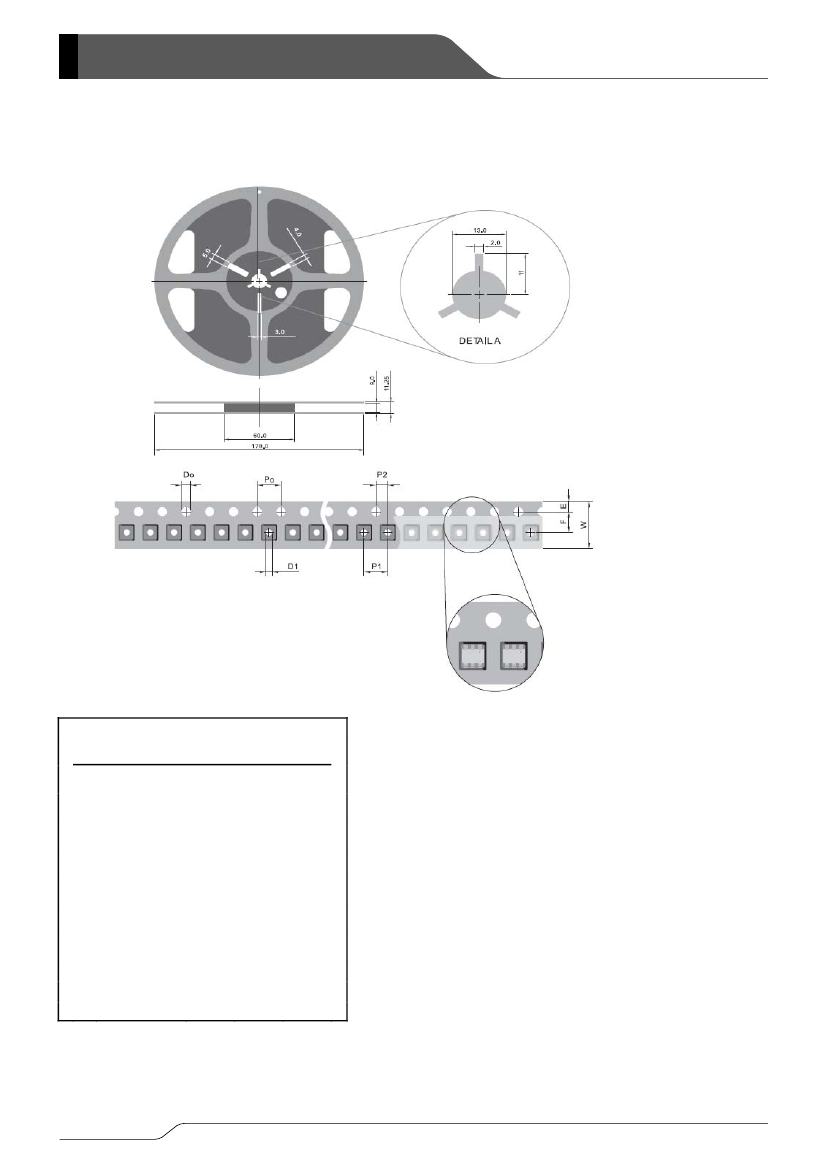

XBP1001
1. The products and product specifications contained herein are subject to change without
notice to improve performance characteristics.
Consult us, or our representatives
before use, to confirm that the information in this datasheet is up to date.
2. We assume no responsibility for any infringement of patents, patent rights, or other
rights arising from the use of any information and circuitry in this datasheet.
3. Please ensure suitable shipping controls (including fail-safe designs and aging
protection) are in force for equipment employing products listed in this datasheet.
4. The products in this datasheet are not developed, designed, or approved for use with
such equipment whose failure of malfunction can be reasonably expected to directly
endanger the life of, or cause significant injury to, the user.
(e.g. Atomic energy; aerospace; transport; combustion and associated safety
equipment thereof.)
5. Please use the products listed in this datasheet within the specified ranges.
Should you wish to use the products under conditions exceeding the specifications,
please consult us or our representatives.
6. We assume no responsibility for damage or loss due to abnormal use.
7. All rights reserved. No part of this datasheet may be copied or reproduced without the
prior permission of TOREX SEMICONDUCTOR LTD.
5/5
