B061-2022-218-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B061-2022-218-Z

B061-2022-218-Z: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size206KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-2022-218-Z Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

B061-2022-218-Z Parametric

Parameter Name	Attribute value
Objectid	304392863
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.387 inch
body length	1.028 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	B061
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

04 thru 80

DEFINITION:

2 - RIGHT ANGLE

NUMBER OF ROWS:

2 - TWO

Drawn Checked

S.M.

A.M.

B.S.

S.M.

HOUSING DIMESIONS:

Height - 5.70mm

Contact Tail - 2.80mm

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: COPPER ALLOY

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

CONTACT STYLE:

2 - TUNING FORK

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Date

Appproved

S.M.

09/09/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

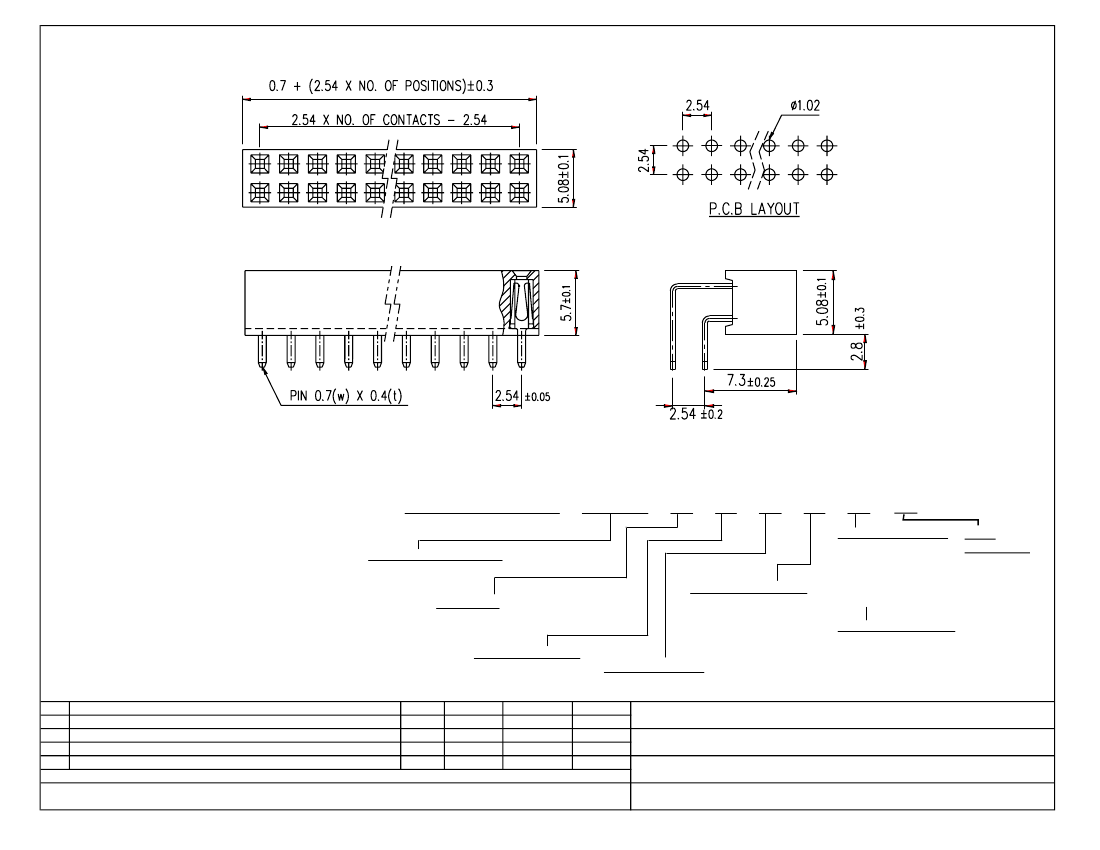

Receptacle Assembly, 2.54mm Pitch, Top Entry, Double Row, Right Angle

Tuning Fork Contact, 5.7mm Height, 5.00mm Width, Thru Hole

ANGLE +/- 5°

UNIT: mm

SERIES: B061

Pg: 1
