B165-0613-209-Z: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Wire Wrap Terminal, Plug; CategoryThe connector The connector; File Size254KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B165-0613-209-Z Overview

Board Connector, 24 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Wire Wrap Terminal, Plug

B165-0613-209-Z Parametric

Parameter Name	Attribute value
Objectid	304394731
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.315 inch
subject depth	0.368 inch
body length	0.492 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B165
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.476 inch
Terminal pitch	2.0066 mm
Termination type	WIRE WRAP
Total number of contacts	24

Preview

Download Datasheet

View All

HOW TO ORDER:

B

1

6

5

-

X

1

3

-

2

0

X

-

Z

ELECTRICAL:

CURRENT: 1.5A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS / ROW:

3 CONTACTS (Min.)

30 CONTACTS (Max.)

BODY HEIGHT:

2 - 9.35mm

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

RoHS

COMPLIANT

ORIENTATION:

1 - STRAIGHT

TAIL LENGTHS:

3 - EXTENDED (12.0mm)

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0) ; NYLON 6T

CONTACT: COPPER ALLOY

Rev

0 Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked

S.M.

A.M.

B.S.

S.M.

Appproved

Date

S.M.

7/28/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

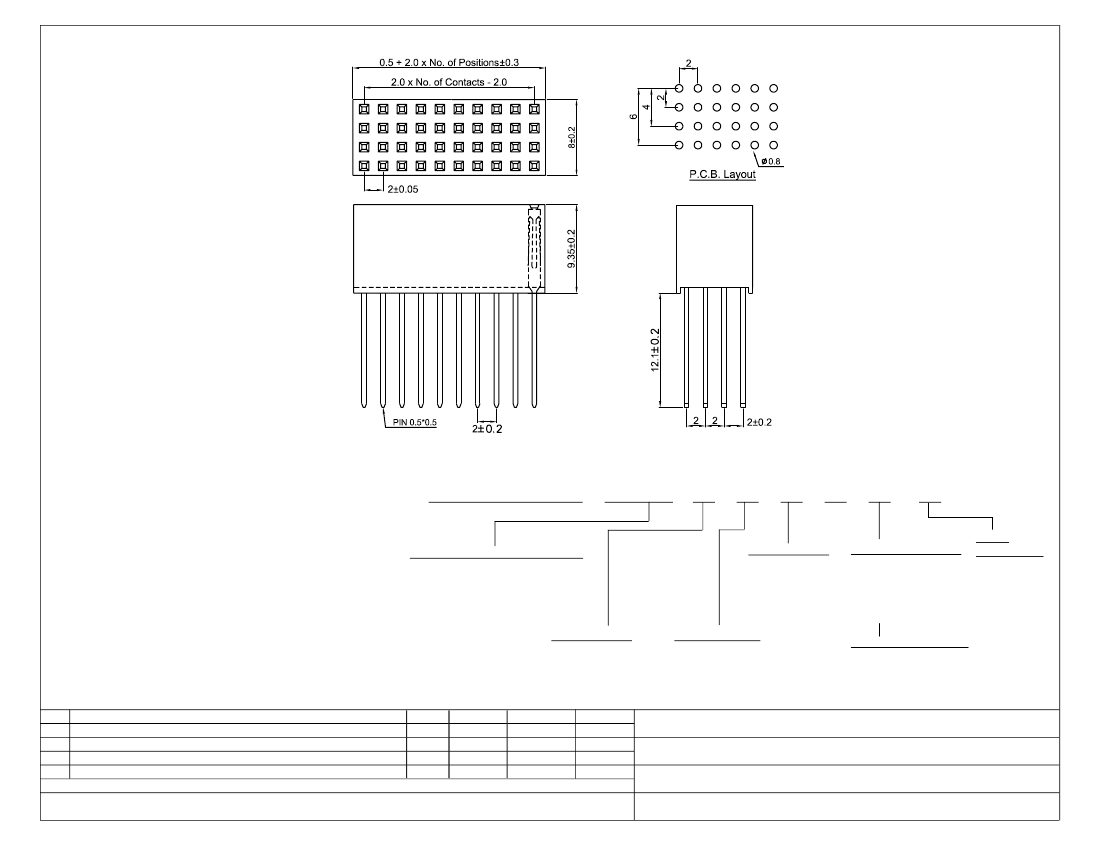

Receptacle Assembly, Stacking, 2.00mm Pitch, 4 Row, Vertical

Non - Press Fit, PC/104

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/- 5°

UNIT: mm

SERIES: B 1 6 5

Pg: 1
