8111-2441 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 8111-2441

8111-2441: DescriptionIC Socket, PLCC44, 44 Contact(s), Surface Mount; CategoryThe connector socket; File Size87KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8111-2441 Overview

IC Socket, PLCC44, 44 Contact(s), Surface Mount

8111-2441 Parametric

Parameter Name	Attribute value
Objectid	304387247
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.917 inch
subject depth	0.175 inch
body length	0.917 inch
Contact structure	11X11
Contact completed and terminated	TIN OVER NICKEL
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC44
Dielectric withstand voltage	500VAC V
Shell material	POLYPHENYLENE SULPHIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8111
Installation method	STRAIGHT
Number of contacts	44
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

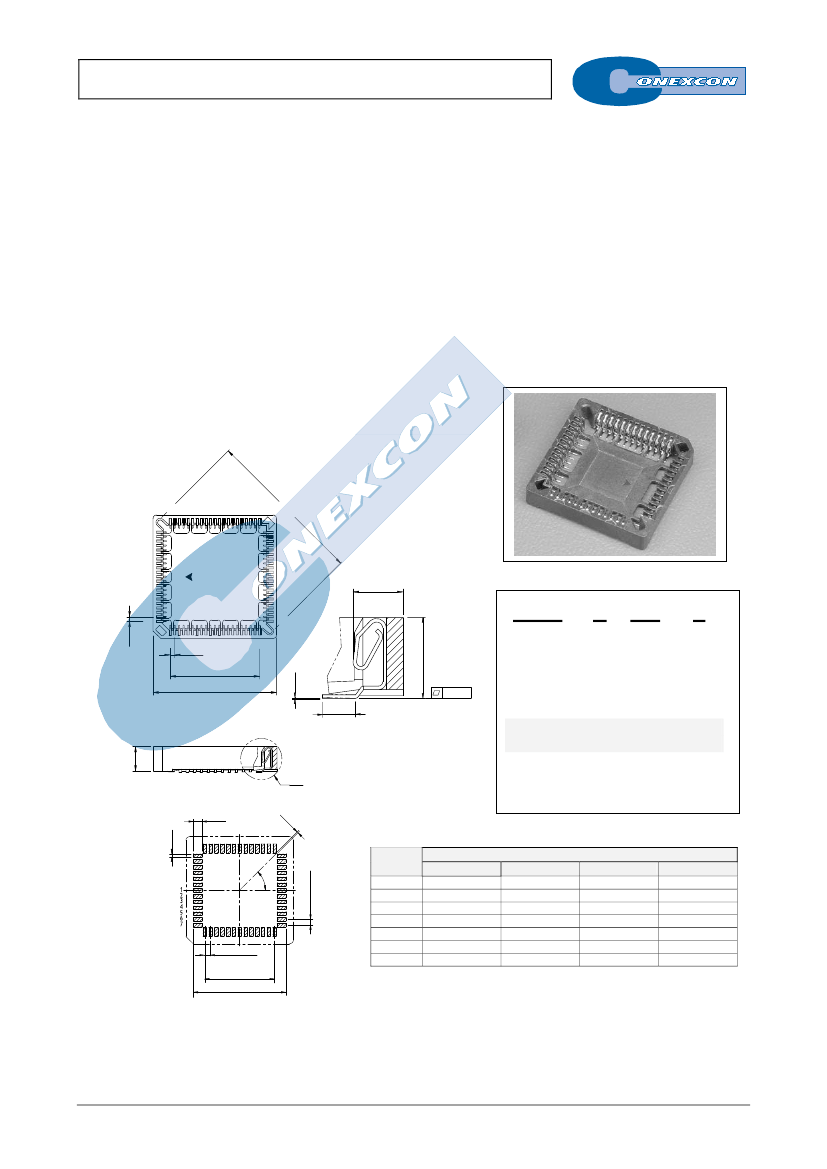

PLCC SOCKET SMT

8111 SERIES.

PLCC Socket.

General Features

Electrical Features



Available in 20, 28, 32, 44, 52, 68 and 84 circuits

Contact area: flex contact tin plating over 50 µ nickel

Solder area: tin plating over 50 µ nickel

Prevents damage from IC device through a fully

shrouded carrier



Voltage rating: < 250 V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ



Low profile

Materials

Mechanical Features



Insulator: PPS UL 94 V-0

Contact: Phosphor Bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant



Pin retention force to insulator: 0.40 Kgf



Durability: 25 cycles

Dimensional Information

3.05

.120

8111 - T- XX-

4.60

.181

1.27

.05 0

1.27

.050

0 .0 5

.00 2

1. Series

0.13

1.5

.059

Pin configuration

Detail “a”

2. Plating Options



T =

Tin plated

Recommended Finish

3. Number of circuits

4 .45

.175

“a”



Available in 20 through 84 circuits

0.76

.030

1.91

.075

1.27± 0.05

.0 50± .0 02

0 20

CIRCUITS

45º

DIMENSIONS

5.08 (.200)

7.62 (.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

20.32 (.800)

25.40 (1.000)

15.66 (.617)

18.20 (.717)

20.70 (.815)

23.28 (.917)

25.82 (1.017)

30.90 (1.217)

35.98 (1.417)

10.03 (.395)

12.57 (.495)

15.11 (.595)

17.65 (.695)

20.19 (.795)

25.27 (.995)

30.35 (1.195)

17.28 (.680)

20.87 (.822)

22.80 (.898)

28.10 (1.106)

31.65 (1.246)

38.85 (1.530)

46.50 (1.831)

1.27±0.05

.050±.002

SOLDER PAD PATTERN

E-XX

FULL LINE CATALOGUE

8111-2441 Related Products

	8111-2441	8111-2681	8111-2201	8111-2841
Description	IC Socket, PLCC44, 44 Contact(s), Surface Mount	IC Socket, PLCC68, 68 Contact(s), Surface Mount	IC Socket, PLCC20, 20 Contact(s), Surface Mount	IC Socket, PLCC84, 84 Contact(s), Surface Mount
Reach Compliance Code	unknown	unknow	unknown	unknown
body width	0.917 inch	1.217 inch	0.617 inch	1.417 inch
subject depth	0.175 inch	0.175 inch	0.175 inch	0.175 inch
body length	0.917 inch	1.217 inch	0.617 inch	1.417 inch
Contact structure	11X11	17X17	5X5	21X21
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact material	P-CUSN	P-CUSN	P-CUSN	P-CUSN
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC44	PLCC68	PLCC20	PLCC84
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Shell material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	8111	8111	8111	8111
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	44	68	20	84
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
ECCN code	EAR99	-	EAR99	EAR99
