G6136-052814 datasheet, PDF - EEWORLD Datasheet

G6136-052814: DescriptionCard Edge Connector, 28 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Ivory Insulator; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerWieson Technologies Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

G6136-052814 Overview

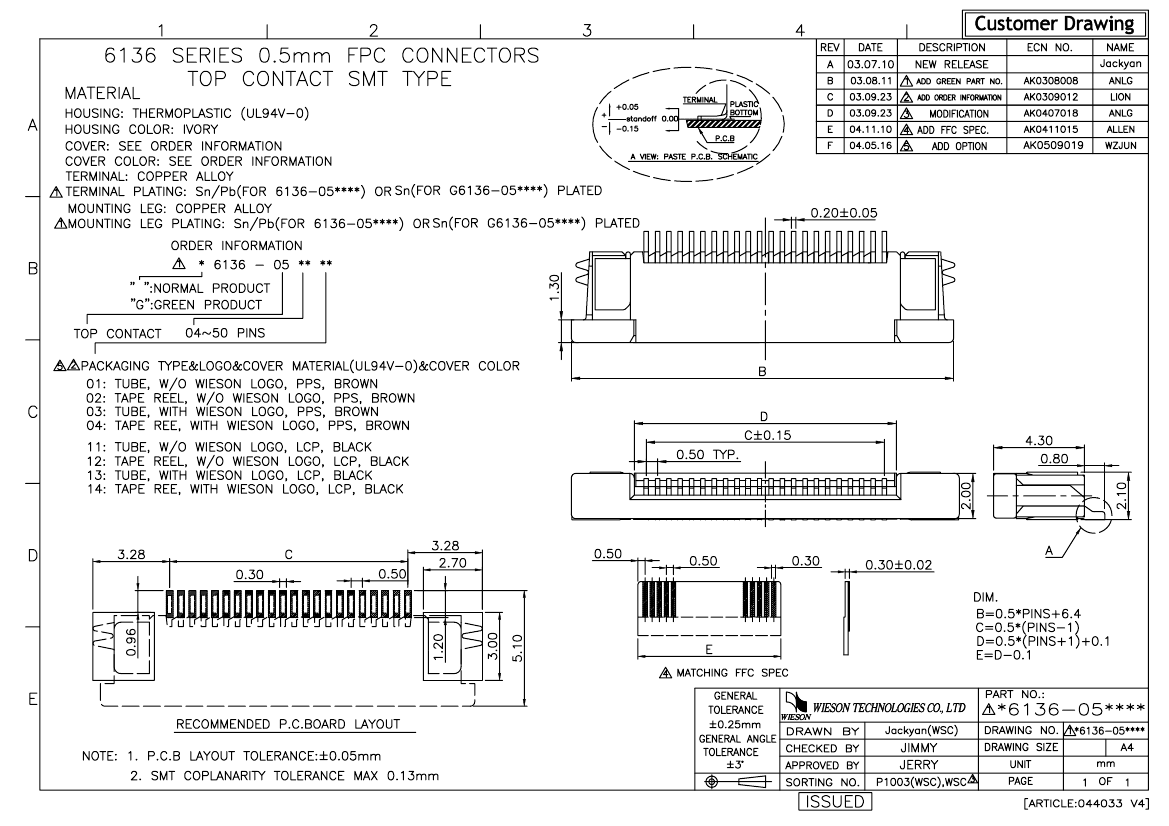

Card Edge Connector, 28 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Ivory Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304223945
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TAPE AND REEL PACKAGE
body width	0.083 inch
subject depth	0.169 inch
body length	0.803 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	DUAL PRONG
Insulator color	IVORY
insulator material	THERMOPLASTIC
JESD-609 code	e3
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	28
