C0402HQN250-0R5CNE datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C0402HQN250-0R5CNE

C0402HQN250-0R5CNE: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, 0402, CHIP; CategoryPassive components capacitor; File Size309KB，3 Pages; ManufacturerVENKEL LTD; Environmental Compliance

Download Datasheet Parametric View All

C0402HQN250-0R5CNE Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, 0402, CHIP

C0402HQN250-0R5CNE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1095119655
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	5e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.51 mm
JESD-609 code	e3
length	1.02 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	50%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	50%
Rated (DC) voltage (URdc)	25 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.51 mm

Preview

Download Datasheet

View All

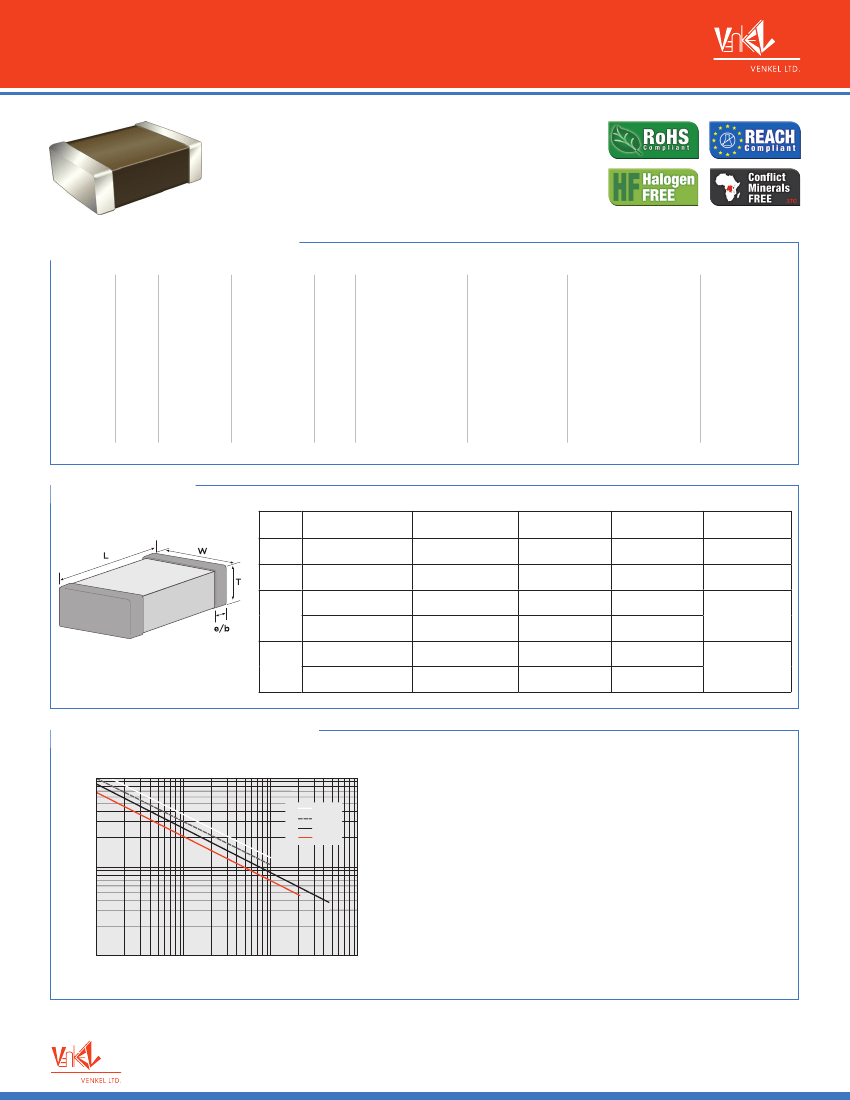

HQN

HIGH-Q CERAMIC CAPACITORS

FEATURES:

• Excellent Q and low ESR performance at high frequency

• Voltage range: 25V to 500V

• Capacitance range: 0.1pF to 220pF

• Low power consumption

• Suitable for IC decoupling application

SERIES

PART NUMBER STRUCTURE

Ceramic

Capacitor

0805

Size

0201

0402

0603

0805

HQN

Series

201

Rated Voltage

250 = 25VCDW

500 = 50VCDW

101 = 100VCDW

201 = 200VCDW

251 = 250VCDW

501 = 500VCDW

—

1R0

Capacitance

(picofarads)

1st two digits are

significant, followed by

number of zeroes.

(R denotes decimal)

e.g:

101 = 100pF

0R5 = 0.5pF

Tolerance

**A = ± 0.05pF

*B = ± 0.10pF

*C = ± 0.25pF

*D = ± 0.50pF

F = ± 1%

G = ± 2%

J = ± 5%

K = ± 10%

* For cap. values

below 10pF only.

** For cap. values of

8.2pF and less.

Termination

N = 100% matte tin (Sn)

over nickel.

Packaging

P = paper

E = Embossed Tape

Example P/N:

C0805HQN201-1R0CNP

Standard termination finish is 100% matte Tin (Sn).

DIMENSIONS

SIZE

0201

0402

0.024 ± 0.012

(0.60 ± 0.3)

0.040 ± 0.002

(1.00 ± 0.05)

0.064 ± 0.004

(1.60 ± 0.10)

0.064 +0.006/-0.004

(1.60 +0.15/-0.10)

0.080 ± 0.006

(2.00 ± 0.15)

0.080 ± 0.008

(2.00 ± 0.20)

0.012 ± 0.012

(0.30 ± 0.03)

0.020 ± 0.002

(0.50 ± 0.05)

0.032 ± 0.004

(0.80 ± 0.10)

0.032 +0.006/-0.004

(0.80 +0.15/-0.10)

0.050 ± 0.004

(1.25 ± 0.10)

0.050 ± 0.008

(1.25 ± 0.20)

T (Max)

0.012 +/- 0.0012

(0.30 ± 0.03)

0.020 ± 0.002

(0.50 ± 0.05)

0.032 ± 0.0028

(0.80 ± 0.07)

0.020 ± 0.004

(0.50 ± 0.10)

0.024 ± 0.004

(0.60 ± 0.10)

0.034 ± 0.004

(0.85 ± 0.10)

THICKNESS

SPECIFIC VALUES

All values

All other values

0.1pF

0.2pF

All other values

Unit: inch (mm)

E/B (Max)

0.006 ± 0.002

(0.15 ± 0.05)

0.01 ± 0.004

(0.25 ± 0.10)

0.016 ± 0.006

(0.40 ± 0.15)

0603

0805

0.02 ± 0.008

(0.50 ± 0.20)

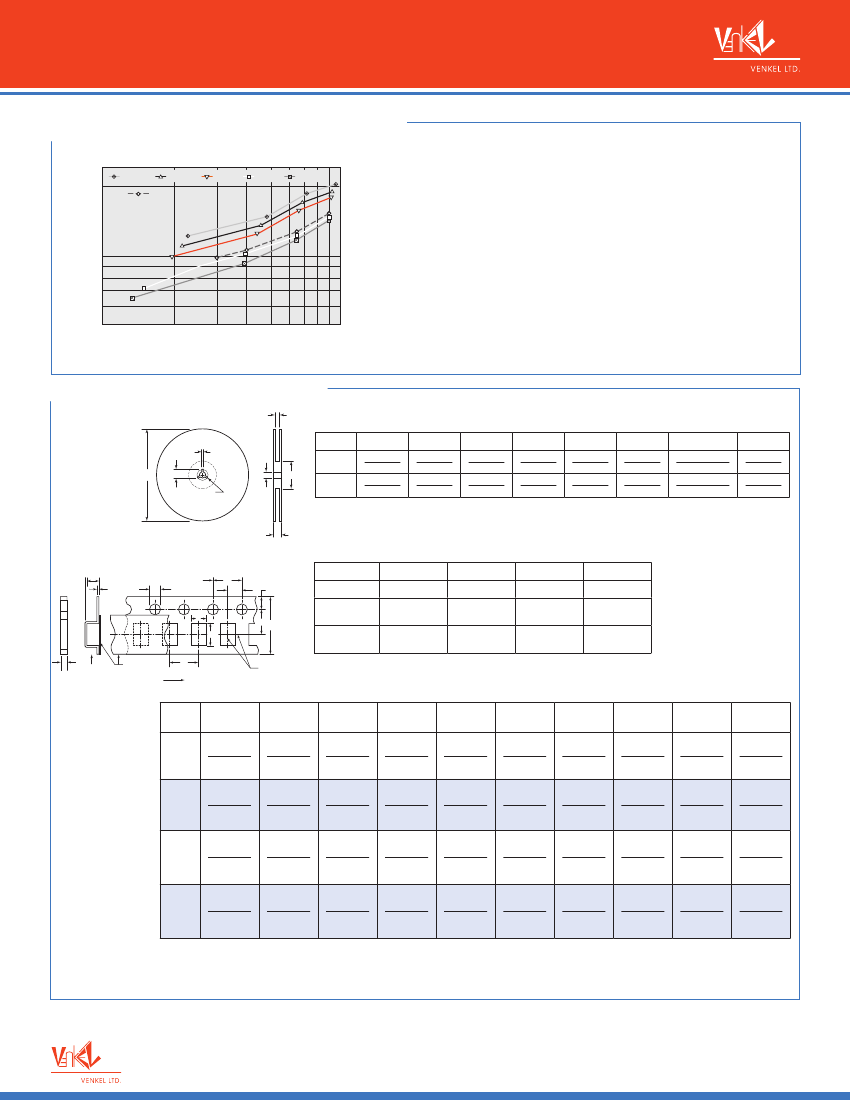

ELECTRICAL SPECIFICATIONS

Typical Series Resonant Frequency

0201

0402

0603

0805

Temperature Coefficient:

0% ± 30PPM /°C, -55°C to +125°C

Quality Factor:

Q > 5,000 @ 1MHz (Typical 10,000)

0201 Quality Factor:

Q > 1,000 @ 1MHz (Typical 10,000)

Ageing:

None

Insulation Resistance:

1,000

Ω-F

or 100 GΩ (whichever is less at 25°C, VDCW). 50mA max.

(IR at 125°C is 10% of the value at 25°C)

Frequency (GHz)

0.1

Dielectric Strength:

2.5 x VDCW Min., 25°C, 50 mA max

100

1000

Capacitance (pF)

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev: 05/2021-A
