Precision High Value Resistors
(PHCR Series)

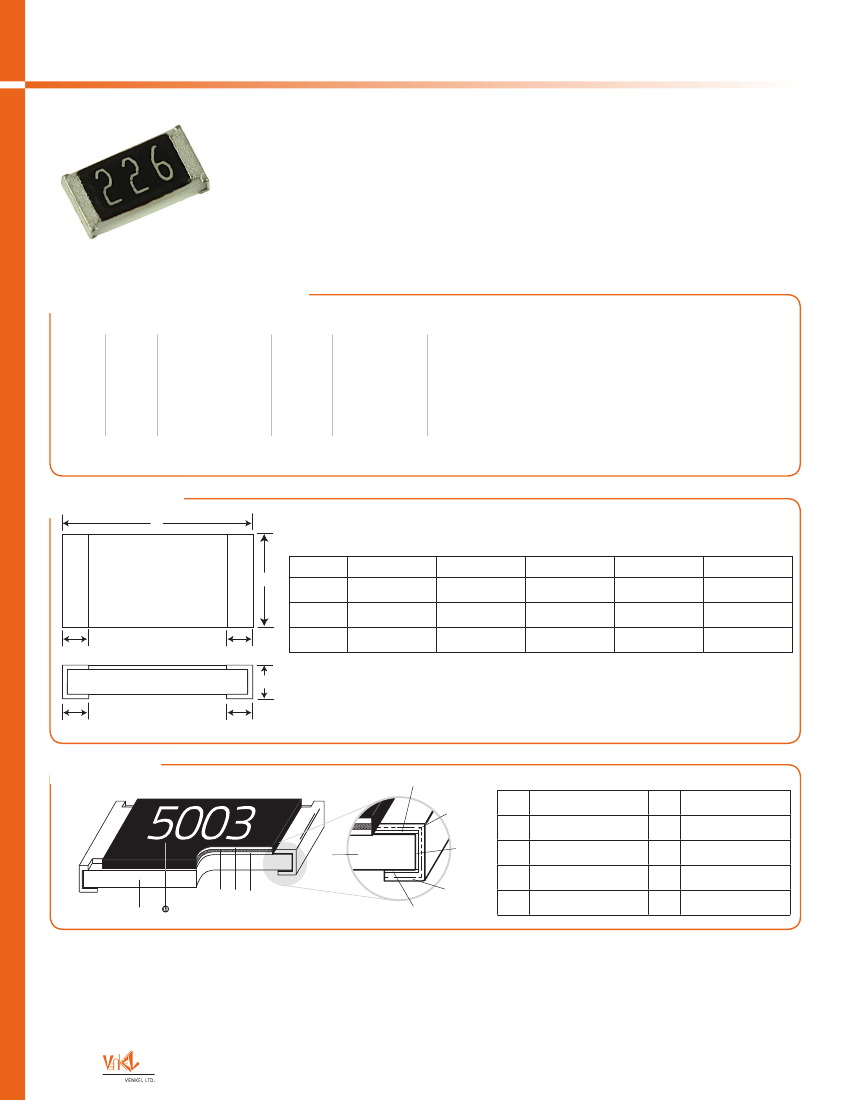

Features:
RoHS Compliant (5/6) and Halogen Free
Tolerance as low as ±0.1%
TCR as low as ±25ppm
Low voltage coefficient from 20ppm/V to <5ppm/V
Resistance up to 1GΩ
Sizes: 1206, 2512, 5020
Part Number Structure
PHCR
Series
2512
Size
1206
2512
5020
- 5003
Resistance Code
507 = 500MΩ
4759 = 4.75GΩ
F
Tolerance
B = ± 0.1%
C = ± 0.25%
D = ± 0.5%
F = ± 1%
G = ± 2%
J = ± 5%
K = ± 10%
C
TCR
E =± 25PPM/°C
C = ± 50PPM/°C
K = ± 100PPM/°C
T
Packaging
B = Bulk
T = Tape & Reel
Example P/N:
PHCR2512-5003FCT
Standard temination finish is 100% matte Tin (Sn) over Nickel.
Dimensions
L
Unit: mm
W
Size (inches)
L
3.2 ±0.2
6.4 ±0.2
12.8 ±0.2
W
1.6 ±0.2
3.2 ±0.2
5.0 ±0.2
T
0.55 ±0.1
0.55 ±0.1
0.8 ±0.1
1
0.5 ±0.3
0.5 ±0.3
1.0 ±0.1
2
0.5 ±0.3
0.5 ±0.3
2.0 ±0.2
1206
2512
i
1
i
5020
1
T
i
2
i
2
Structure
3
5
1
2
Alumina Substrate
Backside Electrode
Topside Electrode
Edge Electrode
Nickel Plating
6
7
8
9
10
Tin Plating
Primary Coating
Secondary Layer
Resistive layer
Marking
1
4
3
4
7
1
8
9
2
6
5
86
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
Rev. 04/2014-C
Precision High Value Resistors
(PHCR Series)
Electrical Specifications and Range
Size
Power Rating at 70°C (W)
Max. Working Voltage
Voltage Coefficient*
(ppm/v)
Operating Temp. Range
Tolerance
±0.10% (B)
TCR
±25ppm
±50ppm
±100ppm
±25ppm
1206
0.125W (1/8W)
PR or 300V whichever is less
<100
-55°C to +150°C
2512
0.50W (1/2W)
PR or1000V whichever is less
<20
-55°C to +150°C
5020
1W
PR or 2500V whichever is less
<5
-55°C to +150°C
Resistance Range
-
-
-
-
-
-
-
-
-
-
-
499KΩ - 49.9MΩ
-
-
499KΩ - 49.9MΩ
-
-
499KΩ - 49.9MΩ
-
-
-
Resistance Range
499KΩ - 10MΩ
499KΩ - 10MΩ
499KΩ - 100MΩ
499KΩ - 10MΩ
499KΩ - 10MΩ
499KΩ - 100MΩ
499KΩ - 10MΩ
499KΩ - 10MΩ
499KΩ - 100MΩ
499KΩ - 10MΩ
499KΩ - 10MΩ
499KΩ - 1GΩ
499KΩ - 10MΩ
499KΩ - 10MΩ
499KΩ - 1GΩ
499KΩ - 10MΩ
499KΩ - 10MΩ
499KΩ - 1GΩ
499KΩ - 10MΩ
499KΩ - 10MΩ
499KΩ - 1GΩ
Resistance Range
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 1GΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 1GΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 1GΩ
1MΩ - 100MΩ
1MΩ - 100MΩ
1MΩ - 1GΩ
±0.25% (C)
±50ppm
±100ppm
±25ppm
±0.50% (D)
±50ppm
±100ppm
±25ppm
±1% (F)
±50ppm
±100ppm
±25ppm
±2% (G)
±50ppm
±100ppm
±25ppm
±5% (J)
±50ppm
±100ppm
±25ppm
±10% (K)
±50ppm
±100ppm
NOTE:
Overload Voltage=2.5*√(P*R).
*The voltage coefficient is measured at rated voltage and 1/10 rated voltage.
Marking Code
1% E-96 values for 0805 size and larger, will be marked with standard 4 digit marking code.
5% E-24 values for 0603 size and larger, will be marked with standard 3 digit marking code.
0603 - 1% E-96 values will be marked with a standard 3 digit alpha numeric code
(Please see page 61 for alpha numeric codes).
DERATING CURVE
Derating Curve
RATED POWER RATIO
(%)
100
40
0
25
50
75
100
125
150
(˚C) AMBIENT TEMPERATURE
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
Rev. 04/2014-C
87
Precision High Value Resistors
(PHCR Series)

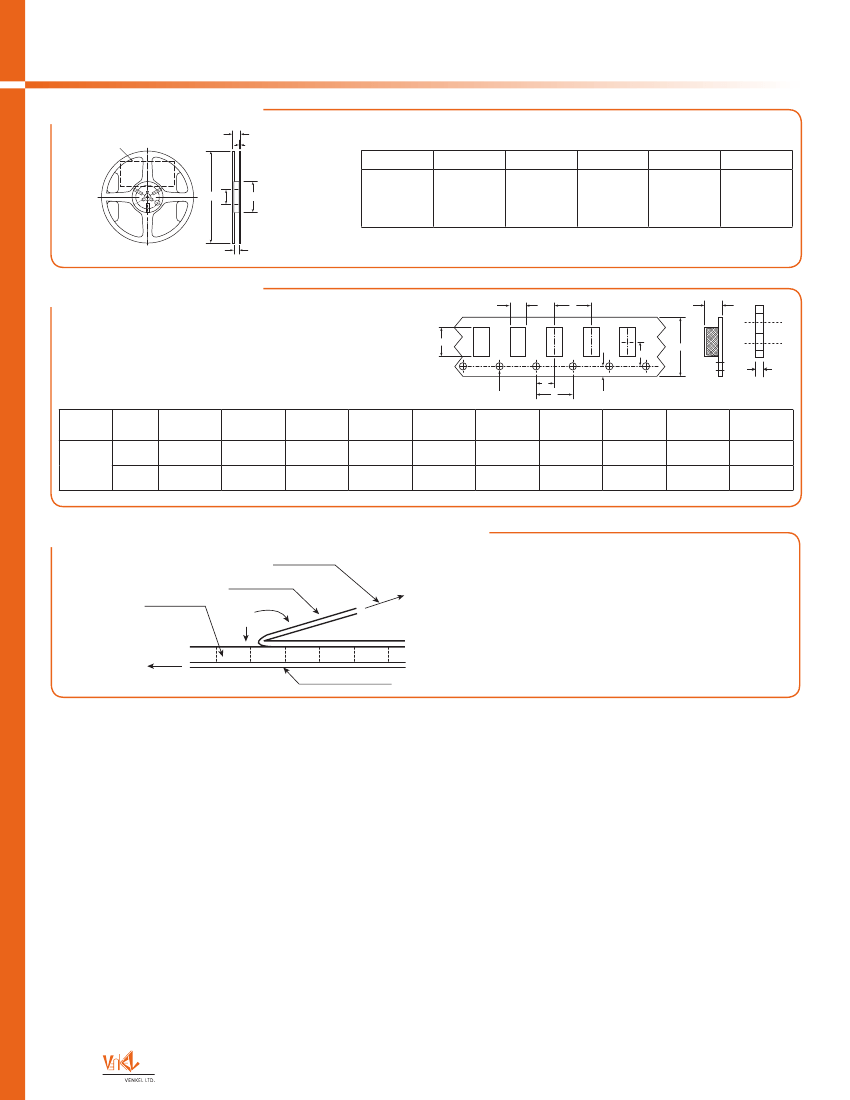

Reel Specifications
F
Label
H
Unit: mm (inch)
C
E
6.0 ± .5
(0.24 ± 0.02)
F
11.4 ± 1.0
(0.45 ± 0.04)
G
9.0 ± .3
(0.35 ± 0.012)
H
1.5 ± .3
(0.06 ± 0.012)
M
180 ± 2.0
(7.09 ± 0.08)
M C
E
13.0 ± 0.2
(0.51 ± 0.008)
Minimum of 30 empty pockets at the beginning of reel, 65 minimum empty pockets at the end.
G
Tape Specifications
A
B
G
T
F
W
J
H
E
All dimensions in mm.
Embossed
T
Paper
Unit: mm (inch)
H
4.00 ±0.10
4.00 ±0.10
J
2.00 ±0.05
2.00 ±0.05
1.50
+0.1 - 0
1.50
+0.1, - 0
Tape
Embossed
Tape
Size
(inches)
1206
2512
A
3.50 ±0.10
6.90 ±0.20
B
1.90 ±0.10
3.60 ±0.20
W
12.0 ±0.10
12.0 ±0.10
E
1.75 ±0.10
1.75 ±0.10
F
3.50 ±0.05
5.50 ±0.05
T
0.85 ±0.10
0.85 ±0.10
G
4.00 ±0.10
8.00 ±0.10
Peel Back Force and Direction Diagram
Direction of pull
Top cover tape
Carrier tape
165 ~ 180˚
Direction of unreeling
Bottom cover tape
Peel back force and direction of peel back angle should follow
EIA481-1-A. Peel back force should be between 0.1N – 1.3N
and peel back angle of 165˚ – 180˚.
88
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
Rev. 04/2014-C
