UC122A0660J-T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> UC122A0660J-T

Preview

UC122A0660J-T: DescriptionMica Capacitor, Mica, 100V, 5% +Tol, 5% -Tol, 50ppm/Cel TC, 0.000066uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size146KB，5 Pages; ManufacturerSoshin Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

UC122A0660J-T Overview

Mica Capacitor, Mica, 100V, 5% +Tol, 5% -Tol, 50ppm/Cel TC, 0.000066uF, Surface Mount, 0805, CHIP

UC122A0660J-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8156653616
package instruction	, 0805
Reach Compliance Code	unknown
capacitance	0.000066 µF
Capacitor type	MICA CAPACITOR
dielectric materials	MICA
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
size code	0805
surface mount	YES
Temperature Coefficient	50ppm/Cel ppm/°C
Terminal shape	WRAPAROUND

UC122A0660J-T Preview

UC12 Type

Chip Mica Capacitor　2x1.25 size

Superior RF characteristics with low temperature coefficient

High accuracy with less aging deterioration

(Contact us if you need non-standard capacitance tolerance)

Applications

For adjusting power supply circuit

Specifications

Ordering Cord:UC122A0150J (-T)

Chip Mica Capacitor: UC Series

UC

Size(mm) L:2.0 W:1.25 T:1.6(max)

12

Rated Voltage 2A:100WVDC 2H:500WVDC

2A

Nominal Capacitance (pF) Exa.:0150-->15pF 0010-->1pF

Capacitance Range 2A:0.5-100pF 2H:0.5-20pF

150

0.5pF up to 10pF/0.1pF Step

10.5pF up to 100pF/0.5pF Step

Capacitance (pF)

C

+⁄-0.25pF

D

+⁄-0.5pF

Tolerance

F

G

J

0.5-5.0

5.1-10.0

+⁄-1pF

J

10.5-12.5

+⁄-5%

13.0-25.0

+⁄-2%

+⁄-5%

25.5-50.0

+⁄-1%

+⁄-2%

+⁄-5%

50.5-100.0

+⁄-0.5%

+⁄-1%

+⁄-2%

+⁄-5%

Taping UC12 : 3000pcs/Reel

(-T)

Temperature Coefficient 1-10pF : 0-200ppm/Deg.C10.5-30pF : 0-100ppm/Deg.C 30.5pFmin : 0-50ppm/Deg.C

Operating Temperature Range -55 up to +125Deg.C

Insulation Resistance 10x10

4

M ohm min

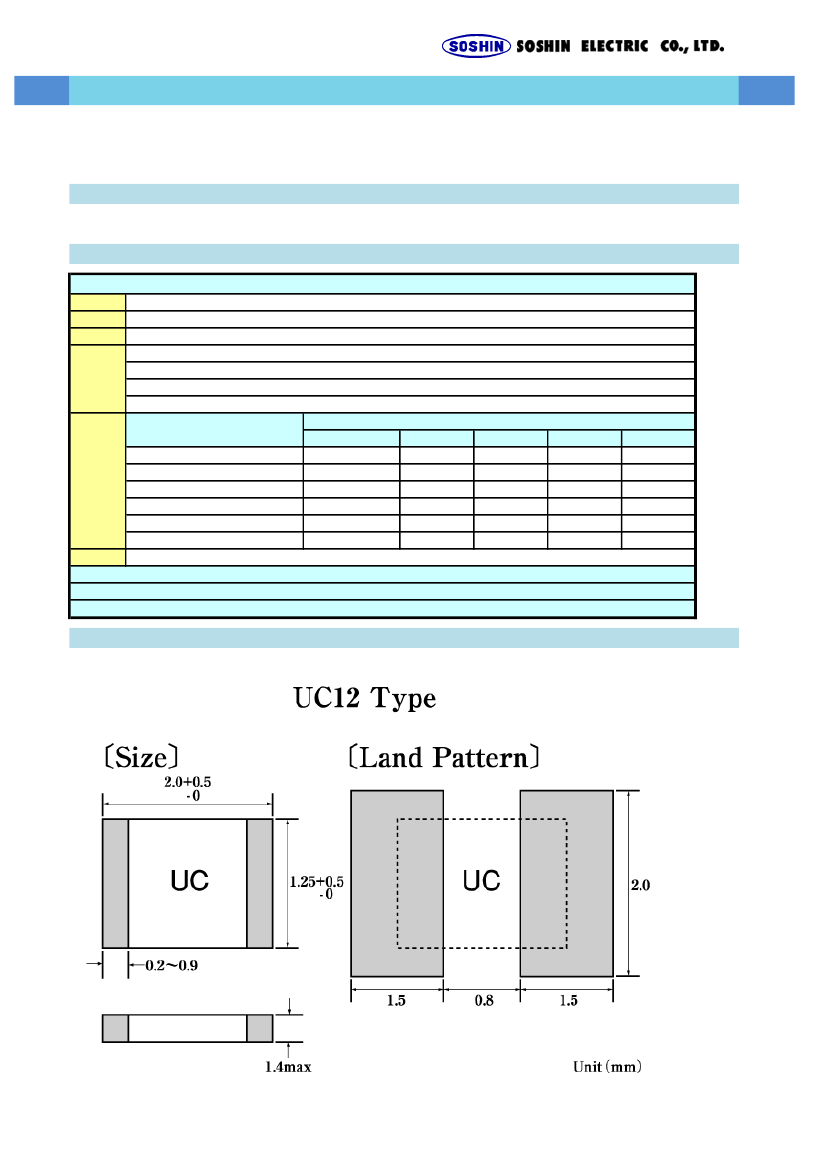

Land Pattern & Dimensions

Characteristics 1 Temperature vs. Passing power

代表特性

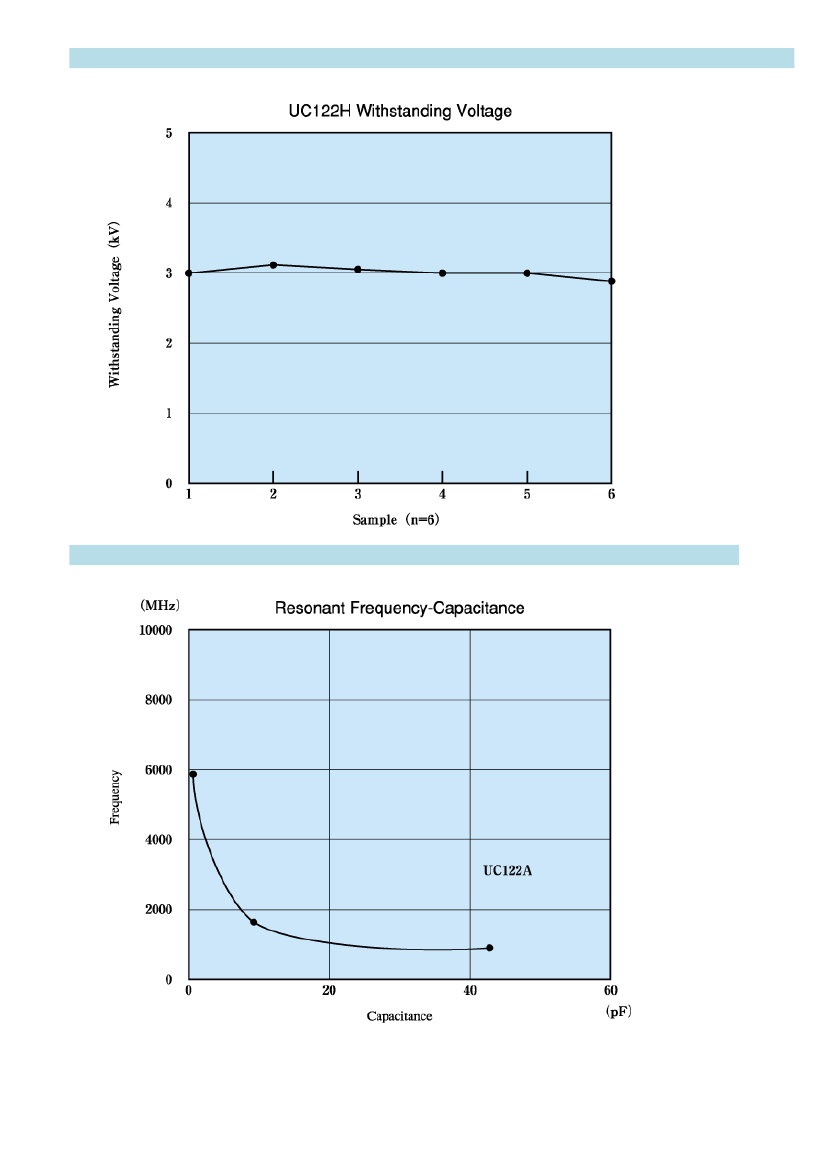

Characteristics 2 Resonant Frequency

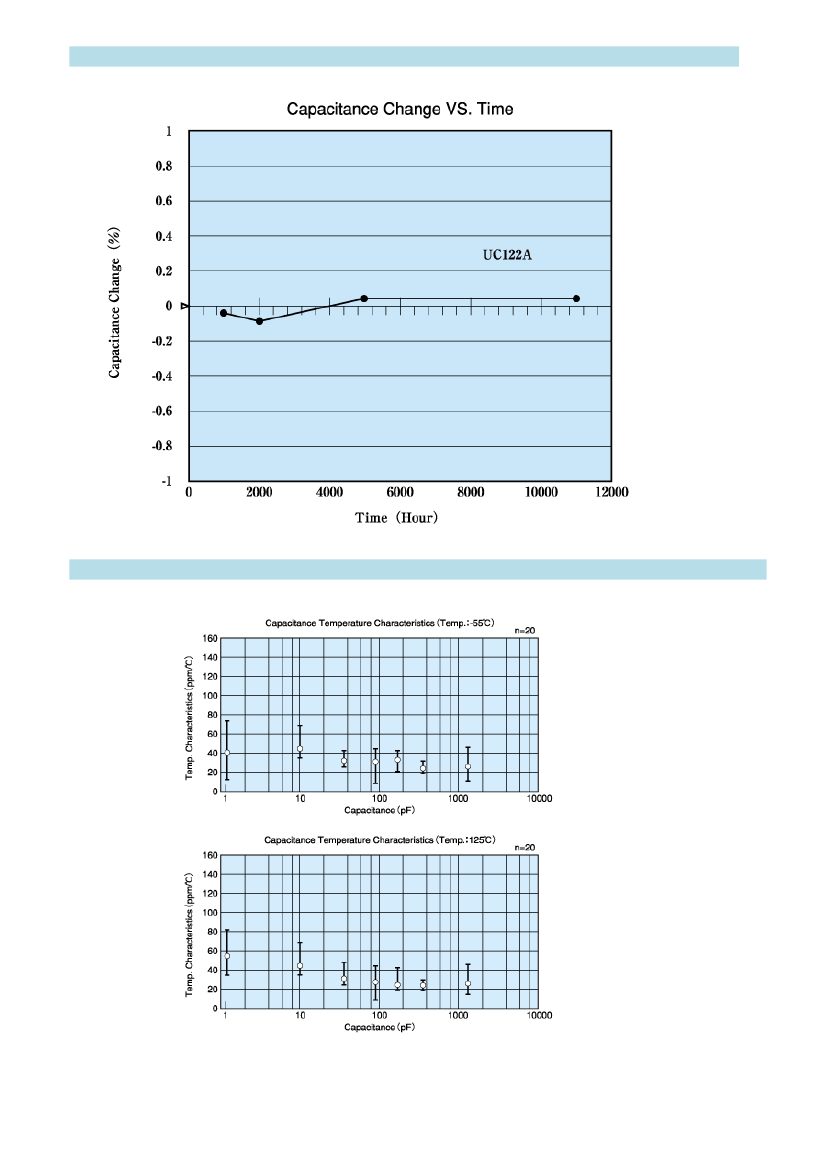

Characteristics 3 Capacitance change vs. Time

Characteristics (Common) 1 Capacitance vs. Temperature

（-55℃-125℃）

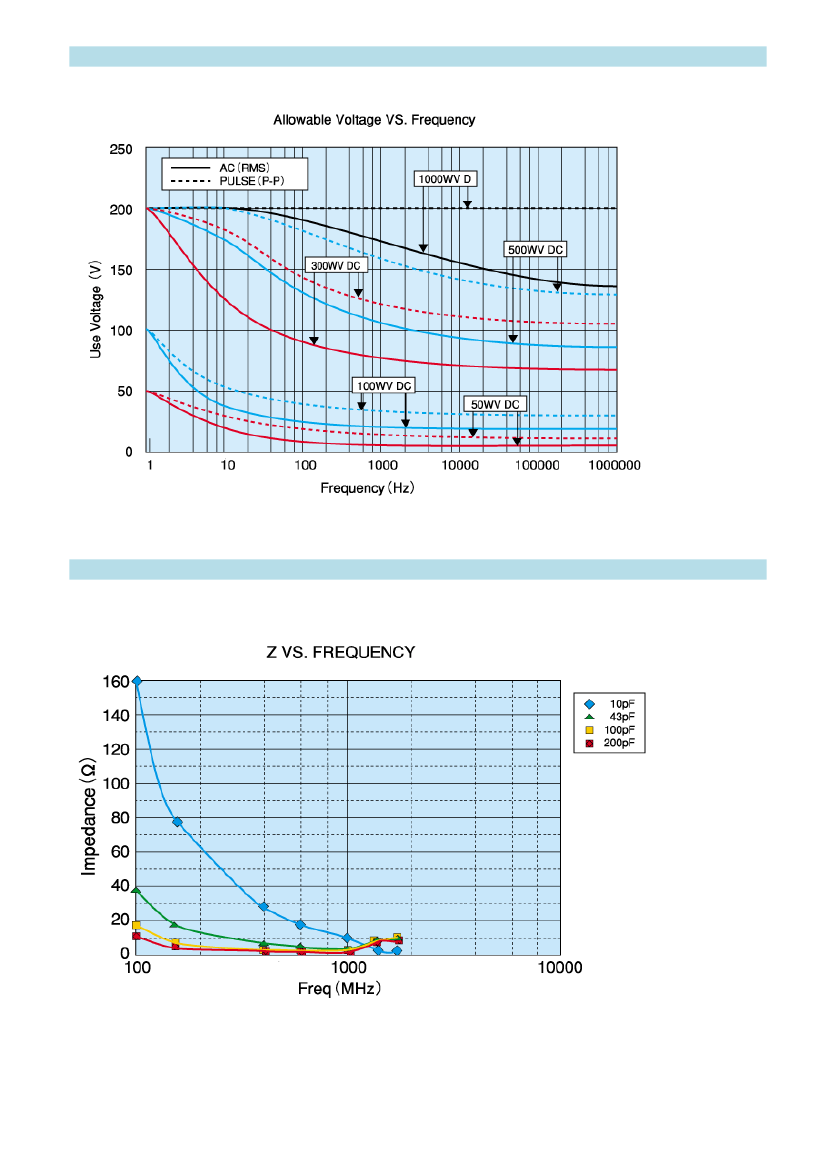

Characteristics (Common) 3　Allowable Voltage vs. Frequency

Characteristics (Common) 4　Frequency vs. Impedance

Characteristics (Common) 5　ESR vs. Frequency
