CA-S21IDS2-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CA-S21IDS2-F

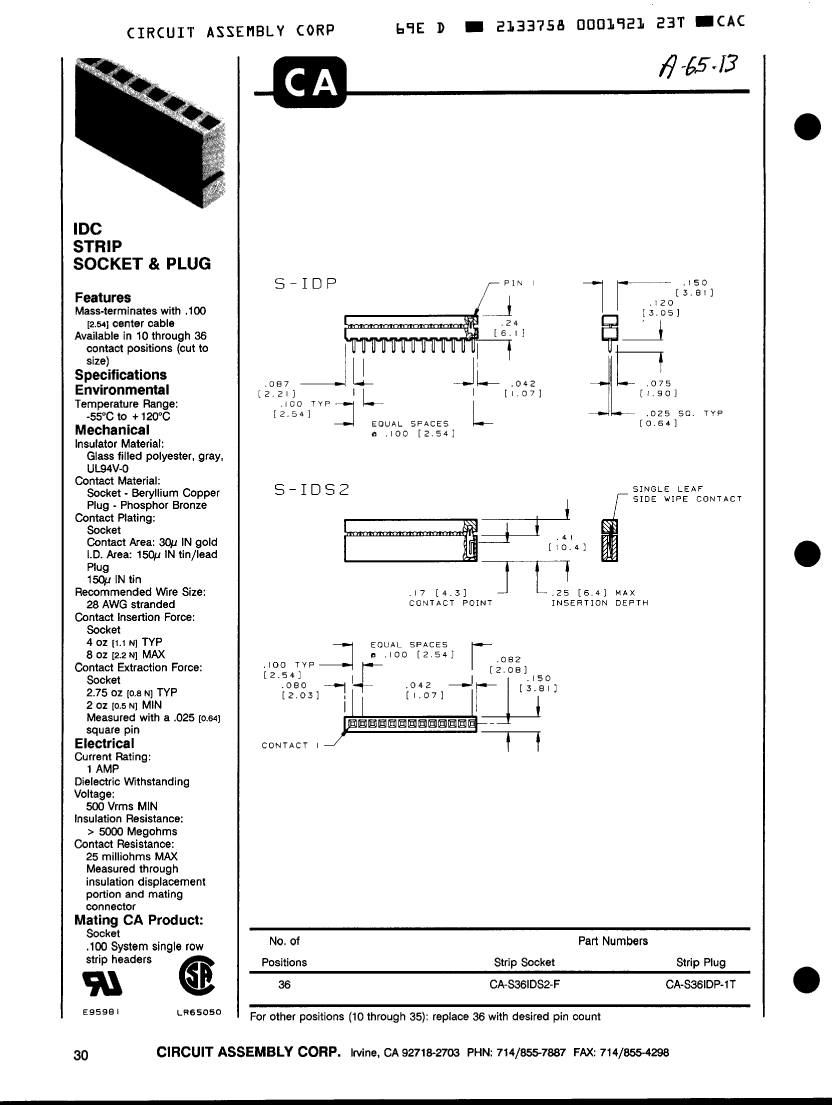

CA-S21IDS2-F: DescriptionBoard Connector, 21 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerCircuit Assembly

Download Datasheet Parametric Compare View All

CA-S21IDS2-F Overview

Board Connector, 21 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug

CA-S21IDS2-F Parametric

Parameter Name	Attribute value
Objectid	300350128
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.15 inch
subject depth	0.41 inch
body length	2.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	IDS2
Plug contact pitch	0.1 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	21
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

CA-S21IDS2-F Related Products

	CA-S21IDS2-F	CA-S11IDP-1T	CA-S12IDP-1T	CA-S28IDS2-F	CA-S32IDS2-F	CA-S23IDS2-F	CA-S26IDS2-F	CA-S27IDS2-F	CA-S20IDS2-F
Description	Board Connector, 21 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug	Board Connector, 11 Contact(s), 1 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Receptacle	Board Connector, 28 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug	Board Connector, 32 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug	Board Connector, 23 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug	Board Connector, 26 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug	Board Connector, 27 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug	Board Connector, 20 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch
subject depth	0.41 inch	0.24 inch	0.24 inch	0.41 inch	0.41 inch	0.41 inch	0.41 inch	0.41 inch	0.41 inch
body length	2.2 inch	1.174 inch	1.274 inch	2.9 inch	3.3 inch	2.4 inch	2.7 inch	2.8 inch	2.1 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	SN	SN	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	MALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	PHOSPHOR BRONZE	PHOSPHOR BRONZE	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	IDS2	IDP	IDP	IDS2	IDS2	IDS2	IDS2	IDS2	IDS2
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	30u inch	150u inch	150u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	21	11	12	28	32	23	26	27	20
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
maximum insertion force	2.224 N	-	-	2.224 N	2.224 N	2.224 N	2.224 N	2.224 N	2.224 N
Evacuation force-minimum value	.556 N	-	-	.556 N	.556 N	.556 N	.556 N	.556 N	.556 N
