0.5 mm Pitch FPC / FFC Connectors
FF9 Series
OUTLINE

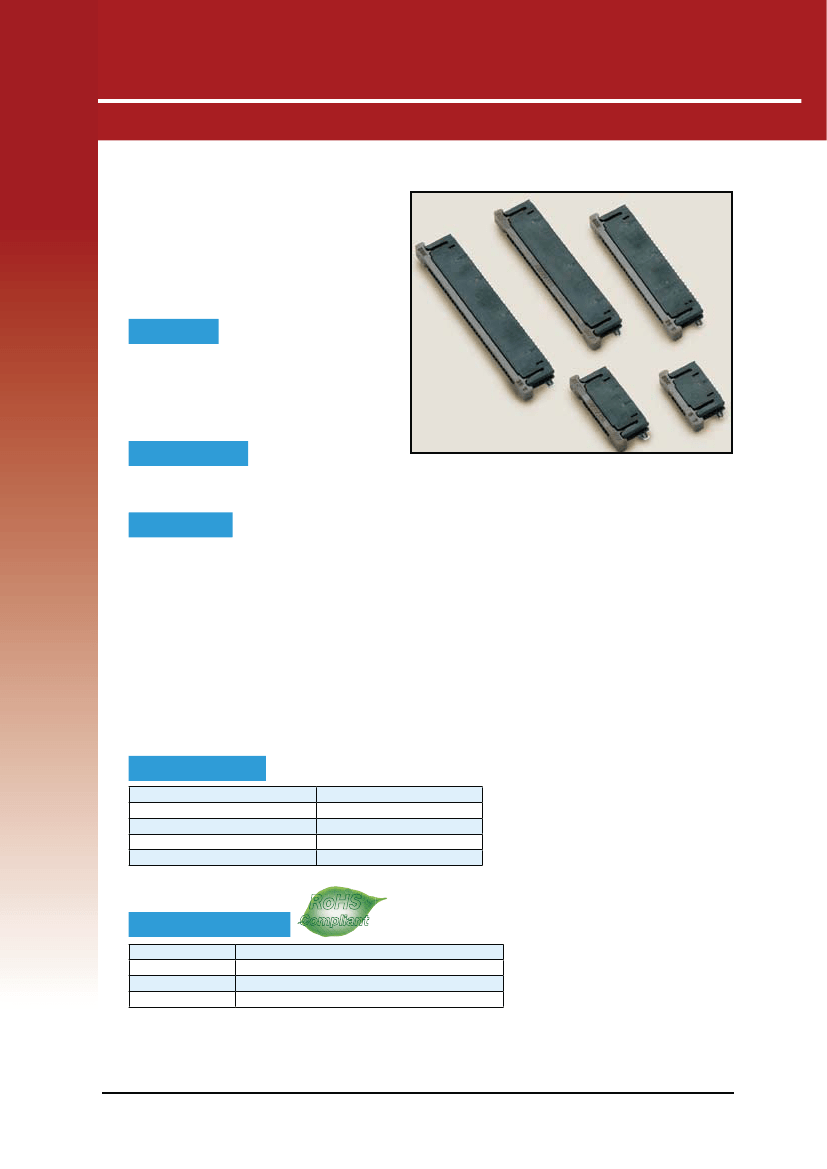

The FF9 series is a slider lock connector
of the contact pitch 0.5mm.
It suits FPC/FFC of 0.3mm thickness.
APPLICATIONS
Mobile Phones, Notebook Computers, CD-ROM, DVD-ROM, Handheld Devices
FEATURES
1. Low profile, 1.8mm in height. 0.5mm pitch
2. Accepts flat flexible cable(FFC) and flexible printed circuit(FPC)
（FPC thickness: 0.3mm）
3. Retains FFC and FPC well.
ZIF style(Slider style) for excellent durability.
4. High temperature plastic for reflow soldering.
（Applicable to lead-free solder temperature profile）
5. Both of upper contact and lower contact available
6. Tape and reel packaging available（2,500PCS / REEL）
SPECIFICATIONS
Rated Voltage
Rated Current
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
50V AC (r.m.s.)
0.5A / contact
200V AC(rms) for 1 minute
100M Ω min. at 500V DC
30m Ω max.
RoHS
MATERIAL/FINISH
Contact
Housing
Slider
Locking Tab
Compliant
Compliant
Copper Alloy / Au(Flash) over Ni Plating
High Temparature Plastic / (UL94V-0) Color, Black
High Temparature Plastic / (UL94V-0) Color, Brown
Copper Alloy / Sn-Ag over Ni Plating
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
110622
http://www.ddknet.co.jp
FF9 Series
Unit：mm

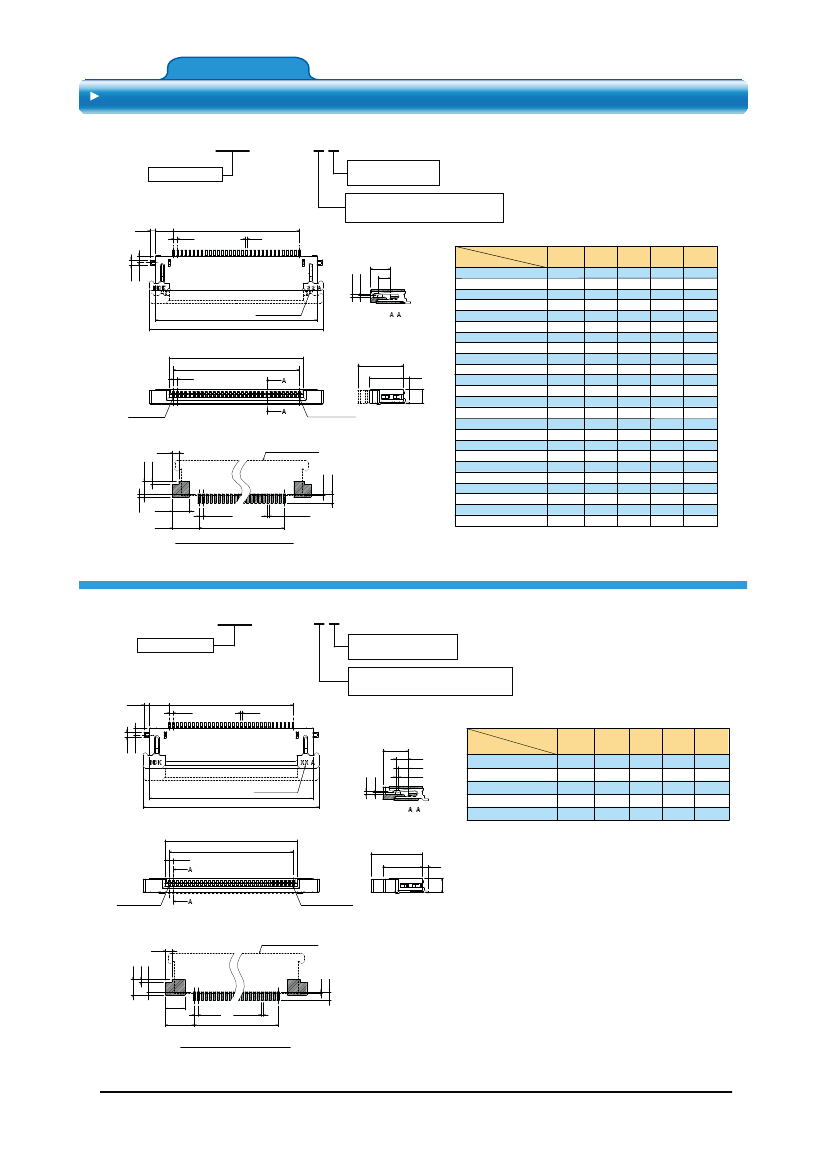

○ UPPER CONTACT TYPE
FF9- □□ A-R11A
No. of contact
Slider Shape
A：Standard Type
Contact Plating
1：Au(Flash) over Ni Plateng
0.70
2.20
0.50
0.50 (n-1)=Ａ
0.20
0.70
0.85
2.55
0.38
0.16
1.60
B
C
Number of Contacts
Section
-
D
0.50 (n-1)=Ａ
0.50
5.80
(UNMATING POSITION)
4.30
(MATING POSITION)
0.70
1.80
No.1Contact
No.(n) Contact
0.80
1.95
0.35
Connector Location
2.10
3.30
0.50
0.05
0.05
0.30
0.03
0.5 (n-1)＝Ａ
Dimension
No. of
Contacts
P/N
4
FF9- 4A-R11A
5
FF9- 5A-R11A
6
FF9- 6A-R11A
8
FF9- 8A-R11A
9
FF9- 9A-R11A
10
FF9-10A-R11A
11
FF9-11A-R11A
12
FF9-12A-R11A
13
FF9-13A-R11A
14
FF9-14A-R11A
16
FF9-16A-R11A
18
FF9-18A-R11A
19
FF9-19A-R11A
20
FF9-20A-R11A
FF9-21A-R11A
21
FF9-22A-R11A
22
FF9-24A-R11A
24
FF9-26A-R11A
26
FF9-28A-R11A
28
FF9-30A-R11A
30
FF9-32A-R11A
32
FF9-34A-R11A
34
FF9-35A-R11A
35
FF9-36A-R11A
36
Ａ
1.50
2.00
2.50
3.50
4.00
4.50
5.00
5.50
6.00
6.50
7.50
8.50
9.00
9.50
10.00
10.50
11.50
12.50
13.50
14.50
15.50
16.50
17.00
17.50
Ｂ
5.90
6.40
6.90
7.90
8.40
8.90
9.40
9.90
10.40
10.90
11.90
12.90
13.40
13.90
14.40
14.90
15.90
16.90
17.90
18.90
19.90
20.90
21.40
21.90
Ｃ
7.50
8.00
8.50
9.50
10.00
10.50
11.00
11.50
12.00
12.50
13.50
14.50
15.00
15.50
16.00
16.50
17.50
18.50
19.50
20.50
22.30
22.50
23.00
23.50
Ｄ
2.60
3.10
3.60
4.60
5.10
5.60
6.10
6.60
7.10
7.60
8.60
9.60
10.10
10.60
11.10
11.60
12.60
13.60
14.60
15.60
16.60
17.60
18.10
18.60
0.40
Recommended P.C.B pattern layout
(Connector Mounting Side)
FF9- □□ A-R11B
No. of contact
Slider Shape
B：B Type
Contact Plating
1：Au(Flash) over Ni Plateng
0.70
2.50
0.50
0.50 （½-1）=Ａ
0.20
0.20
1.10
0.70
0.85
Dimension
3.25
1.60
0.38
0.16
1.25
0.35
P/N
FF9-40A-R11B
FF9-42A-R11B
FF9-45A-R11B
FF9-50A-R11B
FF9-57A-R11B
No. of
Contacts
40
42
45
50
57
Ａ
19.50
20.50
22.00
24.50
28.00
Ｂ
24.50
25.50
27.00
29.50
33.00
Ｃ
26.10
27.10
28.60
31.10
34.60
Ｄ
20.60
21.60
23.10
25.60
29.10
B
C
Number of Contacts
Section -
D
0.50 （½-1）=Ａ
0.50
6.50
(UNMATING POSITION)
5.00
(MATING POSITION)
0.70
1.80
No.1Contact
No.(n) Contact
0.80
1.95
0.35
0.40
Connector Location
2.40
0.50
3.60
0.05
0.30
0.03
0.05
0.5 （½-1）=Ａ
Recommended P.C.B pattern layout
(Connector Mounting Side)
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
0.20
1.10
2
FF9 Series
Unit：mm

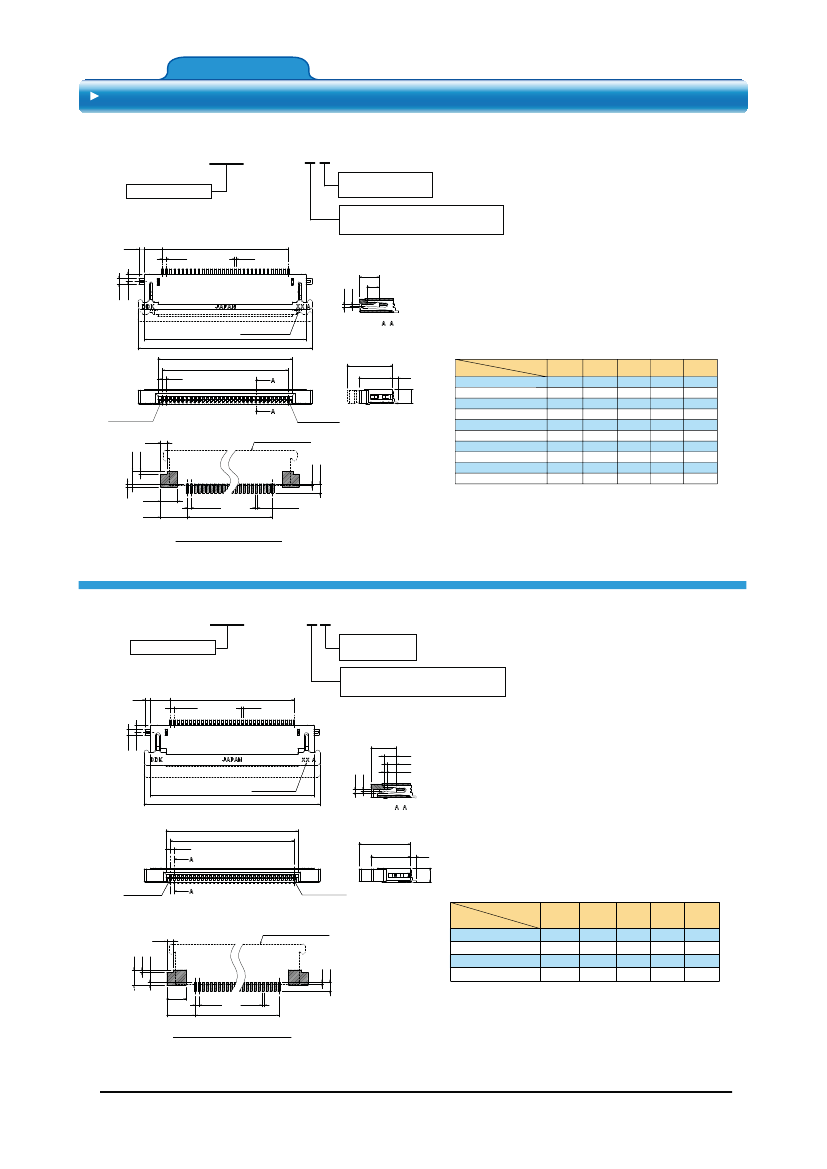

○ LOWER CONTACT TYPE
FF9- □□ B-R11A
No. of contact
Slider Shape
A：Standard Type
Contact Plating
1：Au(Flash) over Ni Plateng
0.70
2.20
0.50
0.50×（½-１）=Ａ
0.20
2.55
0.70
0.85
0.38
0.16
B
C
D
0.50×（½-１）=Ａ
0.50
5.80
(UNMATING POSITION)
1.60
Section -
Number of Contacts
4.30
(MATING POSITION)
0.70
1.80
No.1Contact
0.80
1.95
0.35
No.(n) Contact
Connector Location
Dimension
No. of
Contacts
P/N
FF9- 6B-R11A
6
FF9- 8B-R11A
8
FF9-16B-R11A
16
FF9-18B-R11A
18
FF9-20B-R11A
20
FF9-24B-R11A
24
FF9-26B-R11A
26
FF9-27B-R11A
27
FF9-30B-R11A
30
FF9-32B-R11A
32
Ａ
2.50
3.50
7.50
8.50
9.50
11.50
12.50
13.00
14.50
15.50
Ｂ
6.90
7.90
11.90
12.90
13.90
15.90
16.90
17.40
18.90
19.90
Ｃ
8.50
9.50
13.50
14.50
15.50
17.50
18.50
19.00
20.50
22.30
Ｄ
3.60
4.60
8.60
9.60
10.60
12.60
14.10
14.60
15.60
16.60
0.40
2.10
0.50
±0.05
3.30
0.5×（½-１）=Ａ
±0.05
0.30
±0.03
Recommended P.C.B pattern layout
(Connector Mounting Side)
FF9- □□ B-R11B
No. of contact
Slider Shape
B：B Type
Contact Plating
1：Au(Flash) over Ni Plateng
0.70
2.50
0.50
0.50×（½-１）=Ａ
0.20
0.70
0.85
0.20
1.10
3.25
1.60
1.25
0.35
B
C
Number of Contacts
0.38
0.16
Section
-
D
0.50×（½-１）=Ａ
0.50
6.50
(UNMATING POSITION)
5.00
(MATING POSITION)
0.70
1.80
No.1Contact
No.(n) Contact
0.80
1.95
0.35
0.40
Connector Location
Dimension
No. of
Contacts
P/N
FF9-40B-R11B
40
FF9-42B-R11B
42
FF9-50B-R11B
50
FF9-54B-R11B
54
Ａ
19.50
20.50
24.50
26.50
Ｂ
24.50
25.50
29.50
31.50
Ｃ
26.10
27.10
31.10
33.10
Ｄ
20.60
21.60
25.60
27.60
2.40
0.50
±0.05
3.60
0.30
±0.03
0.5×（½-１）=Ａ
±0.05
Recommended P.C.B pattern layout
(Connector Mounting Side)
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
0.20
1.10
3
FF9 Series
Unit：mm
○ APPLICABLE FPC/FFC DIMENSIONS
Stiffener
5.00
±0.05
(0.10)
1.00 min.
3.00
±0.5
Check mark
2-R0.30
0.50
±0.10
0.50
±0.03
0.35
±0.03
0.50
±0.10
0.30
±0.05
0.50×(n-1)=A
±0.05
0.50×(n+1)=E
±0.05
Recommended FPC Dimensions
P/N
FF9- 6□-R11A
FF9- 8□-R11A
FF9-16□-R11A
FF9-18□-R11A
FF9-20□-R11A
FF9-24□-R11A
FF9-26□-R11A
FF9-27□-R11A
FF9-30□-R11A
FF9-32□-R11A
FF9-40□-R11B
FF9-42□-R11B
FF9-50□-R11B
FF9-54□-R11B
Dimension
No. of
Contacts
A
2.50
3.50
7.50
8.50
9.50
11.50
12.50
13.00
14.50
15.50
19.50
20.50
24.50
26.50
E
3.50
4.50
8.50
9.50
10.50
12.50
13.50
14.00
15.50
16.50
20.50
21.50
25.50
27.50
Stiffener
0.50
±0.05
0.50
±0.10
0.30
±0.03
0.50
±0.10
0.30
±0.05
0.50×(n-1)=A
±0.05
0.50×(n+1)=E
±0.07
6
8
16
18
20
24
26
27
30
32
40
42
50
54
Recommended FFC Dimensions
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
1.00 min.
3.00
±0.5
5
5.00
±0.05
