8009-05P-0211-20 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8009-05P-0211-20

Preview

8009-05P-0211-20: DescriptionD Subminiature Connector; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric Compare View All

8009-05P-0211-20 Overview

D Subminiature Connector

8009-05P-0211-20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1341893918
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact material	NOT SPECIFIED
JESD-609 code	e0
Manufacturer's serial number	80

Preview

Download Datasheet

View All

CC

S

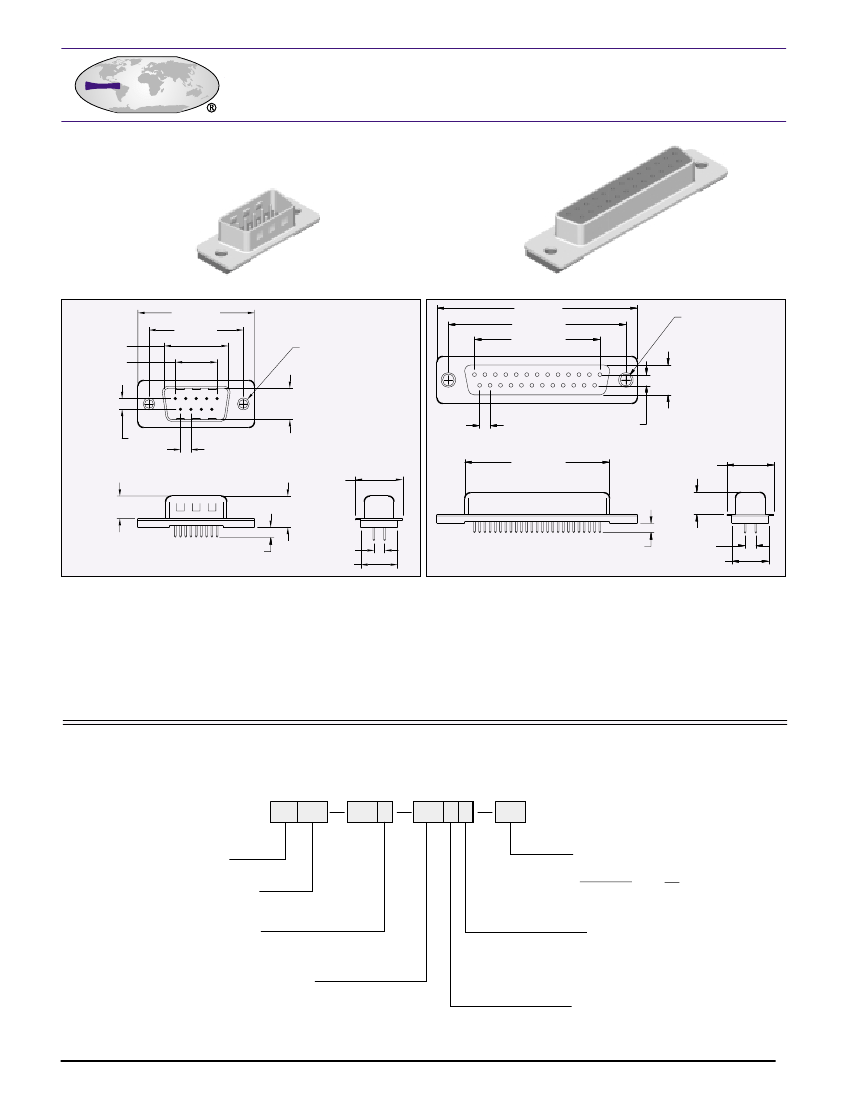

8000 Series D-Subminiature

Low Profile

Straight Dip Solder

PLUG

1.213 [30.8]

.984 [25.0]

.666 [16.92]

.436 [11.07]

SEE MOUNTING

STYLE OPTIONS

13

RECEPTACLE

2.091 [53.1]

1.852 [47.04]

1.308 [33.24]

SEE MOUNTING

STYLE OPTIONS

1

.311 [7.9]

1

25

5

14

.327 [8.3]

.109 [2.77] TYP.

.112 [2.84]

6

9

.112 [2.84]

.109 [2.77] TYP.

1.508 [38.3]

.492 [12.5]

.236 [6.0]

.228 [5.8]

.492 [12.5]

.327 [8.3]

.098 [2.5]

2.84 [.112]

.382 [9.7]

.098 [2.5]

.112 [2.84]

.382 [9.7]

Dimensions are in inches [mm]

80 XX

SERIES CODE

09

= Plug

25

= Receptacle

P

= Plug

S

= Receptacle

PART NUMBERING

05 X

XX X X

XX

50µ” Nickel Underplate

Mating Area

Tail

100µ” Tin Lead

05

= Au Flash

100µ” Tin Lead

20

= 15µ” Gold

100µ” Tin Lead

30

= 30µ” Gold

CONTACT PLATING

Low Profile Straight Dip Solder

NO. OF CONTACTS

CONNECTOR TYPE

MOUNTING STYLE OPTIONS

Consult Factory for other Mounting Options

SHELL PLATING

50µ” Nickel Underplate

1

= Tin Plating (standard)

See Page E-05 For Options

00

= .120 dia. Thru Holes

02

= #4-40 Threaded Insert

1

= Black (Standard)

INSULATOR COLOR

WWW.ECSCONN.COM

8009-05P-0211-20 Related Products

	8009-05P-0211-20	8025-05S-0211-05	8025-05S-0011-05	8025-05S-0211-20	8025-05S-0211-30	8009-05P-0211-05	8009-05P-0211-30
Description	D Subminiature Connector	D Subminiature Connector	D Subminiature Connector	D Subminiature Connector	D Subminiature Connector	D Subminiature Connector	D Subminiature Connector
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD (15) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Manufacturer's serial number	80	80	80	80	80	80	80
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
