M80-5C12605MC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-5C12605MC

M80-5C12605MC: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size292KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-5C12605MC Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle

M80-5C12605MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1012344768
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.238 inch
subject depth	0.309 inch
body length	1.417 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	26
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

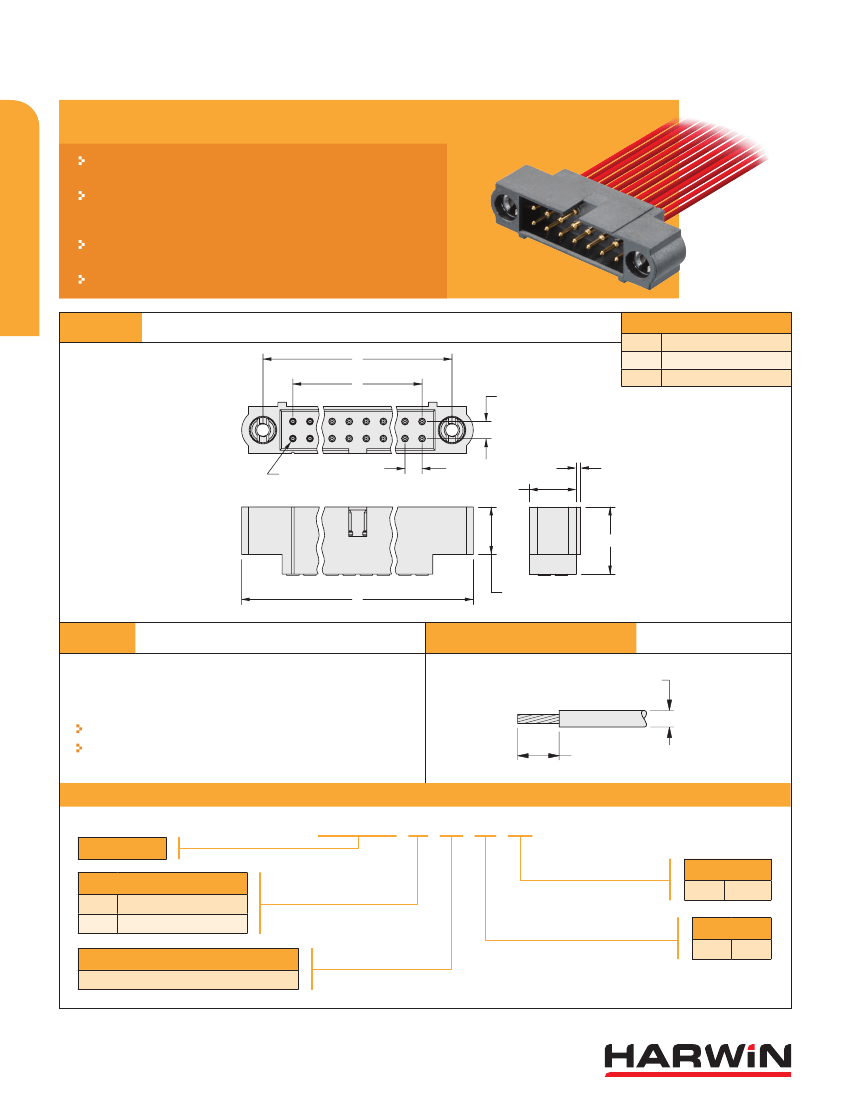

Datamate J-Tek Connectors

Male Crimp Kit 101Lok

Part numbers are for a complete kit of a housing and the

applicable number of contacts.

101Lok fixing gives secure, fast and simple mating; no special

tooling required. Just a simple 101-degree turn is required to fix

the connectors together.

Connectors mate with Datamate J-Tek female connectors with

applicable 101Lok fixings.

Crimp contacts supplied loose.

DATAMATE J-TEK

101LOK

2.00

CALCULATION

B + 12

Total no. of contacts - 2

B+7

No.1 contact

2.00

5.50

0.50

7.85

5.60

TOOLS

Recommended Crimp Tool

– M22520/2-01

Positioner

– Z80-193

Contact Insertion/Removal Tool

– Z80-280

Spare contacts shown on following pages.

Instruction sheets available at

www.harwin.com/instructions.

WIRE STRIPPING DETAILS

Ø1.10 max

2.00

HOW TO ORDER

M80 - 5 X1 XX 05 MC

SERIES CODE

TYPE

Small Bore (24-28 AWG)

Large Bore (22 AWG)

JACKSCREW

101Lok

FINISH

Gold

TOTAL NO. OF CONTACTS

04, 06, 08, 10, 12, 14, 20, 26, 34, 42, 50

All dimensions in mm.

www.harwin.com

122

M80-5C12605MC Related Products

	M80-5C12605MC	M80-5C11205MC	M80-5C10805MC	M80-5C13405MC
Description	Board Connector, 26 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Objectid	1012344768	1012344754	1012344750	1012344776
Reach Compliance Code	compliant	compliant	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	0.238 inch	0.238 inch	0.238 inch	0.238 inch
subject depth	0.309 inch	0.309 inch	0.309 inch	0.309 inch
body length	1.417 inch	0.866 inch	0.709 inch	1.732 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	26	12	8	34
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG
