350S41W106KV4T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 350S41W106KV4T

350S41W106KV4T: DescriptionCeramic Capacitor, Multilayer, Ceramic, 35V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 1210, CHIP; CategoryPassive components capacitor; File Size155KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric Compare View All

350S41W106KV4T Overview

Ceramic Capacitor, Multilayer, Ceramic, 35V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 1210, CHIP

350S41W106KV4T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1226172130
package instruction	, 1210
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	10 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	35 V
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

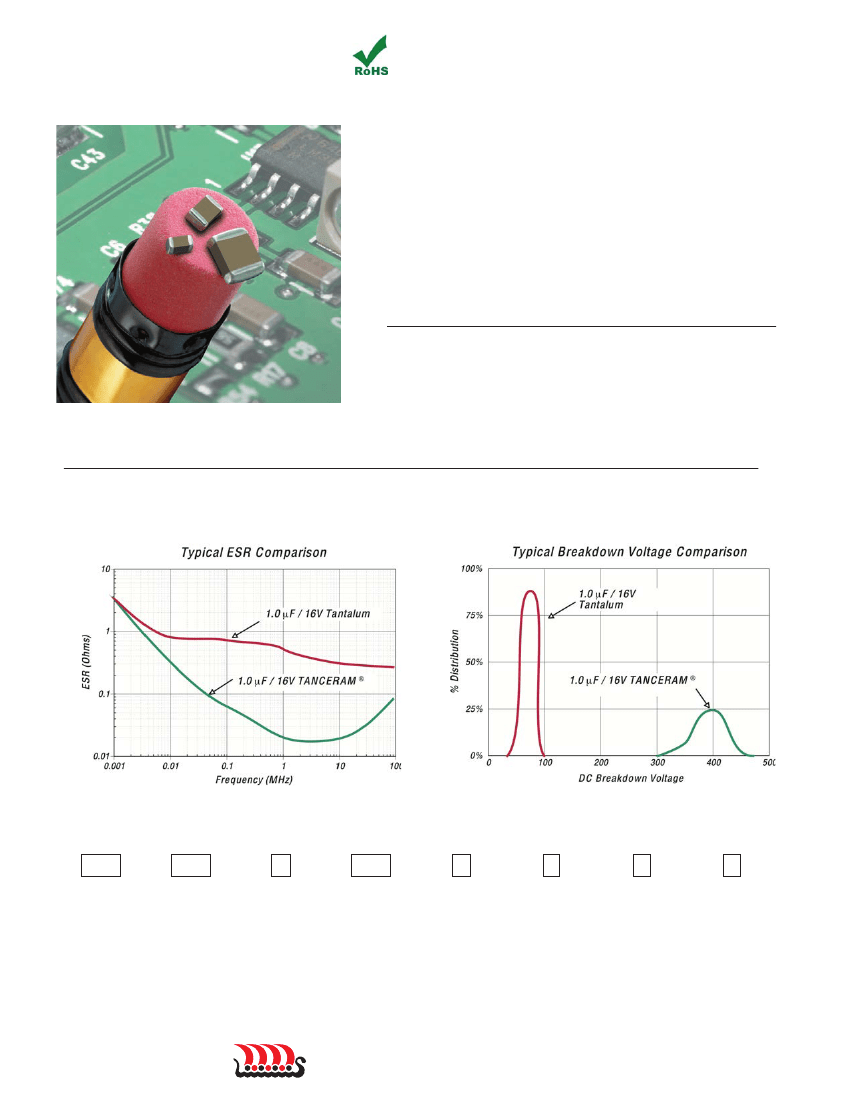

ANCERAM

HIP

APACITORS

TANCERAM

chip capacitors can replace tantalum capacitors

in many applications and offer several key advantages over

traditional tantalums. Because TANCERAM

capacitors exhibit

extremely low ESR, equivalent circuit performance can often be

achieved using considerably lower capacitance values. Low

DC leakage reduces current drain, extending the battery life of

portable products. TANCERAM

high DC breakdown voltage

ratings offer improved reliability and eliminate large voltage

de-rating common when designing with tantalums.

DVANTAGES

• Low ESR

• Higher Surge Voltage

• Reduced CHIP Size

• Low DC Leakage

• Non-polarized Devices

• Improved Reliability

• Higher Insulation Resistance • Higher Ripple Current

PPLICATIONS

• Switching Power Supply Smoothing (Input/Output)

• DC/DC Converter Smoothing (Input/Output)

• Backlighting Inverters

• General Digital Circuits

OW TO

RDER

TANCERAM

100

VOLTAGE

6R3 = 6.3 V

100 = 10 V

160 = 16 V

250 = 25 V

500 = 50 V

101 = 100 V

Part number written: 100R15X106MV4E

R15

SIZE

See Chart

DIELECTRIC

W = X7R

X = X5R

106

CAPACITANCE

1st two digits are

significant; third digit

denotes number of

zeros.

105 = 1.00 µF

476 = 47.0 µF

107 = 100 µF

TOLERANCE

K = ±10%

M = ±20%

TERMINATION

V = Nickel Barrier

with 100% Tin

Plating (Matte)

T = SnPb*

(*available on

select parts)

MARKING

4 = Unmarked

PACKING

Code Type Reel

Plastic 7”

Paper 7”

Tape specifications

conform to EIA

RS481

www.johanson dielectrics.com
