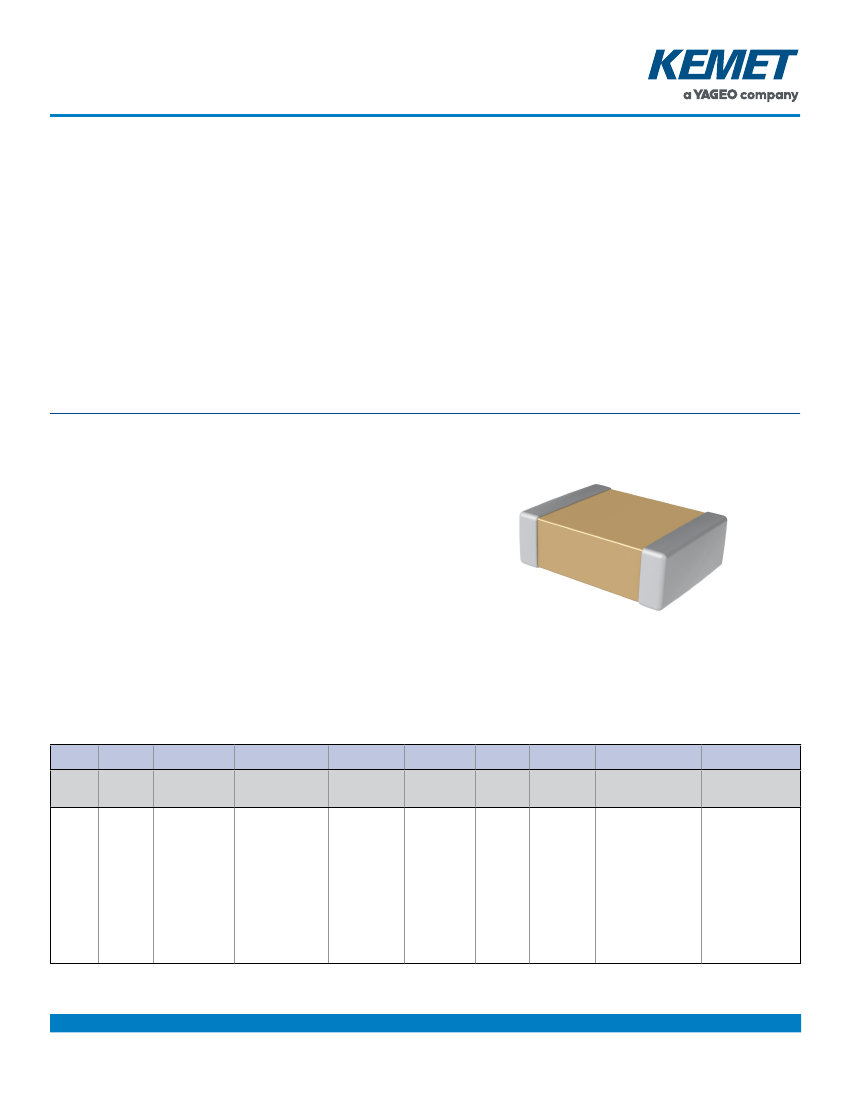

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
C0G Dielectric, 10 – 250 VDC (Automotive Grade)
Overview
KEMET’s Automotive Grade Series surface mount
capacitors in C0G dielectric are suited for a variety of
applications requiring proven, reliable performance in
harsh environments. Whether under-hood or in-cabin,
these devices emphasize the vital and robust nature
of capacitors required for mission and safety critical
automotive circuits. Stricter testing protocol and inspection
criteria have been established for automotive grade
products in recognition of potentially harsh environmental
conditions. KEMET automotive grade series capacitors
meet the demanding Automotive Electronics Council's
AEC–Q200 qualification requirements.
C0G dielectric features a 125°C maximum operating
temperature and is considered “stable.” The Electronics
Industries Alliance (EIA) characterizes C0G dielectric as
a Class I material. Components of this classification are
temperature compensating and are suited for resonant circuit
applications or those where Q and stability of capacitance
characteristics are required. C0G exhibits no change in
capacitance with respect to time and voltage and boasts a
negligible change in capacitance with reference to ambient
temperature. Capacitance change is limited to ±30 ppm/ºC
from −55°C to +125°C.
Benefits
• AEC–Q200 automotive qualified
• −55°C to +125°C operating temperature range
• Lead (Pb)-Free, RoHS and REACH compliant
• EIA 0402, 0603, 0805, 1206, 1210, 1812, and
2220 case sizes
• DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, 200 V,
and 250 V
• Capacitance offerings ranging from 0.5 pF up to 0.47 μF
• Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5
pF, ±1%, ±2%, ±5%, ±10%, and ±20%
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
Ceramic
1206
C
104
Capacitance
Code (pF)
Two significant
digits and
number of
zeros
Use 9 for
1.0 – 9.9 pF
Use 8 for
0.5 – .99 pF
ex. 2.2 pF = 229
ex. 0.5 pF = 508
J
3
G
A
C
AUTO
Case Size
Specification/
(L" x W")
Series
0402
0603
0805
1206
1210
1812
2220
C = Standard
Failure Rate/
Packaging/Grade
Capacitance
Rated Voltage
Dielectric
Termination Finish
2
1
(C-Spec)
Tolerance
(VDC)
Design
B = ±0.10 pF
C = ±0.25 pF
D = ±0.5 pF
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
8 = 10
4 = 16
3 = 25
5 = 50
1 = 100
2 = 200
A = 250
G = C0G
A = N/A
C = 100% Matte Sn
See "Packaging
C-Spec Ordering
Options Table"
1
2
Additional capacitance tolerance offerings may be available. Contact KEMET for details.
Additional termination finish options may be available. Contact KEMET for details.
Built Into Tomorrow
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1022_C0G_AUTO_SMD • 9/15/2020
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – C0G Dielectric, 10 – 250 VDC (Automotive Grade)
Packaging C-Spec Ordering Options Table
Packaging Type
1
7" Reel
13" Reel/Unmarked
7" Reel/Unmarked/2 mm pitch
2
13" Reel/Unmarked/2 mm pitch
2
1
Packaging/Grade
Ordering Code (C-Spec)
3
AUTO
AUTO7411 (EIA 0603 and smaller case sizes)
AUTO7210 (EIA 0805 and larger case sizes)
3190
3191
Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L" x W") and thickness dimension. See "Chip Thickness/Tape & Reel
Packaging Quantities" and "Tape & Reel Packaging Information".
2
The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case
size devices. For more information regarding 2 mm pitch option see "Tape & Reel Packaging Information".
3
All Automotive packaging C-Specs listed exclude the option to laser mark components. Please contact KEMET if you require a laser marked option. For
more information see "Capacitor Marking".
3
For additional Information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information".
Benefits cont.
• No piezoelectric noise
• Extremely low ESR and ESL
• High thermal stability
• High ripple current capability
• Preferred capacitance solution at line frequencies and into
the MHz range
• No capacitance change with respect to applied rated DC
voltage
• Negligible capacitance change with respect to temperature
from −55°C to +125°C
• No capacitance decay with time
• Non-polar device, minimizing installation concerns
• 100% pure matte tin-plated termination finish allowing for
excellent solderability
• SnPb plated termination finish option available upon
request (5% minimum)
Applications
Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling,
bypass, filtering, transient voltage suppression, blocking and energy storage.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1022_C0G_AUTO_SMD • 9/15/2020
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – C0G Dielectric, 10 – 250 VDC (Automotive Grade)
Automotive C-Spec Information
KEMET automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council.
Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval Process
warrant (PPAP).
Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, “AUTO.”
This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive grade
component without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a
KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET OEM automotive customers and are
not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are limited
(see details below.)
Product Change Notification (PCN)
The KEMET product change notification system is used to communicate primarily the following types of changes:
• Product/process changes that affect product form, fit, function, and/or reliability
• Changes in manufacturing site
• Product obsolescence
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
Customer Notification Due To:
Process/Product change
Yes (with approval and sign off)
Yes (without approval)
Obsolescence*
Yes
Yes
Days Prior To
Implementation
180 days minimum
90 days minimum
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
Production Part Approval Process (PPAP)
The purpose of the Production Part Approval Process is:
• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.
• To provide the evidence that all customer engineering design records and specification requirements are properly
understood and fulfilled by the manufacturing organization.
• To demonstrate that the established manufacturing process has the potential to produce the part.
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
PPAP (Product Part Approval Process) Level
1
●
2
●
3
●
○
4
●
5
●
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
● Part number specifi
c PPAP available
○ Product family PPAP only
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1022_C0G_AUTO_SMD • 9/15/2020
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – C0G Dielectric, 10 – 250 VDC (Automotive Grade)
Dimensions – Millimeters (Inches)
W
L
T
B
S
EIA Size
Code
0402
0603
0805
1206
1210
1812
2220
Metric Size
Code
1005
1608
2012
3216
3225
4532
5650
L
Length
1.00 (0.040)
±0.05 (0.002)
1.60 (0.063)
±0.15 (0.006)
2.00 (0.079)
±0.20 (0.008)
3.20 (0.126)
±0.20 (0.008)
3.20 (0.126)
±0.20 (.008)
4.50 (0.177)
±0.30 (0.012)
5.70 (0.224)
±0.40 (0.016)
W
Width
0.50 (0.020)
±0.05 (0.002)
0.80 (0.032)
±0.15 (0.006)
1.25 (0.049)
±0.20 (0.008)
1.60 (0.063)
±0.20 (0.008)
2.50 (0.098)
±0.20 (0.008)
3.20 (0.126)
±0.30 (0.012)
5.00 (0.197)
±0.40 (0.016)
T
Thickness
B
Bandwidth
0.30 (0.012)
±0.10 (0.004)
0.35 (0.014)
±0.15 (0.006)
0.50 (0.02)
±0.25 (0.010)
0.50 (0.02)
±0.25 (0.010)
0.50 (0.02)
±0.25 (0.010)
0.60 (0.024)
±0.35 (0.014)
0.60 (0.024)
±0.35 (0.014)
S
Separation
Minimum
0.30 (0.012)
0.70 (0.028)
0.75 (0.030)
Mounting
Technique
Solder Reflow
Only
Solder Wave or
Solder Reflow
See Table 2 for
Thickness
N/A
Solder Reflow
Only
Qualification/Certification
Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their
website @www.aecouncil.com.
Environmental Compliance
Lead (Pb)-free, RoHS, and REACH compliant without exemptions.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1022_C0G_AUTO_SMD • 9/15/2020
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – C0G Dielectric, 10 – 250 VDC (Automotive Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to
+25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
1
Parameters/Characteristics
−55°C to +125°C
±30 ppm/ºC
0%
250% of rated voltage
(5±1 seconds and charge/discharge not exceeding 50 mA)
0.1%
1,000 megohm microfarads or 100 GΩ
(Rated voltage applied for 120±5 seconds at 25°C)
Dielectric Withstanding Voltage (DWV)
2
Dissipation Factor (DF) Maximum Limit at 25ºC
3
Insulation Resistance (IR) Limit at 25°C
DWV is the voltage a capacitor can withstand (survive) for a short period of time. It exceeds the nominal and continuous working voltage of the
capacitor.
2
Capacitance and dissipation factor (DF) measured under the following conditions:
1 MHz ±100 kHz and 1.0 Vrms ±0.2 V if capacitance ≤ 1,000 pF
1 kHz ±50 Hz and 1.0 Vrms ±0.2 V if capacitance > 1,000 pF
3
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and Dissipation Factor (DF) measured under the following conditions:
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known
as Automatic Level Control (ALC). The ALC feature should be switched to "ON."
1
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
C0G
Rated DC Voltage
All
Capacitance
Value
All
Dissipation Factor
(Maximum %)
0.5
Capacitance
Shift
0.3% or ±0.25 pF
Insulation
Resistance
10% of Initial
Limit
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
