C0805X272K2RAC7025: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0027uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size57KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C0805X272K2RAC7025 Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0027uF, Surface Mount, 0805, CHIP

C0805X272K2RAC7025 Parametric

Parameter Name	Attribute value
Objectid	7295910964
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0027 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PLASTIC, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	200 V
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

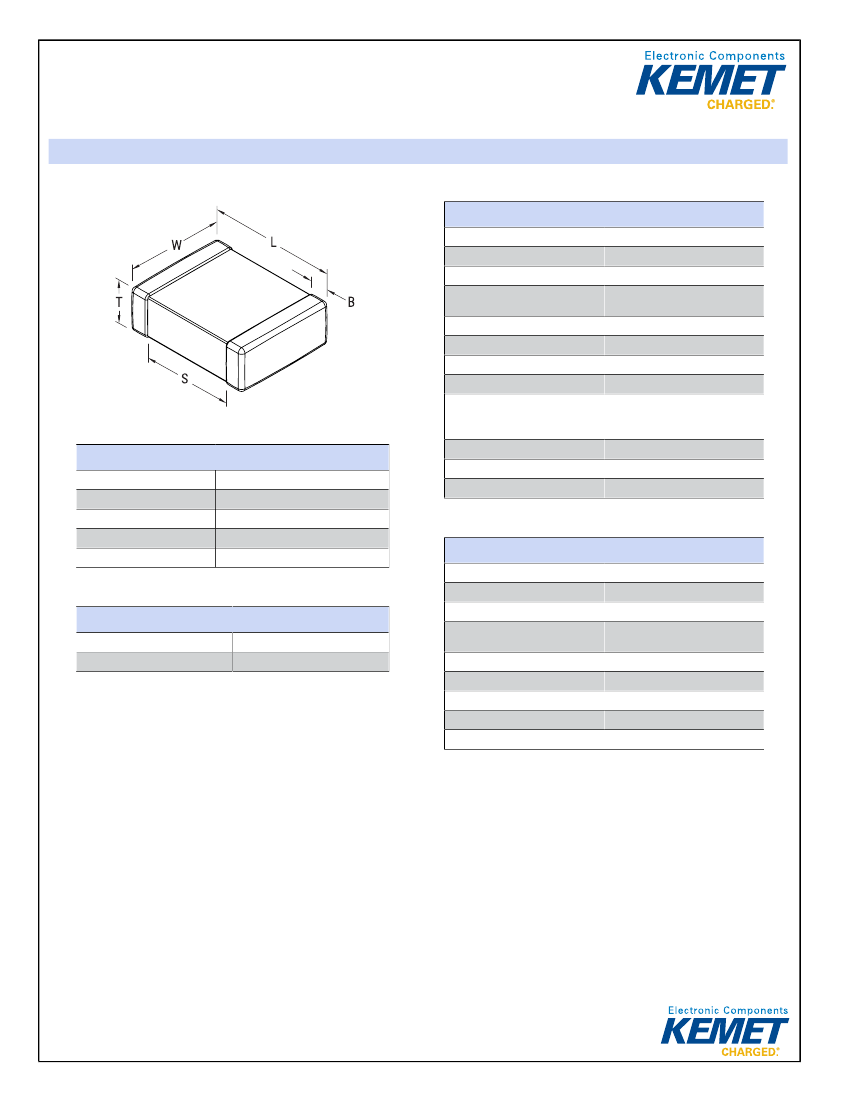

KEMET Part Number: C0805X272K2RACTM

(C0805X272K2RAC7025)

SMD Comm X7R Flex, Ceramic, 2700 pF, 10%, 200 VDC, X7R, SMD, MLCC, FT-CAP, Temperature Stable, 0805

General Information

Supplier:

Series:

Style:

Description:

Features:

RoHS:

Termination:

Marking:

Miscellaneous:

KEMET

SMD Comm X7R Flex

SMD Chip

SMD, MLCC, FT-CAP,

Temperature Stable

FT-CAP, Temperature Stable

Yes

Flexible Termination

Yes

Note: Referee time for X7R

dielectric for this part number is

1000 hours

0805

78 Weeks

1

Dimensions

L

W

T

S

B

2mm +/-0.3mm

1.25mm +/-0.3mm

0.78mm +/-0.20mm

0.75mm MIN

0.5mm +/-0.25mm

Chip Size:

Shelf Life:

MSL:

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Dissipation Factor:

Aging Rate:

Insulation Resistance:

2700 pF

10%

200 VDC

500 V

-55/+125C

X7R

2.50% 1kHz 25C

3% Loss/Decade Hour

100 GOhms

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Plastic Tape

4000

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 3/12/2019 - 88300f08-07b8-41e2-9526-1cce8b381440
