R745R2820500-J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> R745R2820500-J

R745R2820500-J: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.082uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size465KB，6 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric Compare View All

R745R2820500-J Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.082uF, THROUGH HOLE MOUNT, RADIAL LEADED

R745R2820500-J Parametric

Parameter Name	Attribute value
Objectid	1939405691
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: IEC60384-16
capacitance	0.082 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	5%
Rated (AC) voltage (URac)	500 V
Rated (DC) voltage (URdc)	1600 V
surface mount	NO
Terminal surface	TIN
Terminal shape	WIRE

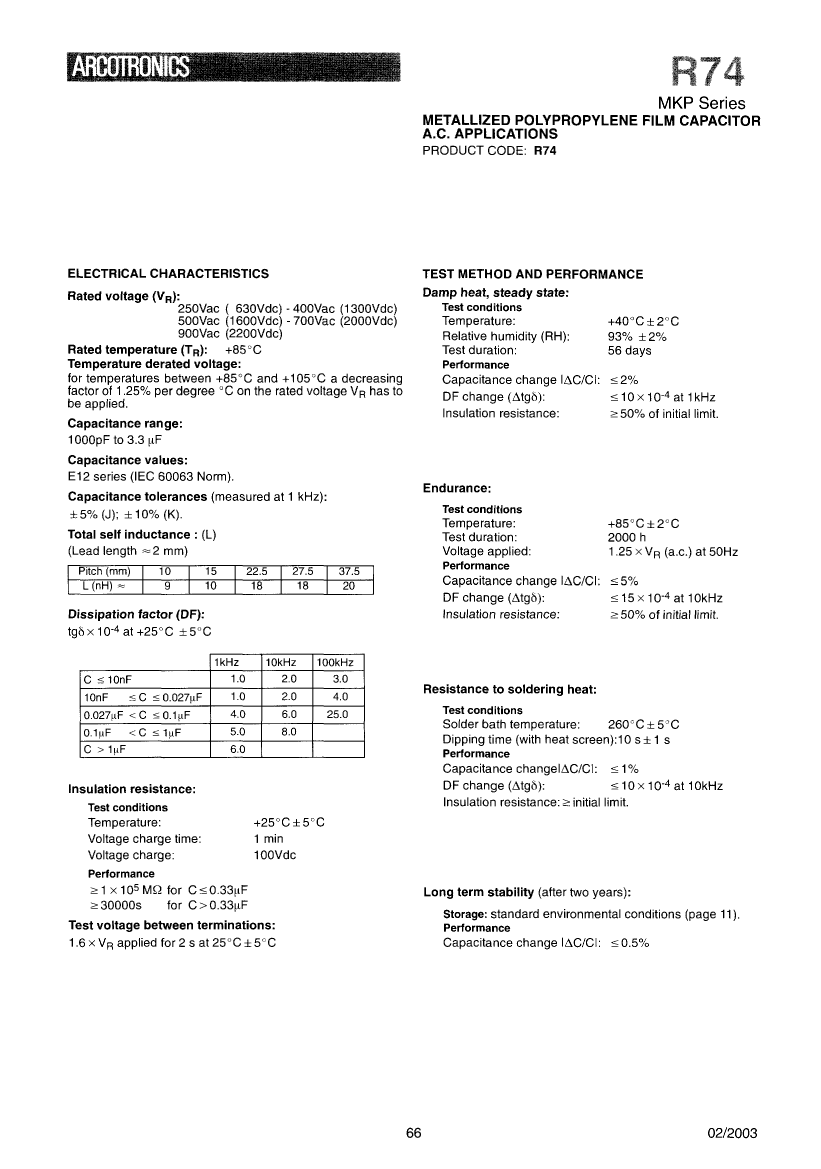

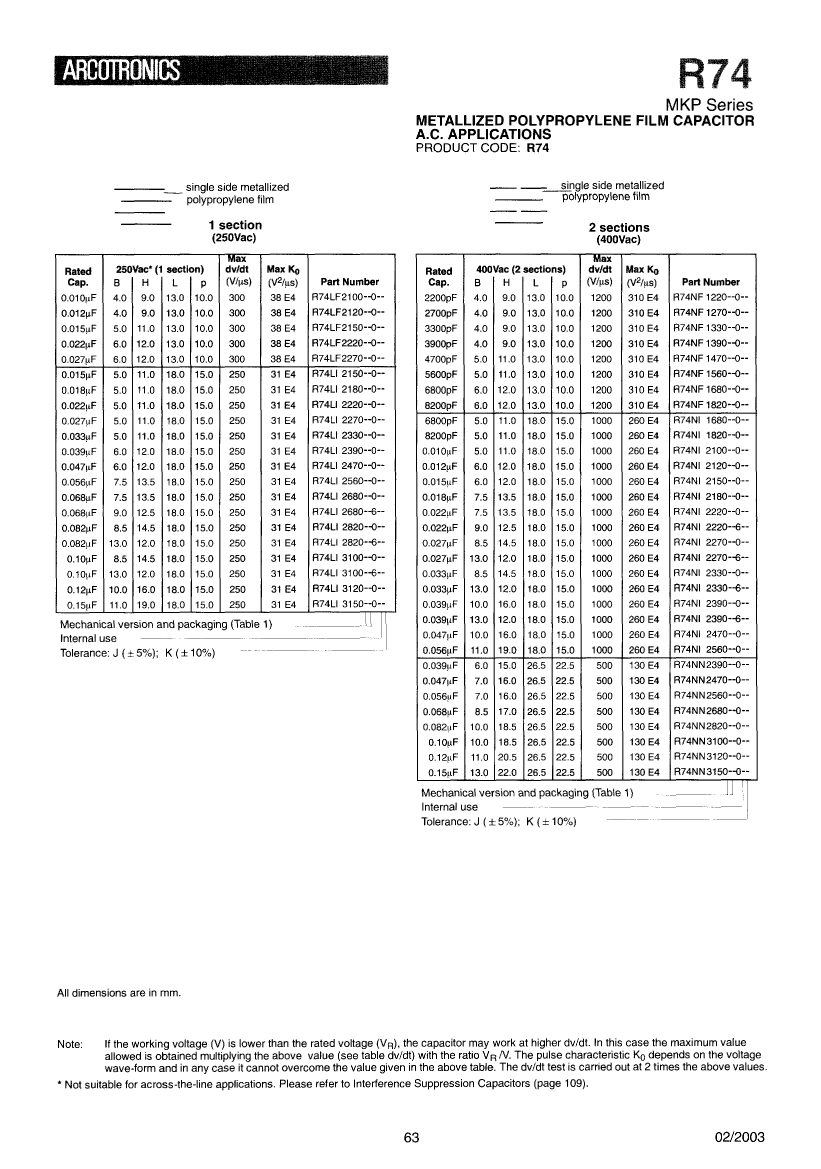

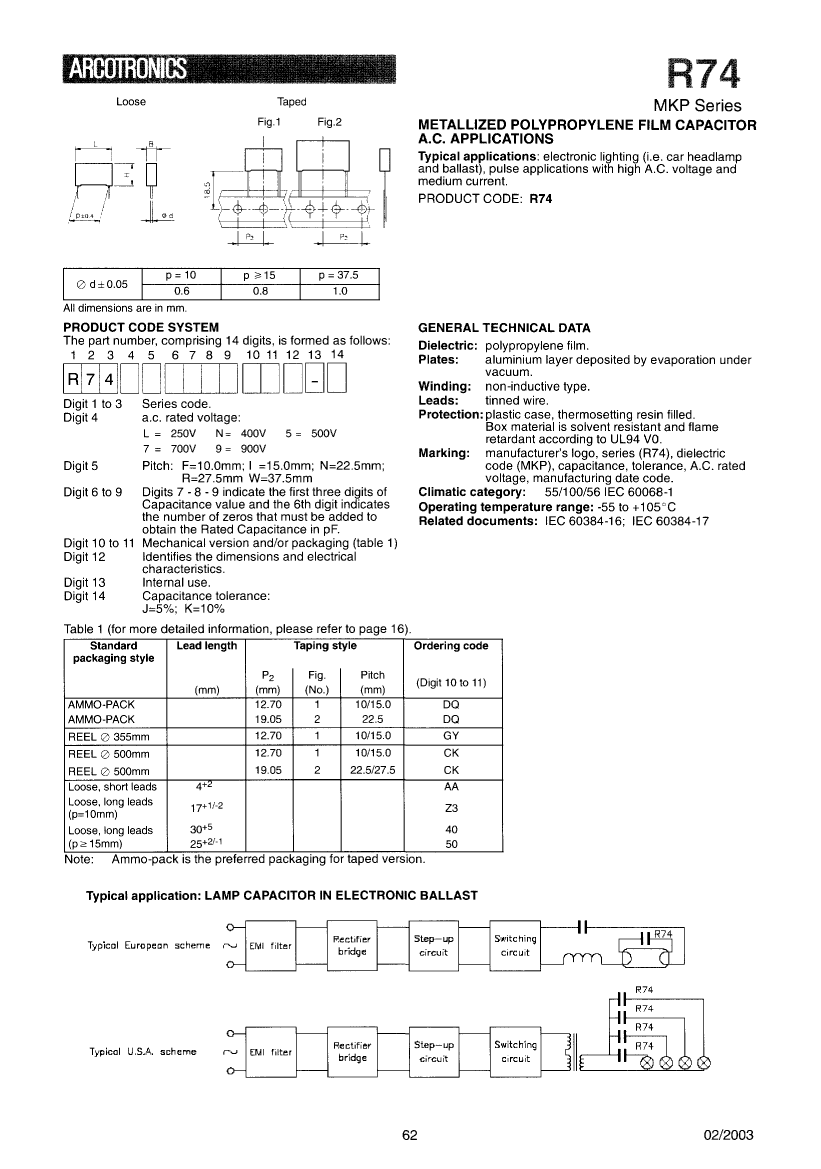

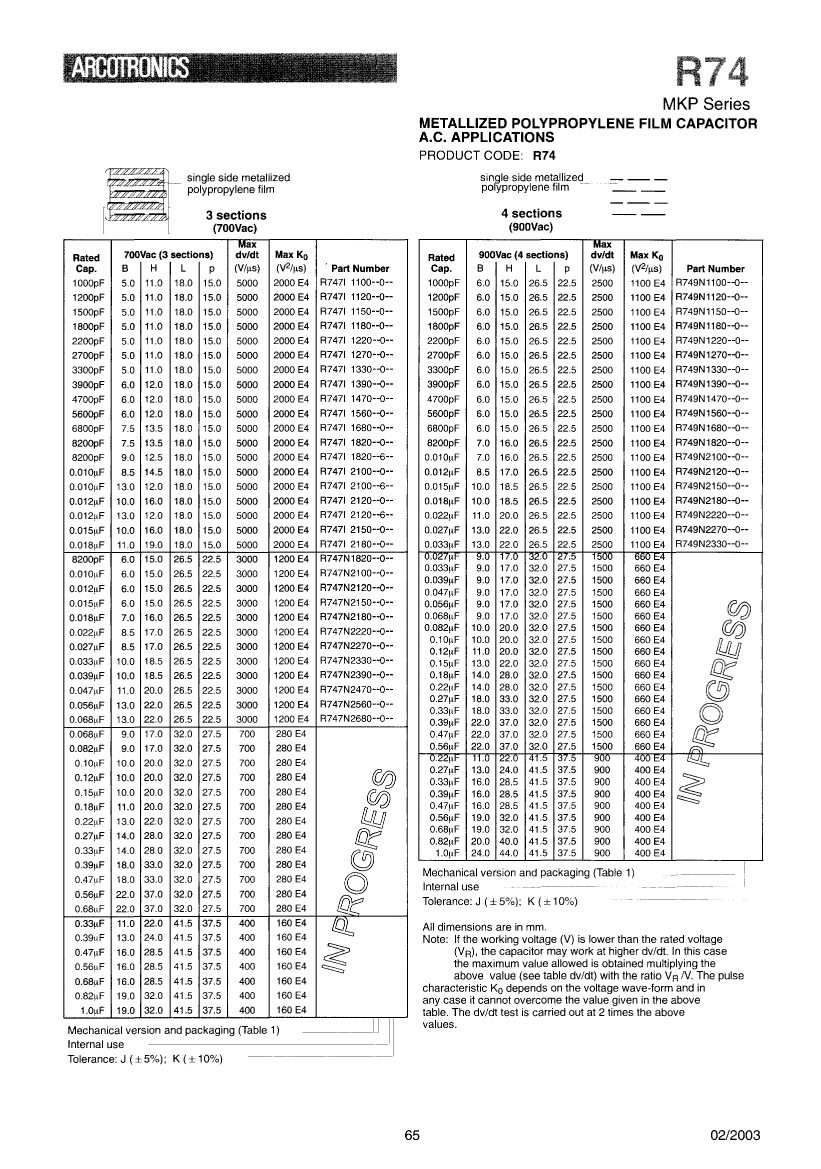

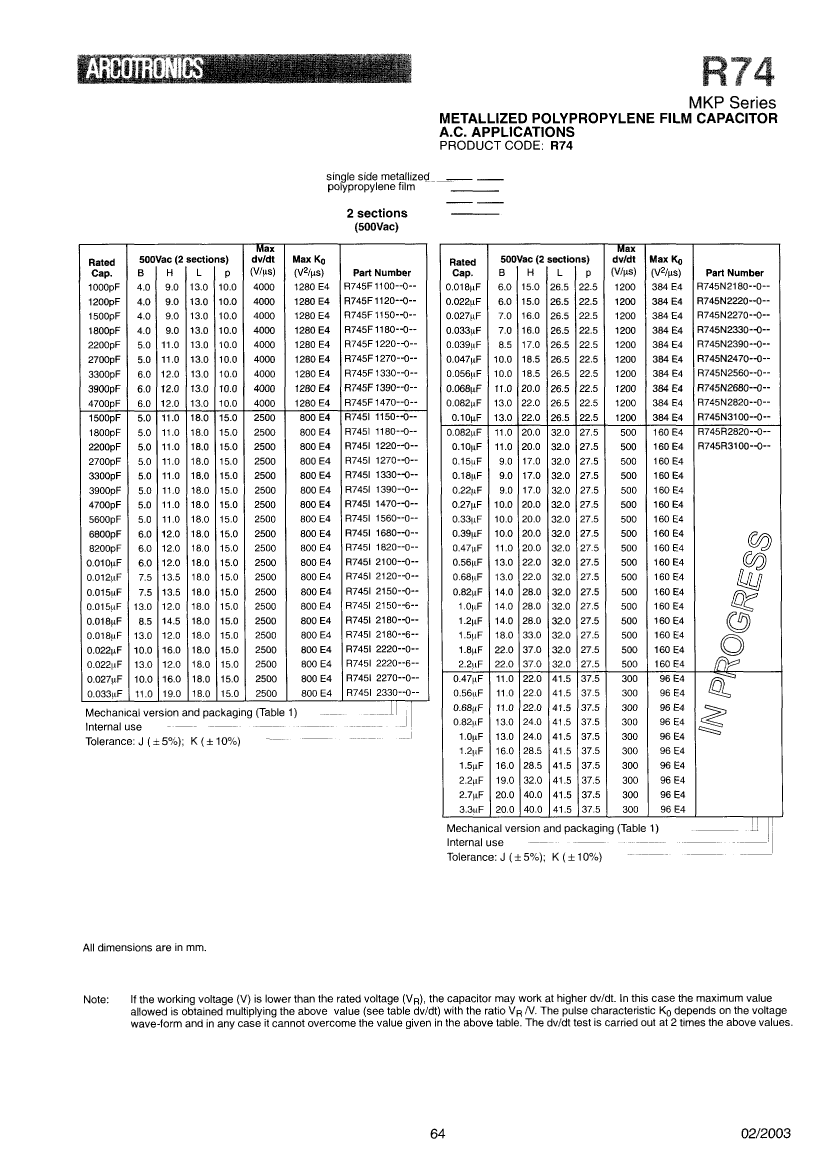

Preview

Download Datasheet

View All

R745R2820500-J Related Products

	R745R2820500-J	R74NF1470Z30-J	R74NF1470Z30-K	R745F1470DQ0-J	R745F1470GY0-J	R745R2820400-J	R745R2820AA0-J	R745R2820CK0-J	R745R2820DQ0-J	R745R2820GY0-J
Description	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.082uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1300 V, 0.0047 uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1300 V, 0.0047 uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.0047uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.0047uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.082uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.082uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.082uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.082uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.082uF, THROUGH HOLE MOUNT, RADIAL LEADED
Reach Compliance Code	compliant	compli	compli	compli	compli	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: IEC60384-16	RATED AC VOLTAGE (V): 400, STANDARD: IEC 60384-16	RATED AC VOLTAGE (V): 400, STANDARD: IEC 60384-16	STANDARD: IEC60384-16	STANDARD: IEC60384-16	STANDARD: IEC60384-16	STANDARD: IEC60384-16	STANDARD: IEC60384-16	STANDARD: IEC60384-16	STANDARD: IEC60384-16
capacitance	0.082 µF	0.0047 µF	0.0047 µF	0.0047 µF	0.0047 µF	0.082 µF	0.082 µF	0.082 µF	0.082 µF	0.082 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	5%	5%	10%	5%	5%	5%	5%	5%	5%	5%
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	BULK	BULK	AMMO PACK	TR, 14 INCH	BULK	BULK	TR, 20 INCH	AMMO PACK	TR, 14 INCH
positive tolerance	5%	5%	10%	5%	5%	5%	5%	5%	5%	5%
Rated (DC) voltage (URdc)	1600 V	1300 V	1300 V	1600 V	1600 V	1600 V	1600 V	1600 V	1600 V	1600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Objectid	1939405691	-	-	-	-	2084660460	1939405693	1939405695	2084660462	2084660464
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	2	-	-	2	2	2	2	2	2	2
Rated (AC) voltage (URac)	500 V	-	-	500 V	500 V	500 V	500 V	500 V	500 V	500 V
