245107-02-24.00 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 245107-02-24.00

245107-02-24.00: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size113KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

245107-02-24.00 Overview

Cable Assembly

245107-02-24.00 Parametric

Parameter Name	Attribute value
Objectid	7035842905
Reach Compliance Code	unknown
Factory Lead Time	15 weeks
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

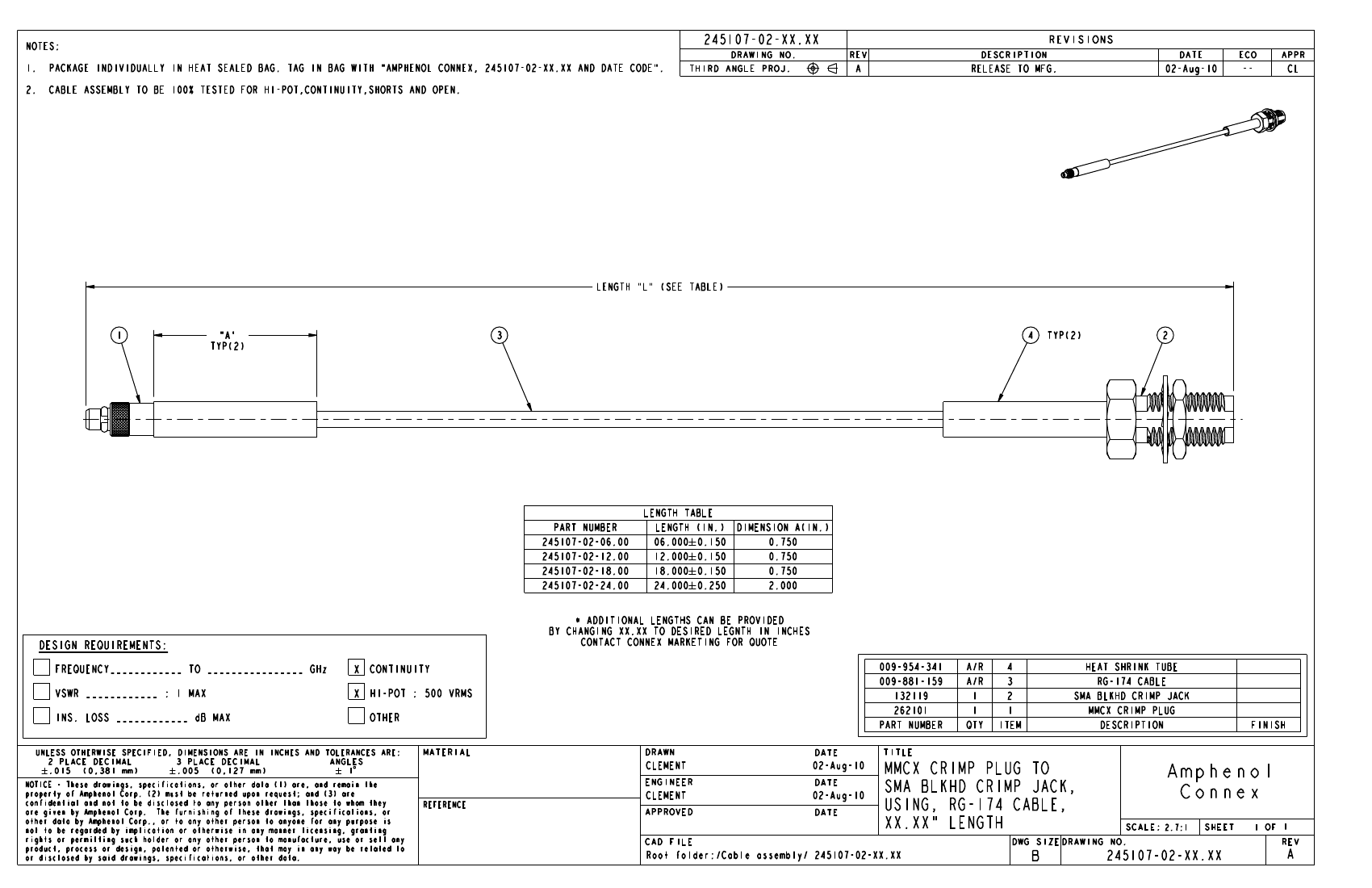

NOTES:

PACKAGE INDIVIDUALLY IN HEAT SEALED BAG. TAG IN BAG WITH "AMPHENOL CONNEX,

CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT,CONTINUITY,SHORTS AND OPEN.

245107-02-XX.XX AND DATE CODE".

245107-02-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REV

DESCRIPTION

REVISIONS

DATE

ECO

APPR

RELEASE TO MFG.

02-Aug-10

LENGTH "L" (SEE TABLE)

"A"

TYP(2)

LENGTH TABLE

PART NUMBER

245107-02-06.00

245107-02-12.00

245107-02-18.00

245107-02-24.00

LENGTH (IN.)

06.000 0.150

12.000 0.150

18.000 0.150

24.000 0.250

DIMENSION A(IN.)

0.750

2.000

DESIGN REQUIREMENTS:

FREQUENCY____________ TO ________________ GHz

VSWR ____________ : 1 MAX

INS. LOSS ____________ dB MAX

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XX.XX TO DESIRED LEGNTH IN INCHES

CONTACT CONNEX MARKETING FOR QUOTE

CONTINUITY

HI-POT : 500 VRMS

OTHER

009-954-341

009-881-159

132119

262101

PART NUMBER

A/R

QTY

ITEM

HEAT SHRINK TUBE

RG-174 CABLE

SMA BLKHD CRIMP JACK

MMCX CRIMP PLUG

DESCRIPTION

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO

NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

.015 (0,381 mm)

.005 (0,127 mm)

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

DATE

TITLE

CLEMENT

ENGINEER

REFERENCE

02-Aug-10

DATE

CLEMENT

APPROVED

02-Aug-10

DATE

MMCX CRIMP PLUG TO

SMA BLKHD CRIMP JACK,

USING, RG-174 CABLE,

XX.XX" LENGTH

DWG SIZE

DRAWING NO.

Amphenol

Connex

SCALE:

2.7:1

SHEET

REV

CAD FILE

Root folder:/Cable assembly/ 245107-02-XX.XX

245107-02-XX.XX

245107-02-24.00 Related Products

	245107-02-24.00	245107-02-06.00	245107-02-12.00	245107-02-18.00
Description	Cable Assembly	CBL ASSY SMA-MMCX RG174 6"	Cable Assembly	Cable Assembly
Objectid	7035842905	-	7035842903	7035842904
Reach Compliance Code	unknown	-	compliant	unknown
Factory Lead Time	15 weeks	-	13 weeks 1 day	14 weeks
Connector bracket type	CABLE ASSEMBLY	-	CABLE ASSEMBLY	CABLE ASSEMBLY
