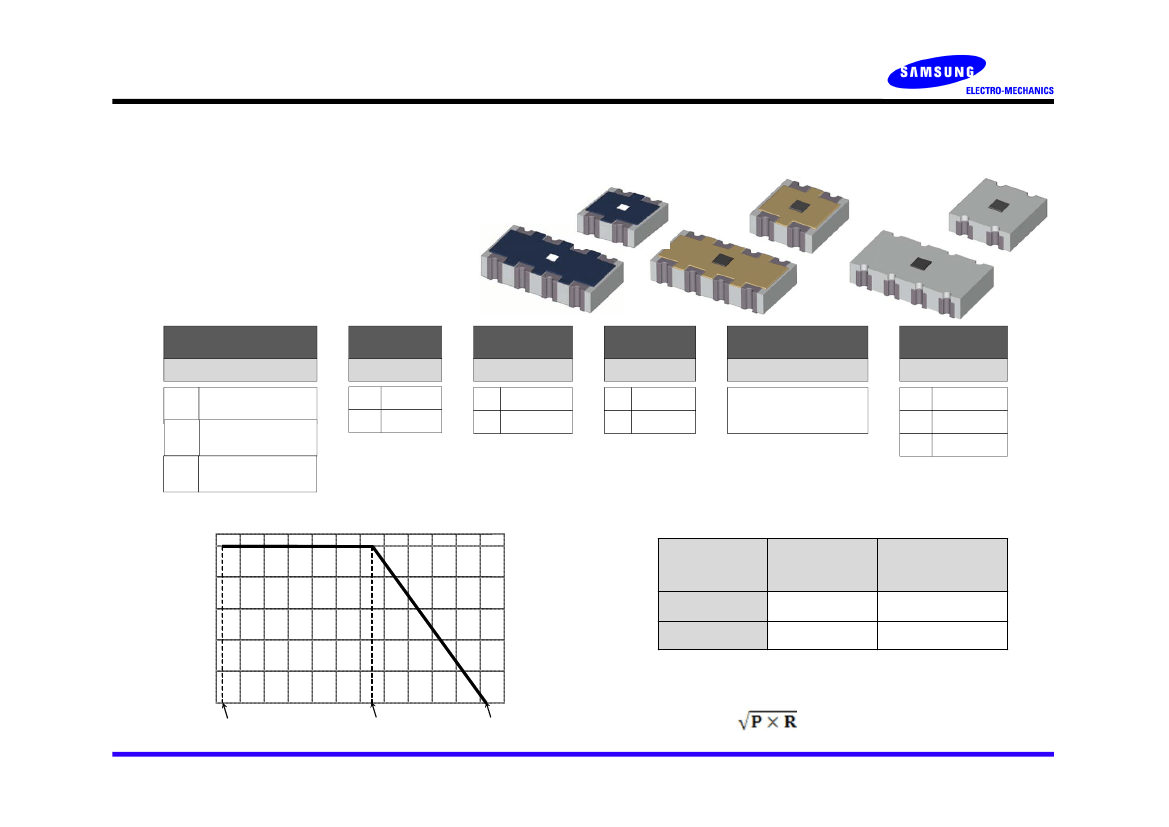

Anti-Sulfur Concave Type Array Resistors (RNS, RMS, RKS)
Anti-Sulfur Concave Array Resistors
■
Features
●
●
●
●
Reducing SMD surface area (40% reduced)
Reducing SMD cost (75% reduced)
Stable resistance in the H
2
S gas Atmosphere.
RoHS Compliant.
(RNS, RMS, RKS Series)
■ Part Number System
RMS
Type
RNS
RMS
RKS
Normal Concave
Inverted Concave
Short-Free &
Inverted Concave
10
Size(mm)
10
16
1005
1608
4P
# of Resistors
2P
4P
2 pieces
4 pieces
J
Tolerance
F
±1%
J
±5%
* Jumper :
‘J’
150
Resistance Value
3-digit coding
(E-24 series)
* Jumper :
‘000’
CS
Packing Type
CS
ES
AS
7” reel
10” reel
13” reel
■
Power Derating Curve
100
80
■
Jumper Ratings
TYPE
102P, 104P
164P
Rated
Current (A)
1
1
Max Overload
Current (A)
2
2
% Rated Power
60
40
20
0
‐60 ‐40 ‐20 0 20 40 60 80 100 120 140 150 160
‐55
70
155
■
Rated Voltage
Ambient Temperature(℃)
V=
V : Rated Voltage (V)
P : Rated Power (W)
R : Resistance Value (Ω)
Anti-Sulfur Concave Type Array Resistors (RNS, RMS, RKS)
■
Structure and Dimensions
[ Top View ]
[ Side View ]
A
B
W
[ Bottom View ]
RNS104P
C
1
C
2
P
P
L
T
RNS102P
W
A
B
L
T
C
1
[ Unit : mm ]
Size(mil)
RNS102P(0404)
RNS104P(0804)
L
1.00±0.10
2.00±0.10
W
1.00±0.10
1.00±0.10
T
0.35±0.10
0.40±0.10
A
0.15±0.10
0.15±0.10
B
0.25±0.15
0.25±0.15
C1
0.33±0.10
0.30±0.10
C2
-
0.30±0.10
P
0.50±0.10
0.50±0.10
Unit
Weight
1.2mg
2.8mg
Anti-Sulfur Concave Type Array Resistors (RNS, RMS, RKS)
■
Structure and Dimensions
[ Top View ]
[ Side View ]
A
B
[ Bottom View ]
RMS104P
L
W
T
C
1
C
2
P
P
A
B
RMS102P
W
L
T
C
1
[ Unit : mm ]
Size(mil)
RMS102P(0404)
RMS104P(0804)
L
1.00±0.10
2.00±0.10
W
1.00±0.10
1.00±0.10
T
0.35±0.10
0.45±0.10
A
0.15±0.10
0.15±0.10
B
0.25±0.15
0.25±0.15
C
1
0.33±0.10
0.30±0.10
C
2
-
0.30±0.10
P
0.50±0.10
0.50±0.10
Unit
Weight
1.2mg
2.8mg
Anti-Sulfur Concave Type Array Resistors (RNS, RMS, RKS)
■
Structure and Dimensions
[ Top View ]
[ Side View ]
B
[ Bottom View ]
RMS104P
L
W
T
C
1
C
2
P
P
B
RMS102P
W
L
T
C
1
[ Unit : mm ]
Size(mil)
RKS102P(0404)
RKS104P(0804)
L
1.00±0.10
2.00±0.10
W
1.00±0.10
1.00±0.10
T
0.35±0.10
0.45±0.10
B
0.25±0.15
0.25±0.15
C
1
0.33±0.10
0.30±0.10
C
2
-
0.30±0.10
P
0.50±0.10
0.50±0.10
Unit
Weight
1.2mg
2.8mg
Anti-Sulfur Concave Type Array Resistors (RNS, RMS, RKS)
■
Application Characteristics
Type
102P
104P
Size
(inch)
0404
0804
Rated
Power
[W]
1/16
1/16
Rated Voltage
[V]
Max Working
Voltage
[V]
25
25
Tolerance
[%]
±1(F)
±2(G)
±5(J)
Resistance
Range
[Ω]
1 ~ 9.9
10 ~ 1M
T.C.R
[ppm/℃]
±300
±200
Working
Temp.
[℃]
-55 ~ 155
Moisture
Level
P
R
P : Rated Power(W)
R : Resistance(Ω)
Level 1
•
Please contact our sales representatives or engineers for other specifications
■
Standard Soldering Pad Dimensions
P
E
D
P
E
D
A
C
A
B
C
[ Unit : mm ]
Size(mil)
102P(0404)
104P(0804)
A
0.3
0.3
B
-
0.3
C
0.2
0.2
D
0.5
0.5
E
0.4
0.4
P
0.5
0.5
