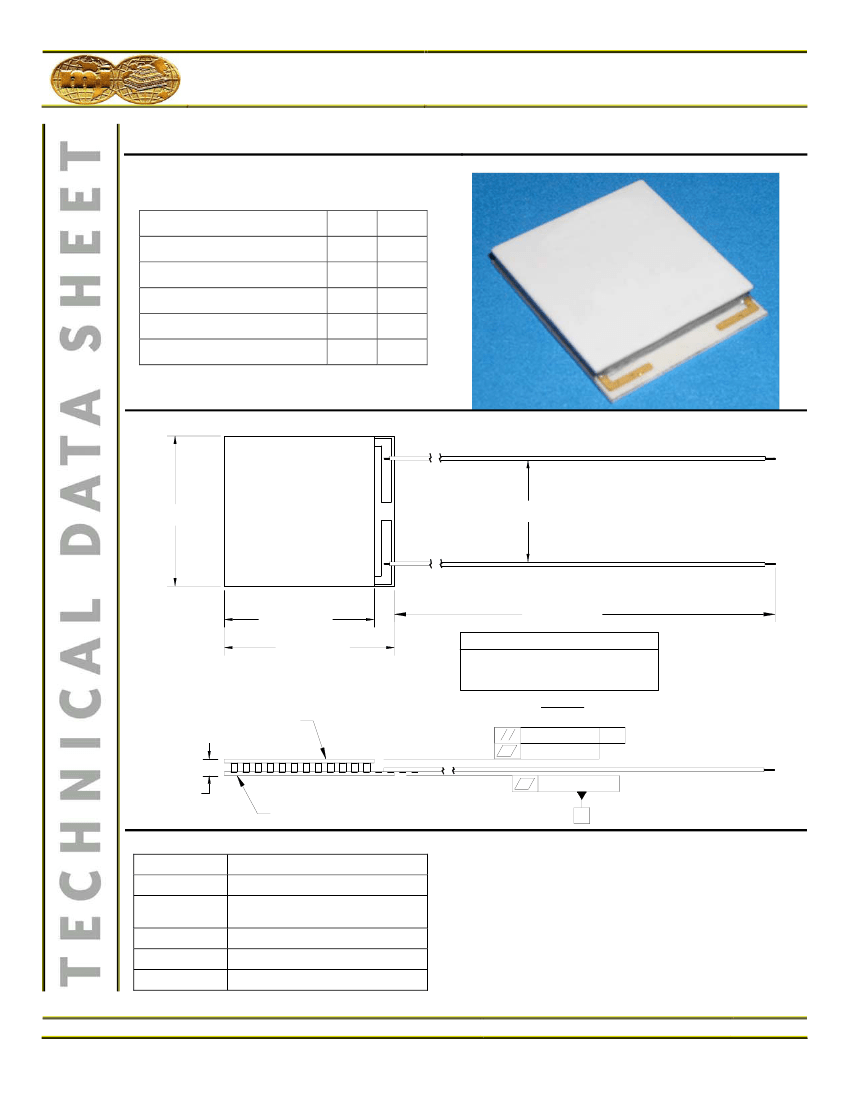

Thermoelectric Cooler XLT2422

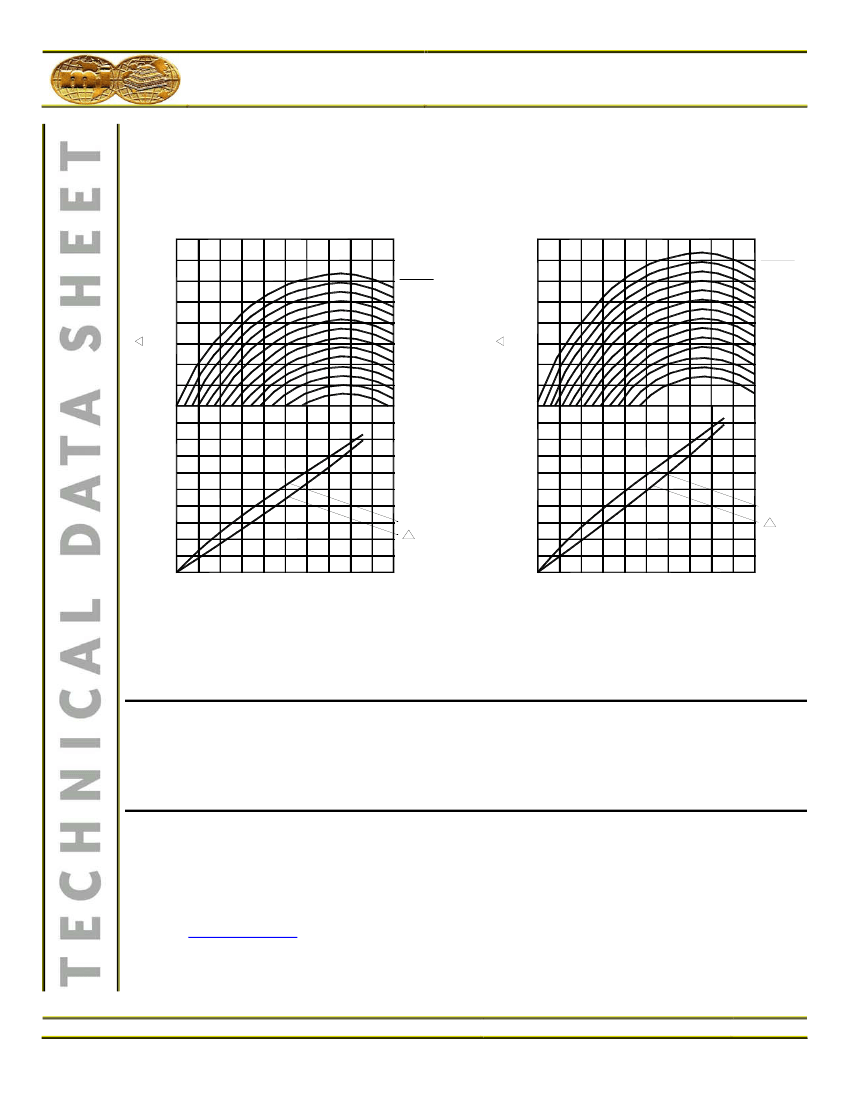

Performance Values

Hot Side Temperature (°C)

Tmax (°C-dry N

Qmax (watts):

Imax (amps):

Vmax (vdc):

AC Resistance (ohms):

27°C

3.7

14.7

3.2

50°C

3.7

16.4

---

RoHS 2002/95/EC Compliant

Mechanical Characteristics

POSITIVE LEAD (WHITE)

1.180 [29.97]

.80±.25 [20.32±6.35]

LEADWIRES: 20 AWG

19/32 STRANDING

TEFLON INSULATED

NEGATIVE LEAD (BLACK)

1.180 [29.97]

1.340 [34.04]

SEE TABLE 1

TOTAL WIRE LENGTH POS & NEG

-01L:

-01LS:

-02LS:

4.0 ± .50"

6.0 ± .50"

TABLE 1

COLD SIDE, Tc

.001 [0.025]

.131±.001

[3.33±0.025]

HOT SIDE, Th

.001 [0.025]

Ordering Options

Model Number

XLT2422-00L

XLT2422-00LS

XLT2422-01L

XLT2422-01LS

XLT2422-02LS

Description

Cooler, Lapped, No Lead wires

Cooler, Lapped, No Lead wires,

Sealed

Cooler, Lapped, Lead wires

Cooler, Lapped, Lead wires, Sealed

Features

•

RoHS 2002/95/EC compliant

Specifically designed for thermal cycling applications

Proven High Reliability (Data available upon request)

Rugged construction

Porched configuration for enhanced leadwire strength

Rated operating temperature of 130°C

Height tolerance of ± 0.001 in. [± 0.025 mm] allows

for multiple module applications

Doc # 102-0322

Rev A

Page 1 of 2

214-340-4900 (tel)

●

214-341-5212 (fax)

●

www.marlow.com
