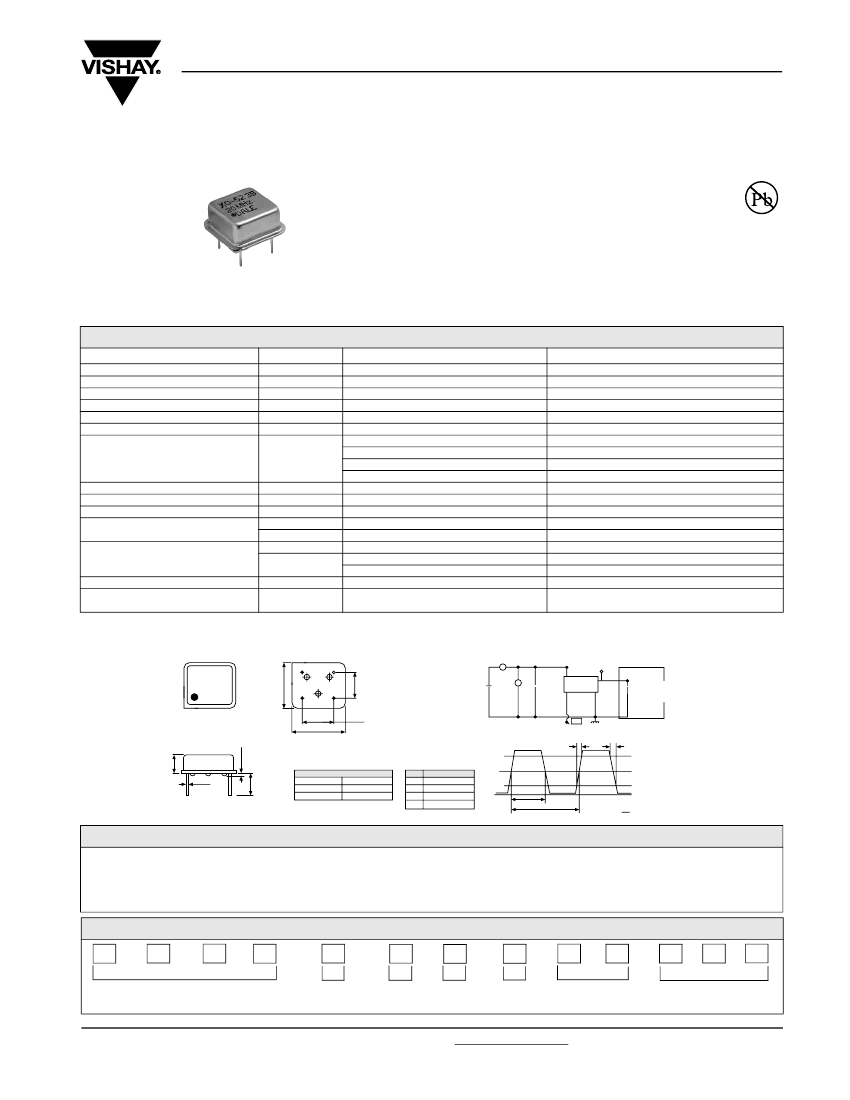

XO34CTEHNA100 Overview

Half Size Clock Oscillators Enable/Disable

XO-523
Vishay Dale
Half Size Clock Oscillators Enable/Disable
FEATURES
Tri-state enable/disable
The XO-523 series oscillator is half size, has Tri-state
enable/disable controlled function, and is with a 3.3 V power
supply voltage. The metal package with pin#4 case ground
acts as shielding to minimize EMI radiation.
8 pin half size
Industry standard
Wide frequency range
Low cost
Resistance weld package
3.3 V
Lead (Pb)-free terminations and RoHS compliant
RoHS
COMPLIANT
STANDARD ELECTRICAL SPECIFICATIONS
XO-523
1 MHz ~ 100.00 MHz
All Condition*
± 25 ppm, ± 50 ppm, ± 100 ppm
T
OPR
0 °C ~ 70 °C (- 40 °C ~ + 85 °C option)
T
STG
- 55 °C ~ + 125 °C
V
DD
3.3 V ± 10 %
25 ºC ± 3 ºC
± 5 ppm
1 MHz to 23.999 MHz
15 mA Max
24.000 MHz to 49.999 MHz
20 mA Max
Supply Current
I
DD
50.000 MHz to 69.999 MHz
30 mA Max
70.000 MHz to 100.000 MHz
45 mA Max
Output Symmetry
Sym
At 1/2 V
DD
40/60 % (45/55 % Option)
20 % V
DD
~ 80 % V
DD
T
r
8 ns Max
Rise Time
80 % V
DD
~ 20 % V
DD
T
f
8 ns Max
Fall Time
V
OH
90 % V
DD
Min
Output Voltage
10 % V
DD
Max
V
OL
1 ~ 5 TTL
TTL Load
Output Load
~ 50 M : 30 pF
HCMOS Load
~ 125 M : 15 pF
Start-up Time
Ts
10 ms Max
Pin 1 = H or open... Output active at pin 5
Pin 1, tri-state function
Pin 1 = L... high impedance at pin 5
* Include: 25 ºC tolerance, operating temperature range, input voltage change, aging, load change, shock and vibration.
PARAMETER
Frequency Range
Frequency Stability*
Operating Temperature Range
Storage Temperature Range
Power Supply Voltage
Aging (First Year)
SYMBOL
F
O
CONDITION
DIMENSIONS
in inches [millimeters]
HCMOS TEST CIRCUIT
#1
MARKING
AREA
0.508
[12.9] Max
#8
#5
0.300
±
0.005
[7.62
±
0.13]
0.580 [12.9] Max
V
OH
INH
Enable/Disable function
#4
0.300
±
0.005
[7.62
±
0.13]
+ 5.0 V
+ 3.3 V
A
V
0.01 µF
#8
#1
Test Point
#5
#4
CMOS Load
CL**
CL = 15 pF or 50 pF
(see individual
spec. sheet)
**Includes Stray and Probe Capacitance
0.220
[5.6] Max
0.031
±
0.003
[0.8
±
0.1]
HCMOS OUTPUT WAVEFORM
T
r
T
f
90 % V
DD
50 % V
DD
0.018
±
0.003
[0.45
±
0.1]
0.268
[6.80] Max
ENABLE/DISABLE FUNCTION
INPUT (PIN 1) OUTPUT (PIN 5)
ENABLE
OPEN
ENABLE
V
IH
2.2 V
DC
PIN
#1
#4
#5
#8
CONNECTION
N.C
GND
OUTPUT
V
DD
V
OL
10 % V
DD
GND
T1
T0 = 1/Fo
SYMMETRY =
T1
x 100 %
T0
ORDERING INFORMATION
XO-523
MODEL
B
FREQUENCY
STABILITY
AA = 0.0025 % (25 ppm)
A = 0.005 % (50 ppm)
40 M
E
R
FREQUENCY/MHz
ENABLE/DISABLE
OTR
Blank = Pin 1 open
Blank = 0 °C to + 70 °C
R = - 40 °C to + 85 °C E = Disable to Tristate
e2
JEDEC
LEAD (Pb)-FREE
STANDARD
GLOBAL PART NUMBER
X
O
3
2
C
T
E
L
N
A
4
0
M
MODEL
FREQUENCY
STABILITY
OTR
ENABLE/
DISABLE
PACKAGE
CODE
OPTIONS
FREQUENCY
Document Number: 35044
Revision: 05-Mar-07
For technical questions contact: frequency@vishay.com
www.vishay.com
27
