55082724405 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 55082724405

55082724405: DescriptionGeneral Purpose Inductor, 2.7uH, 2%, 1 Element, Ferrite-Core, SMD, 0805, CHIP, 0805; CategoryPassive components inductor; File Size720KB，8 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

55082724405 Overview

General Purpose Inductor, 2.7uH, 2%, 1 Element, Ferrite-Core, SMD, 0805, CHIP, 0805

55082724405 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1726356291
package instruction	0805
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	0805
structure	Rectangular
core material	FERRITE
DC Resistance	2 Ω
Nominal inductance(L)	2.7 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.42 mm
Package length	2.2 mm
Package form	SMT
Package width	1.4 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.12 A
self resonant frequency	200 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.96 MHz
Tolerance	2%

Preview

Download Datasheet

View All

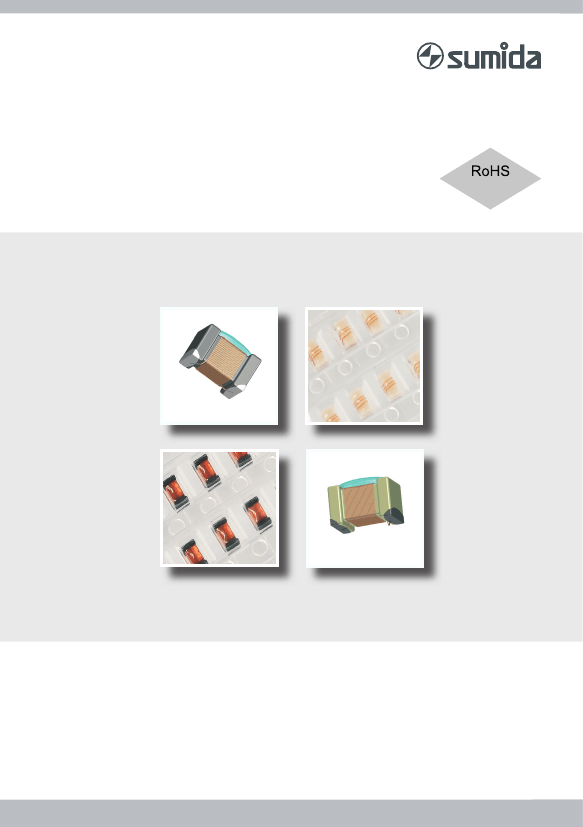

SMT Chipinduktivitäten

SMT Chip Inductors

compliant

Baugröße / Size 0805 (2012)

Serie / Series 5408, 5508

20210101

- 1 -

55082724405 Related Products

	55082724405	54084724400	54084724403	54084724405	54082724400	54082724403	54082724405	54988212405
Description	General Purpose Inductor, 2.7uH, 2%, 1 Element, Ferrite-Core, SMD, 0805, CHIP, 0805	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor,	General Purpose Inductor,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	1726356291	7015629540	7015629541	7015629542	7015629336	7015629337	7015629338	7015629708
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	0805	0805	0805	0805	0805	0805	0805	0805
structure	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular
core material	FERRITE	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	CERAMIC
DC Resistance	2 Ω	3.8 Ω	3.8 Ω	3.8 Ω	2 Ω	2 Ω	2 Ω	5 Ω
Nominal inductance(L)	2.7 µH	4.7 µH	4.7 µH	4.7 µH	2.7 µH	2.7 µH	2.7 µH	0.82 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	1.42 mm	1.42 mm	1.42 mm	1.42 mm	1.42 mm	1.42 mm	1.42 mm	1.42 mm
Package length	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
method of packing	TR, 7 Inch	TR, 7 Inch	TR, 13 Inch	TR, 7 Inch	TR, 7 Inch	TR, 13 Inch	TR, 7 Inch	TR, 7 Inch
Minimum quality factor (at nominal inductance)	20	20	20	20	20	20	20	35
Maximum rated current	0.12 A	0.09 A	0.09 A	0.09 A	0.12 A	0.12 A	0.12 A	0.075 A
self resonant frequency	200 MHz	150 MHz	150 MHz	150 MHz	200 MHz	200 MHz	200 MHz	510 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	7.96 MHz	7.96 MHz	7.96 MHz	7.96 MHz	7.96 MHz	7.96 MHz	7.96 MHz	100 MHz
Tolerance	2%	2%	2%	2%	2%	2%	2%	10%
package instruction	0805	0805	0805	0805	0805	0805	0805	-
