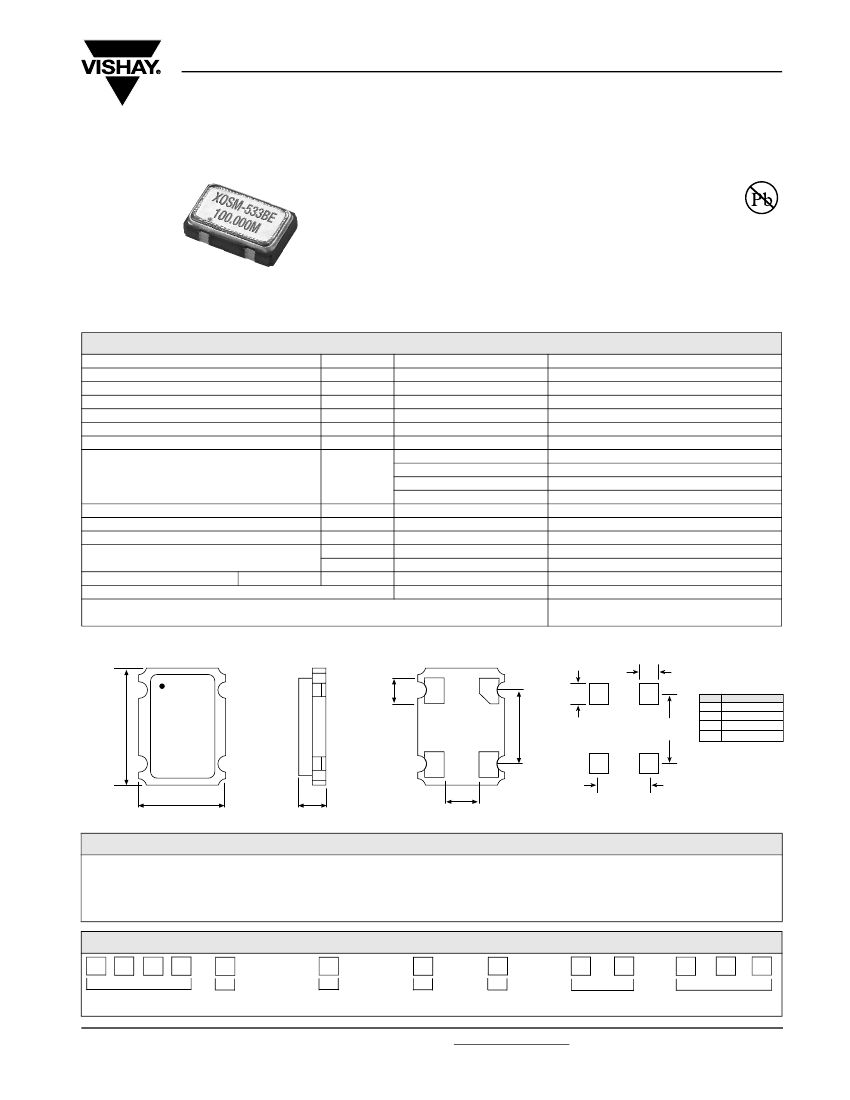

XOSM-533
Vishay Dale
Surface Mount Oscillator
FEATURES
•
5 x 3.2 x 1.3 Miniature Package
•
•
•
•
•
•
Tri-state enable/disable
HCMOS compatible
Tape and Reel
IR Re-flow
3.3 V input voltage
Lead (Pb)-free terminations and RoHS compliant
RoHS
COMPLIANT
The XOSM-533 series is an ultra miniature package clock
oscillator with dimensions 5.0 x 3.2 x 1.3 mm. It is mainly
used in portable PC and telecommunication devices and
equipment.
STANDARD ELECTRICAL SPECIFICATIONS
XOSM-533
1.544 MHz ~ 100.000 MHz
± 25 ppm, ± 50 ppm, ± 100 ppm
All Condition*
T
OPR
0 ºC ~ 70 ºC (- 40 ºC ~ + 85 ºC option)
T
STG
- 55 ºC ~ + 125 ºC
V
DD
3.3 V ± 10 %
25 ºC ± 3 ºC
± 5 ppm
1.544 MHz to 9.999 MHz
8 mA Max
10.000 MHz to 34.999 MHz
10 mA Max
I
DD
Supply Current
35.000 MHz to 49.999 MHz
25 mA Max
50.000 MHz to 100.000 MHz
35 mA Max
Sym
At 1/2 V
DD
40/60 % (45/55 % Option)
Output Symmetry
T
r
10 % V
DD
~ 90 % V
DD
7 ns Max
Rise Time
T
f
90 % V
DD
~ 10 % V
DD
7 ns Max
Fall Time
V
OH
90 % V
DD
Min
Output Voltage
V
OL
10 % V
DD
Max
Output Load
HCMOS Load
30 pF Max (15 pF typ.)
Start-up Time
Ts
10 ms Max
Pin 1, tri-state function
Pin 1 = H or open.... output active at pin 3
Pin 1 = L..... high impedance at pin 3
* Include: 25 ºC tolerance, operating temperature range, input voltage change, aging, load change, shock and vibration.
SYMBOL
F
O
PARAMETER
Frequency Range
Frequency Stability*
Operating Temperature
Storage Temperature Range
Power Supply Voltage
Aging (First Year)
CONDITION
DIMENSIONS
in inches [millimeters]
0.047
[1.2]
0.047 ± 0.003
[1.20 ± 0.1]
0.197 ± 0.008
[5.0 ± 0.2]
#4
#1
0.055
[1.4]
0.1 ± 0.003
[2.54 ± 0.1]
PIN
#1
#2
#3
#4
CONNECTION
TRI-STATE/NC
GND
OUTPUT
V
DD
0.1
[2.54]
#3
#2
0.087
[2.2]
0.130 ± 0.008 [3.3 ± 0.2]
0.051 [1.3 max]
0.047
[1.2]
***note: A 0.01 µF bypass capacitor should be placed between V
DD
(Pin4) and GND (Pin2) to minimize power supply line noise
ORDERING INFORMATION
XOSM-533
MODEL
B
R
E
50 M
FREQUENCY STABILITY
OTR
ENABLE/DISABLE FREQUENCY/MHz
AA = 0.0025 % (25 ppm)
Blank = Standard
E = Disable to Tristate
A = 0.005 % (50 ppm)
R = - 40 °C to + 85 °C
B = 0.01 % (100 ppm) Standard
e2
JEDEC
LEAD (Pb)-FREE
STANDARD
GLOBAL PART NUMBER
X
x
O
6
3
C
FREQUENCY
STABILITY
T
OTR
E
ENABLE/
DISABLE
A
PACKAGE
CODE
N
A
5
0
M
MODEL
OPTIONS
FREQUENCY
Document Number: 35060
Revision: 05-Mar-07
For technical questions contact: frequency@vishay.com
www.vishay.com
37
