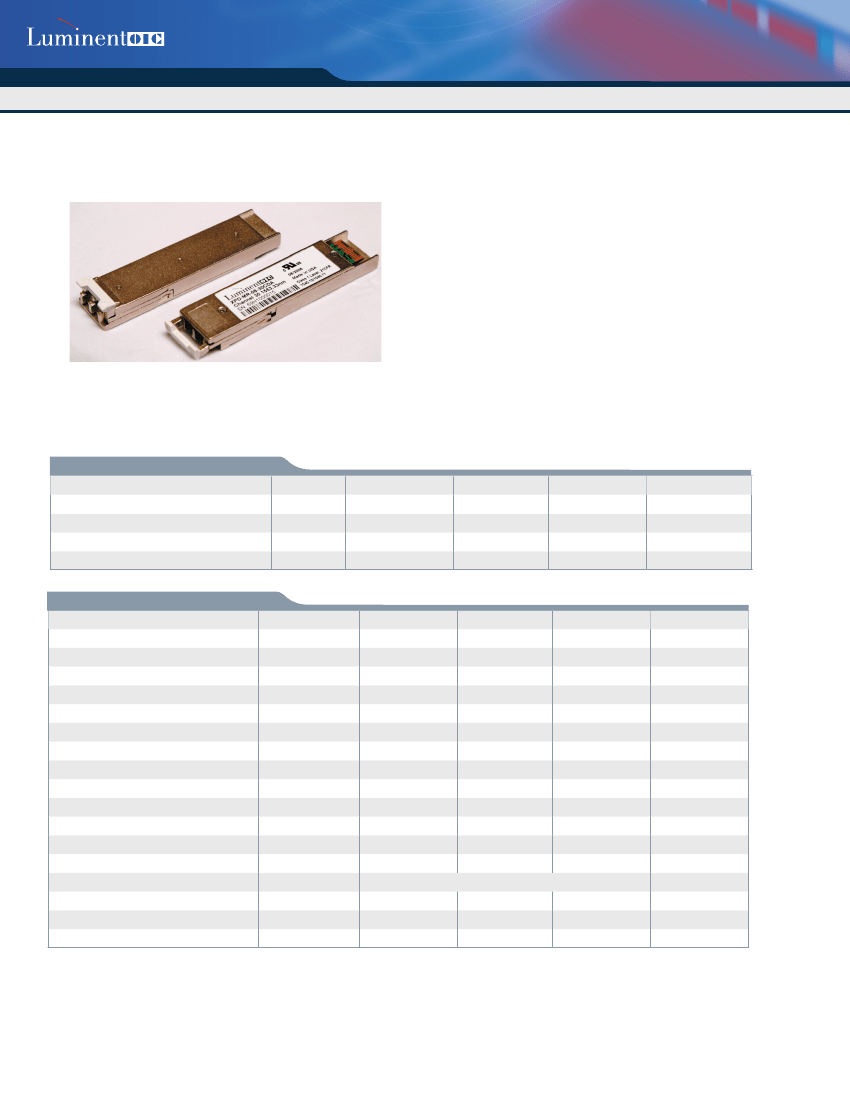

10 Gbps 80km DWDM Multirate XFP Transceiver
Preliminary
XPD-MR-08-xxCDA
Features
• XFP MSA Rev 4.5 compliant
• Available in all 100GHz C-Band Wavelengths on the DWDM ITU
Grid
• 80km Reach
• Supports 9.95Gb/s, 10.31Gb/s, 10.52Gb/s, 10.7Gb/s, and 11.1Gb/s
• Cooled EML with isolator
• APD Receiver
• Power dissipation <3.5W
• -5 to 70 C temperature range
• Cold Start Up Wavelength Compliance
• Digital Diagnostics
• XFI High Speed Electrical Interface
• RoHS Compliant
• Class 1 Laser, 21CFR 1040.10/1040.11
• EN 60825-1/A1:2002 Compliant
• Bail Latch Color: WHITE
Absolute Maximum Rating
Parameter
Maximum Supply Voltage (3.3V)
Maximum Supply Voltage (5.0V)
Maximum Supply Voltage (1.8V)
Storage Temperature
Symbol
Vcc3
Vcc5
Vcc2
T
st
Min
-0.3
-0.3
-0.3
-40
Typical
-
-
-
-
Max
3.6
5.5
2
85
Unit
V
V
V
ºC
General Operations
Parameter
Supply Voltage (1.8V)
Supply Voltage (3.3V)
Supply Voltage (5V)
Total Current on any pin
Inrush Current (1.8V)
Inrush Current (3.3V)
Inrush Current (5V)
Module current ramp rate
Power on 1.8V rail
Power on 3.3V rail
Power on 5V rail
Module Total Power consumption
Power Consumption-P_Down mode
Power Supply Noise Rejection
Bit Rate
Operating Temperature (case)
Strorage Temperature
P
2rail
P
3rail
P
5rail
P
t
P
p_d
PSNR
BR
T
op
T
st
Symbol
V
cc
2
V
cc
3
V
cc
5
I
CC
I
inrush
2
I
inrush
3
I
inrush
5
Min
1.71
3.14
4.75
-
-
-
-
-
-
-
-
-
-
9.95
-5
-40
Typical
1.8
3.3
5
-
-
-
-
-
-
-
-
-
-
-
-
-
Max
1.89
3.47
5.25
500
1
0.75
0.5
100
1.8
2.5
2.5
3.5
1.5
11.1
70
85
Unit
V
V
V
mA
A
A
A
mA/µS
W
W
W
W
W
Gb/s
ºC
ºC
Compliant to Section 2.7.2 of XFP MSA
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
a) Peak to peak noise when measured with a 1 MHz low pass filter
b) Peak to peak noise when measured with 1MHz-10MHz low pass filter
1
LUMNDS420-NOV1106
Rev. 0.9
10 Gbps 80km DWDM Multirate XFP Transceiver
Preliminary
XPD-MR-08-xxCDA
Transmitter Specifications (Optical)
Parameter
Output Power
Average Launch Power Tx_Off
Extinction Ratio
Eye Mask
Side Mode Suppression Ratio
Center Wavelength
Channel Spacing
Spectral Width
Jitter Generation (peak-to-peak)
Jitter Generation (RMS)
Dispersion Penalty at 1600 ps/nm
Relative Intensity Noise
Reflectance Tolerance
Transmitter Specifications (Electrical)
Parameter
Input Differential Impedence
Differential Data Input Swing
TxDisable_Disable
TxDisable_Enable
Symbol
R
in
V
in,p-p
Vd
Ven
Min
-
120
2
GND
Typical
100
-
-
-
Max
-
820
Vcc3
GND + 0.8
Unit
Ω
mV
V
V
SMSR
λ
∆f
∆λ
20
J
gen(pk-pk)
J
gen(RMS)
DP
RIN
ref
T
-
-
-
-
-
-
-
Symbol
P
O
P
off
ER
Min
0
-
9
30
Typical
2
-
-
-
ITU Grid
100
-
-
-
-
-
-
-
1
0.1
0.01
2
-130
-27
Max
4
-30
-
-
Unit
dBm
nm
dB
dB
nm
GHz
nm
UI
UI
dB
dB/Hz
dB
ITU-T G.691, Telcordia GR-253-CORE, IEEE802.3 10GBASE-ZR Compliant
Receiver Specifications (Optical)
Parameter
Sensitivity (9.95Gb/s)
a
Sensitivity (10.7Gb/s)
a
Overload
a
Wavelength
LOS Assert
LOS De-assert
LOS Hysteresis
a) At 9dB ER, 1E-12 BER, 2
31
-1 PRBS, back to back
b) Operational over 1200 - 1625nm range
Receiver Specificatioins (Elelctrical)
Parameter
Reference Differential Output Impedence
Differential Data Output Swing
Output Rise Time, 20-80%
Output Fall Time, 20-80%
LOS Fault
LOS Normal
Symbol
Z
d
V
out,p-p
t
r
t
f
V
LOS_fault
V
LOS_normal
Min
-
340
24
24
host_Vcc3 - 0.5
GND
Typical
100
-
-
b
Symbol
Rx
sens995
Rx
sens1070
Rx
OL
λ
ORL
-
Min
-
-
-7
1528
-
-34
-
0.5
Typical
-
-
-
-
-
-
-
-
Max
-24
-23
-
1561
-27
-
-24
-
Unit
dBm
dBm
dBm
nm
dB
dBm
dBm
dB
Optical Return Loss
-
-
Max
-
850
-
-
host_Vcc3
GND + 0.4
Unit
Ω
mV
ps
ps
V
V
-
-
-
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS420-NOV1106
Rev. 0.9
10 Gbps 80km DWDM Multirate XFP Transceiver
Preliminary
XPD-MR-08-xxCDA
Reference Clock
Parameter
Clock Differential Input Impedance
Differential Input Clock Amplitude (p-p)
Reference Clock Duty Cycle
Reference Clcok Rise/Fall Time (20%-80%)
Reference Clock Frequency
T
r
/T
f
f
0
Symbol
Z
d
Min
80
640
40
200
-
Typical
100
-
-
-
Baud/64
Max
120
1600
60
1250
-
Unit
Ω
mV
%
ps
MHz
λ
Wavelength Ordering
XPD-MR-08-xxCDA
See table below for “xx” values
λc
Wavelength Guide
ITU Channel/Product Code
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Frequency (THz)
191.7
191.8
191.9
192.0
192.1
192.2
192.3
192.4
192.5
192.6
192.7
192.8
192.9
193.0
193.1
193.2
193.3
193.4
193.5
193.6
193.7
193.8
193.9
Wavelength (nm) ITU Channel/Product Code
1563.863
1563.047
1562.233
1561.419
1560.606
1559.794
1558.983
1558.173
1557.363
1556.555
1555.747
1554.940
1554.134
1553.329
1552.524
1551.721
1550.918
1550.116
1549.315
1548.515
1547.715
1546.917
1546.119
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
Frequency (THz)
194.0
194.1
194.2
194.3
194.4
194.5
194.6
194.7
194.8
194.9
195.0
195.1
195.2
195.3
195.4
195.5
195.6
195.7
195.8
195.9
196.0
196.1
Wavelength (nm)
1545.322
1544.526
1543.730
1542.936
1542.142
1541.349
1540.557
1539.766
1538.976
1538.186
1537.397
1536.609
1535.822
1535.036
1534.250
1533.465
1532.681
1531.898
1531.116
1530.334
1529.553
1528.773
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS420-NOV1106
Rev. 0.9
10 Gbps 80km DWDM Multirate XFP Transceiver
Preliminary
XPD-MR-08-xxCDA
Pin Out Definition
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
CML-O
CML-O
LVTTL-I/O
LVTTL-I/O
LVTTL-O
LVTTL-O
LVTTL-O
LVTTL-I
LVTTL-O
LVTTL-I
Logic
Symbol
GND
VEE5
Mod_DeSel
Interrupt
TX_DIS
Vcc5
GND
Vcc3
Vcc3
SCL
SDA
Mod_Abs
Mod_NR
RX_LOS
GND
GND
RD-
RD+
GND
Vcc2
Name/Description
Module Ground
Optional -5.2V Power Supply (not used)
Module De-select; When held low allows module to respond to 2-wire interface
Interrupt; Indicates presence of an important condition which can be read over the 2-wire
serial interface
Transmitter Disable; Turns off transmitter laser output
+5V Power Supply
Module Ground
+3.3V Power Supply
+3.3V Power Supply
2-Wire Serial Interface Clock
2-Wire Serial Interface Data Line
Indicates Module is not present. Grounded in the Module
Module Not Ready; Indicating Module Operational Fault
Receiver Loss Of Signal Indicator
Module Ground
Module Ground
Receiver Inverted Data Output
Receiver Non-Inverted Data Output
Module Ground
+1.8V Power Supply
Power Down; When high, requires the module to limit power consumption to 1.5W or
below. 2-Wire serial interface must be functional in the low power mode.
Reset; The falling edge initiates a complete reset of the module including the 2-wire serial
interface, equivalent to a power cycle.
+1.8V Power Supply
Module Ground
Reference Clock Non-Inverted Input, AC coupled on the host board
Reference Clock Inverted Input, AC coupled on the host board
Module Ground
Module Ground
Transmitter Inverted Data Input
Transmitter Non-Inverted Data Input
Module Ground
1
1
1
1
1
2
2
2
2
2
1
1
1
2
Note
1
21
LVTTL-I
P_Down/RST
22
23
24
25
26
27
28
29
30
CML-I
CML-I
PECL-I
PECL-I
Vcc2
GND
RefCLK+
RefCLK-
GND
GND
TD-
TD+
GND
Notes:
1. Module ground pins GND are isolated from the module case and chassis ground within the module.
2. Shall be pulled up with 4.7k-10kohms to a voltage between 3.15V and 3.45V on the host board.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS420-NOV1106
Rev. 0.9
10 Gbps 80km DWDM Multirate XFP Transceiver
Preliminary
XPD-MR-08-xxCDA

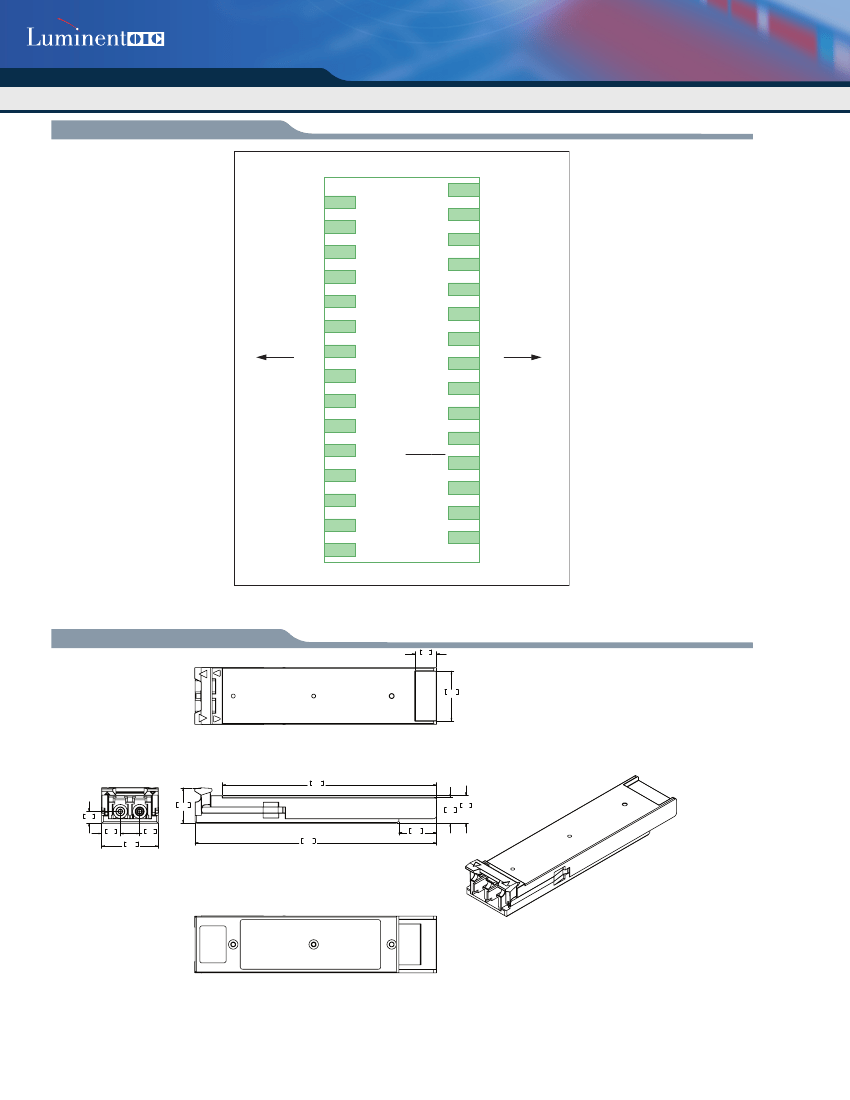

Pinout Diagram
