SMAJ4482 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJ4482

SMAJ4482: Description51 V, 1.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-214BA; CategoryDiscrete semiconductor diode; File Size72KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

SMAJ4482 Overview

51 V, 1.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-214BA

SMAJ4482 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DO-214BA
package instruction	PLASTIC, SMAJ, 2 PIN
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HIGH RELIABILITY, METALLURGICALLY BONDED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-214BA
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
Nominal reference voltage	51 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	5 mA

Preview

Download Datasheet

View All

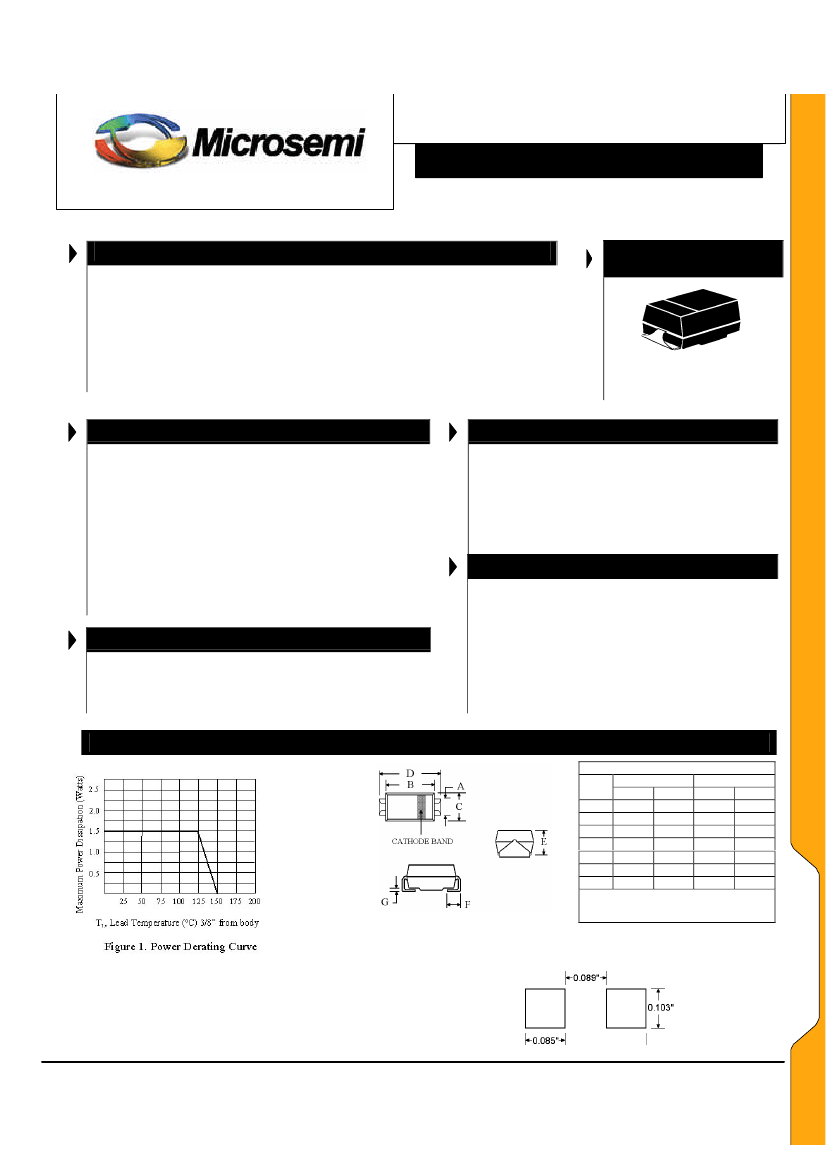

SMAJ4460 thru SMAJ4496

and SMAJ6485 thru SMAJ6491

1.5 Watt Zener Diodes

SCOTTSDALE DIVISION

DESCRIPTION

This 1.5 watt zener series in a low-profile light-weight plastic surface mount

configuration, with stress-relief J-bend contacts, meets or exceeds the electrical

performance of the 1N4460 thru 1N4496 and 1N6485 thru 1N6491. It also provides

double the overall surge performance by using a larger active die element. This

includes ESD protection per IEC61000-4-2, EFT protection per IEC61000-4-4, and

higher surge levels defined herein. The low-flat profile provides easier insertion or

automatic handling compared to other MELF style packages. Its thermally efficient

design lowers junction temperatures and extends operating temperature range

before derating begins. Power derates to zero at 150°C for these plastic packages.

IMPORTANT:

For the most current data, consult

MICROSEMI’s

website:

http://www.microsemi.com

SURFACE MOUNT

ZENER

W W W .

Microsemi

C O M

DO-214BA or AC

(SMAJ)

FEATURES

•

Zener voltages: 3.3 volts to 200 volts

Metallurgically bonded

Reliability data per JESD22-A108, JESD22-A104,

JESD22-A113-B, JESD22-A101-B, and JESD22-A102

Thermally efficient surface mount with J-bends for

stress relief (flat handling surface for easier placement)

Options for screening in accordance with MIL-PRF-

19500/406 for JAN, JANTX, JANTXV, and JANS are

available by adding MQ, MX, MV, or MSP prefixes

respectively to part numbers. For example, designate a

MXSMAJ4460 for a JANTX screen.

A P P L I C A T I O N S / B E N E FI T S

•

For high reliability voltage regulation in low profile

surface mount locations requiring easy

placement and strain relief

•

Light weight for airborne or satellite applications

•

Superior surge quality to protect from ESD and

EFT transients per IEC61000-4-2 and -4-4 and

higher surge levels defined herein

MECHANICAL AND PACKAGING

•

Molded epoxy package meets UL94V-0

•

Terminals: solderable per MIL-STD-750

Method 2026. (max 260 °C for 10 sec.)

•

Body marked with P/N without SMAJ letters

(ie. 4460, 4496, 6485, 4460, etc.)

•

Polarity is indicated by cathode band

•

Weight: 0.064 grams (approximate)

•

Tape & Reel packaging per EIA-481-2 with 12

mm tape and 2500 units per reel (13 inch reel)

MAXIMUM RATINGS

•

Operating temperature: -55°C to +150°C

Storage temperature: -55°C to +150°C

1.5 watt steady-state maximum power

Thermal resistance, R

?JL

= 15 °C/W

POWER DERATING – OUTLINE – MOUNTING PAD

DIM

DIMENSIONS

MILLIMETERS

INCHES

MIN

MAX

MIN

MAX

.052

.103

1.32

2.62

.160

.180

4.06

4.57

.100

.110

2.54

2.79

.194

.216

4.93

5.49

.078

.115

1.98

2.92

.030

.060

0.76

1.52

.005

0.13

SMAJ4460 – SMAJ4496 &

SMAJ6485 – SMAJ6491

DIMENSION A IS WITHIN DO-214BA BUT HIGHER THAN

STANDARD JEDEC OUTLINES..DIMENSION B IS WIDER

THAN BOTH JEDEC OUTLINES FOR LOWER THERMAL

RESISTANCE

Outline

Mounting Pad

2001

MSCXXXX.PDF 4-07-03 REV A

Microsemi

Page 1

Scottsdale Division

8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
