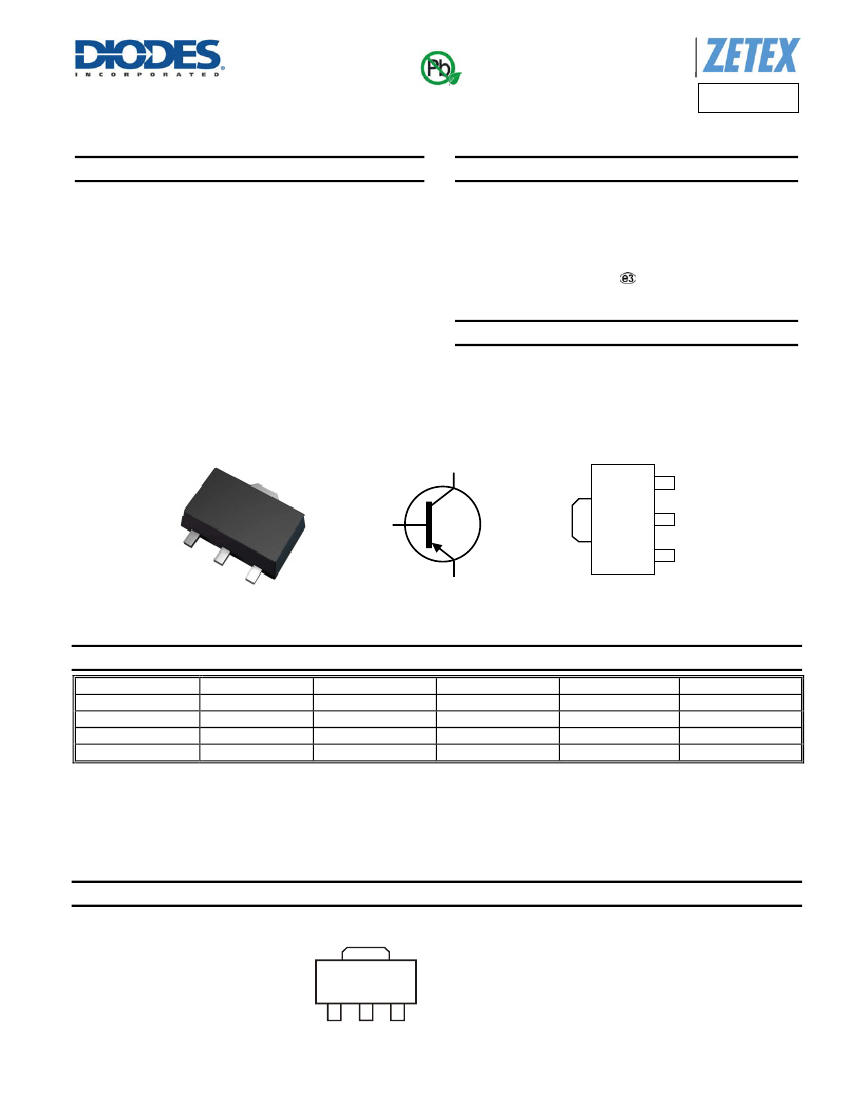

40V PNP HIGH GAIN LOW SATURATION MEDIUM POWER TRANSISTOR IN SOT89
Features
BV
CEO
> -40V
I
C
= -5.5A High Continuous Current
I
CM
= -15A Peak Pulse Current
R
CE(SAT)
= 29mΩ for a low equivalent On-Resistance
Low Saturation Voltage V
CE(SAT)
< -60mV @ -1A
h
FE
Specified Up to -10A for High Current Gain Hold Up
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
Case: SOT89
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.05 grams (Approximate)
Applications
Charging Circuits
DC-DC Converters
MOSFET and IGBT Gate Driving
Power Switches
Motor Control
SOT89
C
E
B
C
C
B
E
Top View
Device Symbol
Top View
Pin Out
Ordering Information
(Note 5)
Product
ZX5T3ZTA
ZX5T3ZQTA
ZX5T3ZTC
ZX5T3ZQTC
Notes:
Compliance
AEC-Q101
Automotive
AEC-Q101
Automotive
Marking
53Z
53Z
53Z
53Z
Reel Size (inches)
7
7
13
13
Tape Width (mm)
12
12
12
12
Quantity per Reel
1,000
1,000
4,000
4,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
