LFSPXO072882BULK datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO072882BULK

LFSPXO072882BULK: DescriptionCMOS Output Clock Oscillator, 24.576MHz Nom; CategoryPassive components oscillator; File Size319KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO072882BULK Overview

CMOS Output Clock Oscillator, 24.576MHz Nom

LFSPXO072882BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8340352759
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	24.576 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	5.2mm x 3.4mm x 1.3mm
longest rise time	10 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

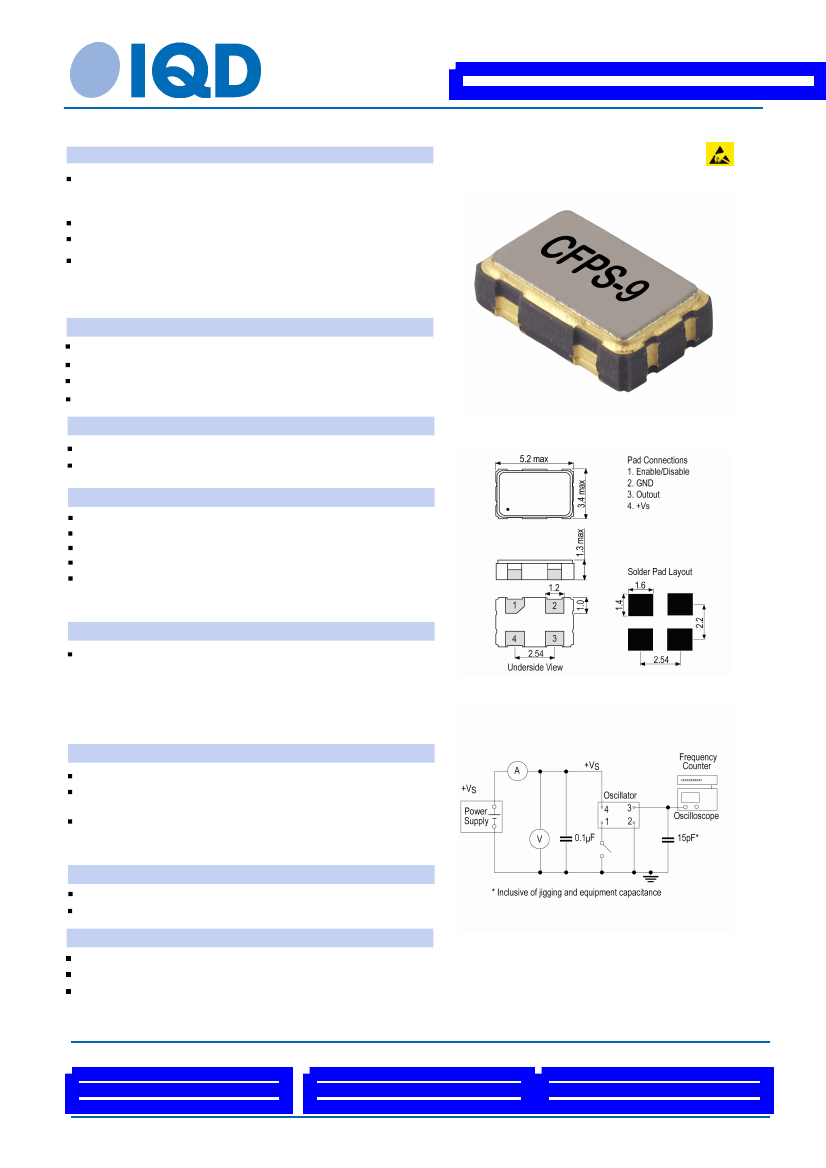

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO072882Bulk

Customer Part:

Description

5 x 3.2mm crystal oscillator

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-9

Model Issue number

Note: please be aware that devices supplied against this model

may show slight cosmetic differences depending upon the

frequency and specification, however all electrical details

remain as per the model specification.

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

24.5760MHz

±100.00ppm

-40.00 to 85.00°C

±3ppm max per year @ 25°C

Outline (mm)

Supply Voltage

Current Draw

Output Details

3.3V ±0.3V

20.000mA

CMOS

Output Compatibility

Drive Capability

15pF max

10.0ns max

Rise and Fall Time

40/60%

Duty Cycle

Start up time: 10ms max

0.8ms typ to 90% of final amplitude (under ideal conditions @

25°C)

Output Control

Enable/Disable Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10µA max, 0.9µA typ @25°C

Environmental Parameters

Test Circuit

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260°C 10s max

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Compliant

Not Applicable

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 23 Dec 21 9:41 using Part Data Sheet V1.0018
