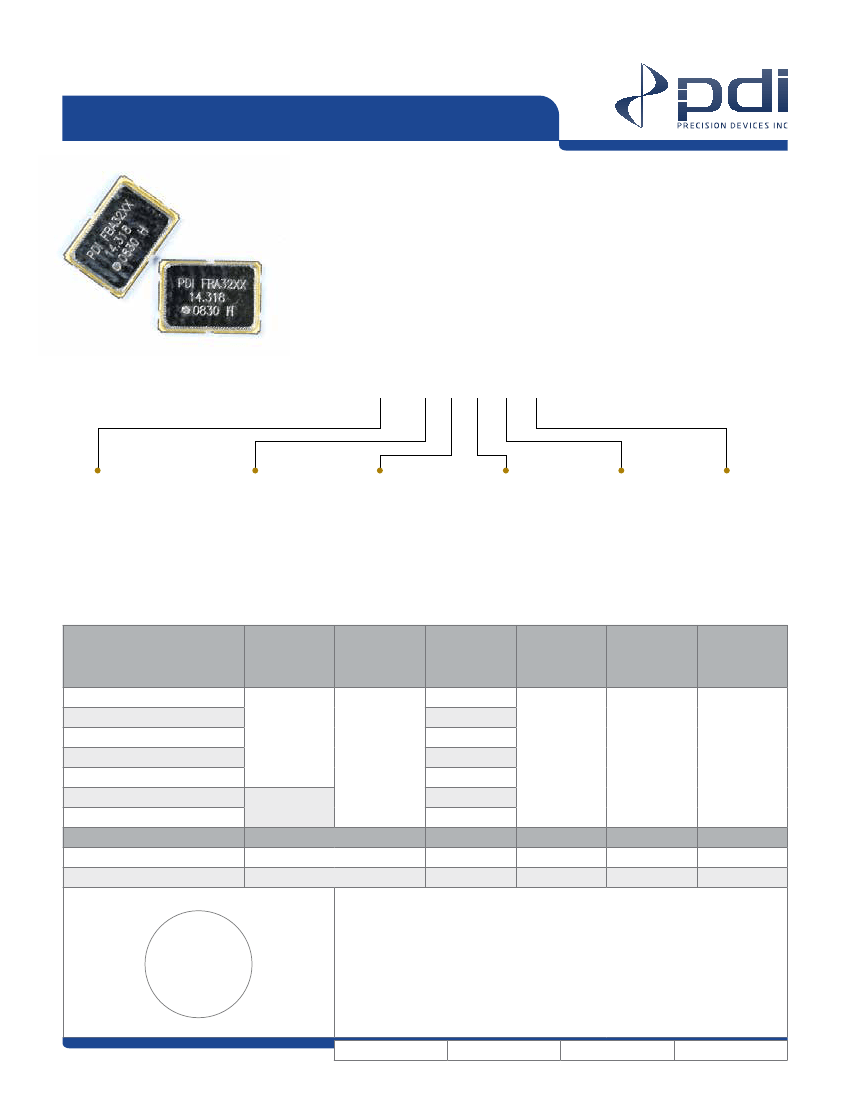

C7-Series Specifications
7.00L
x 5.00W x 1.30H
(mm)
PDI
C7-Series
is a hermetically sealed quartz crystal in a seam-welded ceramic
SMT package. This crystal, designed to meet your most demanding specification,
is available in standard or custom frequencies and/or with customized parameters.
PDI provides quick-turn sampling for your proto-typing needs, mass production
capability, and competitive pricing.
ex)
C7—25000X—F—C—D—08—R—X
*
FREQUENCY
06000X – 99999X
=
6.000MHz – 99.999MHz
C10000 – C15000
=
100.000MHz – 150.000MHz
MODE
F
= Fundamental
3
= 3rd Overtone
TOTAL
TOLERANCE
B
= +/-25
(Temp A & B)
C
= +/-50
D
= +/-100
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
E
= -55 to +125°C
S
= Special
(C0)-Shunt
Capacitance
pF (Max)
LOAD
08-99
= pF
SE =
Series
PACKAGE
R
= Tape & Reel
*(X) for standard or assigned for custimization.
Frequency Range – MHz
6.000000 to 7.999999
8.000000 to 9.999999
10.000000 to 11.999999
12.000000 to 15.999999
16.000000 to 80.000000
40.000000 to 83.999999
84.000000 to 150.000000
Operating
Mode
(CL)-Load
Capacitance
ESR
Ω (Max)
120
100
Drive Level
uW (Typ)
Insulation
Resistance
Fundamental
8.0 pF
to
Series
80
60
40
70
60
7.0
100.0
500 MΩ
Minimum
at 100 Vdc
3rd Overtone
Parameter
Storage Temperature
Aging
EE
N
P
ROD
U
Conditions
Per Year (±3.0 ppm Option)
Min
-55
-5.0
Typ
Max
+125
+5.0
Unit
°C
ppm
Compliant
EU 2002/95/EC
e
c
,
i
s
i
o
n
D
e
v
i
c
e
s
RoHS
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Not all Frequency/Temperature combinations are available.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
A
GR
I
n
c
.
CT
P
r
1
of
3
C7-Series
7.00 x 5.00 x 1.30
(mm)
PDI
C7-Series
is a hermetically sealed quartz crystal in a seam-welded
ceramic SMT package. This crystal, designed to meet your most demanding
specification, is available in standard or custom frequencies and/or
with customized parameters. PDI provides quick-turn sampling for your
proto-typing needs, mass production capability, and competitive pricing.

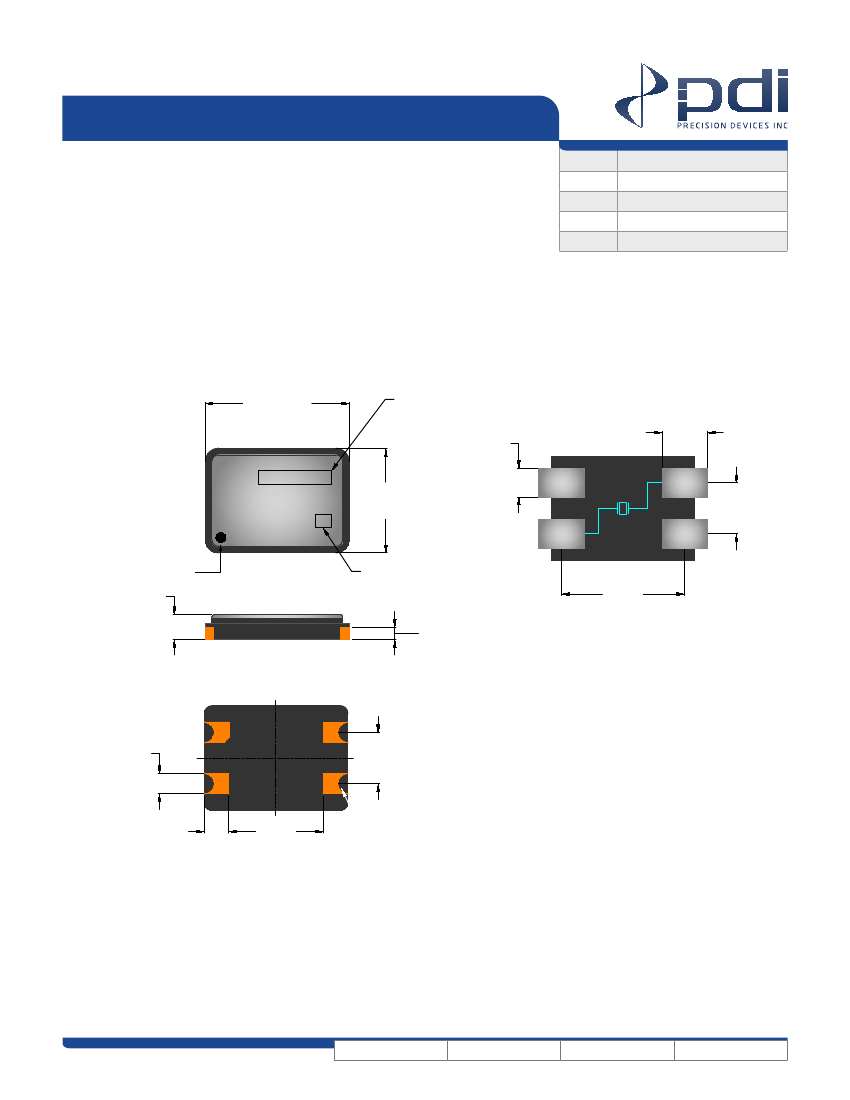

PIN
1
2
3
4
CONNECTION
Crystal
Ground/Cover
Crystal
Ground/Cover
Top View
.275 ±.008
[7.00 ±.20]
Last 7 digits of
PDI part number
.055
[1.40]
Recommended Land Pattern
(Top View)
.087
[2.20]
PDI
Frequency
Date Code
Pin #1
.051±.008
[1.30±.20]
.200 ±.008
[5.10 ±.20]
.098
[2.50]
Traceability Code
Metal
Pin #1
.236
[6.00]
.018±.008
[.45±.02]
Ceramic
.039
[1.00]
#1
#4
.100
[2.54]
#2
#3
.047
[1.20]
.181
[4.60]
Bottom View
.012 R
[.30R]
4 Places
REV:
NA
SIZE:
A
CAGE:
A
2
of
3
C7-Series
7.00 x 5.00 x 1.30
(mm)

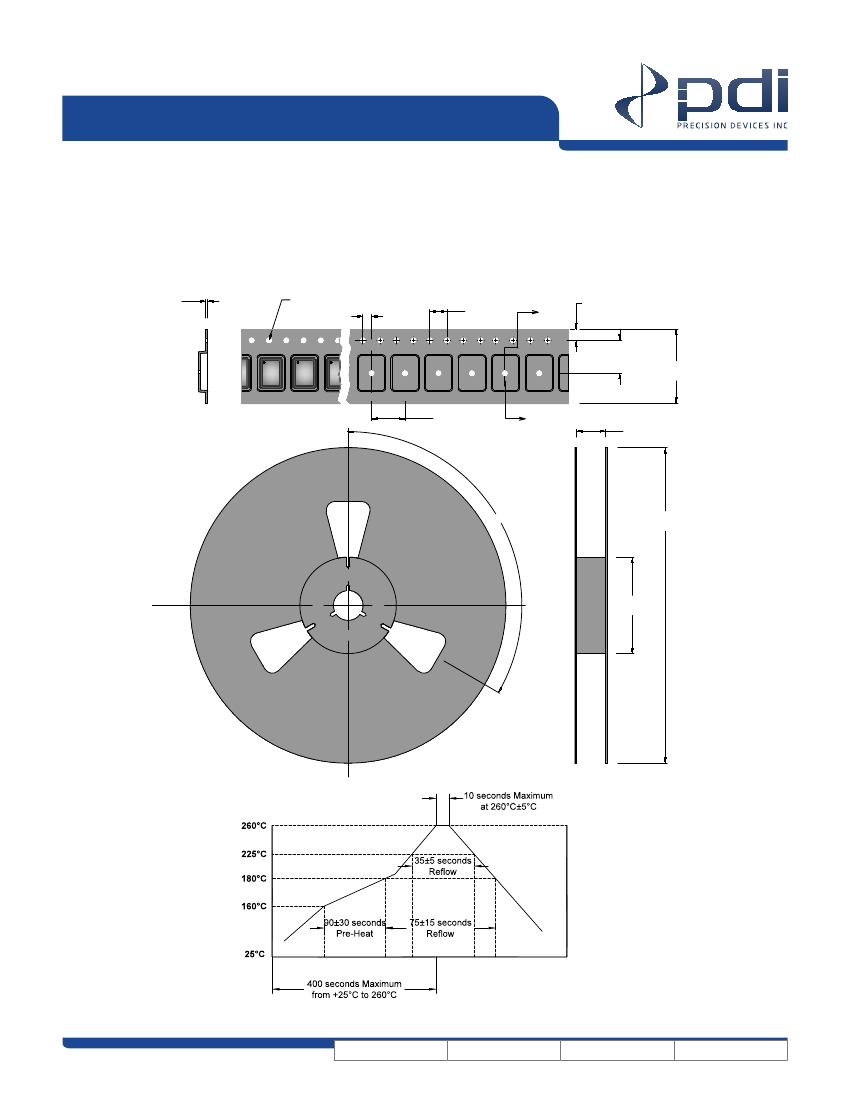

1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008
3.
Camber in compliance with EIA 481
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.079
[2.00]
.157 Typ.
[4.00 Typ.]
A
.069
[1.75]
.295
[7.50]
D/C P
P FKA
.530 ±.012
[16.00 ±.30]
D/C P
P FKA
D/C P
Section A-A
.315 Typ.
[8.00 Typ.]
A
.538
[16.20]
120°
Ø7.09
[Ø180.00]
3.15
[80.00]
REV:
NA
SIZE:
A
CAGE:
A
3
of
3
