3329S-1-204A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3329S-1-204A

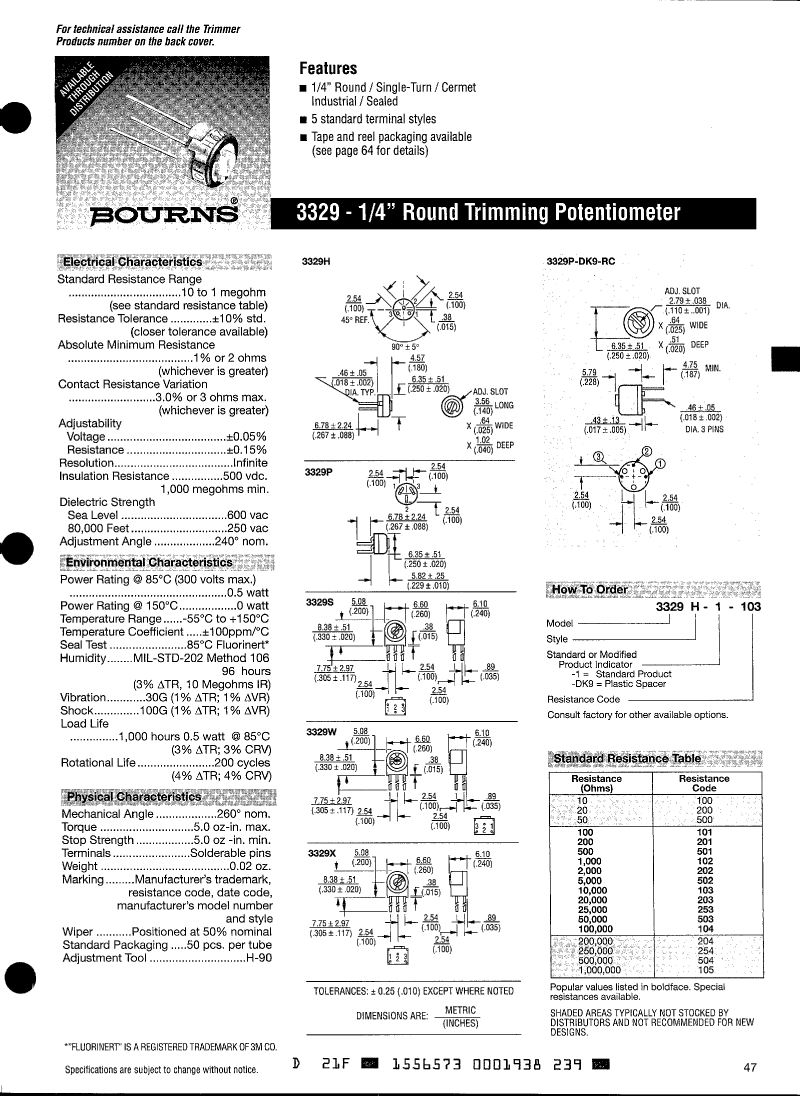

3329S-1-204A: DescriptionPotentiometer, Cermet, 0.5W, 200000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,; CategoryPassive components The resistor; File Size158KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

3329S-1-204A Overview

Potentiometer, Cermet, 0.5W, 200000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,

3329S-1-204A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	838792178
Reach Compliance Code	not_compliant
structure	Sealed
JESD-609 code	e0
Lead diameter	0.43 mm
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package diameter	6.6 mm
Package length	6.1 mm
Package form	PCB Mount
Rated power dissipation(P)	0.5 W
Guideline	MIL-R-22097; MIL-R-39035
resistance	200000 Ω
Resistor type	POTENTIOMETER
rotation angle	240 deg
series	3329
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Tolerance	10%
Operating Voltage	0.5 V

Preview

Download Datasheet

View All

3329S-1-204A Related Products

	3329S-1-204A	3329P-1-204A	3329P-DK9-204A	3329W-1-204A	3329X-1-204A	3329H-1-203A	3329P-1-203A	3329S-1-203A	3329X-1-203A	3329W-1-253A
Description	Potentiometer, Cermet, 0.5W, 200000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 200000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 200000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 200000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 200000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 20000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 20000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 20000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 20000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,	Potentiometer, Cermet, 0.5W, 25000ohm, 0.5V, 10% +/-Tol, -100,100ppm/Cel,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Objectid	838792178	838792177	838792182	838792179	838792180	838792136	838792137	838792138	838792140	838792149
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
structure	Sealed	Sealed	Sealed	Sealed	Sealed	Sealed	Sealed	Sealed	Sealed	Sealed
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Lead diameter	0.43 mm	0.43 mm	0.43 mm	0.43 mm	0.43 mm	0.43 mm	0.43 mm	0.43 mm	0.43 mm	0.43 mm
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package diameter	6.6 mm	6.35 mm	6.35 mm	6.6 mm	6.6 mm	6.35 mm	6.35 mm	6.6 mm	6.6 mm	6.6 mm
Package length	6.1 mm	5.79 mm	5.79 mm	6.1 mm	6.1 mm	4.57 mm	5.79 mm	6.1 mm	6.1 mm	6.1 mm
Package form	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Rated power dissipation(P)	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Guideline	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035	MIL-R-22097; MIL-R-39035
resistance	200000 Ω	200000 Ω	200000 Ω	200000 Ω	200000 Ω	20000 Ω	20000 Ω	20000 Ω	20000 Ω	25000 Ω
Resistor type	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
rotation angle	240 deg	240 deg	240 deg	240 deg	240 deg	240 deg	240 deg	240 deg	240 deg	240 deg
series	3329	3329	3329	3329	3329	3329	3329	3329	3329	3329
technology	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET
Temperature Coefficient	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%	10%
Operating Voltage	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
